Nissan Rogue. Manual - part 1057

COMPONENT PARTS

SEC-7

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SEC

SYSTEM DESCRIPTION

COMPONENT PARTS

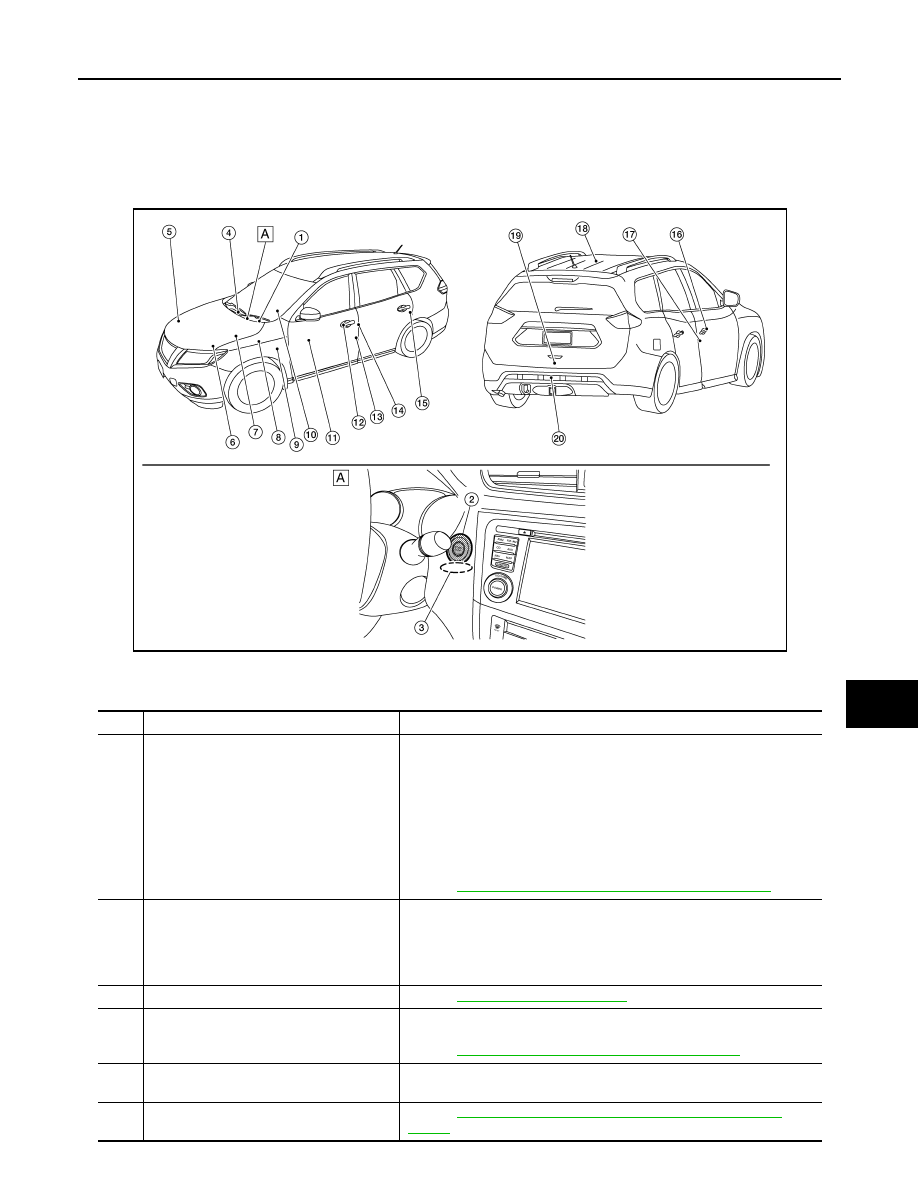

Component Parts Location

INFOID:0000000011278438

A. View right of steering column.

No.

Component

Function

Combination meter

Combination meter transmits the vehicle speed signal to BCM via CAN
communication.
BCM also receives the vehicle speed signal from ABS actuator and elec-
tric unit (control unit) via CAN communication. BCM compares both sig-
nals to detect the vehicle speed.
Security indicator lamp is located on combination meter.
Security indicator lamp blinks when ignition switch is in any position other
than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS
[NVIS (NATS)] is on board.
Refer to

MWI-6, "METER SYSTEM : Component Parts Location"

Push-button ignition switch

Push-button ignition switch has push switch inside which detects that
push-button ignition switch is pressed, and then transmits ON/OFF signal
to BCM. BCM changes the ignition switch position with the operation of
push-button ignition switch. BCM maintains the ignition switch position
status while push-button ignition switch is not operated.

NATS antenna amp.

Refer to

SEC-9, "NATS Antenna Amp."

Inside key antenna (instrument center)

Inside key antenna (instrument center) detects whether Intelligent Key is
inside the vehicle or not, and then transmits the signal to the BCM.
Refer to

DLK-21, "Inside Key Antenna (Instrument Center)"

Horn

Horn is operated when the panic button on the Intelligent Key is pressed
or the alarm is activated.

Transmission range switch

Refer to

TM-14, "CVT CONTROL SYSTEM : Transmission Range

Switch"

ALKIA3683ZZ

2015 Rogue NAM

SEC-8

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

IPDM E/R

Refer to

PCS-6, "Component Parts Location"

Stop lamp switch

Refer to

BRC-10, "Stop Lamp Switch"

BCM

BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNC-
TION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)]
and VEHICLE SECURITY SYSTEM.
BCM performs the ID verification between BCM and Intelligent Key when
the Intelligent Key is carried into the detection area of inside key antenna,
and push-button ignition switch is pressed. If the ID verification result is
OK, ignition switch operation is available.
Then, when the ignition switch is turned ON, BCM performs ID verification
between BCM and ECM. If the ID verification result is OK, ECM can start
engine.
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Loca-

tion"

for detailed installation location.

10.

CVT shift selector

Refer to

TM-20, "SHIFT LOCK SYSTEM : Component Parts Location"

11.

Main power window and door lock/unlock
switch (Front power window and door lock/
unlock switch RH similar)

Door lock and unlock switch is integrated into the main power window and
door lock/unlock switch.
Door lock and unlock switch transmits door lock/unlock operation signal to
BCM.
Refer to

PWC-7, "Main Power Window And Door Lock/Unlock Switch"

12.

Outside key antenna LH

Outside key antenna (LH) detects whether Intelligent Key is outside the
vehicle or not, and then transmits the signal to the BCM.
Refer to

DLK-22, "Outside Key Antenna (LH)"

13.

Front door lock assembly LH

Door key cylinder switch is integrated into front door lock assembly (driver
side).
Door key cylinder switch detects door LOCK/UNLOCK operation using
mechanical key, and then transmits the operation signal to BCM.
Refer to

DLK-24, "Front Door Lock Assembly (LH)"

14.

Front door switch LH

Door switch detects door open/close condition and then transmits ON/
OFF signal to BCM.

15.

Rear door switch LH (rear door switch RH
similar)

Door switch detects door open/close condition and then transmits ON/
OFF signal to BCM.

16.

Outside key antenna RH

Outside key antenna (RH) detects whether Intelligent Key is outside the
vehicle or not, and then transmits the signal to the BCM.
Refer to

DLK-22, "Outside Key Antenna (RH)"

17.

Front door switch RH

Door switch detects door open/close condition and then transmits ON/
OFF signal to BCM.

18.

Inside key antenna (console)

Inside key antenna (console) detects whether Intelligent Key is inside the
vehicle or not, and then transmits the signal to the BCM.
Refer to

DLK-22, "Inside Key Antenna (Console)"

19.

Back door lock assembly

Back door lock actuator locks/unlocks the back door latch assembly.

20.

Outside key antenna (rear bumper)

Outside key antenna (Rear bumper) detects whether Intelligent Key is out-
side the vehicle or not, and then transmits the signal to the BCM.
Refer to

DLK-22, "Outside Key Antenna (Rear Bumper)"

No.

Component

Function

2015 Rogue NAM

COMPONENT PARTS

SEC-9

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SEC

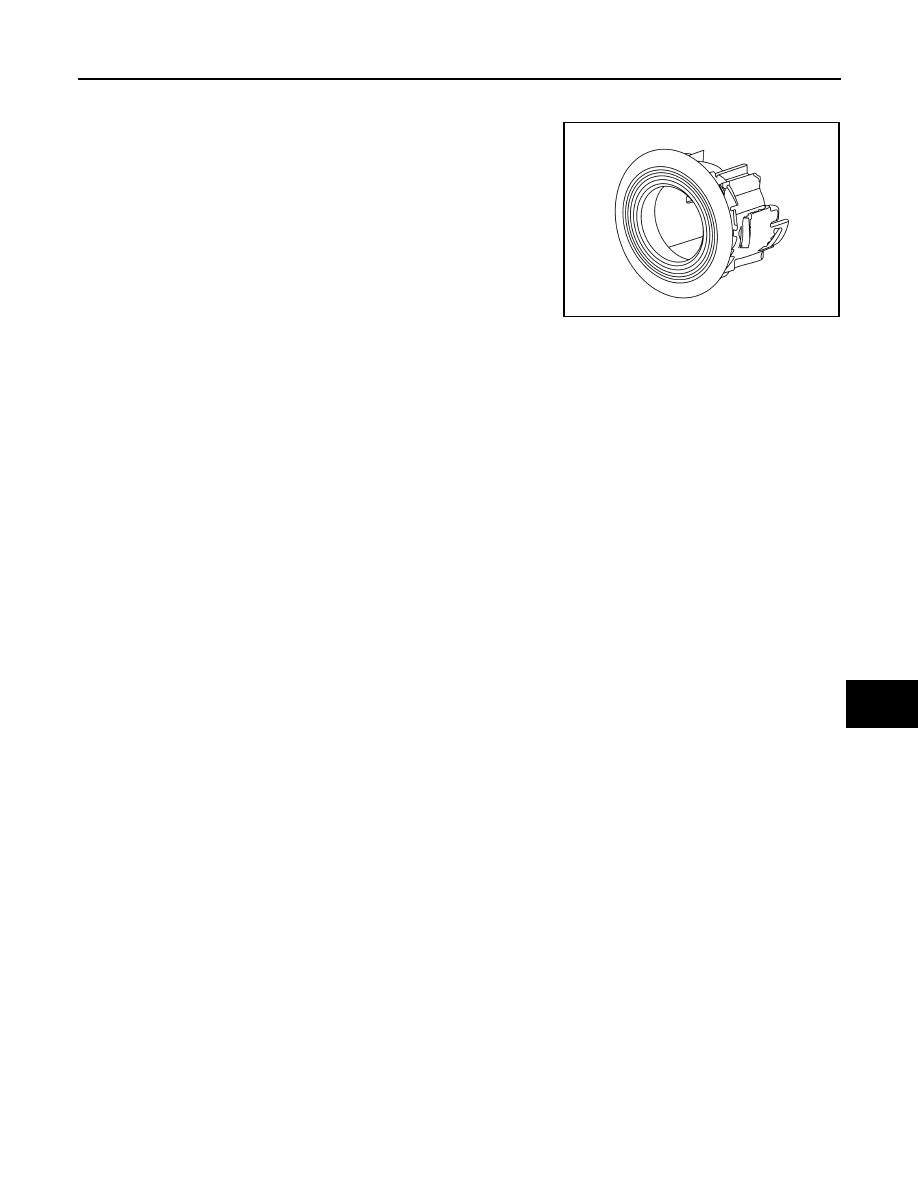

NATS Antenna Amp.

INFOID:0000000011278439

The ID verification is performed between BCM and transponder inte-

grated into Intelligent Key via NATS antenna amp. when Intelligent

Key backside is contacted to push-button ignition switch in case that

Intelligent Key battery is discharged. If the ID verification result is

OK, the operation of ignition switch is available.

JMKIB1434ZZ

2015 Rogue NAM

SEC-10

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

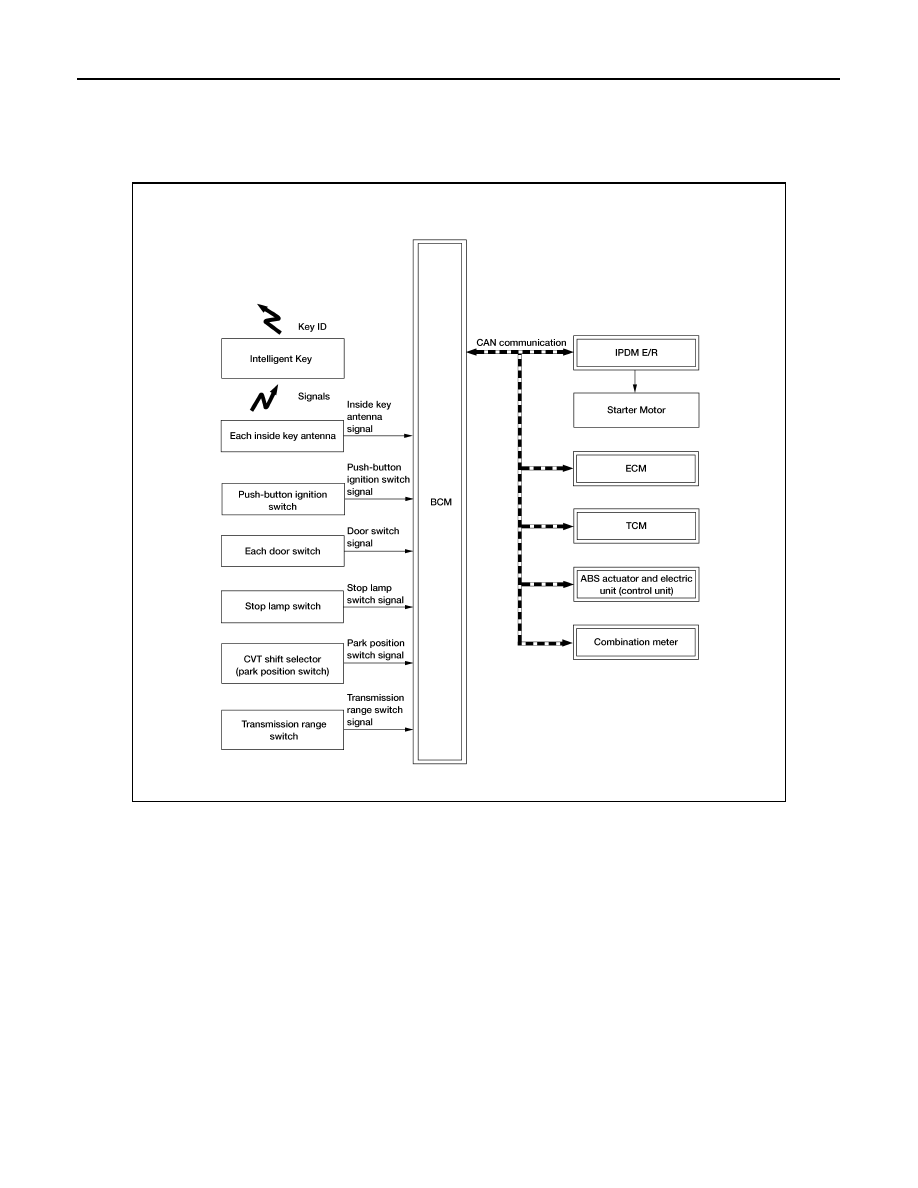

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION : System Diagram

INFOID:0000000011278441

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION : System Description

INFOID:0000000011278442

SYSTEM DESCRIPTION

• The engine start function of Intelligent Key system makes it possible to start and stop the engine without

using the key, based on the electronic ID verification. The electronic ID verification is performed between

BCM and Intelligent Key when the push-button ignition switch is pressed while the Intelligent Key is within

the detection area of inside key antenna.

NOTE:

The driver should carry the Intelligent Key at all times.

• Intelligent Key has 2 IDs [Intelligent Key ID and NVIS (NATS) ID]. It can perform the door lock/unlock opera-

tion and the push-button ignition switch operation when the registered Intelligent Key is carried.

• When Intelligent Key battery is discharged, engine can be started by operating push-button ignition switch

after contacting Intelligent Key backside to push-button ignition switch. At that time, the NVIS (NATS) ID ver-

ification is performed.

• If the ID is successfully verified, when push-button ignition switch is pressed, the engine can be started.

• Up to 4 Intelligent Keys can be registered (Including the standard Intelligent Key) upon request from the cus-

tomer.

ALKIA3671GB

2015 Rogue NAM
