SECOND ROW SEAT

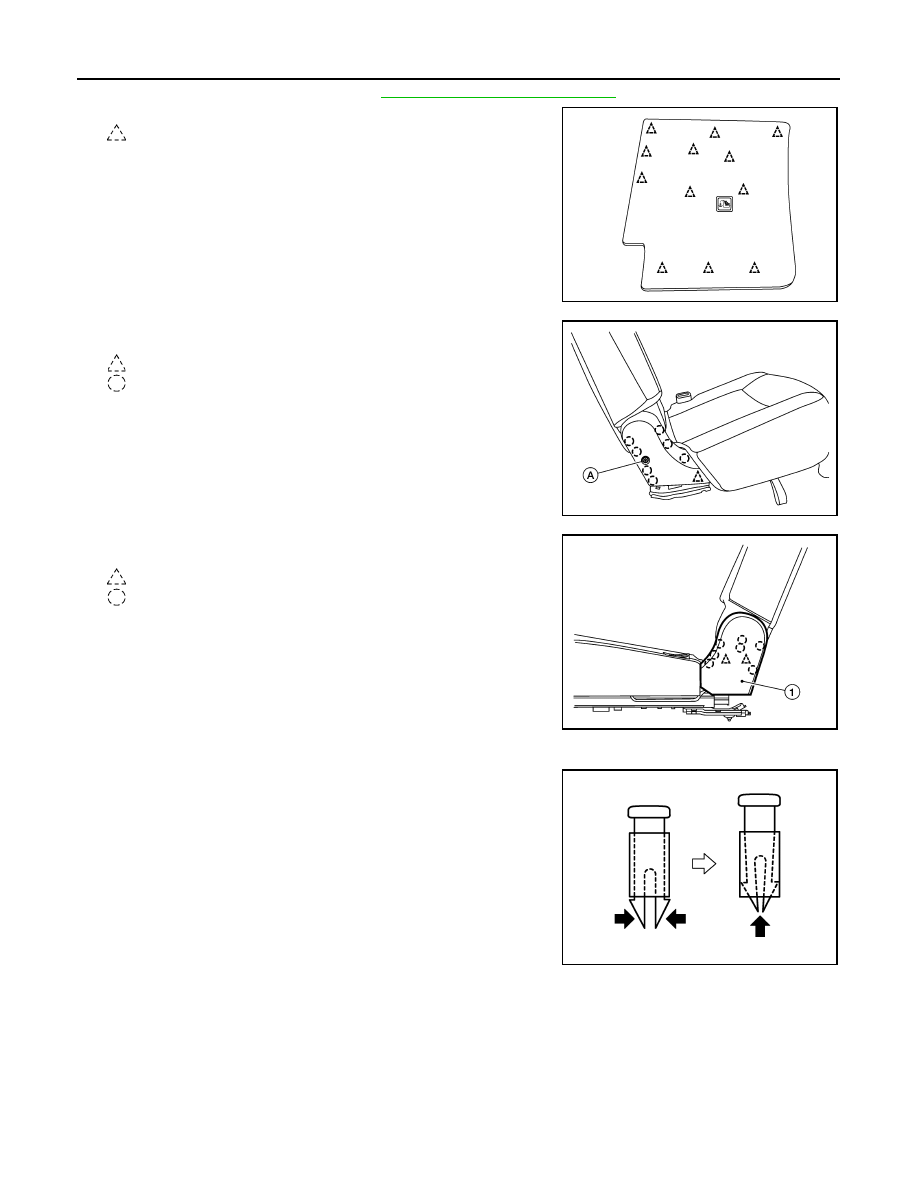

1. Remove second row seat RH. Refer to

SE-39, "Removal and Installation"

.

2. Using a suitable tool release clips and remove seatback board.

: Clip

3. Remove screw (A) then using a suitable tool release clips and

pawls and remove seat cushion outer finisher (RH).

: Clip
: Pawl

4. Using a suitable tool release clips and pawls and remove seat

cushion outer finisher (LH).

: Clip
: Pawl

5. Press headrest holder lock button, then lift headrest up and remove.
6. Reach up behind the seatback pad, release the headrest holder

locks as shown and remove the headrest holders.

CAUTION:

Before removing/installing headrest holder, check its orien-

tation (front/rear and right/left).

7. Release pawls and remove recline handle finisher.
8. Release J-hooks then release fasteners and remove seatback pad and seatback trim from seatback

frame.

ALJIA1455ZZ

ALJIA1447ZZ

ALJIA1458ZZ

PIIB4084J

SECOND ROW SEAT

SE-79

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

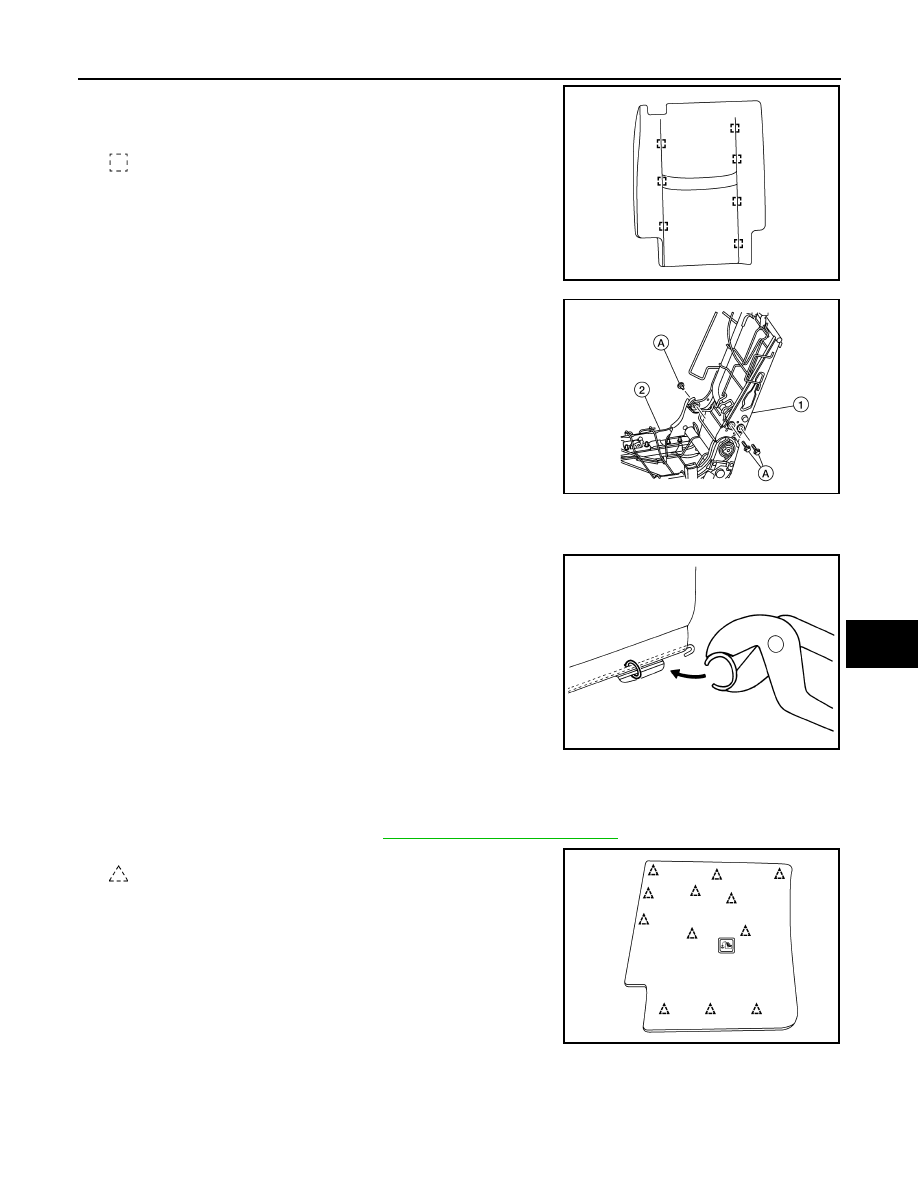

9. Remove hog rings, then separate seatback trim from seatback

pad.

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

10. Remove bolts (A) and seatback frame (1) from seat cushion

frame (2).

ASSEMBLY

Assembly is in the reverse order of disassembly.

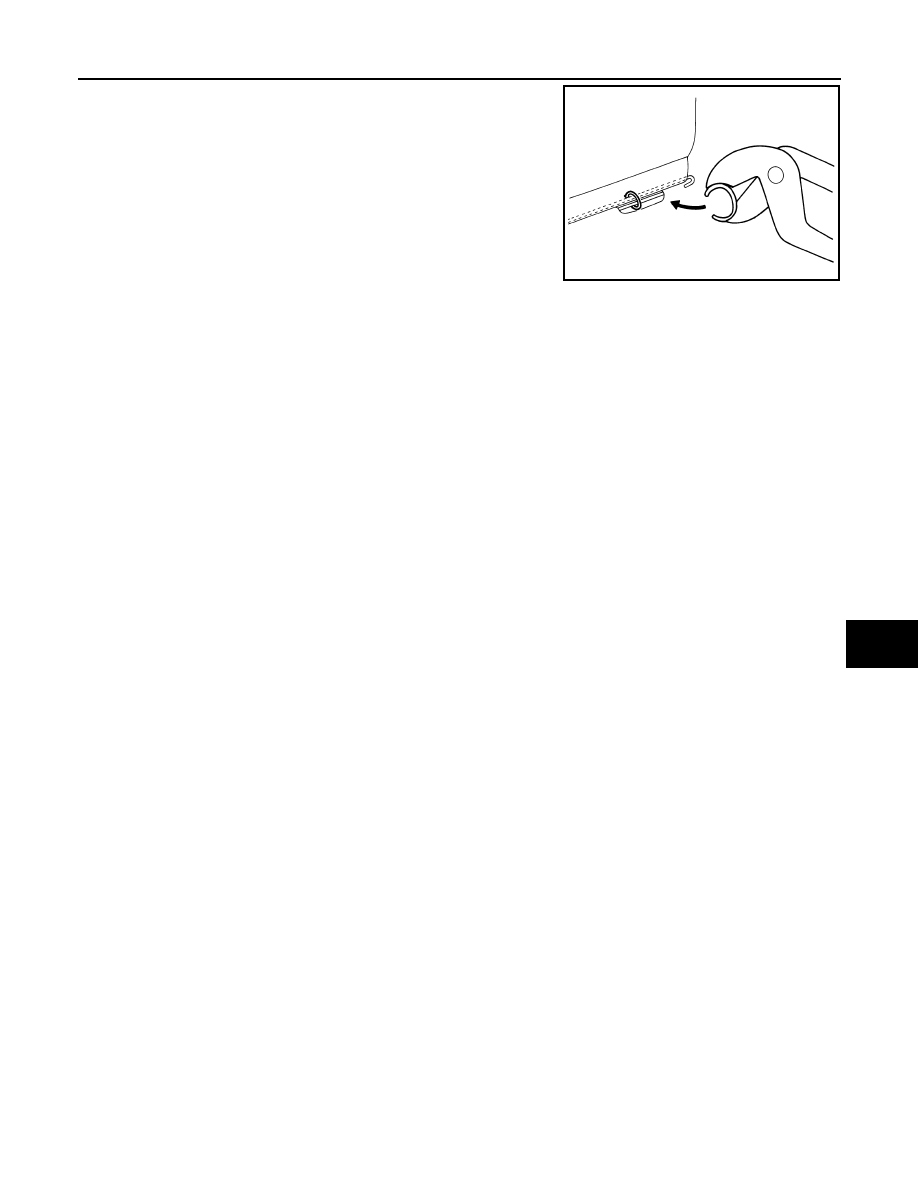

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Smooth out all wrinkles during assembly.

RH SEAT : Seat Cushion

INFOID:0000000011280477

DISASSEMBLY

1. Remove second row seat RH. Refer to

SE-39, "Removal and Installation"

.

2. Using a suitable tool release clips and remove seatback board.

: Clip

ALJIA1457ZZ

ALJIA1465ZZ

PIIB3356J

ALJIA1455ZZ

SE-80

< UNIT DISASSEMBLY AND ASSEMBLY >

SECOND ROW SEAT

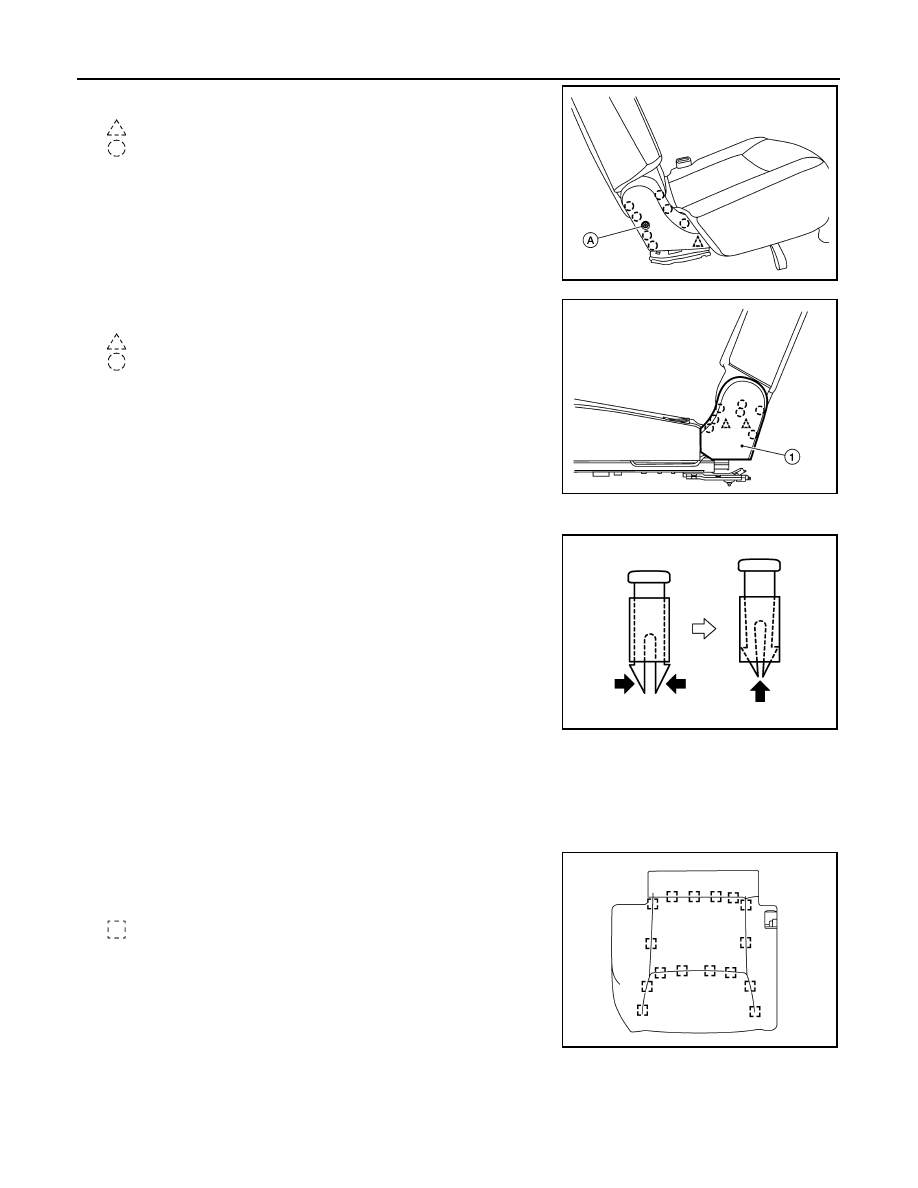

3. Remove screw (A) then using a suitable tool release clip and

pawls and remove seat cushion outer finisher (RH).

: Clip
: Pawl

4. Using a suitable tool release clips and pawls and remove seat

cushion outer finisher (LH) (1).

: Clip
: Pawl

5. Press headrest holder lock button, then lift headrest up and remove.
6. Reach up behind the seatback pad, release the headrest holder

locks as shown and remove the headrest holders.

CAUTION:

Before removing/installing headrest holder, check its orien-

tation (front/rear and right/left).

7. Release pawls and remove recline handle finisher.
8. Release J-hooks then release fasteners and remove seatback pad and seatback trim from seatback

frame.

9. Route seat belt buckle through seat cushion.
10. Release J-hooks and remove the seat cushion pad and seat cushion trim.
11. Remove hog rings, then separate seat cushion trim from seat

cushion pad.

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

ASSEMBLY

Assembly is in the reverse order of disassembly.

ALJIA1447ZZ

ALJIA1458ZZ

PIIB4084J

ALJIA1456ZZ

SECOND ROW SEAT

SE-81

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Smooth out all wrinkles during assembly.

PIIB3356J
