SE-34

< REMOVAL AND INSTALLATION >

FRONT SEAT

MANUAL SEAT

16. Occupant classification system

sensor

17. Occupant classification sys-

tem control unit

18. Occupant classification system

bracket

19. Wiring harness bracket

20. Power seat switch

21. Seat cushion outer finisher (RH)

22. Seat slide knob

23. Seat recline knob

24. Seat cushion inner finisher (RH)

25. Seat cushion rear finisher (RH)

26. Side air bag module (not ser-

viceable)

27. Seat cushion frame

28. Seat belt buckle

29. Seat cushion rear finisher (LH) 30. Seatback frame

31. Seatback bracket

32. Headrest holder (locked)

33. Headrest holder (free

AWJIA1617ZZ

FRONT SEAT

SE-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PASSENGER SIDE : Removal and Installation

INFOID:0000000011280454

REMOVAL

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to

personal injury if the side air bag module should accidentally deploy.

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag module to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, the front seatback assembly must be replaced.

• When removing and installing the seat, use shop cloths to protect components from damage.

• Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables then

wait at least three minutes.

1. Slide the seat to the full rearward position.
2. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

3. Disconnect harness connector from side air bag module.
4. Remove front bolts.
5. Connect negative and positive battery terminals, then slide the seat to the full forward position. Refer to

PG-80, "Removal and Installation"

 (power seat only).

6. Slide the seat to the full forward position.
7. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

 (power seat only).

8. Remove rear bolts.
9. Tilt the seat rearward and disconnect the harness connectors from the seat.

NOTE:

Take note of harness routing and attachment locations for correct installation.

10. Remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

• Perform additional services when installing front passenger seat. Refer to

SRC-41, "ADDITIONAL

SERVICE WHEN REPLACING CONTROL UNIT : Description"

.

• Zero point reset must be performed every time the front passenger seat is removed from the vehicle.

• Zero point reset is done after the front passenger seat is installed in vehicle and all bolts are tight-

ened to specification.

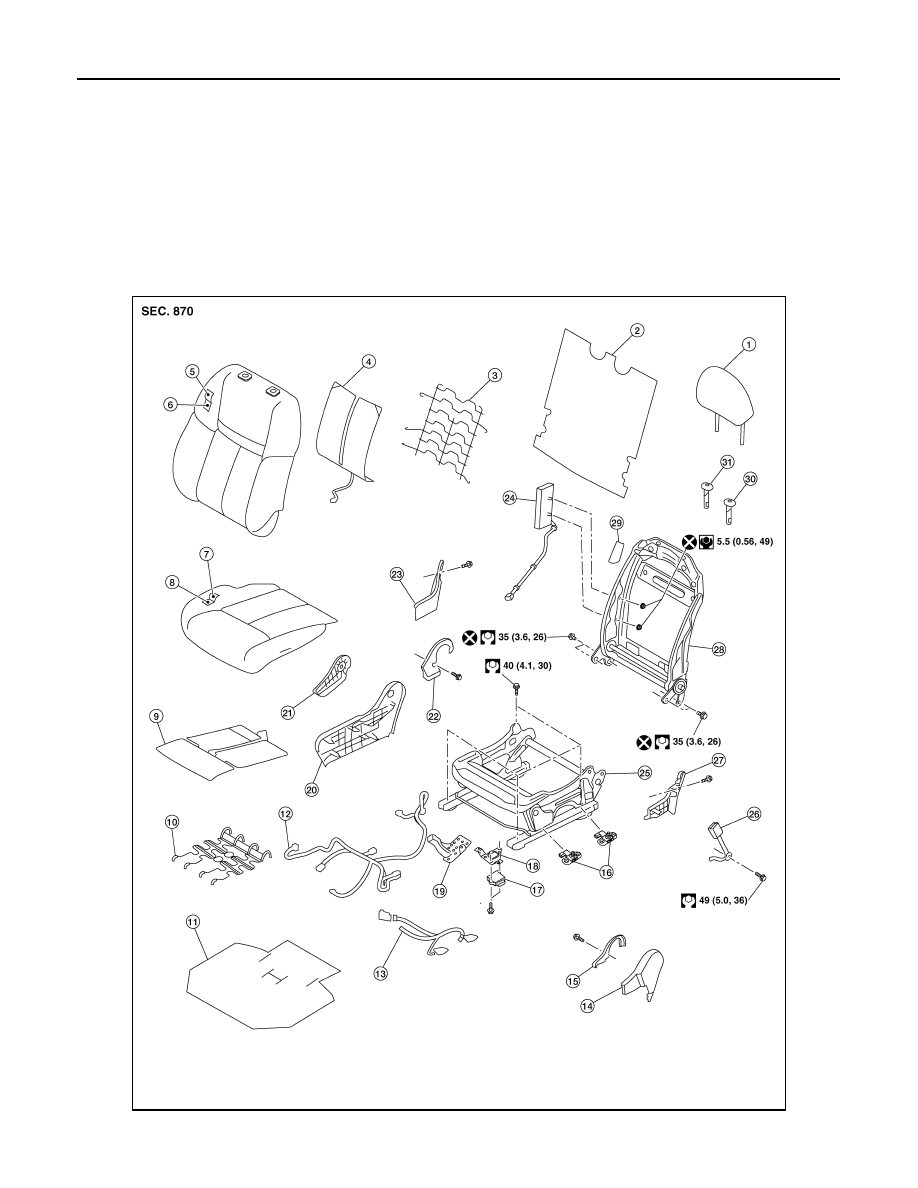

1.

Headrest

2.

Seatback board

3.

Seatback support

4.

Seatback heater (if equipped)

5.

Seatback trim

6.

Seatback pad

7.

Seat cushion trim

8.

Seat cushion pad

9.

Seat cushion heater (if
equipped)

10. Seat cushion support

11. Seat cushion silencer

12. Seat harness

13. Occupant classification system

harness

14. Seat cushion outer finisher

(LH)

15. Seat cushion inner finisher (LH)

16. Occupant classification system

sensor

17. Occupant classification sys-

tem control unit

18. Occupant classification system

control unit bracket

19. Wiring harness bracket

20. Seat cushion outer finisher

21. Recline lever

22. Seat cushion inner finisher (RH) 23. Seat cushion rear finisher

(RH)

24. Side air bag module (not service-

able)

25. Seat cushion frame

26. Seat belt buckle

27. Seat cushion rear finisher (LH)

28. Seatback frame

29. Seatback bracket

30. Headrest holder (free)

31. Headrest holder (locking)

SE-36

< REMOVAL AND INSTALLATION >

FRONT SEAT

CAUTION:

Make sure that the seat harness or the floor carpet is not damaged during installation.

NOTE:

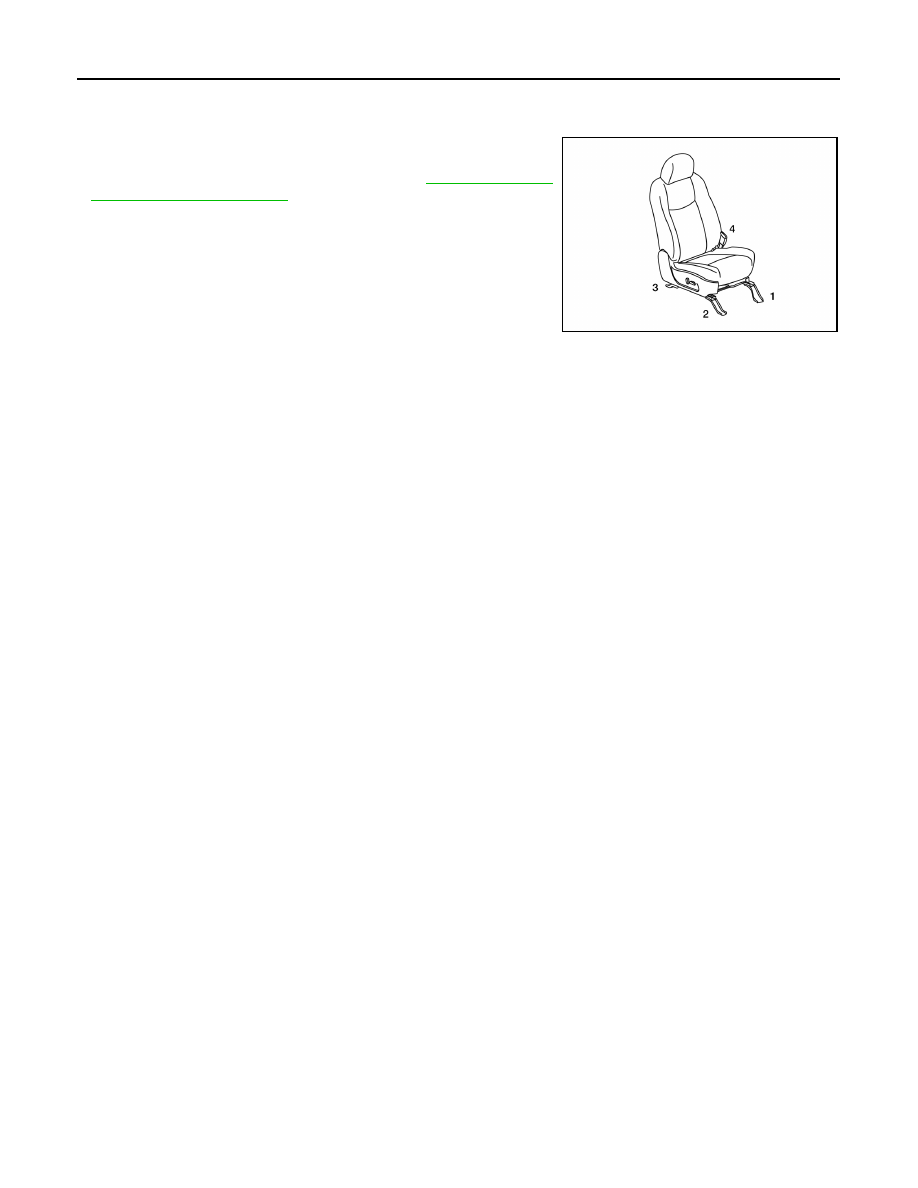

• When installing the front seat (RH), tighten the bolts in the order

shown.

• Tighten the seat bolts to specification. Refer to

SE-33, "PASSEN-

GER SIDE : Exploded View"

.

ALJIA0789ZZ

SECOND ROW SEATS

SE-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

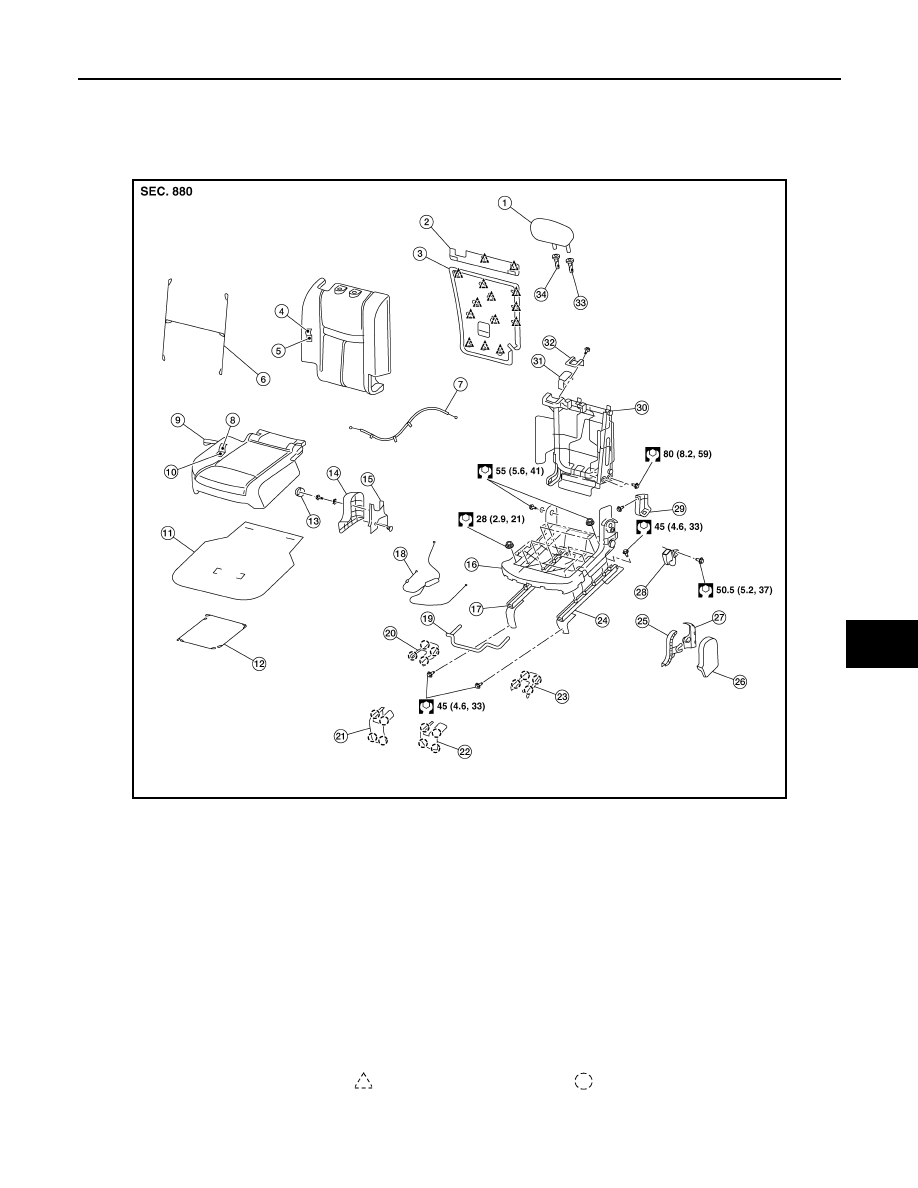

SECOND ROW SEATS

Exploded View

INFOID:0000000011280455

RH SEAT

AWJIA1618ZZ

1.

Headrest

2.

Seatback upper luggage board

3.

Seatback luggage board

4.

Seatback trim

5.

Seatback pad

6.

Seatback pad wire

7.

Recline release cable

8.

Seat cushion trim

9.

Fold flat strap

10. Seat cushion pad

11. Seat cushion silencer

12. Seat cushion pad wire

13. Bolt cover

14. Seat cushion outer finisher (RH) 15. Seat cushion inner finisher (RH)

16. Seat cushion frame

17. Seat cushion frame

18. Seat cushion slide (RH)

19. Seat cushion slide cable

20. Rear bolt cover (RH) (with third

row seat)

21. Front bolt cover (RH)

22. Front bolt cover (LH)

23. Rear bolt cover (LH) (with third

row seat)

24. Seat cushion slide (LH)

25. Seat cushion inner finisher (LH) 26. Seat cushion outer finisher (LH) 27. Seat cushion rear finisher (LH)
28. Seat belt buckle

29. Recline lever finisher

30. Seatback frame

31. Recline device

32. Recline device cover

33. Headrest holder (locked)

34. Headrest holder (free)

Clip

Pawl
