AV-384

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000011277038

REMOVAL

1. Remove instrument panel. Refer to

IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and Installa-

tion"

.

2. Remove screw and the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

AV

ANTENNA BASE

AV-385

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

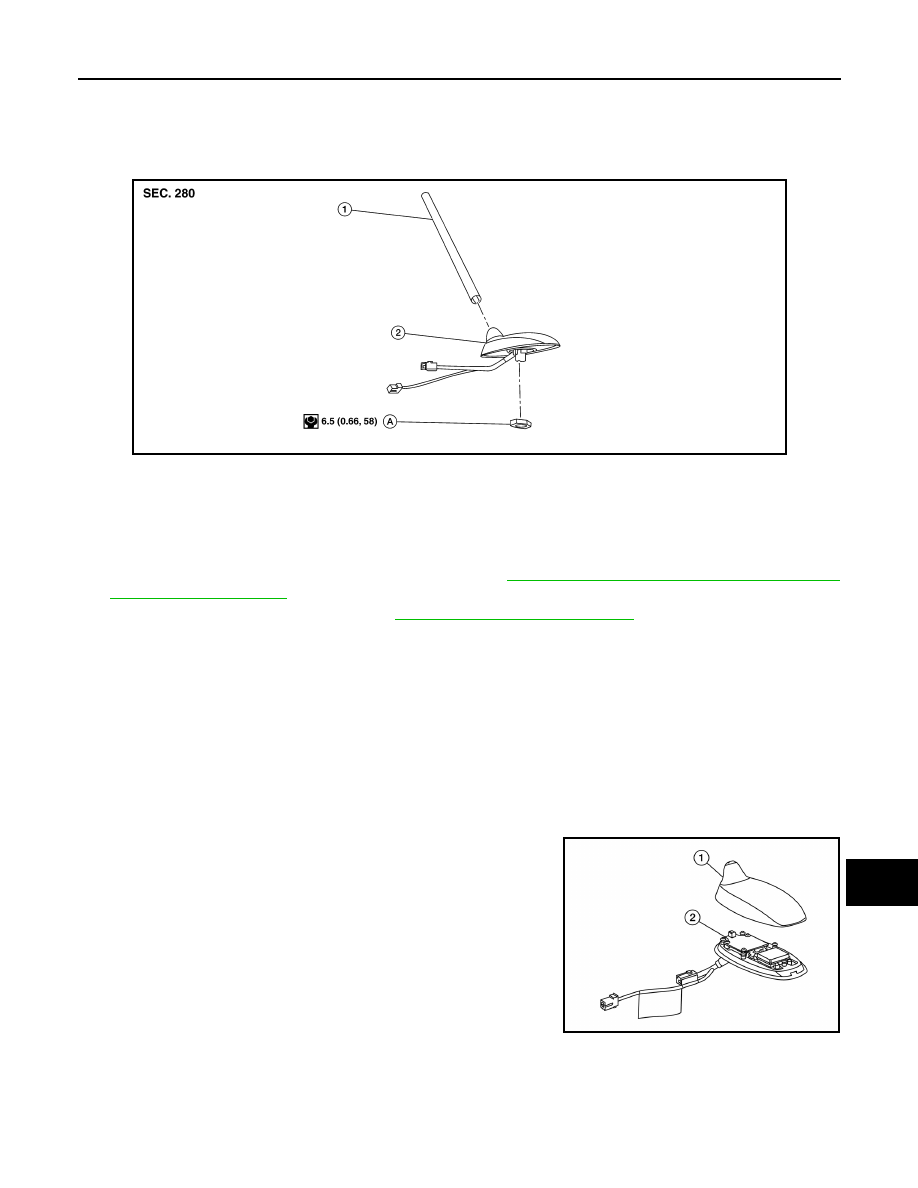

ANTENNA BASE

Exploded View

INFOID:0000000011373317

Removal and Installation

INFOID:0000000011277039

REMOVAL

1. Remove the luggage side upper finisher (RH). Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

2. Partially lower headlining (rear). Refer to

INT-30, "Removal and Installation"

.

3. Disconnect harness connectors from antenna feeder.
4. Remove nut from antenna base and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the antenna base nut is not properly tightened, lower sensitivity of the antenna may be experienced.

If the nut is over tightened, this will deform the roof panel.

Disassembly and Assembly

INFOID:0000000011373319

DISASSEMBLY

Insert a suitable tool into gaps between antenna base (2) and the

cover (1), then remove the cover (1) from antenna base (2).

ASSEMBLY

Assembly is in the reverse order of disassembly.

AWNIA3705ZZ

1. Antenna rod

2. Antenna base

A. Antenna nut

ALNIA1335ZZ

AV-386

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

ANTENNA FEEDER

ANTENNA FEEDER

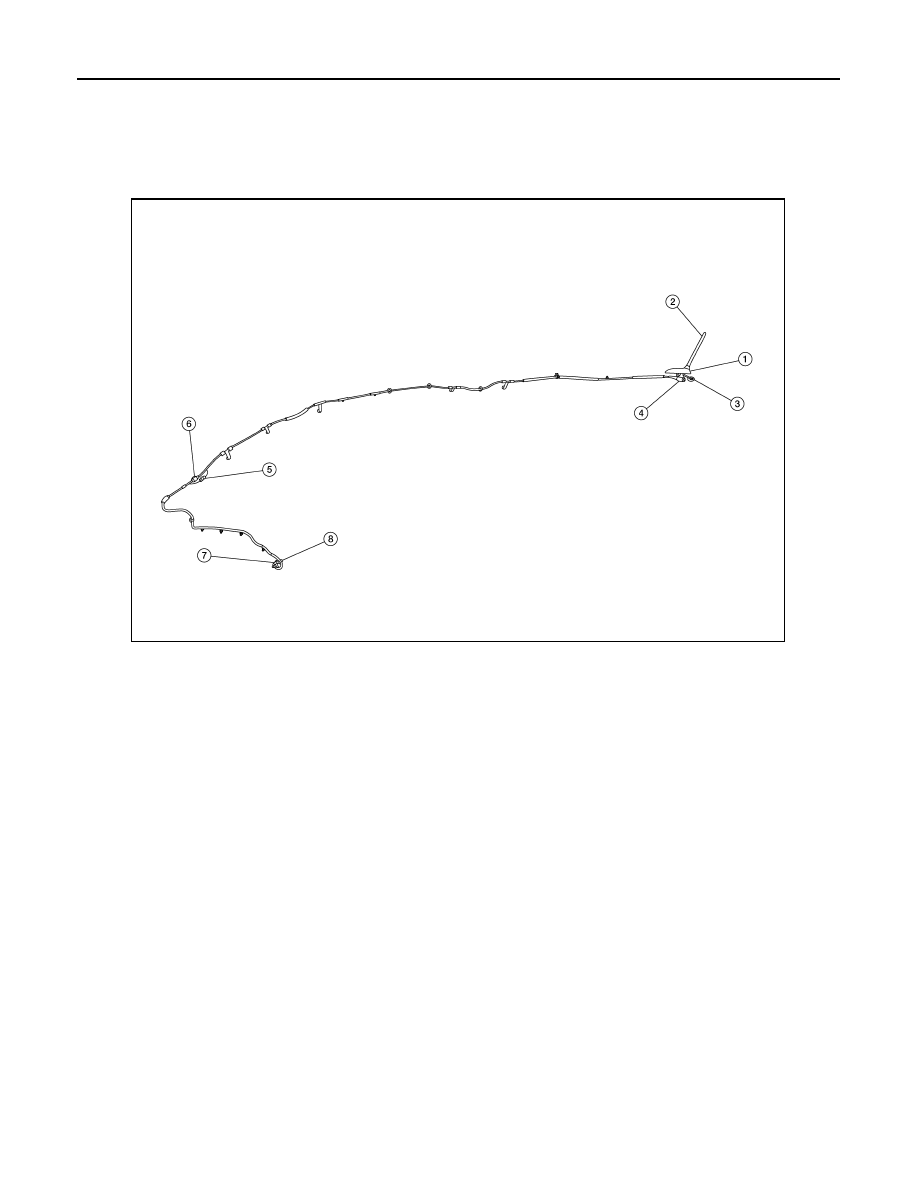

Feeder Layout

INFOID:0000000011277040

ANTENNA FEEDER LAYOUT

1.

Antenna base (antenna amp. and
satellite antenna)

2.

Rod Antenna

3.

M503

4.

M502

5.

M130, M501

6.

M129, M500

7.

M142

8.

M139

ALNIA1595ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

WITH INTELLIGENT KEY SYSTEM

PRECAUTION ...............................................

5

PRECAUTIONS ...................................................

5

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

5

PREPARATION ............................................

6

PREPARATION ...................................................

6

Special Service Tool  .................................................

6

SYSTEM DESCRIPTION  ..............................

7

COMPONENT PARTS  ........................................

7

BODY CONTROL SYSTEM  ........................................

7

BODY CONTROL SYSTEM : Component Parts
Location .....................................................................

7

POWER CONSUMPTION CONTROL SYSTEM  .........

7

POWER CONSUMPTION CONTROL SYSTEM :
Component Parts Location ........................................

7

SYSTEM ..............................................................

8

BODY CONTROL SYSTEM  ........................................

8

BODY CONTROL SYSTEM : System Description ......

8

COMBINATION SWITCH READING SYSTEM  ...........

9

COMBINATION SWITCH READING SYSTEM :
System Description  ...................................................

9

SIGNAL BUFFER SYSTEM  ......................................

12

SIGNAL BUFFER SYSTEM : System Description ....

12

POWER CONSUMPTION CONTROL SYSTEM  .......

13

POWER CONSUMPTION CONTROL SYSTEM :
System Description  .................................................

13

SHIPPING MODE CONTROL SYSTEM ....................

14

SHIPPING MODE CONTROL SYSTEM : System
Description ...............................................................

15

DIAGNOSIS SYSTEM (BCM)  ...........................

16

COMMON ITEM  .........................................................

16

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

16

DOOR LOCK ..............................................................

16

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) ..........................................................

17

REAR DEFOGGER ....................................................

17

REAR DEFOGGER : CONSULT Function (BCM -
REAR DEFOGGER) ................................................

17

BUZZER .....................................................................

18

BUZZER : CONSULT Function (BCM - BUZZER) ....

18

INT LAMP ...................................................................

18

INT LAMP : CONSULT Function (BCM - INT
LAMP) ......................................................................

18

HEADLAMP ...............................................................

19

HEADLAMP : CONSULT Function (BCM - HEAD-
LAMP) ......................................................................

19

WIPER ........................................................................

20

WIPER : CONSULT Function (BCM - WIPER)  .......

20

FLASHER ...................................................................

21

FLASHER : CONSULT Function (BCM - FLASH-
ER) ..........................................................................

21

INTELLIGENT KEY ....................................................

21

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY)  ................................................

21

COMB SW ..................................................................

24

COMB SW : CONSULT Function (BCM - COMB
SW) ..........................................................................

24

BCM ...........................................................................

24
