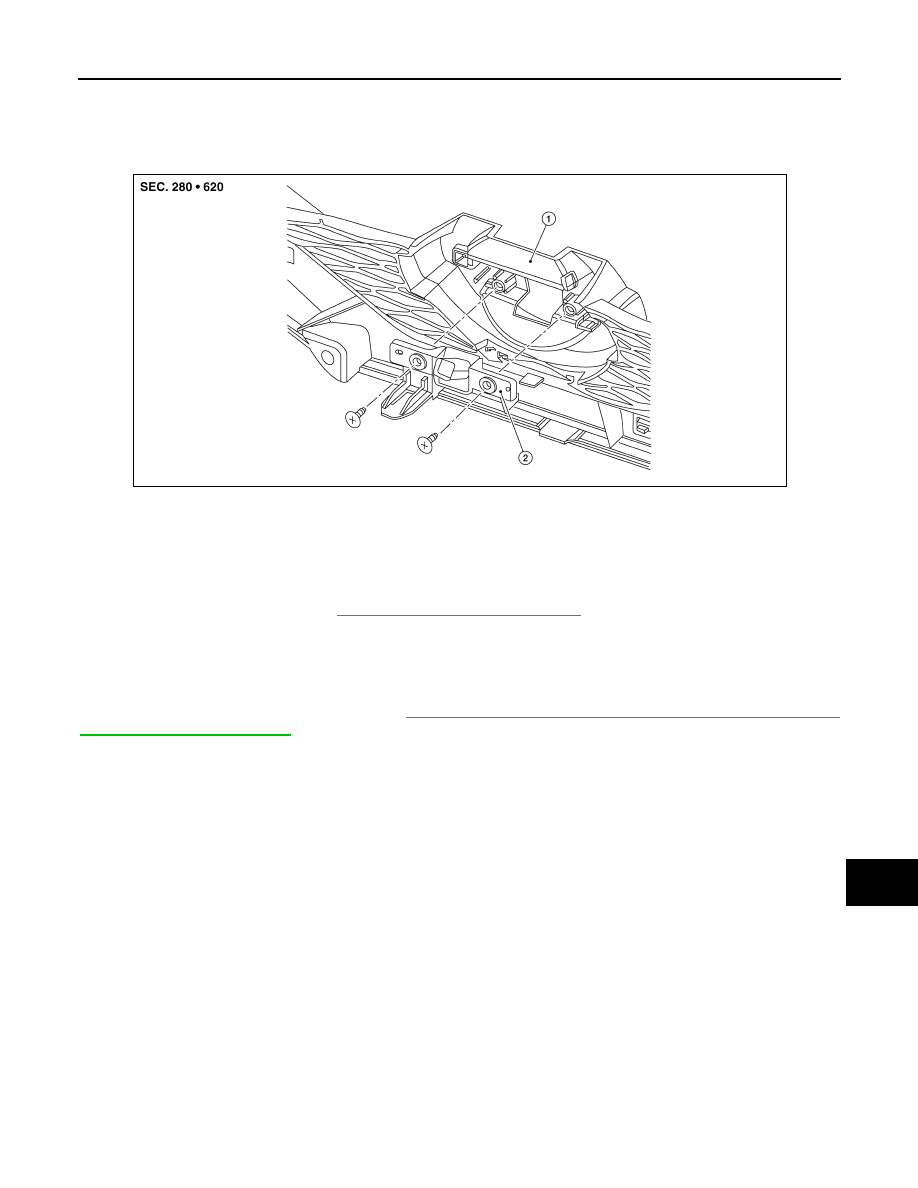

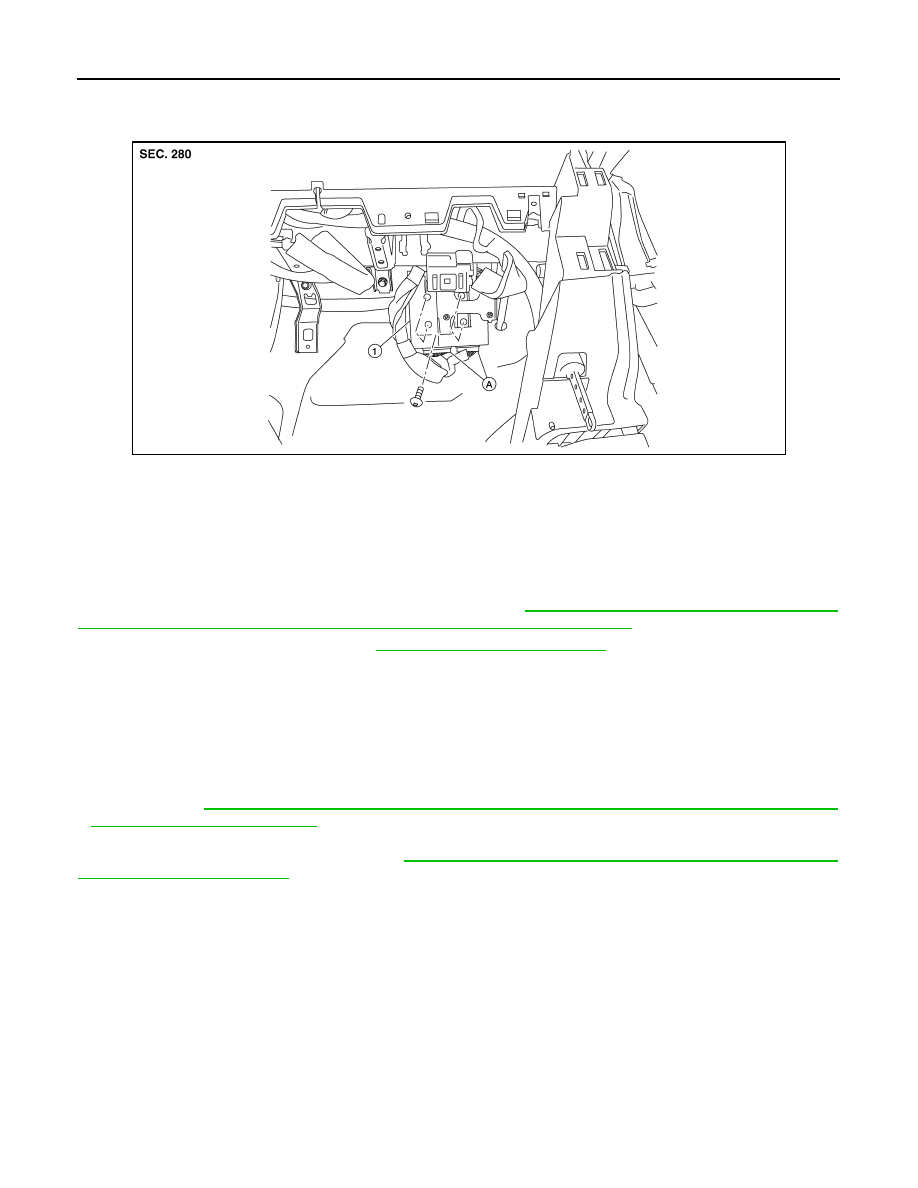

AV-208 < REMOVAL AND INSTALLATION > [NAVIGATION WITHOUT BOSE] AROUND VIEW MONITOR CONTROL UNIT AROUND VIEW MONITOR CONTROL UNIT Exploded View INFOID:0000000011276893 Removal and Installation INFOID:0000000011276894 REMOVAL CAUTION: Before replacing around view monitor control unit, save or print current vehicle specification with CONSULT configuration before replacement. Refer to AV-130, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure" . 1. Remove glove box assembly. Refer to IP-24, "Removal and Installation" 2. Remove around view monitor control unit screws. INSTALLATION Installation is in the reverse order of removal. CAUTION: • Replace the around view monitor control unit if it has been dropped or sustained an impact. • When replacing around view monitor control unit, you must perform "After Replace ECU" with CON- SULT. Refer to AV-130, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON- . NOTE: Perform camera image calibration. Refer to AV-135, "CALIBRATING CAMERA IMAGE (AROUND VIEW . AWNIA3694ZZ 1. Around view monitor control unit A. Harness connector |
