AV-132

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

INSPECTION AND ADJUSTMENT

4.

OPERATION CHECK

Confirm that each function controlled by AV control unit operates normally.

>> Work End.

CONFIGURATION (AV CONTROL UNIT) : Configuration List

INFOID:0000000011276815

CAUTION:

Thoroughly read and understand the vehicle specification. Incorrect settings may result in abnormal

control of ECU.

⇔: Items which confirm vehicle specifications

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)
CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Description

INFOID:0000000011276816

Vehicle specification needs to be written with CONSULT because it is not written after replacing around view

monitor control unit.

Configuration has three functions as follows:

CAUTION:

• When replacing around view monitor control unit, you must perform “Select Saved Data List” or

"After Replace ECU" with CONSULT.

• Complete the procedure of “Select Saved Data List” or "After Replace ECU" in order.

• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• Never perform “Select Saved Data List” or "After Replace ECU" except for new around view monitor

control unit.

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Work Procedure

INFOID:0000000011276817

1.

WRITING MODE SELECTION

CONSULT

Select “Reprogramming, Configuration” of around view monitor control unit.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

2.

PERFORM “SAVED DATA LIST”

CONSULT

Automatically “Operation Log Selection” window will display if “Before Replace ECU” was performed. Select

applicable file from the “Save Data List” and press “Confirm”.

>> Work End.

MANUAL SETTING ITEM

Items

Setting value

SOUND SYSTEM

BASE

⇔ BOSE

CAMERA SYSTEM

NONE/AVM

⇔ REAR CAMERA

Function

Description

"Before Replace ECU"

• Reads the vehicle configuration of current around view monitor control unit.
• Saves the read vehicle configuration.

"After Replace ECU"

Writes the vehicle configuration with manual selection.

"Select Saved Data List"

Writes the vehicle configuration with saved data.

AV

INSPECTION AND ADJUSTMENT

AV-133

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

3.

PERFORM “AFTER REPLACE ECU” OR “MANUAL CONFIGURATION”

CONSULT

1. Select “After Replace ECU” or “Manual Configuration”.

2. Identify the correct model and configuration list. Refer to

AV-133, "CONFIGURATION (AROUND VIEW

MONITOR CONTROL UNIT) : Configuration List"

.

3. Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally

if the setting is not correct.

4. Select “Next”.

CAUTION:

Make sure to select “Next”, confirm each setting value and press “OK” even if the indicated con-

figuration of brand new around view monitor control unit is same as the desirable configuration. If

not, configuration which is set automatically by selecting vehicle model can not be memorized.

5. When "Completed", select "End".

>> GO TO 4.

4.

OPERATION CHECK

Confirm that each function controlled by around view monitor control unit operates normally.

>> Work End.

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Configuration List

INFOID:0000000011276818

CAUTION:

Thoroughly read and understand the vehicle specification. Incorrect settings may result in abnormal

control of ECU.

⇔: Items which confirm vehicle specifications

REGISTRATION (AV CONTROL UNIT)
REGISTRATION (AV CONTROL UNIT) : Description

INFOID:0000000011276819

AFTER REPLACEMENT

If the AV control unit is replaced with a new AV control unit, the new AV control unit must be registered using

the registration code.

CAUTION:

If the new AV control unit registration code is not registered, the “APPS” mode will not function.

REGISTRATION (AV CONTROL UNIT) : Work Procedure

INFOID:0000000011276820

1.

RECORD REGISTRATION CODE FOR REPLACEMENT AV CONTROL UNIT

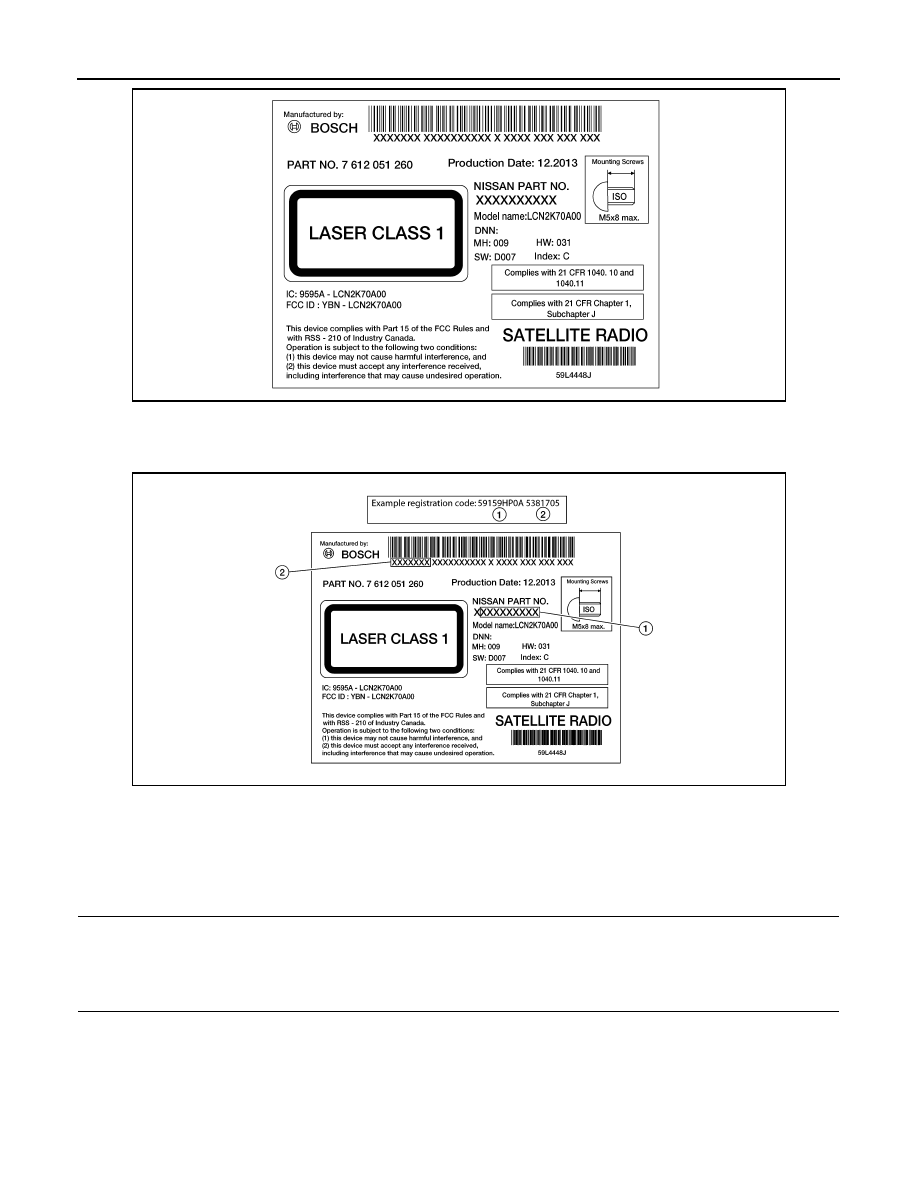

1. Refer to the replacement AV control unit’s label located on the top of the AV control unit.

MANUAL SETTING ITEM

Items

Setting value

BCI FUNCTION

WITH

⇔ WITHOUT

AV-134

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

INSPECTION AND ADJUSTMENT

2. Create a registration code to supply to NISSAN Owner Services by combining the last 9 digits of the NIS-

SAN PART NO. (1) and the first 7 digits of the bar code number (2).

3. Record the registration code.

>> GO TO 2.

2.

REGISTER REPLACEMENT AV CONTROL UNIT

Register the replacement AV control unit by contacting NISSAN Owner Services. Refer to TSB.

>> GO TO 3.

3.

OPERATION CHECK

Verify that the AV control unit “APPS” function operates normally.

>> Work End.

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT

ALNIA1654ZZ

AWNIA3614ZZ

AV

INSPECTION AND ADJUSTMENT

AV-135

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Description

INFOID:0000000011276821

Adjust the center position of the predictive course line of the rear view monitor if it is shifted.

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Work Procedure

INFOID:0000000011276822

1.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> End.

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)
CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description

INFOID:0000000011276823

• Calibration must be performed after removing/replacing the cameras, removing parts (e.g. front grille, door

mirror, and others) mounted on the cameras, or replacing the Around view monitor control unit.

• The use of CONSULT is required to perform calibration or writing of calibration results to the Around view

monitor control unit.

• Align the white lines on the road near the vehicle at the boundary of each camera image by this camera cal-

ibration. The white lines far from the vehicle may not be aligned at the boundary of each camera image. The

farther the line, the greater the difference is.

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure

INFOID:0000000011276824

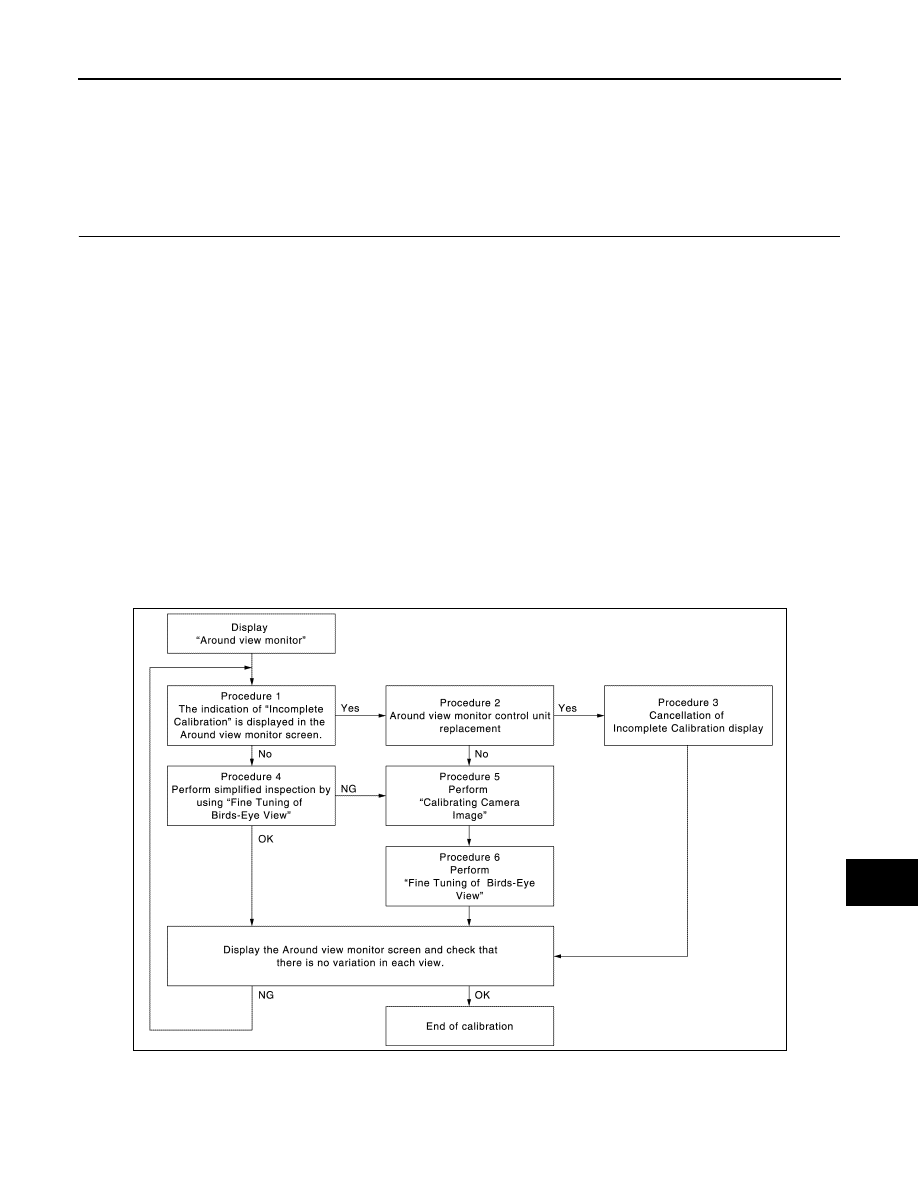

CALIBRATION FLOWCHART

Following the flowchart shown in the figure, perform the calibration.

NOTE:

JSNIA4210GB
