AV-104

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITHOUT BOSE]

AROUND VIEW MONITOR CONTROL UNIT

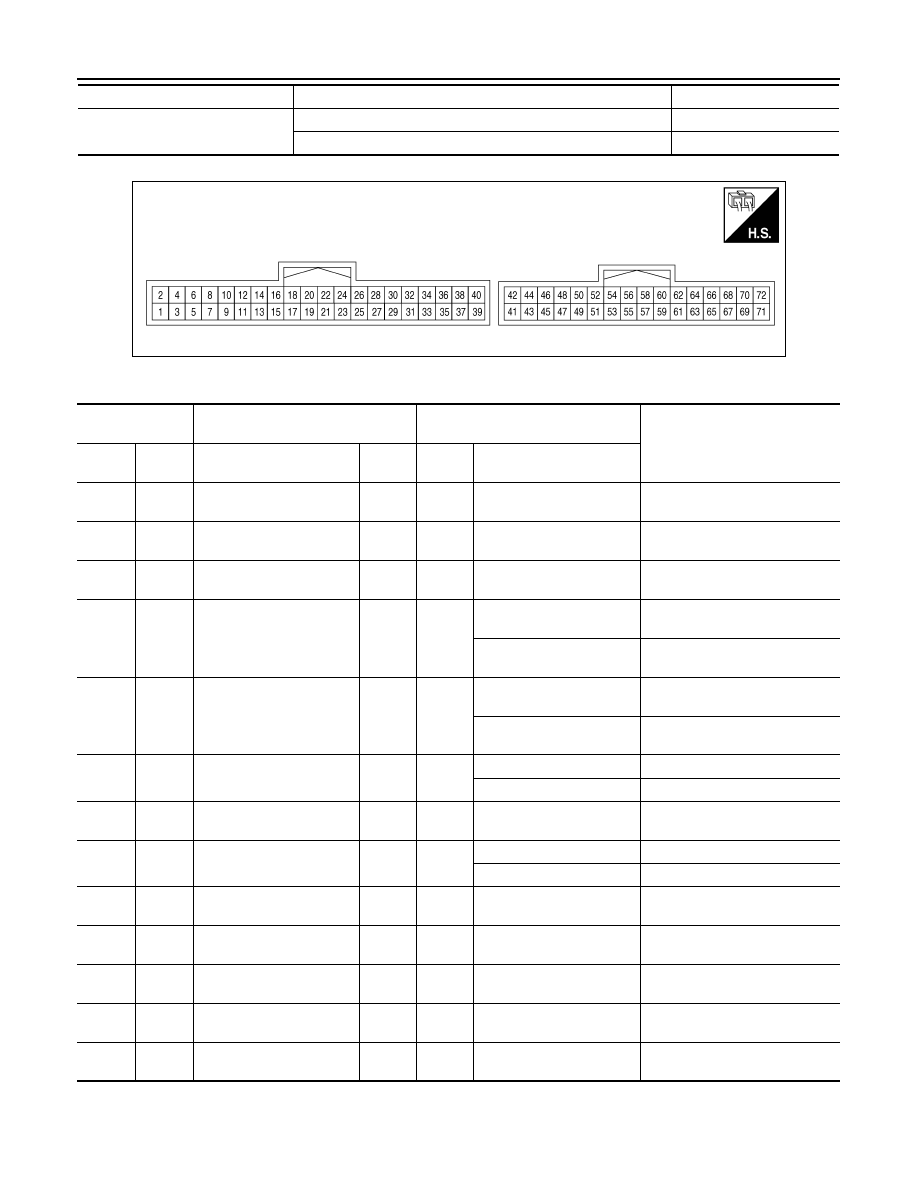

TERMINAL LAYOUT

PHYSICAL VALUES

WASH SW

Wash switch signal is pressed

On

Wash switch signal is not pressed

Off

Monitor Item

Condition

Value/Status

AWNIA3349ZZ

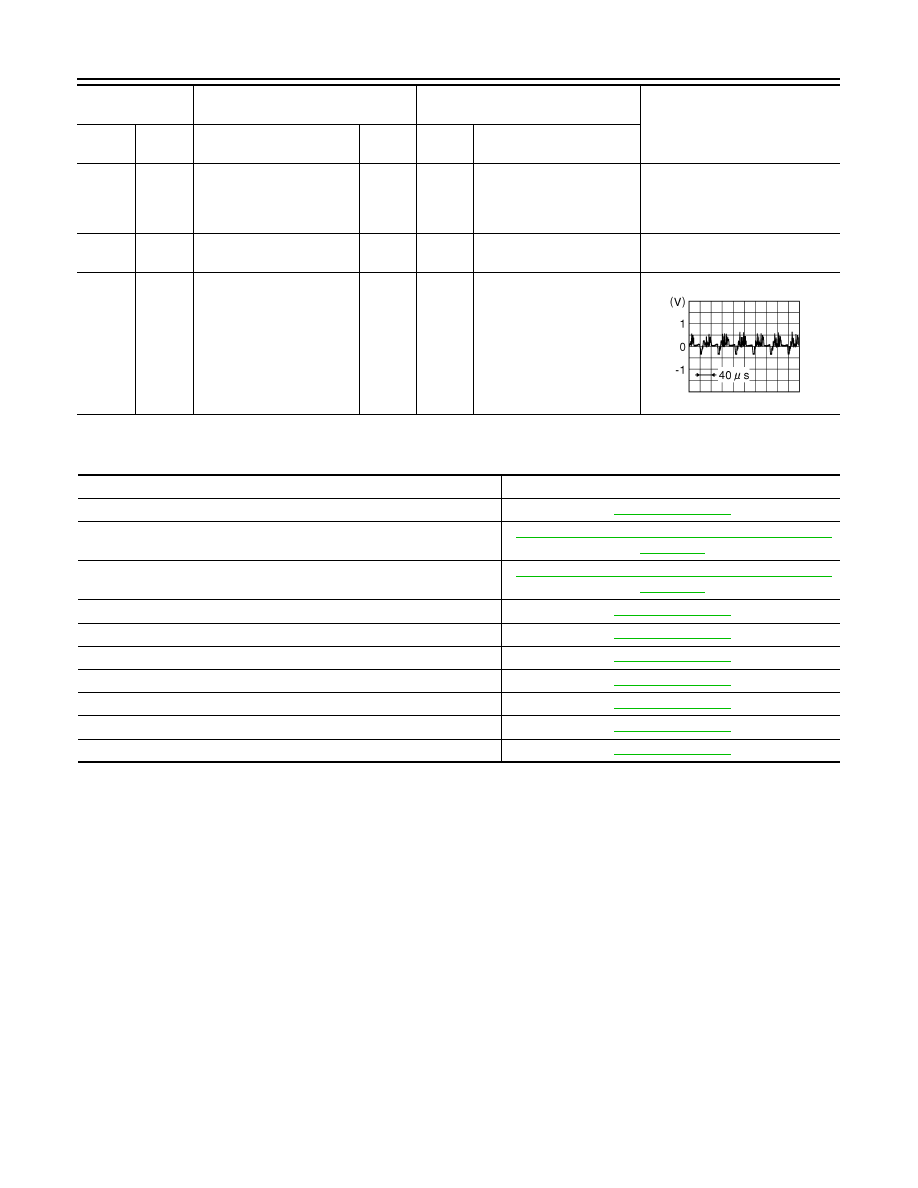

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

1

(B)

Ground Ground

—

ON

—

0 V

2

(Y)

Ground Battery power supply

Input

OFF

—

Battery voltage

3

(SB)

Ground Ignition signal

Input

ON

—

Battery voltage

7

(R)

Ground

SOW LED signal L

Output

—

LDW/BSW detected (while
driving)

12 V

LDW/BSW is not detected
(while driving)

0 V

8

(G)

Ground

SOW LED signal R

Output

—

LDW/BSW detected (while
driving)

12 V

LDW/BSW is not detected
(while driving)

0 V

15

(BR)

Ground

ITS sw indicator

Output

ON

Warning system is ON

12 V

Warning system is OFF

0 V

16

(Y)

Ground Warning buzzer control

Output

—

—

—

17

(W)

Ground

ITS OFF sw

Input

ON

Cancel switch pressed

0 V

Cancel switch released

12 V

27

(L)

—

CAN  (H)

Input/

Output

— —

—

28

(R)

—

CAN  (L)

Input/

Output

— —

—

36

(Y)

Ground

Washer signal AVM to
pump

Output

ON

Rear view camera washer
motor operated

5 V

37

(V)

Ground Pump signal ground

Input

ON

—

0 V

38

(SB)

Ground

Washer signal pump to
AVM

Input

ON

Rear view camera washer
motor operated

5 V

AV

AROUND VIEW MONITOR CONTROL UNIT

AV-105

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

47

(G)

Ground Camera image signal

Output

ON

When camera image dis-
play

48

(Shield)

—

Camera image signal
shield

—

—

—

—

49

(LG)

—

Rear view serial signal

Input/

Output

— —

—

50

(R)

Ground Rear camera power supply

Output

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

6.0 V

52

(B)

Ground Rear camera ground

—

ON

—

0 V

53

(W)

54

(Shield)

Rear camera image signal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

56

(L)

Ground

Side camera LH power
supply

Output

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

6.0 V

58

(Y)

Ground Side camera LH ground

—

ON

—

0 V

59

(G)

60

(Shield)

Side camera LH image sig-
nal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

62

(B)

Ground

Side camera RH power
supply

Output

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

6.0 V

64

(L)

Ground Side camera RH ground

—

ON

—

0 V

65

(Y)

66

(Shield)

Side camera RH image sig-
nal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

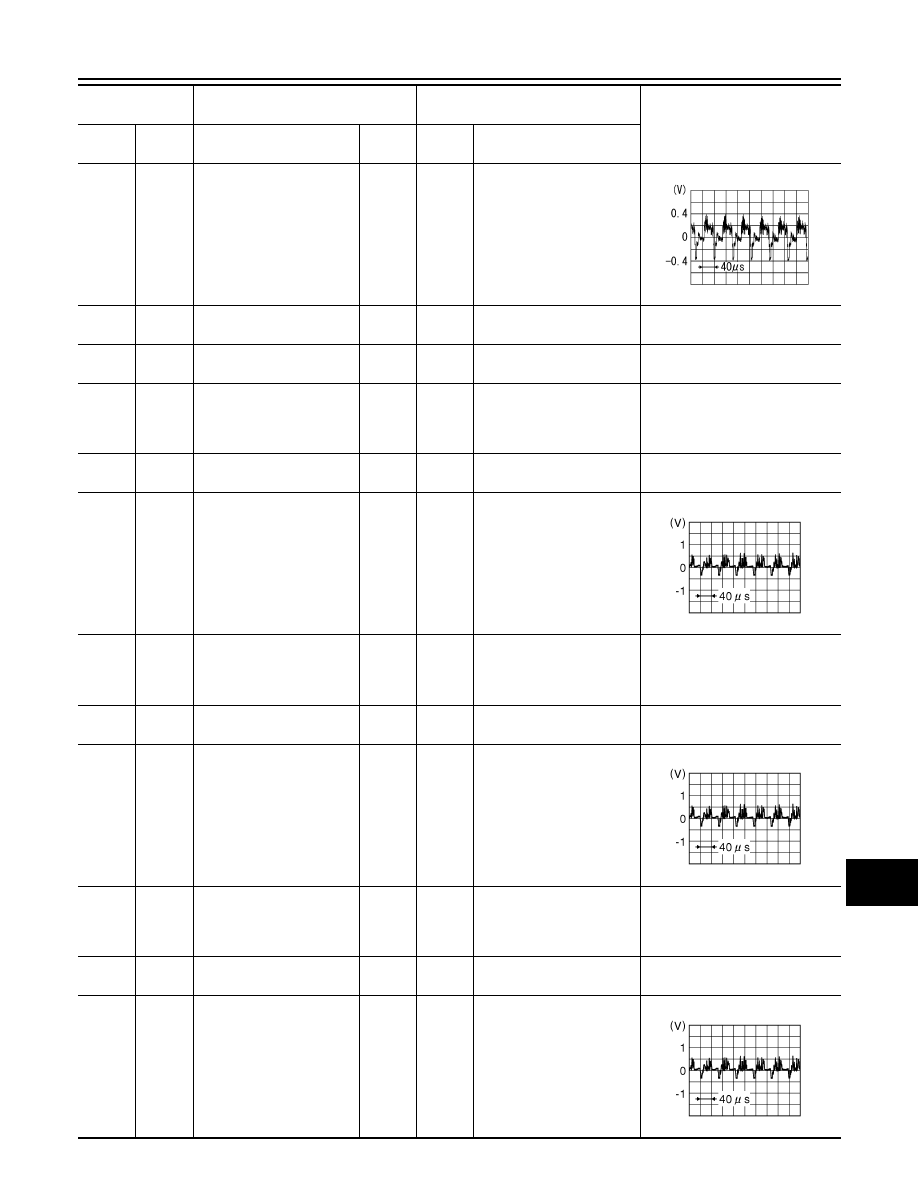

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB2251J

JSNIA0834GB

JSNIA0834GB

JSNIA0834GB

AV-106

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITHOUT BOSE]

AROUND VIEW MONITOR CONTROL UNIT

DTC Index

INFOID:0000000011276806

68

(L)

Ground Front camera power supply

Output

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

6.0 V

70

(V)

Ground Front camera ground

—

ON

—

0 V

71

(LG)

72

(Shield)

Front camera image signal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

JSNIA0834GB

CONSULT Display

Reference Page

U0428: ST ANG SEN CALIB

AV-141, "DTC Logic"

U1000: CAN COMM CIRCUIT

AV-142, "AROUND VIEW MONITOR CONTROL UNIT :

DTC Logic"

U1010: CONTROL UNIT (CAN)

AV-143, "AROUND VIEW MONITOR CONTROL UNIT :

DTC Logic"

U111A: Rear display output signal diagnosis (Harness disconnection)

AV-144, "DTC Logic"

U111B: Right side display output signal diagnosis (Harness disconnection)

AV-146, "DTC Logic"

U111C: Front display output signal diagnosis (Harness disconnection)

AV-148, "DTC Logic"

U111D: Left side display output signal diagnosis (Harness disconnection)

AV-150, "DTC Logic"

U1232: ST ANG SEN CALIB

AV-155, "DTC Logic"

U1304: Non-completion of the calibration

AV-169, "DTC Logic"

U1305: Non-completion of the configuration

AV-170, "DTC Logic"

AV

NAVIGATION WITHOUT BOSE

AV-107

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

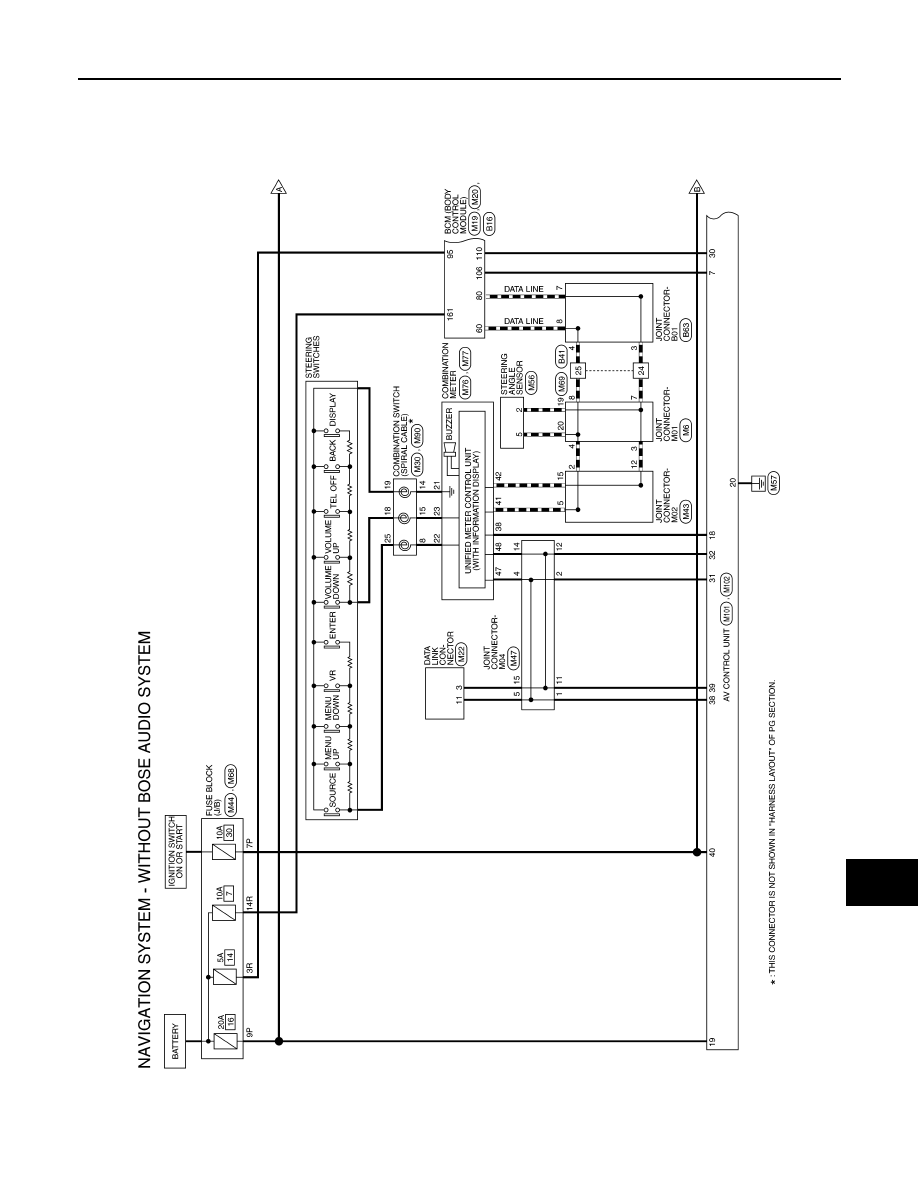

WIRING DIAGRAM
