AV-80

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

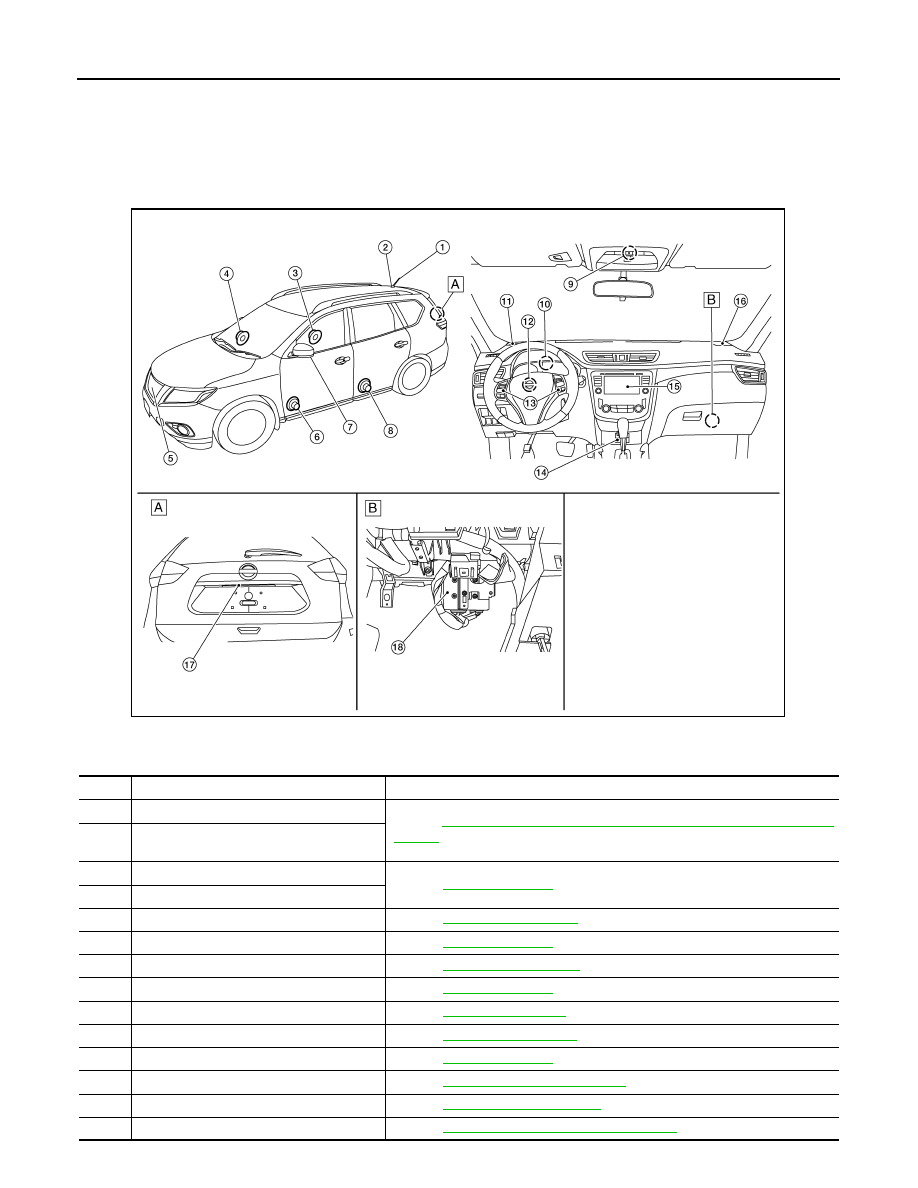

Component Parts Location

INFOID:0000000011276781

A. Center of back door

B. View with glove box removed

AWNIA3324ZZ

No.

Component

Function

1.

Rod antenna

Refer to

AV-223, "Rod Antenna, Antenna Amp., Satellite Antenna and Antenna

Feeder"

.

2.

Antenna base (antenna amp. and satellite
antenna)

3.

Rear door speaker RH

Refer to

AV-220, "Speakers"

.

4.

Front door speaker RH

5.

Front camera

Refer to

AV-222, "Front Camera"

.

6.

Front door speaker LH

Refer to

AV-220, "Speakers"

.

7.

Side camera

Refer to

AV-222, "Side Cameras"

.

8.

Rear door speaker LH

Refer to

AV-220, "Speakers"

.

9.

Microphone

Refer to

AV-221, "Microphone"

.

10.

GPS antenna

Refer to

AV-224, "GPS Antenna"

.

11.

Front tweeter LH

Refer to

AV-220, "Speakers"

.

12.

Steering angle sensor

Refer to

AV-223, "Steering Angle Sensor"

.

13.

Steering switches

Refer to

AV-221, "Steering Switches"

.

14.

USB interface and AUX in jack

Refer to

AV-221, "USB Interface and AUX In Jack"

.

AV

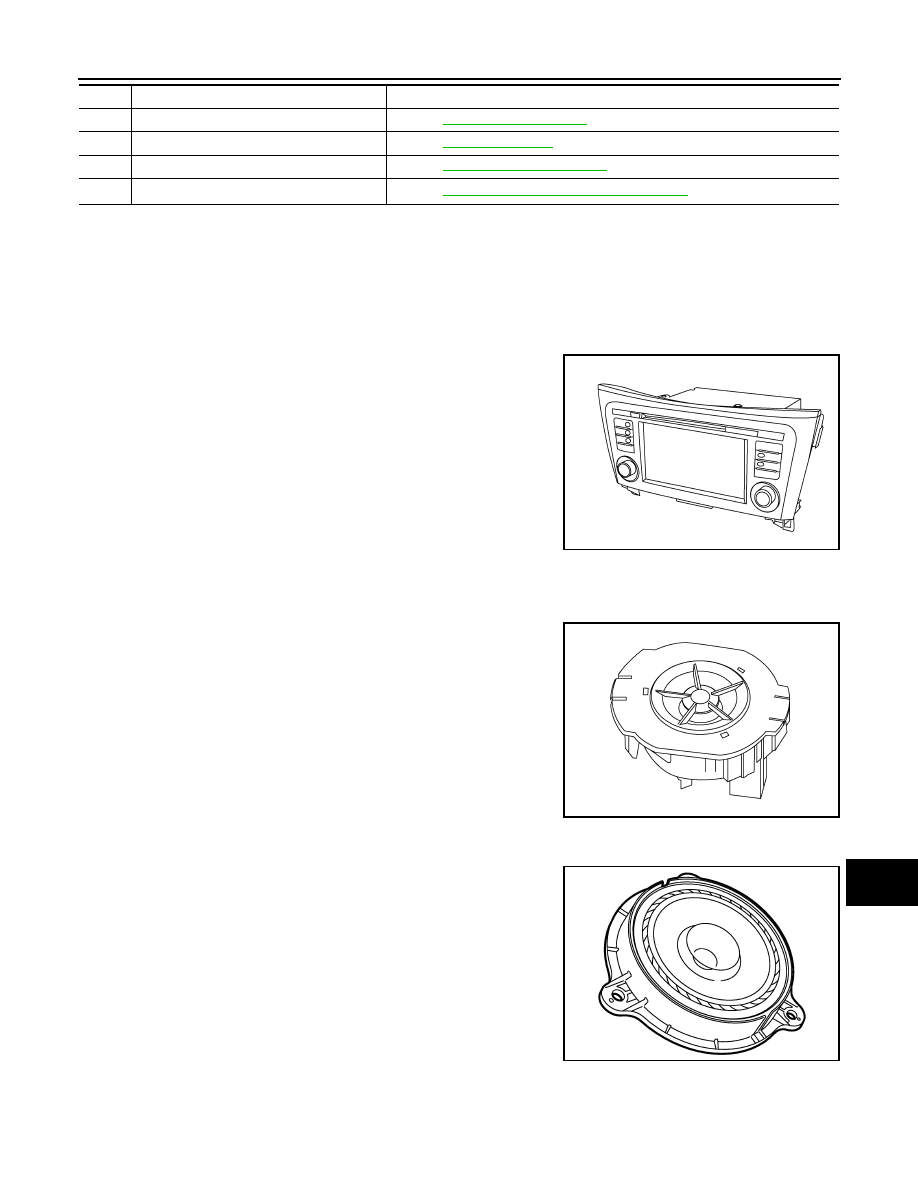

COMPONENT PARTS

AV-81

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

*:

Around View Monitor is a parking aid/convenience feature. Around View Monitor cannot completely eliminate

blind spots. Around View Monitor may not detect every object and does not warn of moving objects. Always

check surroundings before moving vehicle. Around View Monitor is not a substitute for proper backing proce-

dures. Always turn to check what is behind you before backing up.

AV Control Unit

INFOID:0000000011276782

Description

• A 7-inch WVGA display, an AM/FM electronic tuner radio, CD

drive, audio amplifier, camera controller and navigation unit are

integrated into the AV control unit.

• The 7-inch display is a high resolution monitor that includes touch

panel functions.

• Music files stored in iPod

®*

/USB memory can be played using the

separate USB interface.

• Music files stored in an external audio device can be played using

the separate AUX in jack.

*

: iPod

®

 is a registered trademark of Apple, Inc. All rights reserved.

Speakers

INFOID:0000000011276783

FRONT TWEETER

• 2.5 cm (1 in) tweeters are installed in the top front corners of the

instrument panel.

• Sound signals are input from the AV control unit to output high

range sounds.

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.

• Sound signals are input from the AV control unit to output high, mid

and low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.

15.

AV control unit

Refer to

AV-219, "AV Control Unit"

.

16.

Front tweeter RH

Refer to

AV-220, "Speakers"

.

17.

Rear view camera

Refer to

AV-222, "Rear View Camera"

.

18.

Around View

®*

 Monitor control unit

Refer to

AV-222, "Around View Monitor Control Unit"

.

No.

Component

Function

ALNIA1590ZZ

ALNIA1593ZZ

JPNIA1454ZZ

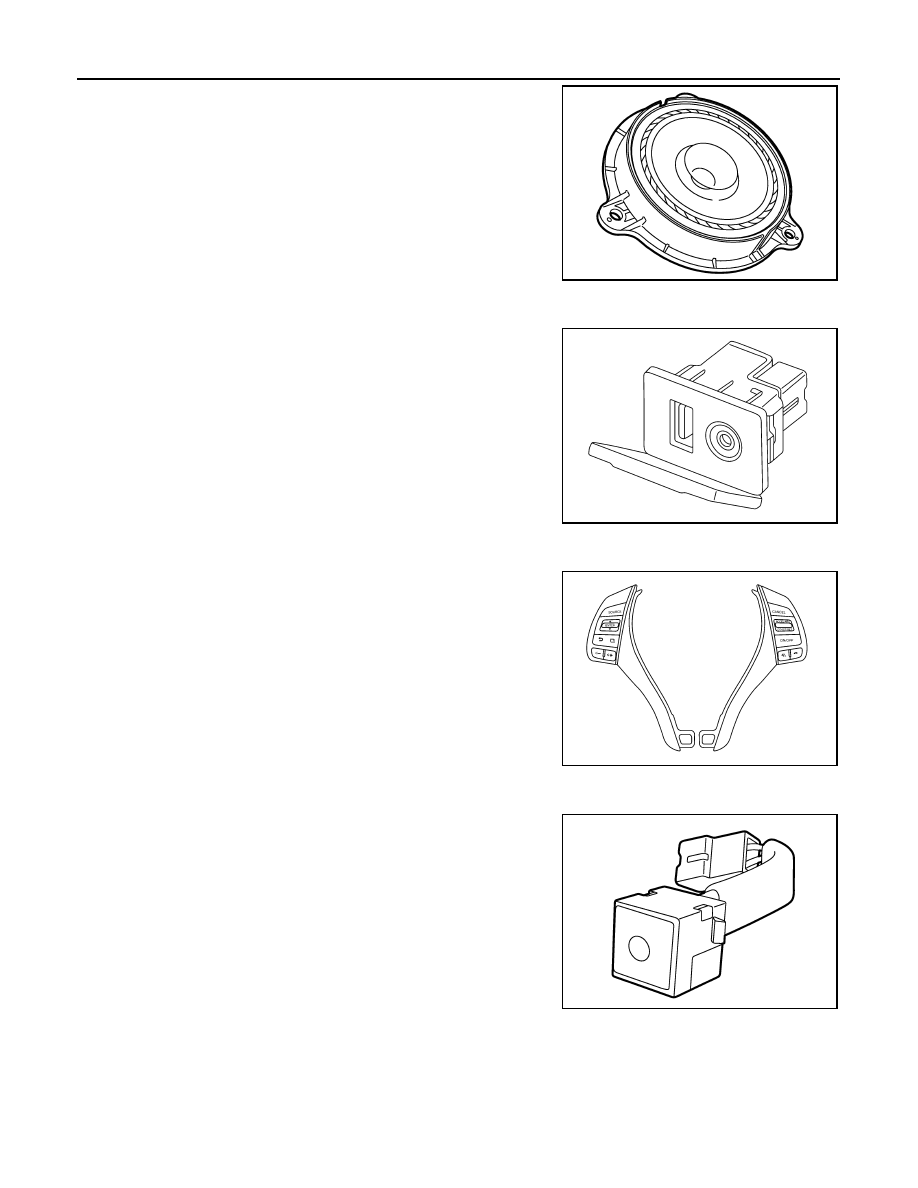

AV-82

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

COMPONENT PARTS

• Sound signals are input from the AV control unit to output high, mid

and low range sounds.

USB Interface and AUX In Jack

INFOID:0000000011276784

• USB Interface and AUX in jack is installed in the console.
• iPod

®

 and USB memory can be connected to the AV control unit

through the USB interface.

• An external audio device can be connected to the AV control unit

through the AUX in jack.

Steering Switches

INFOID:0000000011276785

• Steering switches are installed in the steering wheel.

• Operations for audio and hands-free phone are possible.

• Switches are connected to the combination meter.

• Combination meter is connected to the AV control unit via AV com-

munication.

Microphone

INFOID:0000000011276786

• The microphone is installed in the roof in the map lamp assembly.

• Power is supplied from the AV control unit.

JPNIA1454ZZ

ALNIA1523ZZ

ALNIA1594ZZ

JPNIA1448ZZ

AV

COMPONENT PARTS

AV-83

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

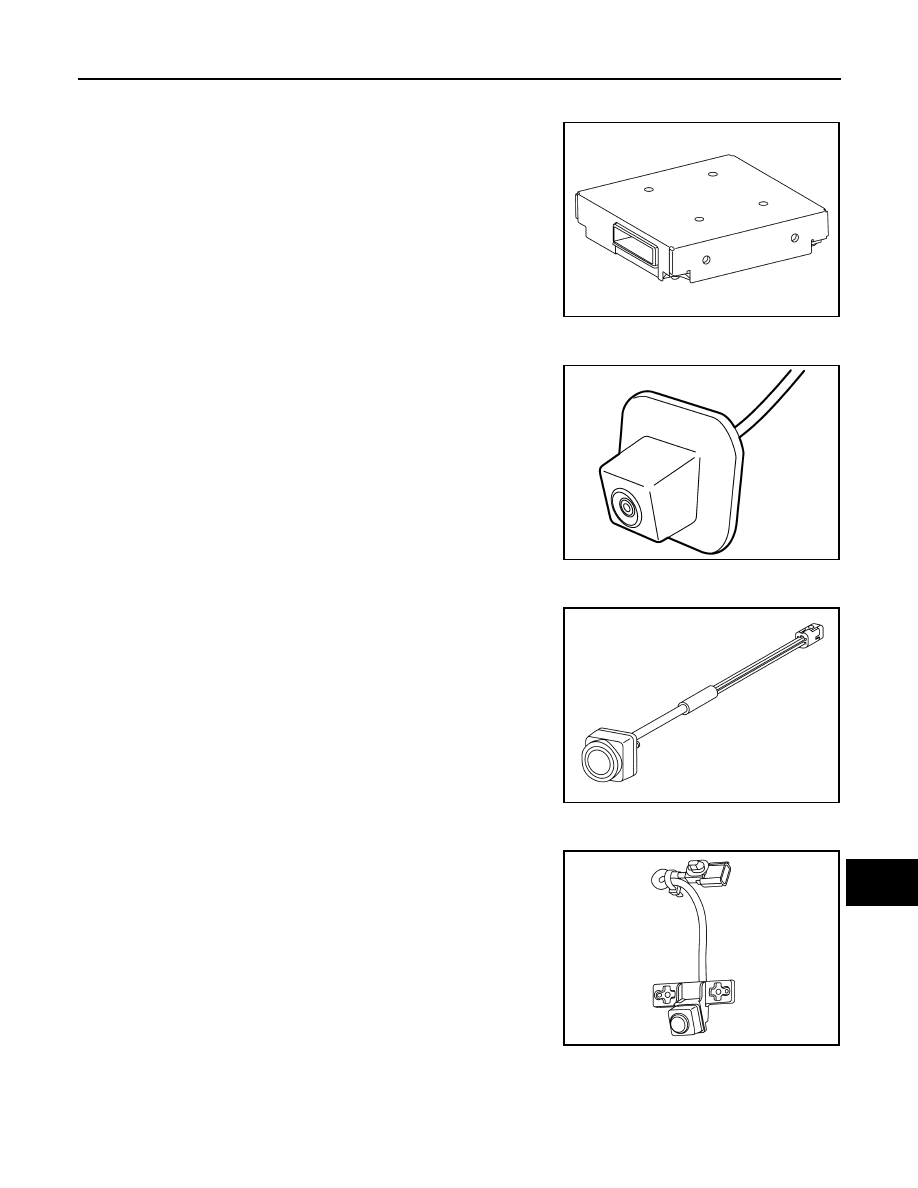

Around View Monitor Control Unit

INFOID:0000000011276787

• The around view monitor control unit is installed behind the glove

box.

• Vehicle width guide lines, predicted course line, vehicle front guid-

ing line and vehicle side line, and vehicle icon are displayed and

combined with camera images.

Rear View Camera

INFOID:0000000011276788

• The rear view camera is installed in the back door finisher.

• Power is supplied from the around view monitor control unit.

Side Cameras

INFOID:0000000011276789

• The side cameras are installed in the door mirrors.

• Power is supplied from the around view monitor control unit.

Front Camera

INFOID:0000000011276790

• The front camera is installed in the front grille.

• Power is supplied from the around view monitor control unit.

JSNIA5395ZZ

JPNIA1452ZZ

JSNIA5397ZZ

JSNIA5398ZZ
