MWI

MWI-3

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Description ............................................................

114

Diagnosis Procedure .............................................

114

THE LOW WASHER FLUID WARNING CON-
TINUES DISPLAYING, or DOES NOT DIS-
PLAY ................................................................

115

Description ............................................................

115

Diagnosis Procedure .............................................

115

THE DOOR OPEN WARNING CONTINUES
DISPLAYING, OR DOES NOT DISPLAY  ........

116

Description ............................................................

116

Diagnosis Procedure .............................................

116

THE AMBIENT TEMPERATURE DISPLAY IS
INCORRECT .....................................................

118

Description ............................................................

118

Diagnosis Procedure .............................................

118

NORMAL OPERATING CONDITION ...............

119

COMPASS ...............................................................

119

COMPASS : Description  .......................................

119

PRECAUTION ............................................

120

PRECAUTIONS ...............................................

120

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

120

Precaution for Work ...............................................

120

PREPARATION .........................................

121

PREPARATION ...............................................

121

Special Service Tools  ............................................

121

Commercial Service Tools .....................................

121

REMOVAL AND INSTALLATION .............

122

COMBINATION METER  .................................

122

Removal and Installation  .......................................

122

METER CONTROL SWITCH  ..........................

123

Removal and Installation  .......................................

123

UNIT DISASSEMBLY AND ASSEMBLY  ..

124

COMBINATION METER  .................................

124

Disassembly and Assembly ...................................

124

MWI-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010049525

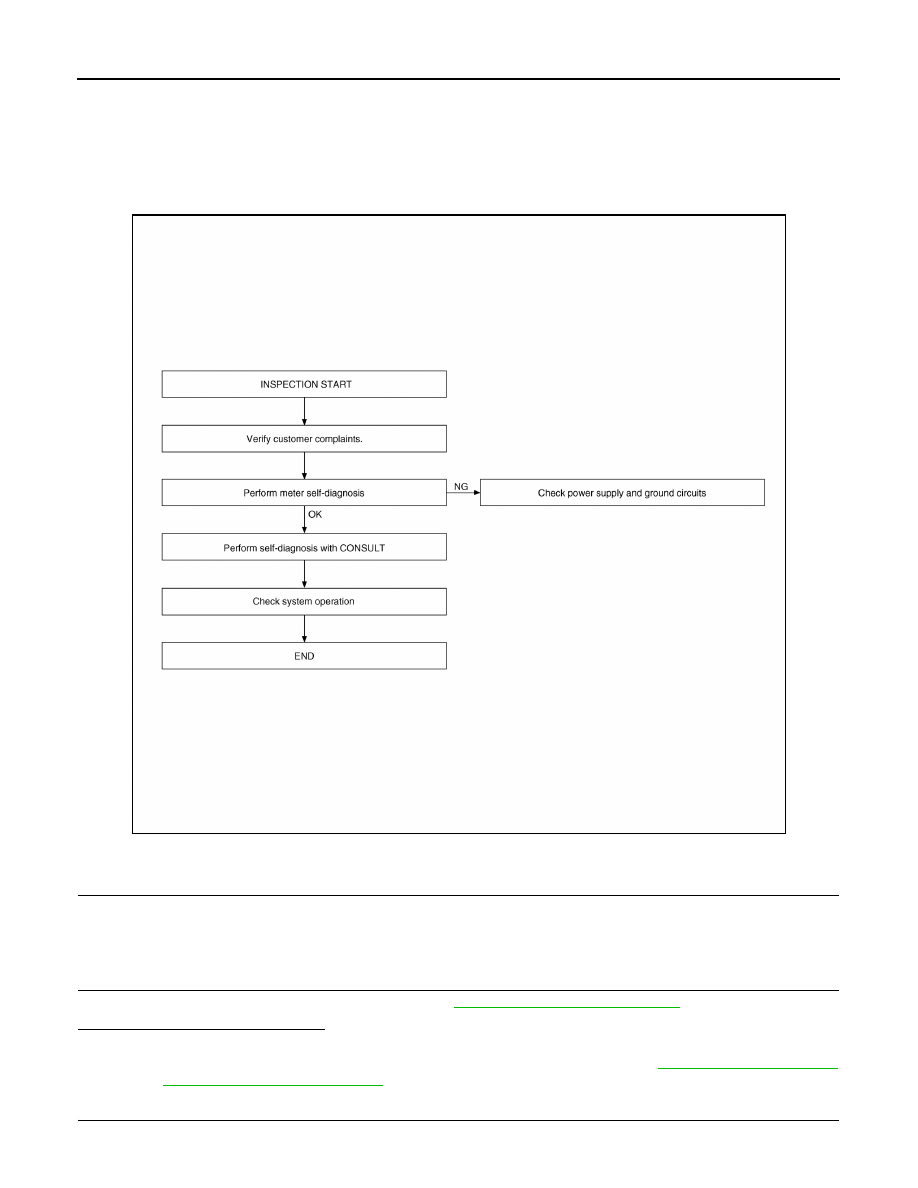

OVERALL SEQUENCE

DETAILED FLOW

1.

CONFIRM SYMPTOM

Confirm symptom or customer complaint.

>> GO TO 2

2.

CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER

Perform self-diagnosis of combination meter. Refer to

MWI-29, "Diagnosis Description"

.

Does self-diagnosis mode operate?

YES

>> GO TO 3

NO

>> Check power supply and ground circuit of combination meter. Refer to

MWI-37, "COMBINATION

METER : Diagnosis Procedure"

. Then, GO TO 4

3.

CHECK COMBINATION METER (CONSULT)

AWNIA2484GB

MWI

DIAGNOSIS AND REPAIR WORKFLOW

MWI-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Select “METER/M&A” on CONSULT and perform “SELF-DIAGNOSIS” of combination meter. Refer to

MWI-

29, "CONSULT Function (METER/M&A)"

.

Self-diagnostic results content

No malfunction detected>>Repair or replace the cause of symptom. Then, GO TO 4

Malfunction detected>>Refer to

MWI-51, "DTC Index"

. Then, GO TO 4

4.

CONFIRM OPERATION

Does the combination meter operate normally?
YES or NO

YES

>> Inspection End.

NO

>> GO TO 1

MWI-6

< SYSTEM DESCRIPTION >

METER SYSTEM

SYSTEM DESCRIPTION

METER SYSTEM

METER SYSTEM

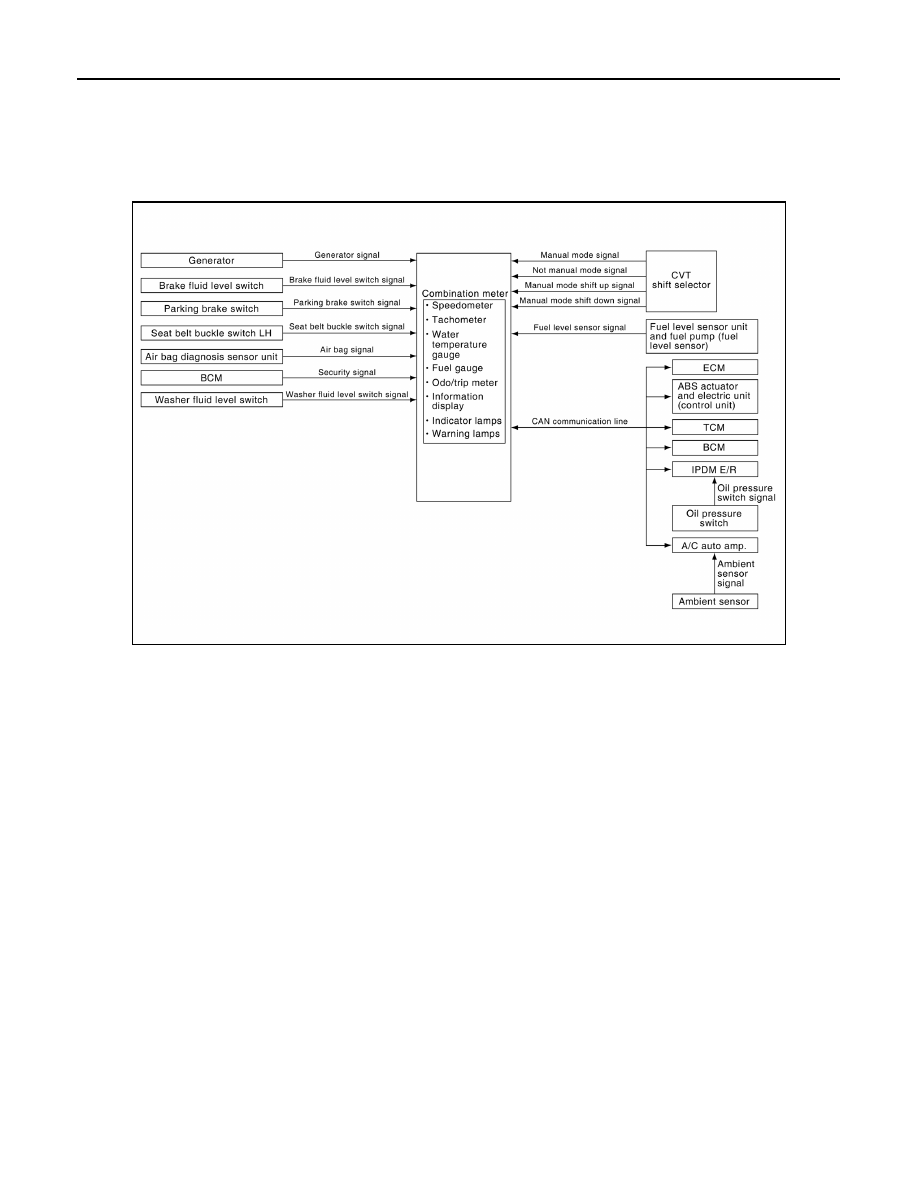

METER SYSTEM : System Diagram

INFOID:0000000010049526

METER SYSTEM : System Description

INFOID:0000000010049527

COMBINATION METER

• Speedometer, odo/trip meter, tachometer, fuel gauge, water temperature gauge and information display are

controlled by the unified meter control unit, which is built into the combination meter.

• Warning and indicator lamps are controlled by the unified meter control unit and by components connected

directly to the combination meter.

• Digital meter is adopted for odo/trip meter.*

*The record of the odometer is kept even if the battery cable is disconnected. The record of the trip meter is

erased when the battery cable is disconnected.

• Odo/trip meter and information display segments can be checked in diagnosis mode.

• Meter/gauge can be checked in diagnosis mode.

AWNIA2688GB
