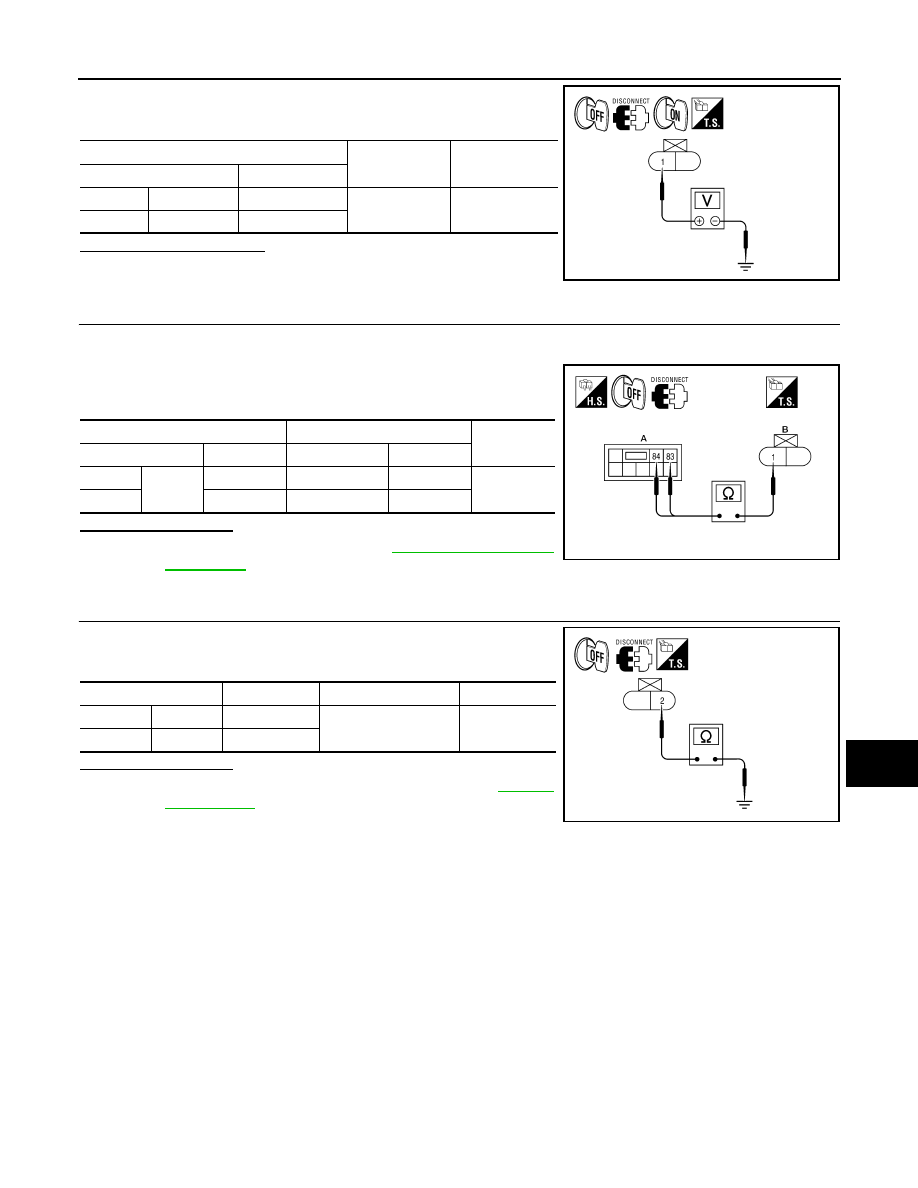

EXL-38 < DTC/CIRCUIT DIAGNOSIS > [XENON TYPE] HEADLAMP (HI) CIRCUIT 6. CHECK DAYTIME LIGHT RELAY GROUND CIRCUIT Check continuity between daytime light relay harness connector and ground. Does continuity exist? YES >> GO TO 7. NO >> Repair the harness or connector. 7. CHECK DAYTIME LIGHT RELAY FUSE 1. Turn the ignition switch OFF. 2. Check that the following fuse is not open. Is the fuse open? YES >> Replace the fuse after repairing the affected circuit. NO >> GO TO 8. 8. CHECK DAYTIME LIGHT RELAY CIRCUIT FOR OPEN 1. Disconnect IPDM E/R connector E18 and E201. 2. Check continuity between the IPDM E/R harness connector and the daytime light relay harness connec- tor. Does continuity exist? YES >> GO TO 9 NO >> Repair the harnesses or connectors. 9. CHECK DAYTIME LIGHT RELAY Check daytime light relay. Refer to EXL-38, "Component Inspection" Is the inspection result normal? YES >> Replace IPDM E/R. Refer to PCS-35, "Removal and Installation" NO >> Replace daytime light relay. Component Inspection INFOID:0000000010050218 1. CHECK DAYTIME LIGHT RELAY 1. Turn ignition switch OFF. 2. Remove daytime light relay. 3. Check the continuity between daytime light relay terminals under the following conditions. Daytime light relay Ground Continuity Connector Terminal E228 4 Yes Unit Location Fuse No. Capacity Daytime light relay IPDM E/R 54 10A IPDM E/R Daytime light relay Continuity Connector Terminal Connector Terminal E18 6 E228 1 Yes 5 E201 105 2 Terminals Condition Continuity 3 and 5 12V direct current supply between terminals 1 and 2 Yes No current supply No |
