BRM-64

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Body Side Inner

INFOID:0000000009465867

• Work after the roof side rail and the center pillar reinforcement have been removed.

Replacement parts

z

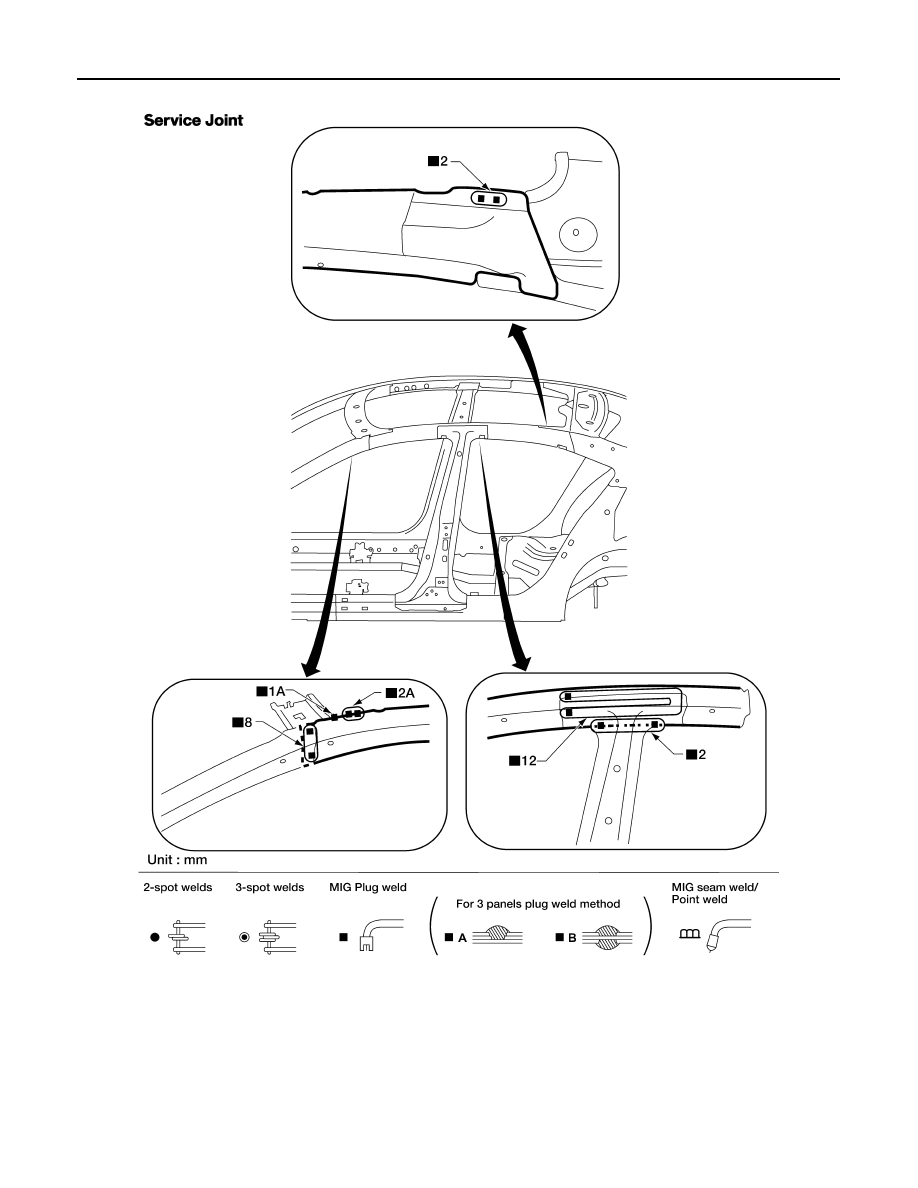

Roof side rail

AWKIA1388GB

REPLACEMENT OPERATIONS

BRM-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Replacement parts
z

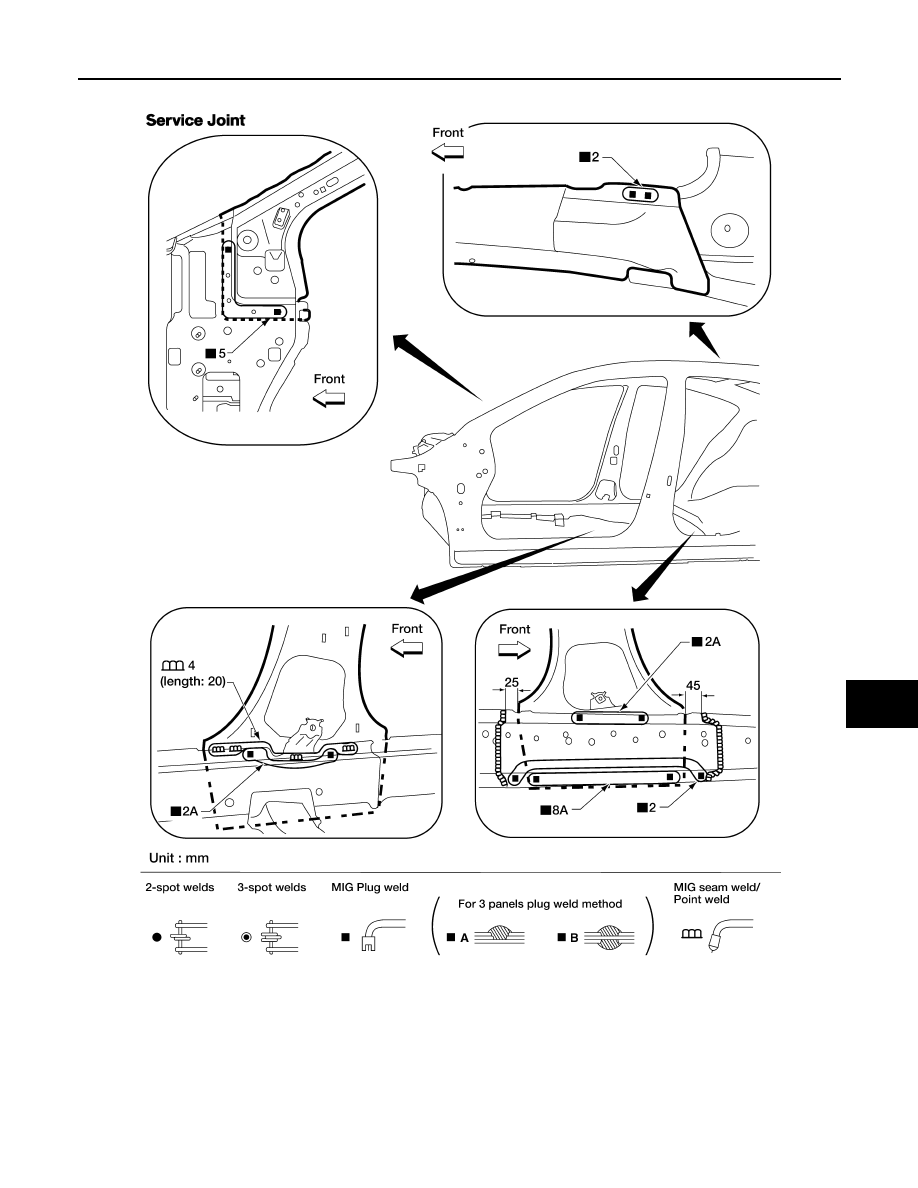

Body side inner

AWKIA1389GB

BRM-66

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Center Crossmember

INFOID:0000000009465868

Rear Side Member

INFOID:0000000009465869

• Work after rear panel assembly and rear center crossmember have been removed.

Replacement parts

z

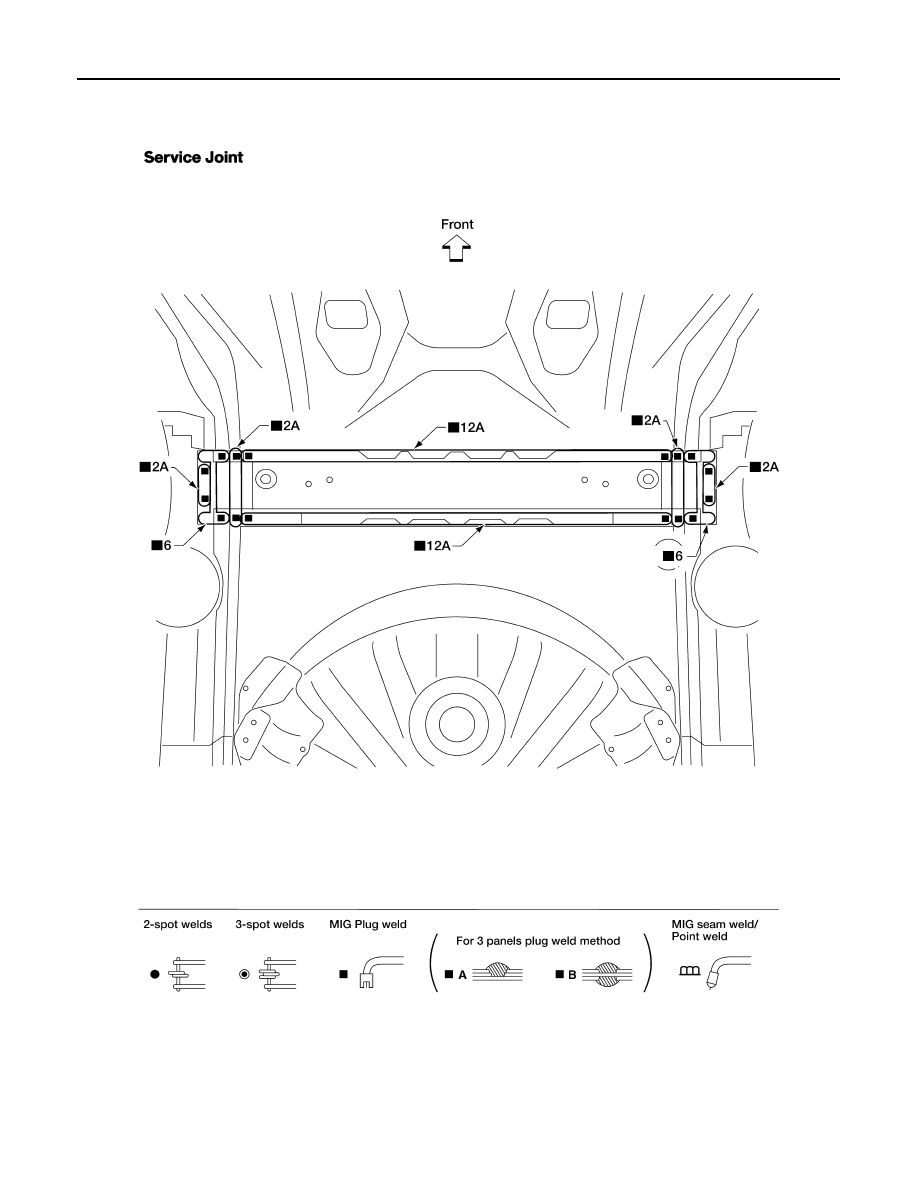

Rear center crossmember

AWKIA1390GB

REPLACEMENT OPERATIONS

BRM-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Replacement parts

z

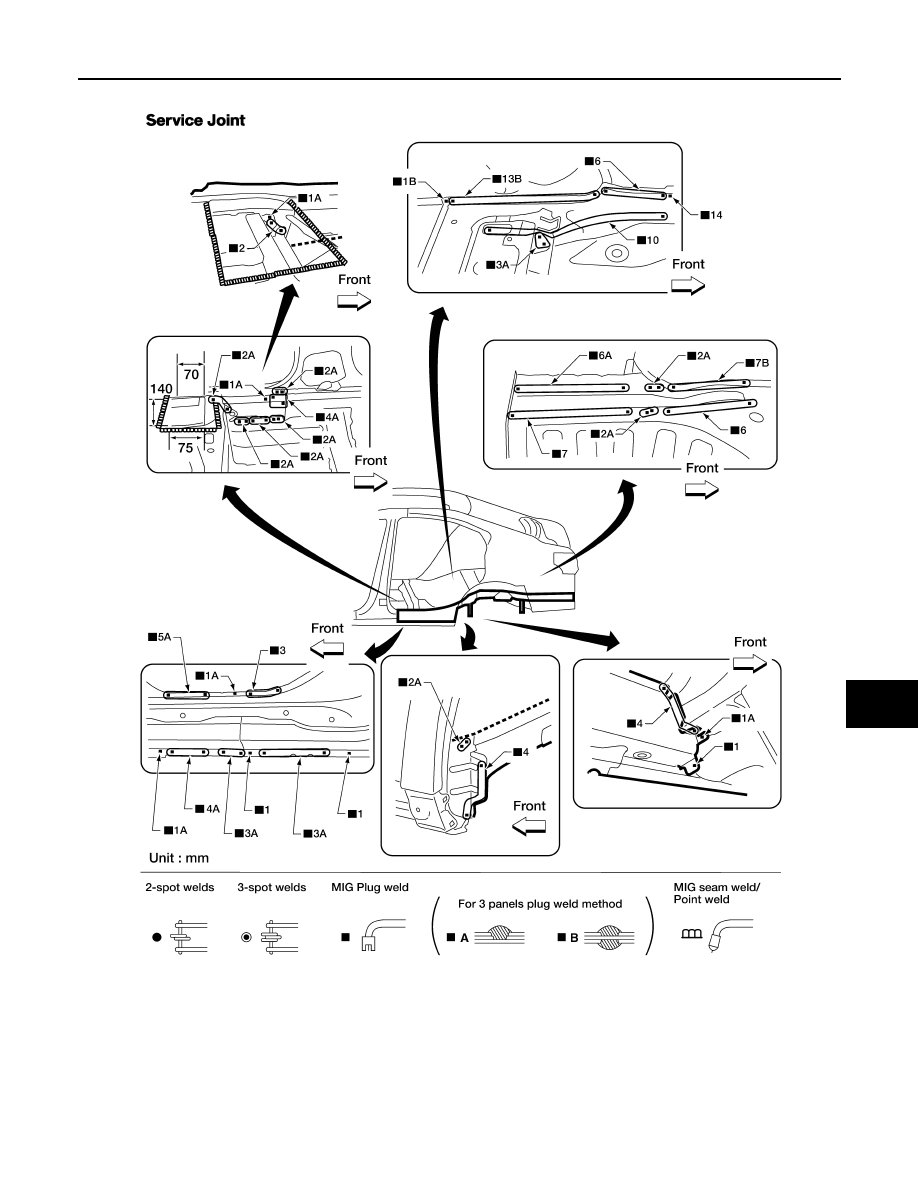

Rear side member assembly

AWKIA1391GB
