AV-508

< BASIC INSPECTION >

[COLOR DISPLAY - W/BOSE & NAVI]

INSPECTION AND ADJUSTMENT

CONFIGURATION (AV CONTROL UNIT) : Special Repair Requirement

INFOID:0000000009471423

1.

WRITING MODE SELECTION

CONSULT Configuration

Select “CONFIGURATION” of AV control unit.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

2.

PERFORM “WRITE CONFIGURATION-CONFIG FILE”

CONSULT Configuration

Perform “WRITE CONFIGURATION-Config file”.

>> WORK END

3.

PERFORM “WRITE CONFIGURATION-MANUAL SELECTION”

CONSULT Configuration

 Select “WRITE CONFIGURATION-Manual selection” to write vehicle specifications into the AV control unit.

For data to write, refer to

AV-508, "CONFIGURATION (AV CONTROL UNIT) : Configuration List"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course

lines) are normal.

>> WORK END

CONFIGURATION (AV CONTROL UNIT) : Configuration List

INFOID:0000000009471424

CAUTION:

Check vehicle specifications before servicing.

Function

Description

READ CONFIGURATION

• Reads the vehicle configuration of current AV control unit.
• Saves the read vehicle configuration.

WRITE CONFIGURATION-Manual selection

Writes the vehicle configuration with manual selection.

WRITE CONFIGURATION-Config file

Writes the vehicle configuration with saved data.

MANUAL SETTING ITEM

Note

Items

Setting value

STEERING

LHD

—

RHD

—

GRADE

MODE 1

BASE

MODE 2

OTHER

ENGINE TYPE

NORMAL

—

HYBRID

—

BODY TYPE

NORMAL

NORMAL

CONV

CONVERTIBLE

CAMERA SYSTEM

NONE/AVM

NONE or AVM

REAR

REAR CAMERA

REAR + SIDE

REAR + SIDE CAMERA

AV

INSPECTION AND ADJUSTMENT

AV-509

< BASIC INSPECTION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

4WAS

WITHOUT

—

WITH

—

SOUND SYSTEM

BASE

—

BOSE

—

ANTENNA TYPE

ROD TYPE

—

LONG TYPE

—

DUAL-ZONE AUTO TEMP

WITHOUT

—

WITH

—

DVD PLAY FUNCTION

WITHOUT

—

WITH

—

BODY TYPE

SED 2DR

SEDAN 2 DOOR

SED 4DR 1

SEDAN 4 DOOR

SED 4DR 2

SEDAN 4 DOOR (WIDE)

H/B 2DR

H/B 2 DOOR

H/B 4DR

H/B 4 DOOR

COUPE 2DR

COUPE 2 DOOR

COUPE T

COUPE T BAR

WGN 4DR 2

49H WAGON 4 DOOR (WIDE)

H/T 2DR 1

H/T 2 DOOR

H/T 2DR 2

H/T 2 DOOR (HIGHROOF)

H/T 4DR 1

H/T 4 DOOR

H/T 4DR 2

H/T 4 DOOR (WIDE)

WGN 2DR

WAGON 2 DOOR

WGN 4DR 1

WAGON 4 DOOR

WGN 4DR 3

WAGON 4 DOOR (HIGHROOF)

WGN 4DR 4

56H WAGON 4 DOOR (WIDE)

VAN 2DR

VAN 2 DOOR

VAN 4DR 1

VAN 4 DOOR

VAN 4DR 2

VAN 4 DOOR (HIGHROOF)

CONV

CONVERTIBLE

MANUAL SETTING ITEM

Note

Items

Setting value

AV-510

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

AUDIO SYSTEM

SYSTEM DESCRIPTION

AUDIO SYSTEM

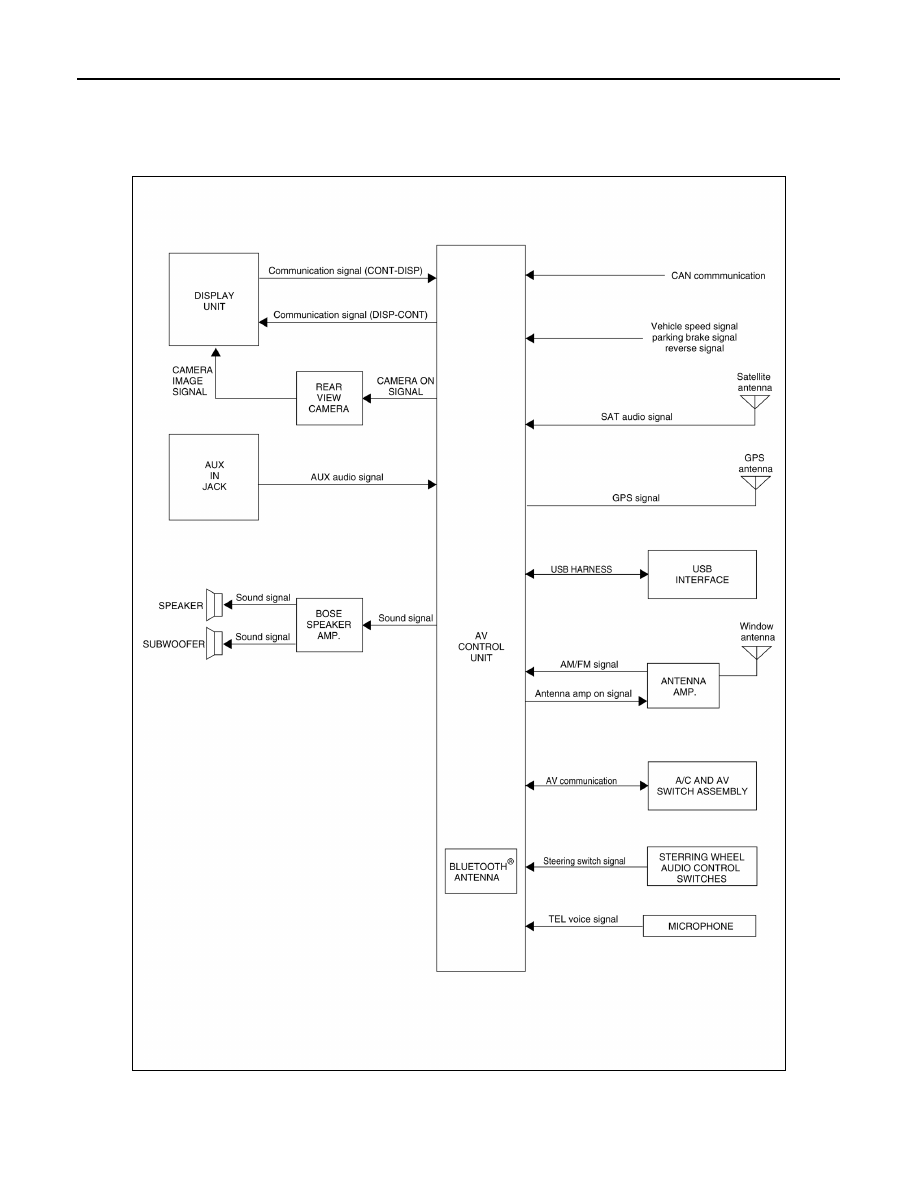

System Diagram

INFOID:0000000009471425

System Description

INFOID:0000000009471426

AUDIO SYSTEM

AWNIA2699GB

AV

AUDIO SYSTEM

AV-511

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

The audio system consists of the following components

• AV control unit

• Display unit

• BOSE speaker amp.

• Window antenna

• Steering wheel audio control switches

• A/C and AV switch assembly

• Front door speakers

• Tweeters

• Center speaker

• Rear door speakers

• Rear subwoofers

When the audio system is on, radio signals are received by the window antenna. The AV control unit then

sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals before

sending them to the front door speakers, tweeters, center speaker, rear door speakers and the rear subwoof-

ers.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM (IF EQUIPPED)

The satellite radio system consists of the following components

• Satellite antenna

• AV control unit

When the satellite radio system is on, radio signals are supplied to the AV control unit from the satellite

antenna. The AV control unit then sends audio signals to the BOSE speaker amp.

Refer to Owner's Manual for satellite radio system operating instructions.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.
