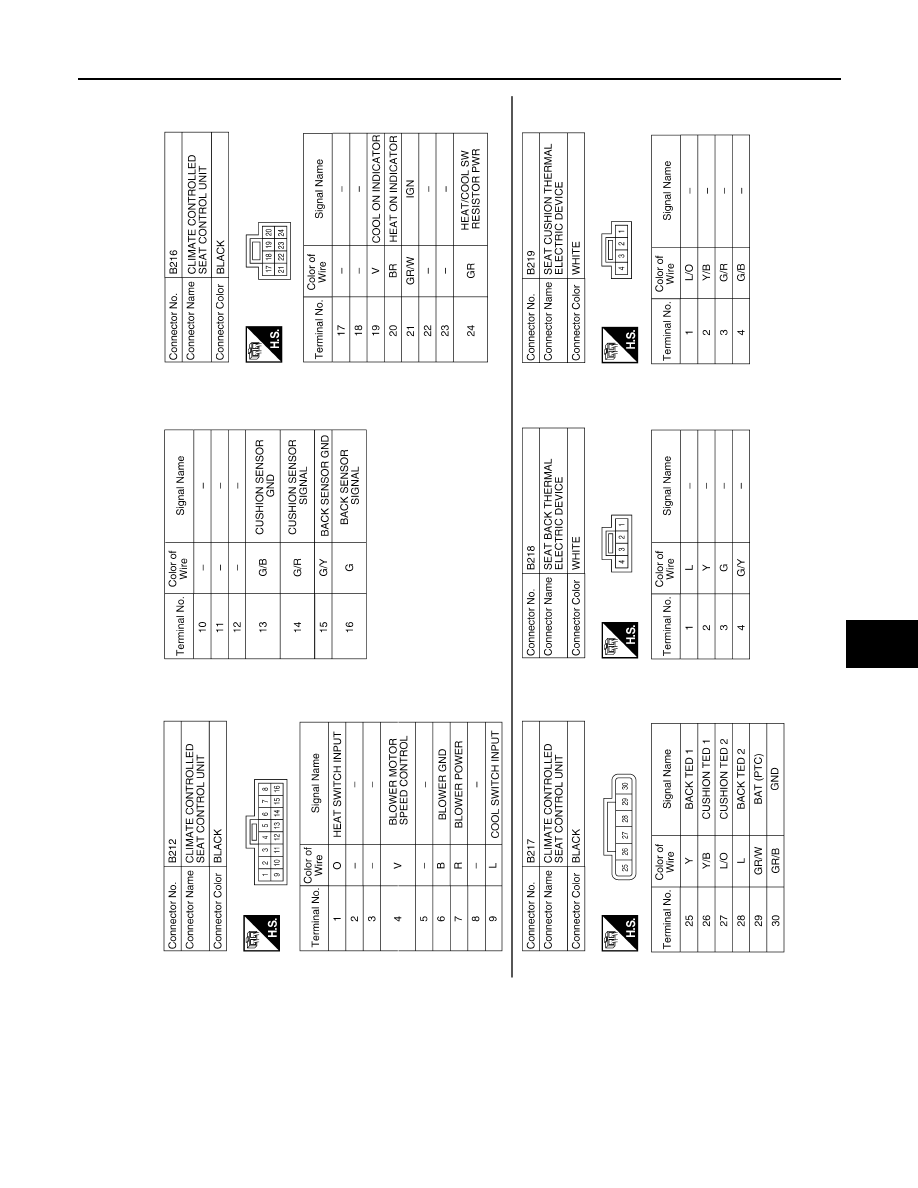

CLIMATE CONTROLLED SEAT

SE-49

< WIRING DIAGRAM >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0650GB

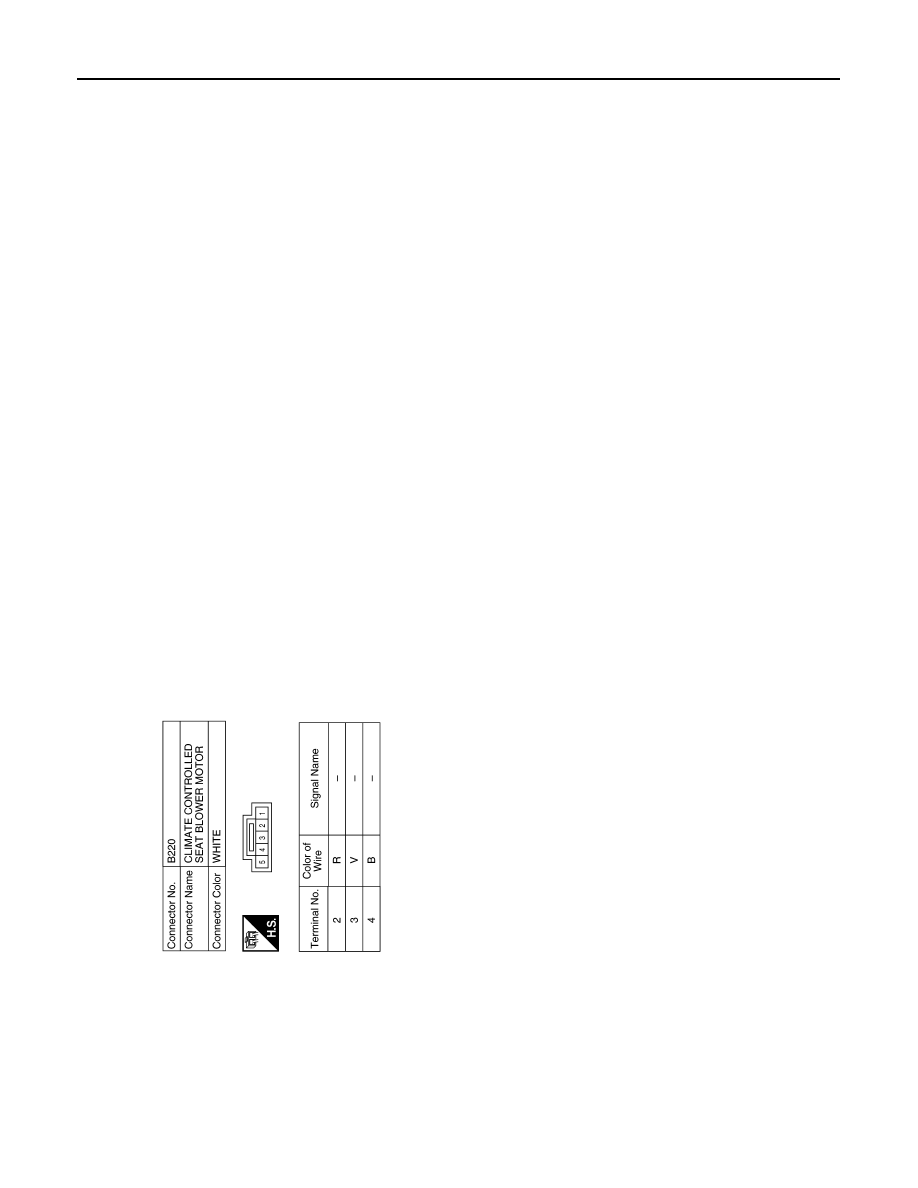

SE-50

< WIRING DIAGRAM >

[WITH CLIMATE CONTROLLED SEATS]

CLIMATE CONTROLLED SEAT

AAJIA0403GB

CLIMATE CONTROLLED SEAT SYSTEM

SE-51

< SYMPTOM DIAGNOSIS >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SYMPTOM DIAGNOSIS

CLIMATE CONTROLLED SEAT SYSTEM

Symptom Table

INFOID:0000000010049492

Symptom

Inspection item

Climate controlled seat inoperative.

Power supply and ground circuit
Refer to

SE-8, "CLIMATE CONTROLLED SEAT CONTROL UNIT : Diagnosis

Procedure"

.

Climate controlled seat blower motor inoperative.

Climate controlled seat blower motor
Refer to

SE-12, "Diagnosis Procedure"

.

Seat cushion thermal electric device inoperative.

Seat cushion thermal electric device
Refer to

SE-15, "Diagnosis Procedure"

.

Seatback thermal electric device inoperative.

Seatback thermal electric device
Refer to

SE-18, "Diagnosis Procedure"

.

Climate controlled seat switch LO, MED or HI in-
operative.

Climate controlled seat switch
Refer to

SE-20, "Diagnosis Procedure"

.

Climate controlled seat switch indicator inopera-
tive.

Climate controlled seat switch indicator
Refer to

SE-23, "Diagnosis Procedure"

.

Climate controlled seat
turns off too soon.

Climate controlled seat
switch indicator turns
off within 10 seconds of
turning on.

Malfunction caused by electrical issue. Check the following:
• Connectors for physical damage or loose terminals.
• Seat cushion thermal electric device.

Refer to

SE-15, "Diagnosis Procedure"

.

• Seatback thermal electric device.

Refer to

SE-18, "Diagnosis Procedure"

.

• Climate controlled seat blower motor.

Refer to

SE-12, "Diagnosis Procedure"

.

Climate controlled seat
switch indicator turns
off 30 seconds or more
after turning on.

Malfunction caused by mechanical issue. Check the following:
• Foam seat pads not aligned for thermal electric device outlet.
• Thermal electric device ducting restricted or disconnected.
• Climate controlled seat blower motor inlet restricted.

SE-52

< SYMPTOM DIAGNOSIS >

[WITH CLIMATE CONTROLLED SEATS]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SQUEAK AND RATTLE TROUBLE DIAGNOSES

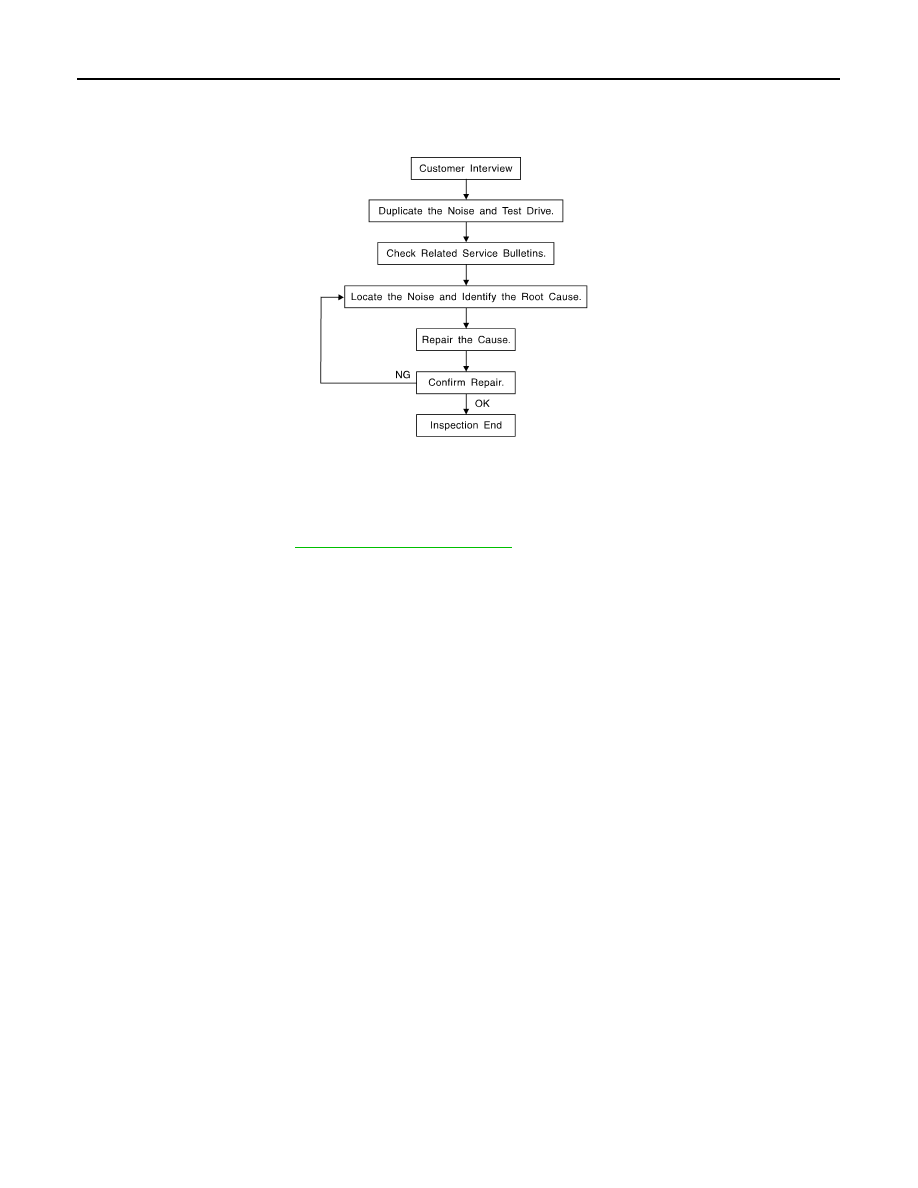

Work Flow

INFOID:0000000010049493

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-

nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any

customer's comments; refer to

SE-56, "Diagnostic Worksheet"

. This information is necessary to duplicate the

conditions that exist when the noise occurs.

• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by test driving the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when

defining the noise.

• Squeak —(Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces

= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.

• Creak—(Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-

dent on materials/often brought on by activity.

• Rattle—(Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing

clip or fastener/incorrect clearance.

• Knock —(Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick—(Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver

action or road conditions.

• Thump—(Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz—(Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on

the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to

duplicate the same conditions when you confirm the repair.
