NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

SEC-17

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Component Description

INFOID:0000000004215969

Component Reference

BCM

SEC-78

Steering lock unit

SEC-68

Push-button ignition switch

SEC-79

Door switch

DLK-69

ECVT device (detent switch)

SEC-52

Inside key antenna

DLK-59

Remote keyless entry receiver

DLK-113

Stop lamp switch

SEC-46

Park/neutral position switch

SEC-60

Steering lock relay

SEC-62

Key warning lamp

SEC-94

SEC-18

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

VEHICLE SECURITY SYSTEM

System Diagram

INFOID:0000000004215970

System Description

INFOID:0000000004215971

INPUT/OUTPUT SIGNAL CHART

OPERATION FLOW

SETTING THE VEHICLE SECURITY SYSTEM

Initial Condition

• Ignition switch is in OFF position.

Disarmed Phase

ALKIA0484GB

Switch

Input signal to BCM

BCM system

Actuator

All door switch

Open or close

Vehicle security system

• IPDM  E/R
• Head lamp
• Horn
• Security indicator lamp

Trunk room lamp switch

Door key cylinder switch

Lock or unlock

Door lock and unlock switch

Door request switch

Intelligent Key

Lock or unlock

Panic alarm

PIIA1367E

VEHICLE SECURITY SYSTEM

SEC-19

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• When doors or trunk is open, the vehicle security system is set in the disarmed phase on the assumption

that the owner is inside or near the vehicle.

• When the vehicle security system is in the disarmed phase, the security indicator lamp blinks every 2.4 sec-

onds.

Pre-armed Phase and Armed Phase

When the following operation 1 or 2 is performed, the vehicle security system turns into the “pre-armed”

phase. (The security indicator lamp illuminates.)
1. BCM receives LOCK signal from front door key cylinder switch or Intelligent Key, after trunk and all doors

are closed.

2. Trunk and all doors are closed after front doors are locked by key or door lock and unlock switch.

The security indicator lamp illuminates for 30 seconds. Then, the system automatically shifts into the

“armed” phase.

CANCELING THE SET VEHICLE SECURITY SYSTEM

When one of the following operations is performed, the armed phase is canceled.
1. Unlock the doors with the key or Intelligent Key.
2. Turn ignition switch “ON” or “ACC” position.

CANCELING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

When unlocking the door with the key or Intelligent Key the alarm operation is canceled.

ACTIVATING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

Check that the system is in the armed phase. (The security indicator lamp blinks every 2.4 seconds.)

When the following operation 1 or 2 is performed, the system sounds the horns and flashes the headlamps for

about 50 seconds.
1. Trunk or any door is opened during armed phase.
2. Disconnecting and connecting the battery connector before canceling armed phase.

PANIC ALARM OPERATION

Intelligent Key system will not operate vehicle security system (horn and headlamps) if the ignition switch is in

the ACC or ON position.

When the Intelligent Key system is triggered, ground is supplied intermittently to both headlamp relay and horn

relay.

When headlamp relay and horn relay are energized, then power is supplied to headlamps (LH and RH) and

horns (HIGH and LOW).

The headlamp flashes and the horn sounds intermittently.

The alarm automatically turns off after 50 seconds or when BCM receives any signal from Intelligent Key.

SEC-20

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

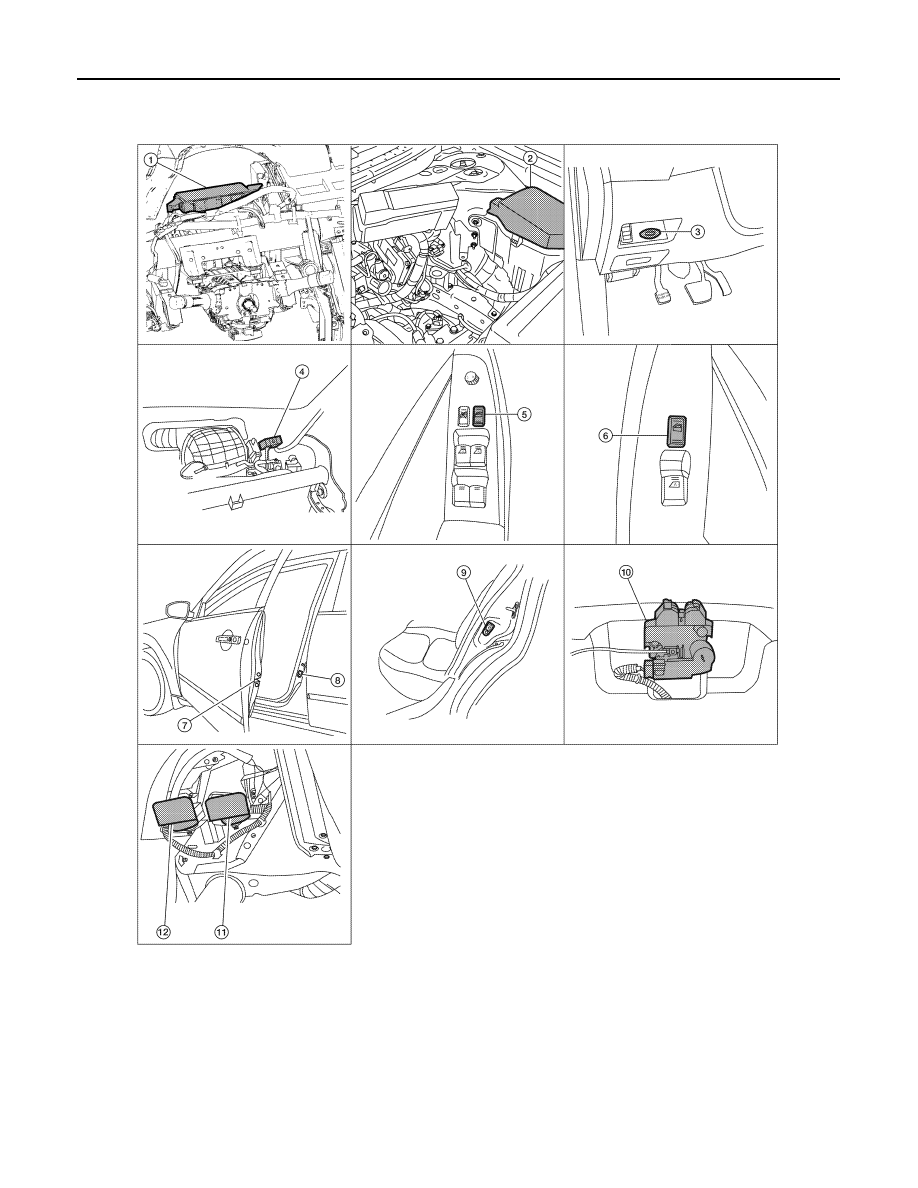

Component Parts Location

INFOID:0000000004215972

ALKIA0239ZZ

1.

BCM M16, M17, M18, M19, M21
(view with instrument panel removed)

2.

IPDM E/R E17, E18

3.

Key slot M40

4.

Remote keyless entry receiver M27
(view with instrument panel removed)

5.

Main power window and door lock/un-
lock switch D7, D8

6.

Power window and door lock/un-
lock switch RH D105

7.

Front door lock assembly LH (key cylinder
switch) D10

8.

Front door switch LH B8
RH B108

9.

Rear door switch LH B18
RH B116

10. Trunk lamp switch and trunk release sole-

noid B28
(view with trunk lid inner trim panel removed)

11. Horn (high) E216

(view with front fender protector LH re-
moved)

12. Horn (low) E215
