SE-18

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

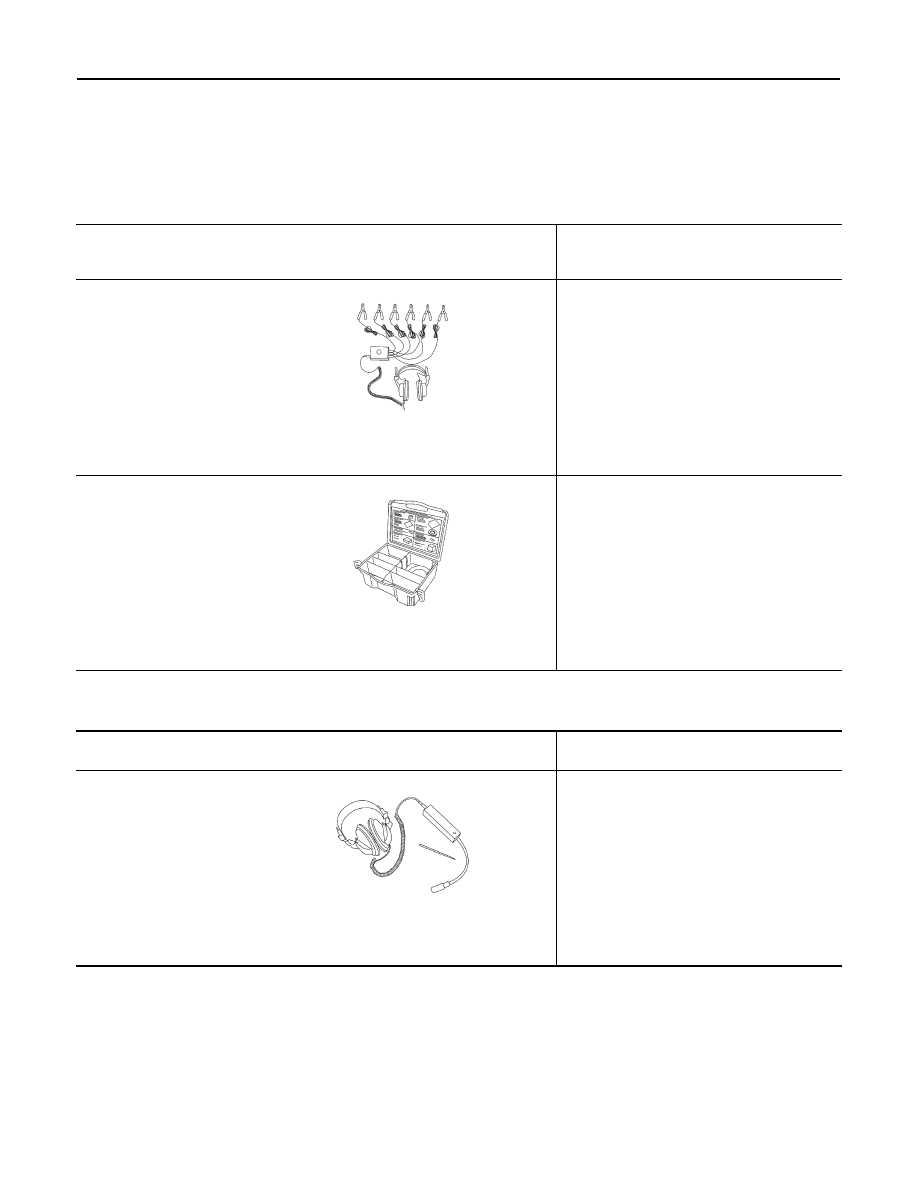

Special Service Tool

INFOID:0000000004215454

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000004215455

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

FRONT SEAT

SE-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT

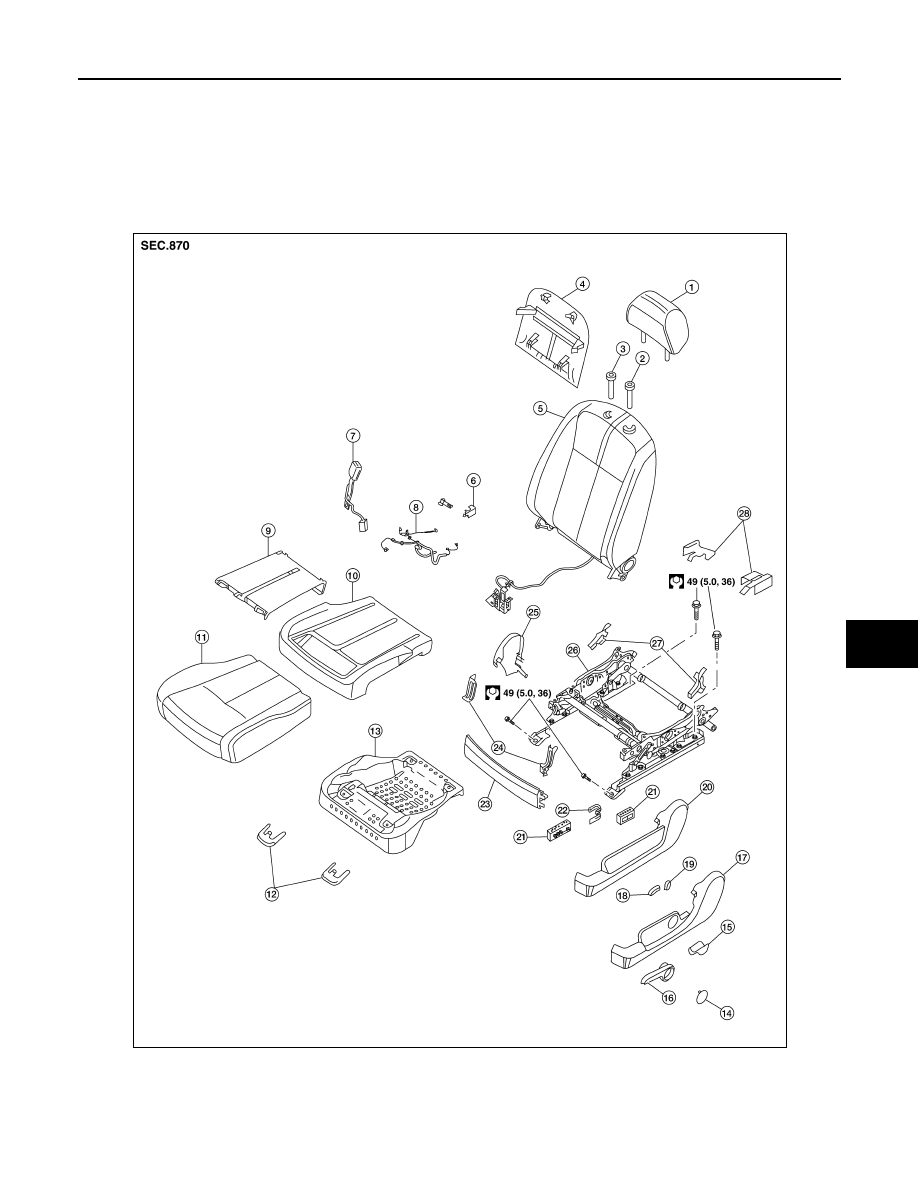

Exploded View

INFOID:0000000004215456

DRIVER'S SEAT

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback board

5.

Seatback assembly

6.

Slide cover

7.

Seat belt buckle

8.

Seat harness

9.

Seat cushion heater unit

10. Seat cushion

11. Seat trim

12. Front leg covers

ALIIA0273GB

SE-20

< ON-VEHICLE REPAIR >

FRONT SEAT

PASSENGER'S SEAT

13. Seat cushion frame

14. Manual seat lifter lever finisher

15. Manual seat recliner handle

16. Manual seat lifter lever

17. Manual seat outer finisher

18. Seat slide switch

19. Seat reclining switch

20. Power seat outer finisher

21. Seat switch assembly

22. LH seat bracket

23. Front seat finisher

24. Cushion bracket

25. Inner seat cover

26. Seat frame assembly

27. Cushion finishers

28. Rear leg covers

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback board

5.

Seatback assembly

6.

Seat cushion assembly

7.

Bushing

8.

Seat cushion frame assembly

9.

Front leg covers

ALIIA0272GB

FRONT SEAT

SE-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000004215457

REMOVAL

CAUTION:

• Before removing the front seat, turn the ignition switch off, disconnect both battery terminals and

wait and least 3 minutes.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, front seatback assembly must be replaced.

• Always replace passenger seat cushion as an assembly  with Occupant Classification System.

• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

• When removing and installing, use shop cloths to protect the parts from damage where they may

interfere with other parts.

1. Slide the seat until the four seat bolts are visible and a tool can be inserted.
2. Disconnect the negative and positive battery terminals and wait at least 3 minutes.
3. Disconnect the harness connector for the side air bag module.
4. Disconnect the power seat harness connector and vehicle harness clip from the vehicle.
5. Remove the seat leg covers.
6. Remove the four seat bolts.

INSTALLATION

Installation is in the reverse order of removal.

• When installing the front seats tighten the drivers seat bolts as

shown.

• When installing the front seats tighten the passenger seat bolts as

shown.

10. Cushion bracket

11. Seat frame assembly

12. Seat harness

13. Seat belt buckle

14. Inner finisher

15. Outer finisher

16. Seat cushion supporter

17. Recliner mechanism

18. Finisher

19. Cushion finishers

20. Rear leg covers

LIIA2853E
