BCM (BODY CONTROL MODULE)

*: With LH and RH front window anti-pinch system

149

(R/B)

Ground Rear door LH switch

Input

Rear door LH
switch

OFF (when rear door LH
closes)

11.8V

ON (when rear door LH
opens)

0V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JPMIA0011GB

BCM (BODY CONTROL MODULE)

RF-41

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

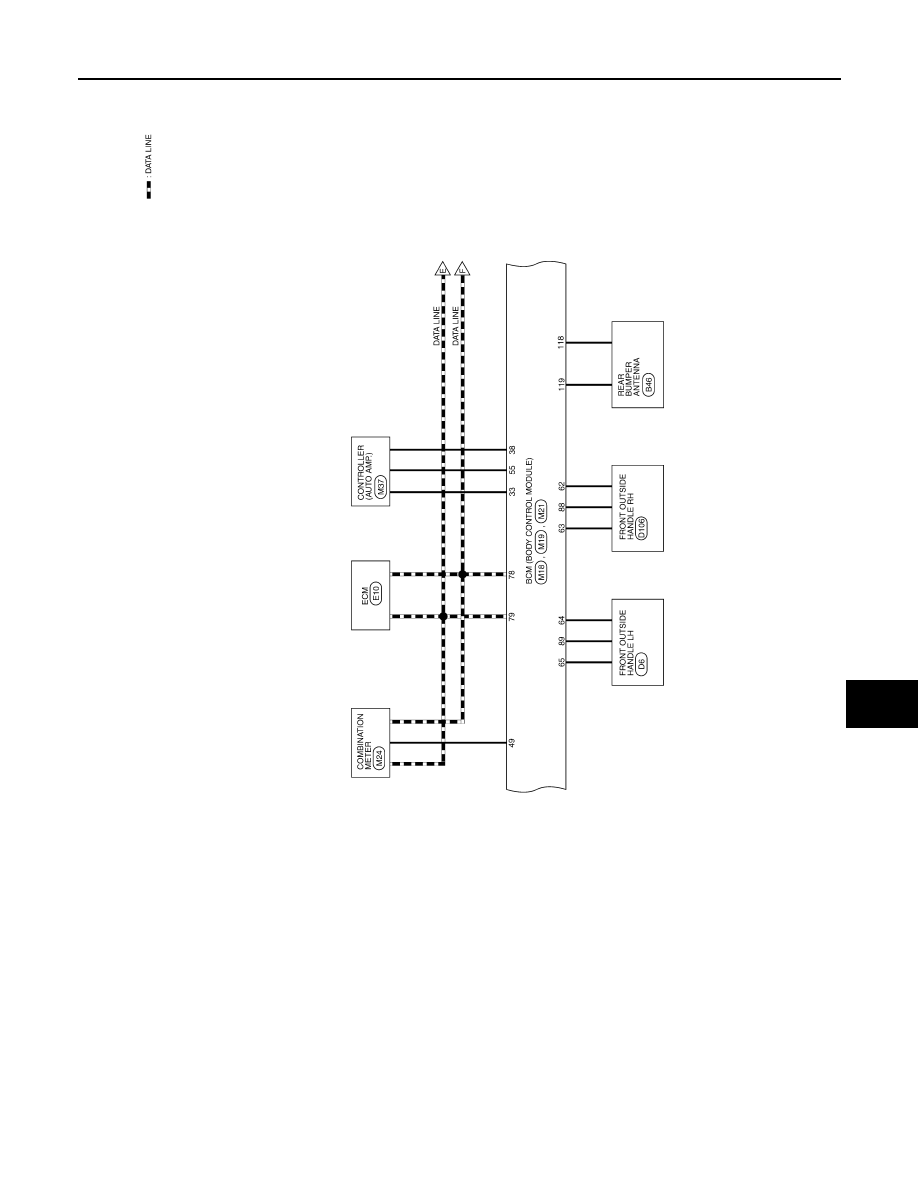

Wiring Diagram

INFOID:0000000004496861

ABMWA0182GB

RF-42

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

ABMWA0183GB

BCM (BODY CONTROL MODULE)

RF-43

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ALMWA0039GB
