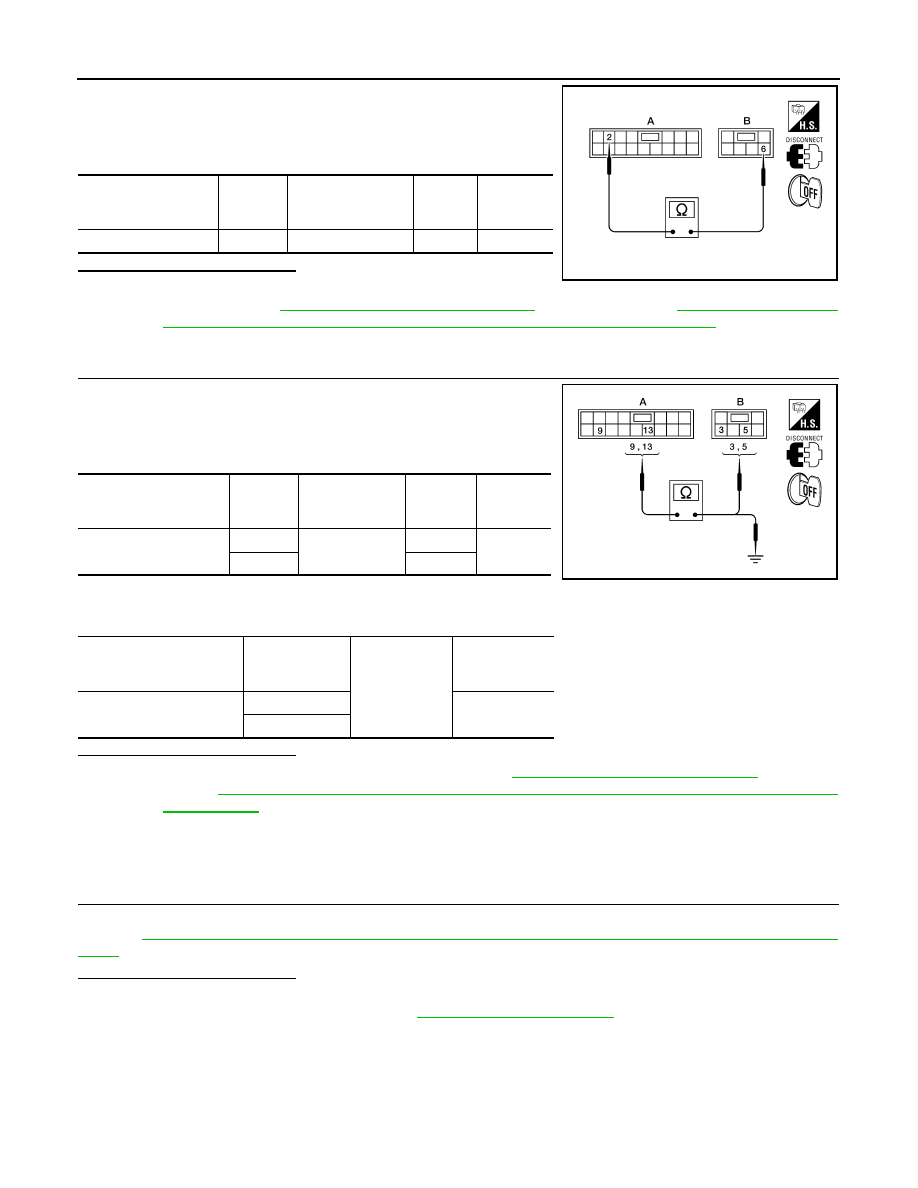

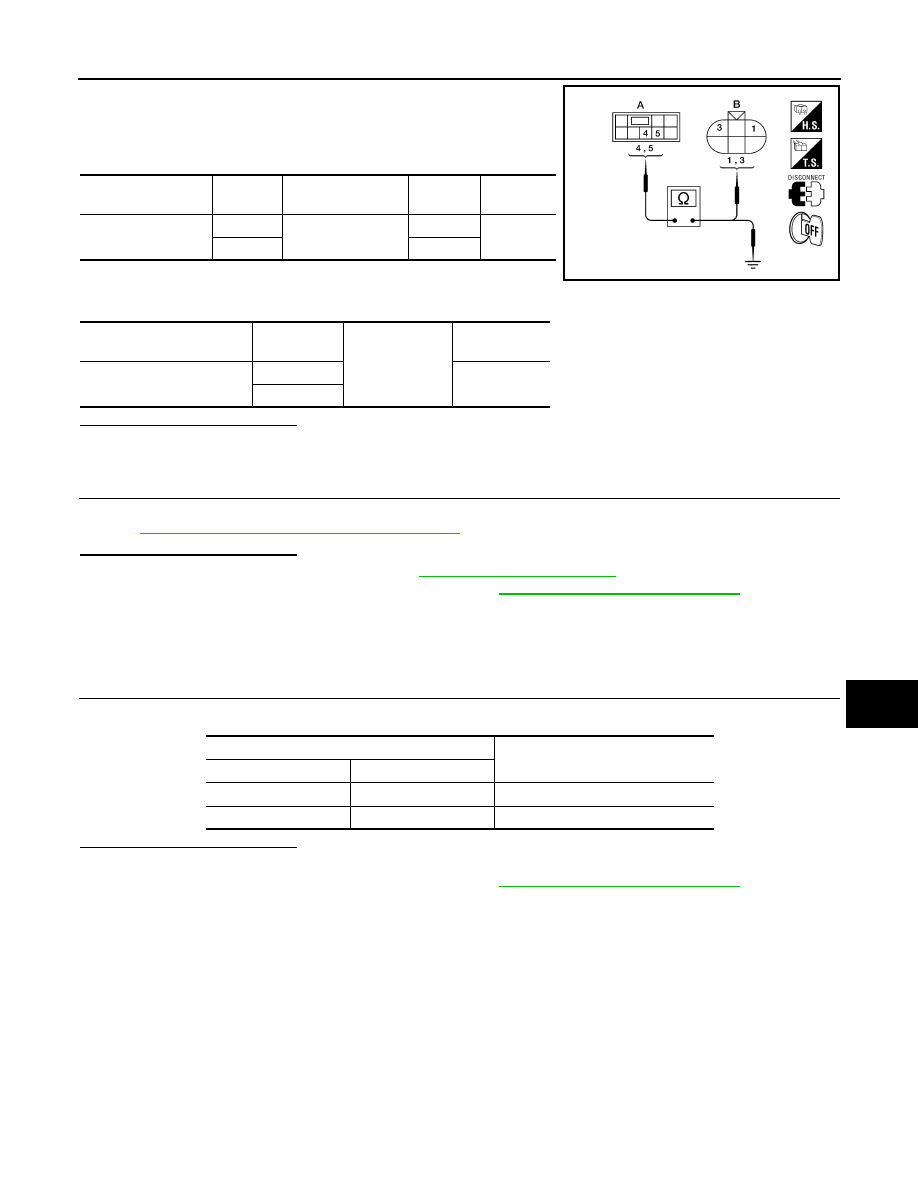

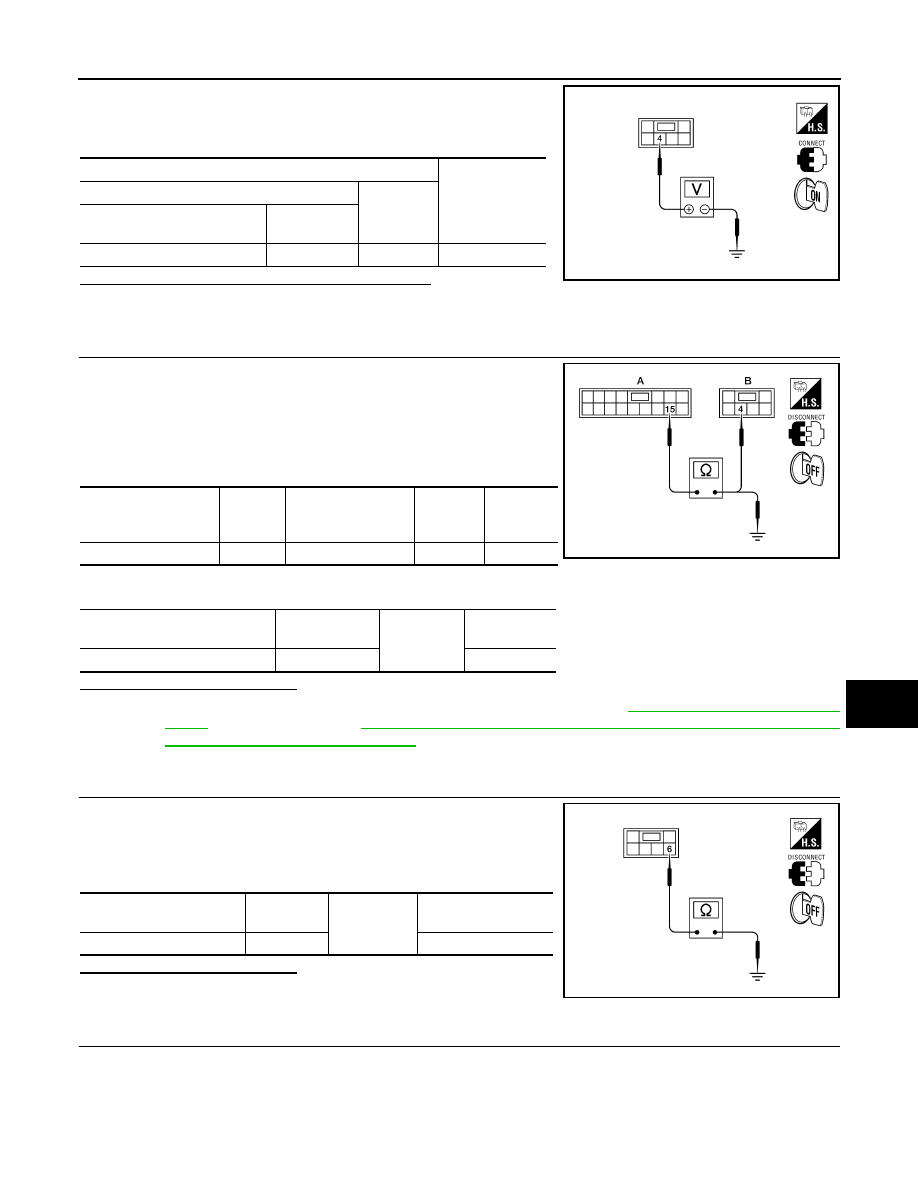

POWER WINDOW MOTOR PWC-33 < COMPONENT DIAGNOSIS > [LH ONLY WINDOW ANTI-PINCH] C D E F G H I J L M A B PWC N O P 1. Turn ignition switch OFF. 2. Disconnect rear power window switch RH. 3. Check continuity between rear power window switch RH con- nector (A) and rear power window motor RH connector (B). 4. Check continuity between rear power window switch RH con- nector (A) and ground. Is the inspection result normal? YES >> GO TO 3 NO >> Repair or replace harness. 3. CHECK REAR POWER WINDOW MOTOR RH Check rear power window motor RH. PWC-33, "REAR RH : Component Inspection" . Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident" . NO >> Replace rear power window motor RH. Refer to GW-23, "Removal and Installation" . REAR RH : Component Inspection INFOID:0000000004215842 COMPONENT INSPECTION 1. CHECK REAR POWER WINDOW MOTOR RH Does motor operate by connecting the battery voltage directly to rear power window motor RH? Is the inspection result normal? YES >> Power window motor is OK. NO >> Replace rear power window motor RH. Refer to GW-23, "Removal and Installation" . Rear power window switch RH connector Terminal Rear power window motor RH connector Terminal Continuity D303 (A) 5 D304 (B) 1 Yes 4 3 Rear power window switch RH connector Terminal Ground Continuity D303 (A) 5 No 4 ALKIA0294ZZ Terminal Motor condition (+) (–) 3 1 DOWN 1 3 UP |
