BATTERY SMART UNIT

HBB-101

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

Removal and Installation

INFOID:0000000004212314

REMOVAL

1. Remove the HV relay assembly from the HV battery assembly. Refer to

HBB-105, "Removal and Installa-

tion"

.

2. Remove the bolt from the battery smart unit.
3. Disconnect the connectors from the battery smart unit and remove it from the HV battery assembly.

INSTALLATION

Installation is in the reverse order of removal.

10. Clip

11. HV vehicle converter

12. Connector

13. Vent hose

14. HV battery assembly

15. Service plug grip

16. Battery smart unit

17. HV relay assembly

A.

Refer to installation.

HBB-102

< REMOVAL AND INSTALLATION >

HV VEHICLE CONVERTER

HV VEHICLE CONVERTER

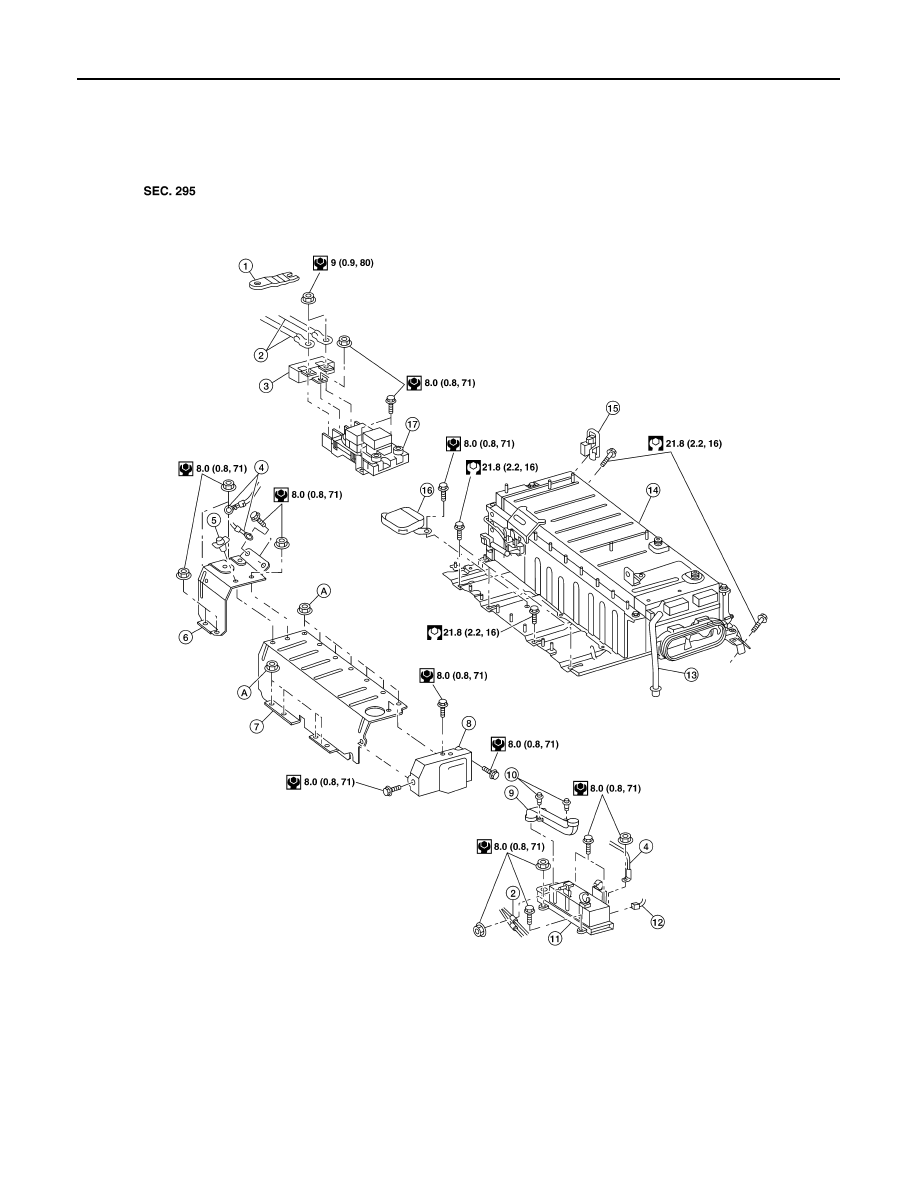

Exploded View

INFOID:0000000004212315

1.

Battery shield contact

2.

HV wire

3.

Filter noise capacitor

4.

Ground wire

5.

Lock

6.

RH cover

7.

LH cover

8.

Side cover

9.

Duct

ALCIA0097GB

HV VEHICLE CONVERTER

HBB-103

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

Removal and Installation

INFOID:0000000004212316

REMOVAL

1. Disconnect the connectors from the HV relay assembly. Refer to

HBB-105, "Removal and Installation"

.

2. Remove the HV wire nut and HV wire from the HV vehicle converter.
3. Remove the ground wire nut and ground wire from the HV vehicle converter.
4. Remove the HV vehicle converter.

1. Remove the HV vehicle converter nut and bolts from the HV vehicle converter.

2. Disconnect the connector from the back of the HV vehicle converter.

3. Remove the HV vehicle converter.

5. Remove the clips and duct from the HV vehicle converter.

INSTALLATION

Installation is in the reverse order of removal.

10. Clip

11. HV vehicle converter

12. Connector

13. Vent hose

14. HV battery assembly

15. Service plug grip

16. Battery smart unit

17. HV relay assembly

A.

Refer to installation.

HBB-104

< REMOVAL AND INSTALLATION >

HV RELAY ASSEMBLY

HV RELAY ASSEMBLY

Exploded View

INFOID:0000000004212317

1.

Battery shield contact

2.

HV wire

3.

Filter noise capacitor

4.

Ground wire

5.

Lock

6.

RH cover

7.

LH cover

8.

Side cover

9.

Duct

ALCIA0097GB
