REAR WINDOW GLASS

REAR WINDOW GLASS

Components

INFOID:0000000004216131

Removal and Installation

INFOID:0000000004216132

REMOVAL

1. Partially remove the rear of the headliner (rear edge). Refer to

INT-23, "Removal and Installation"

.

2. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

3. Remove the connectors and grounds for the rear window defogger and printed antenna.
4. Apply protective tape around the rear window glass to protect the painted surface from damage.

1.

Rear window glass

2.

Spacer

3.

Adhesive

4.

Roof panel outer

5.

Rear window molding

6.

Body side outer panel

7.

Parcel shelf panel

8.

Primer

D.

7 (0.28)

E.

12 (0.47)

F.

12.5 (0.49)

G.  16 (0.63)

ALKIA0102ZZ

REAR WINDOW GLASS

GW-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

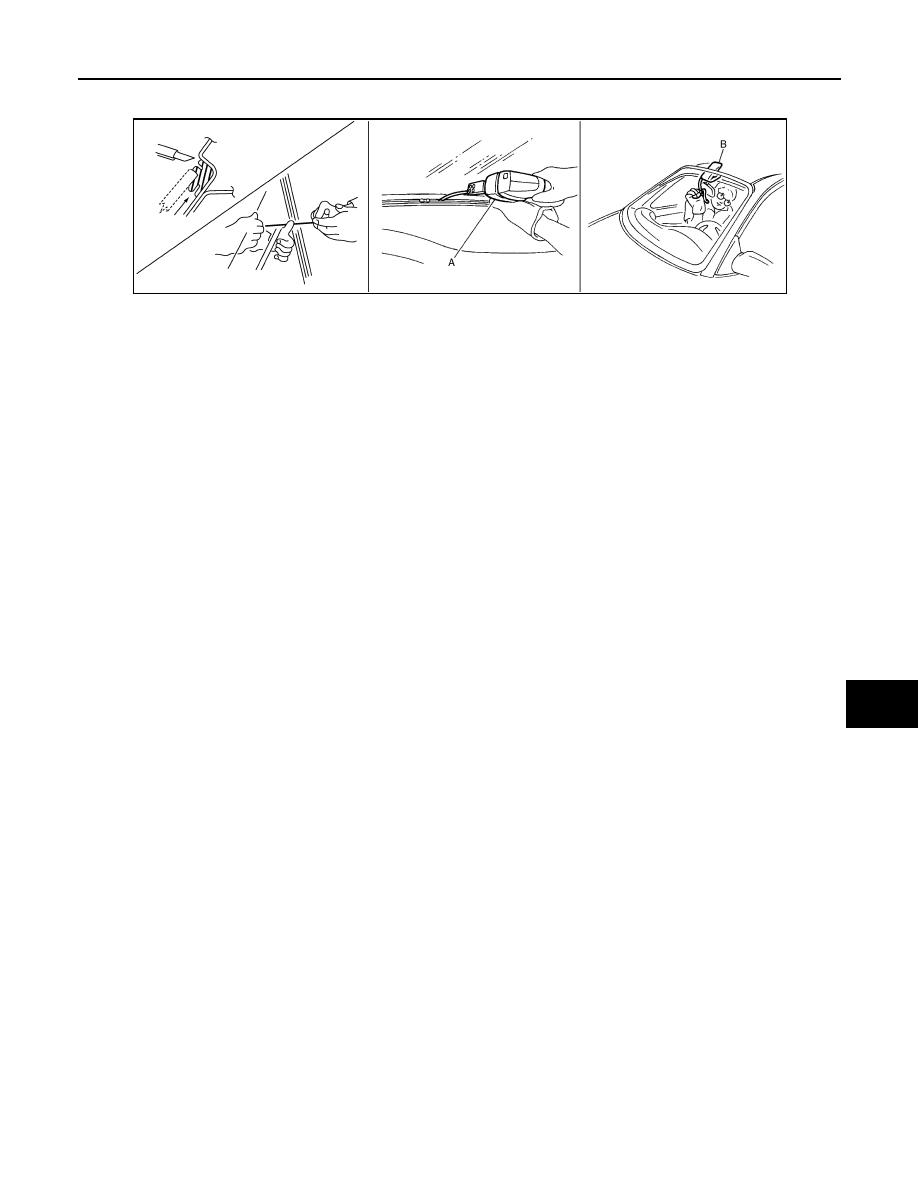

• After removing moldings, remove glass using piano wire or power cutting tool (A) and an inflatable pump bag

(B).

• If the rear window glass is to be reused, mark the body and the glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent

glass splinters from entering your eyes or cutting your hands.

CAUTION:

• When the rear window glass is to be reused, do not use a cutting knife or power cutting tool.

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

Installation is in the reverse order of removal.

• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished

with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the rear window in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperature and lower humidity.

Inspection

INFOID:0000000004216133

REPAIRING WATER LEAKS

Leaks can be repaired without removing and reinstalling glass.

If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the side window area while pushing glass outward.

To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

PIIB5779E

GW-14

< ON-VEHICLE REPAIR >

FRONT DOOR GLASS

FRONT DOOR GLASS

Components

INFOID:0000000004533080

Removal and Installation

INFOID:0000000004533081

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the bolt hole access covers from the door module assembly.
3. Reconnect the window switch to raise/lower the door glass until the door glass bolts can be seen through

the access holes on the door module assembly.

4. Remove the door glass bolts.

1.    Door panel

2.

Inside seal

3.

Door glass

4.

Regulator assembly

5.

Door module assembly

6.

Window motor

7.

Cover

ALKIA1455ZZ

FRONT DOOR GLASS

GW-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

5. While holding the door glass, raise it at the rear end to pull the

door glass out of the sash toward the outside of the door.

INSTALLATION

Installation is in the reverse order of removal.

• After installation, inspect and adjust as necessary.

Inspection and Resetting the Window Motor Limit Switch After Installation

Front Door Glass Inspection After Installation

• Check that the door glass is securely set into the glass run groove.

• Lower the door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to

the sash is parallel. If the clearance between the door glass and sash is not parallel, loosen the regulator

bolts, guide rail bolts, and door glass and guide rail bolts to correct the glass position.

Resetting the Window Motor Limit Switch

NOTE:

After removal and installation of any following components, the window motor must be reset.

• Removal and installation of the regulator.

• Removal and installation of the motor from the regulator.

• Removal and installation of the door glass.

• Removal and installation of the glass run.

After installation, perform the following procedure to reset the window motor limit switch.

1. Raise the door glass to the top position.

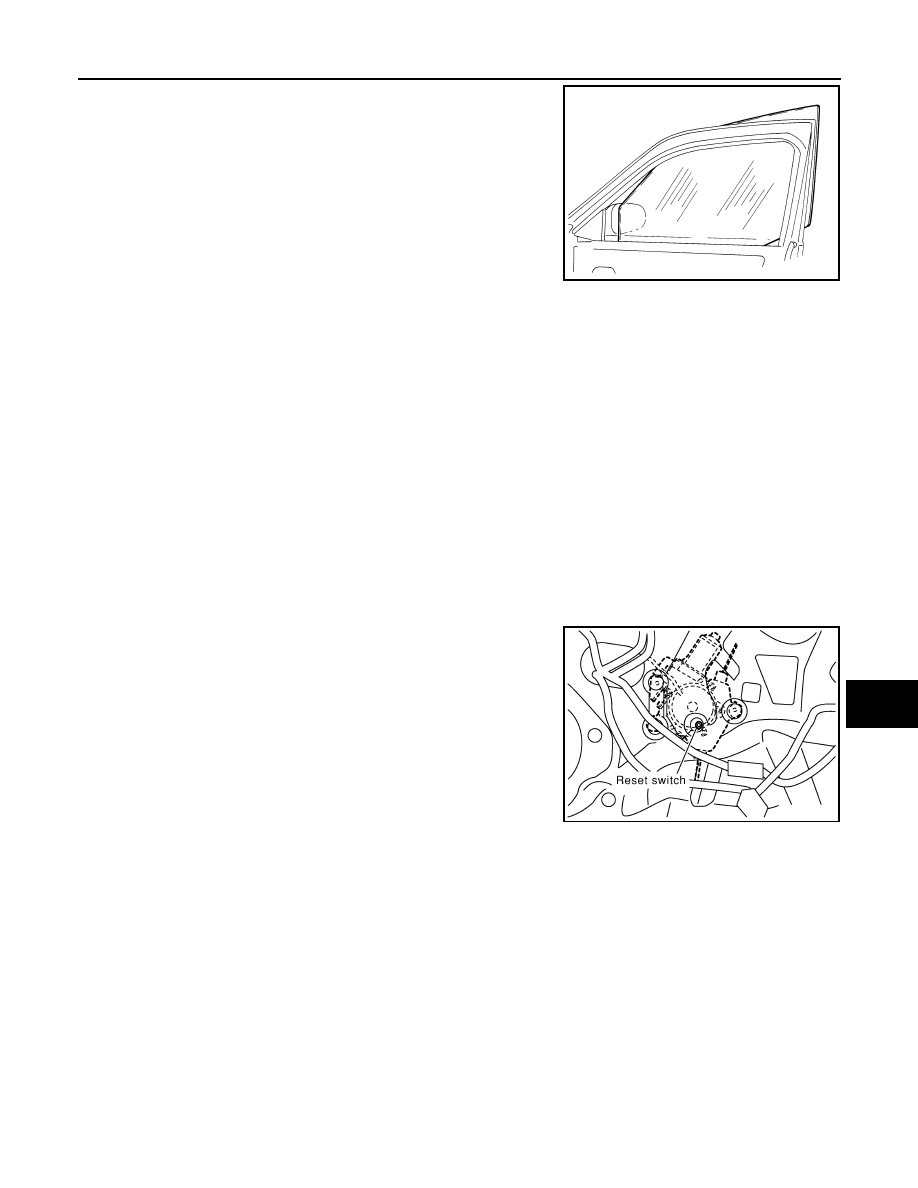

2. While pressing and holding the reset switch, lower the door

glass to the bottom position.

3. Release the reset switch. Verify that the reset switch returns to

the original position, and then raise the door glass to the top

position.

CAUTION:

Do not operate the door glass automatically to raise the

glass to the top position.

Inspection and Adjustment

INFOID:0000000004216136

SYSTEM INITIALIZATION

If any of the following work has been done, initialize the system.

• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.

• Removal and installation of the motor from the regulator assembly.

• Removal and installation of the harness connector of the power window switch.

• Operate the regulator assembly as a unit.

• Removal and installation of the door glass.

• Removal and installation of the door glass run.

Initialization

After installing each component to the vehicle, follow the steps below.
1. Disconnect the negative battery terminal or disconnect the power window switch harness connector tem-

porarily, then reconnect after at least 1 minute.

SIIA0286J

SIIA0347E
