EXL-12

< FUNCTION DIAGNOSIS >

AUTO LIGHT SYSTEM

AUTO LIGHT SYSTEM

System Diagram

INFOID:0000000004216362

System Description

INFOID:0000000004216363

• BCM (Body Control Module) controls auto light operation according to signals from optical sensor, lighting

switch and ignition switch.

• IPDM E/R (Intelligent Power Distribution Module Engine Room) operates parking, license plate, tail, front fog

lamps and headlamps according to CAN communication signals from BCM.

• Optical sensor detects ambient brightness of 800 to 2,500 lux. And optical sensor converts light (lux) to volt-

age, then sends the optical sensor signal to BCM.

OUTLINE

The auto light control system has an optical sensor that detects outside brightness.

When the lighting switch is in AUTO position, it automatically turns ON/OFF the parking, license plate, tail,

front fog lamps and headlamps in accordance with the ambient light. Sensitivity can be adjusted in four steps.

For the details of the setting, Refer to

BCS-22, "HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)"

.

AWLIA0011GB

AUTO LIGHT SYSTEM

EXL-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

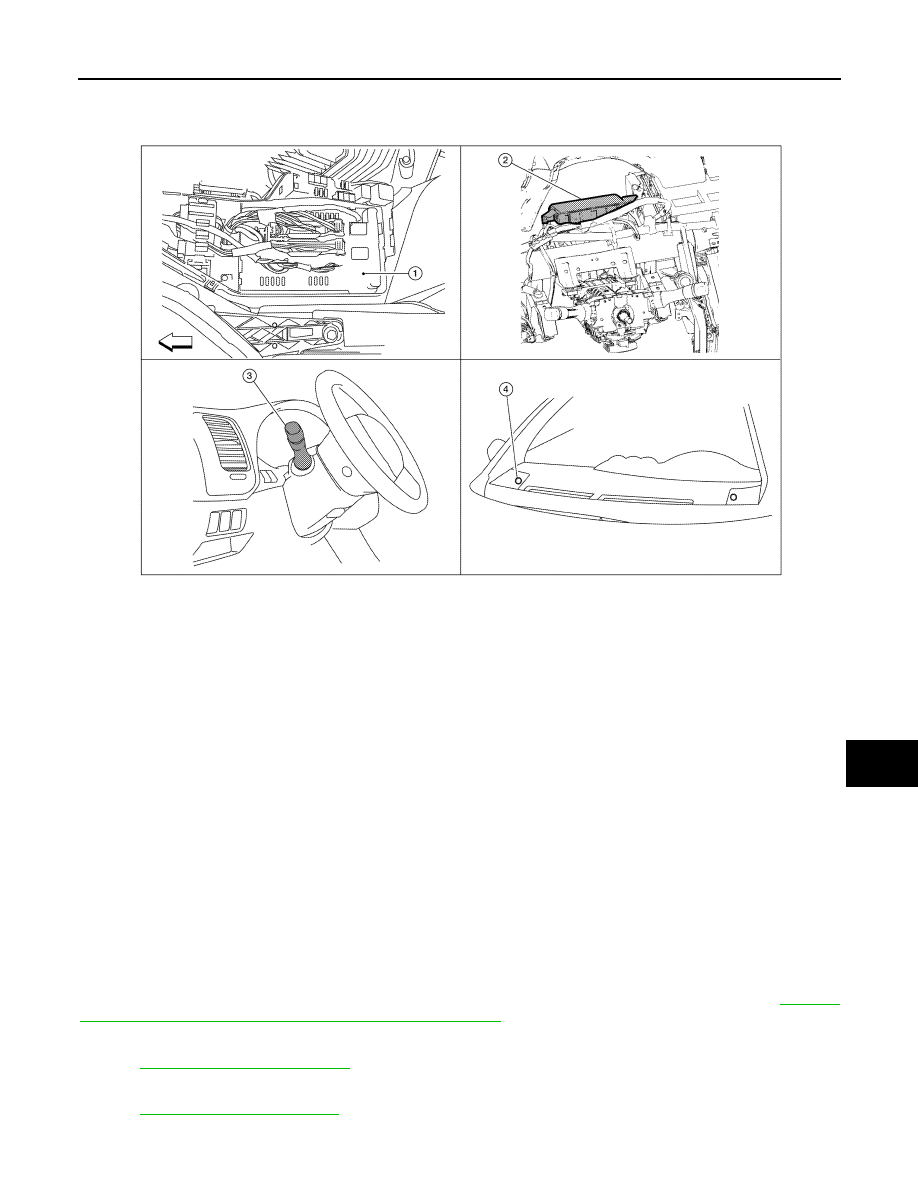

Component Parts Location

INFOID:0000000004216364

Component Description

INFOID:0000000004216365

AUTO LIGHT OPERATION

Applicable lamps

• Low beam headlamp

• Parking, license plate and tail lamps

• High beam headlamp (with the lighting switch in HIGH BEAM position)

• Front fog lamp (with the lighting switch in front fog lamp ON position)

When the lighting switch is in AUTO position with the ignition switch in ON position, BCM detects the AUTO

LIGHT (ON) by BCM combination switch reading function. BCM turns automatically ON/OFF the applicable

lamps according to ambient brightness depending on the following condition.

• It turns ON applicable lamps in 3 seconds when ambient brightness is less than 1250 lux.

• The lighted lamps are turned OFF in 5 seconds when ambient brightness becomes 2500 lux or higher.

Releasing Function:

• Turn ignition switch to the OFF position, or

• Change lighting switch to the OFF, 1ST, 2ND position.

NOTE:

Timing for when lamps turn ON/OFF can be changed by the function setting of CONSULT-III. Refer to

BCS-22,

"HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)"

.

COMBINATION SWITCH READING FUNCTION

Refer to

BCS-10, "System Description"

.

HEADLAMP LOW AND HIGH OPERATION

Refer to

EXL-7, "System Description"

.

FRONT FOG LAMP OPERATION

1.

IPDM E/R E17, E18, E200

2.

BCM M16, M17, M18, M19, M21 (view
with instrument panel removed)

3.

Combination switch M28

4.

Optical sensor M66

AWLIA0016ZZ

EXL-14

< FUNCTION DIAGNOSIS >

AUTO LIGHT SYSTEM

Refer to

EXL-15, "System Description"

.

PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION

Refer to

EXL-19, "System Description"

.

FRONT FOG LAMP

EXL-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP

System Diagram

INFOID:0000000004216366

System Description

INFOID:0000000004216367

• BCM (Body Control Module) controls front fog lamp operation.

• IPDM E/R (Intelligent Power Distribution Module Engine Room) operates front fog lamp according to CAN

communication signals from BCM.

• Combination meter operates front fog lamp indicator according to inputs via the CAN communication lines.

Component Parts Location

INFOID:0000000004216368

JPLIA0004GB

1.

IPDM E/R E17, E18, E200

2.

BCM M16, M17, M18, M19 (view with
instrument panel removed)

3.

Combination switch M28

AWLIA0017ZZ
