REMOTE KEYLESS ENTRY RECEIVER

DLK-237

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY RECEIVER

Removal

INFOID:0000000004215804

REMOVAL

1. Remove glove compartment. Refer to

IP-11, "Exploded View"

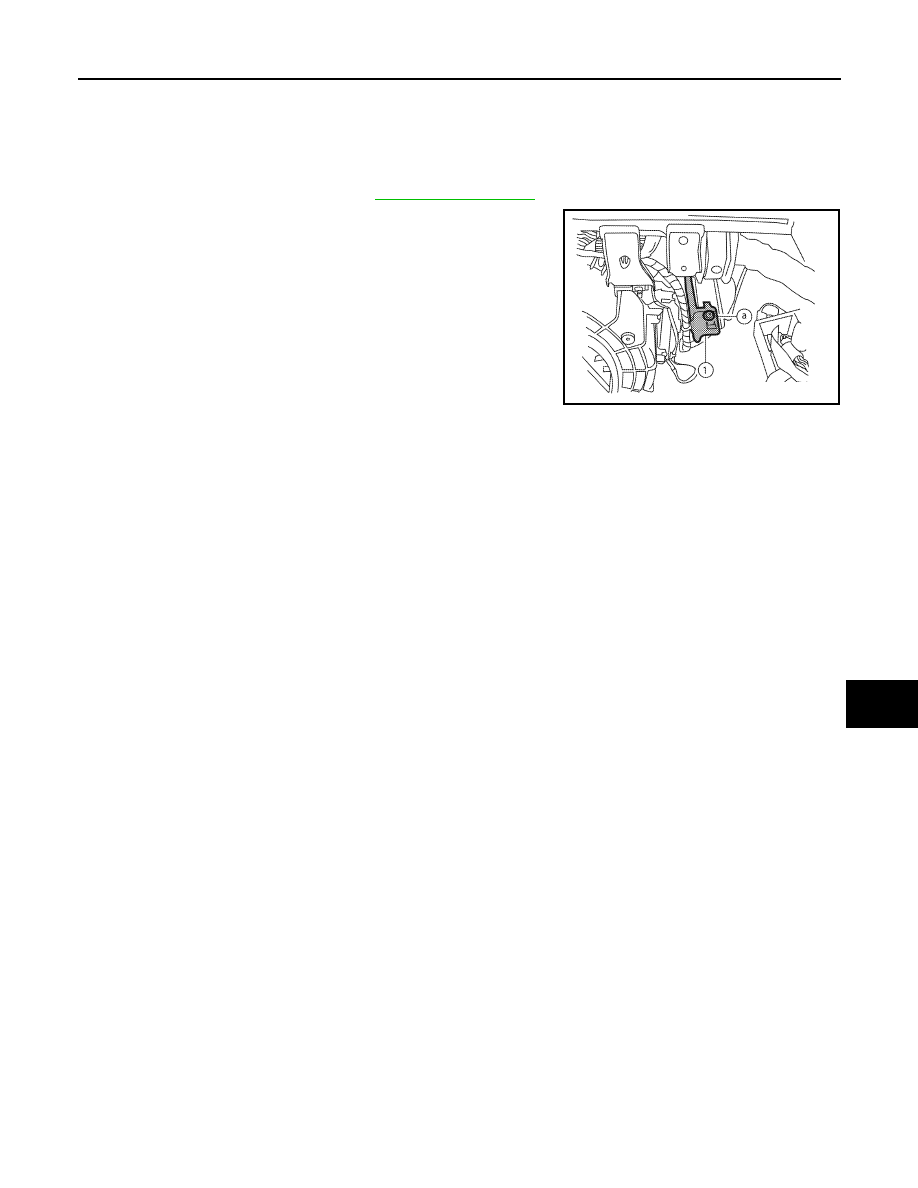

2. Remove the screw (a), lower the bracket and remote keyless

entry receiver (1) disconnect the harness and remove.

Installation

INFOID:0000000004215805

Installation is in the reverse order of removal.

ALKIA0019GB
