LONGITUDINAL CLEARANCE

1. Remove the center pillar upper and lower trim. Refer to

INT-15, "Exploded View"

.

2. Loosen the upper pillar hinge nuts.
3. Loosen the lower pillar hinge bolts.
4. Raise or lower the door at the rear edge to adjust.
5. Tighten the lower pillar hinge bolts.
6. Tighten the upper pillar hinge nuts.
7. Install the center pillar upper and lower trim. Refer to

INT-15, "Exploded View"

.

SURFACE HEIGHT ADJUSTMENT

1. Loosen the hinge nuts (a).
2. Move the top and or the bottom of the door (1) in or out as nec-

essary until it is within specification.

3. Tighten the hinge nuts (a) to specification.

B-B

F

Clearance

3.6

± 1.0 (0.14 ± 0.04)

G

Surface height

0.0

± 1.0 (0.0 ± 0.04)

C-C

H

Clearance

5.3

± 1.7 (0.21 ± 0.07)

Section

Item

Measurement

Standard

ALKIA0016GB

DLK-226

< ON-VEHICLE REPAIR >

DOOR LOCK

DOOR LOCK

FRONT DOOR LOCK
FRONT DOOR LOCK : Component Parts Location

INFOID:0000000004215797

FRONT DOOR LOCK : Removal and Installation

INFOID:0000000004215798

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Disconnect the inside handle knob cable and lock knob cable

from the back side of the front door finisher.

1.

Outside handle assembly

2.

Outside handle

3.

Door key cylinder escutcheon (Driv-
er side)
Outside handle escutcheon (Pas-
senger side)

4.

Front gasket

5.

Rear gasket

6.

Key cylinder assembly (Driver side
only)

7.

Outside handle bracket

8.

Key cylinder rod (Driver side only)

9.

Front door striker

10. Door lock assembly

11. Cap

12. Inside door handle assembly

13. Grommet

14. Front door assembly

AWKIA1230GB

PIIB4933E

DOOR LOCK

DLK-227

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

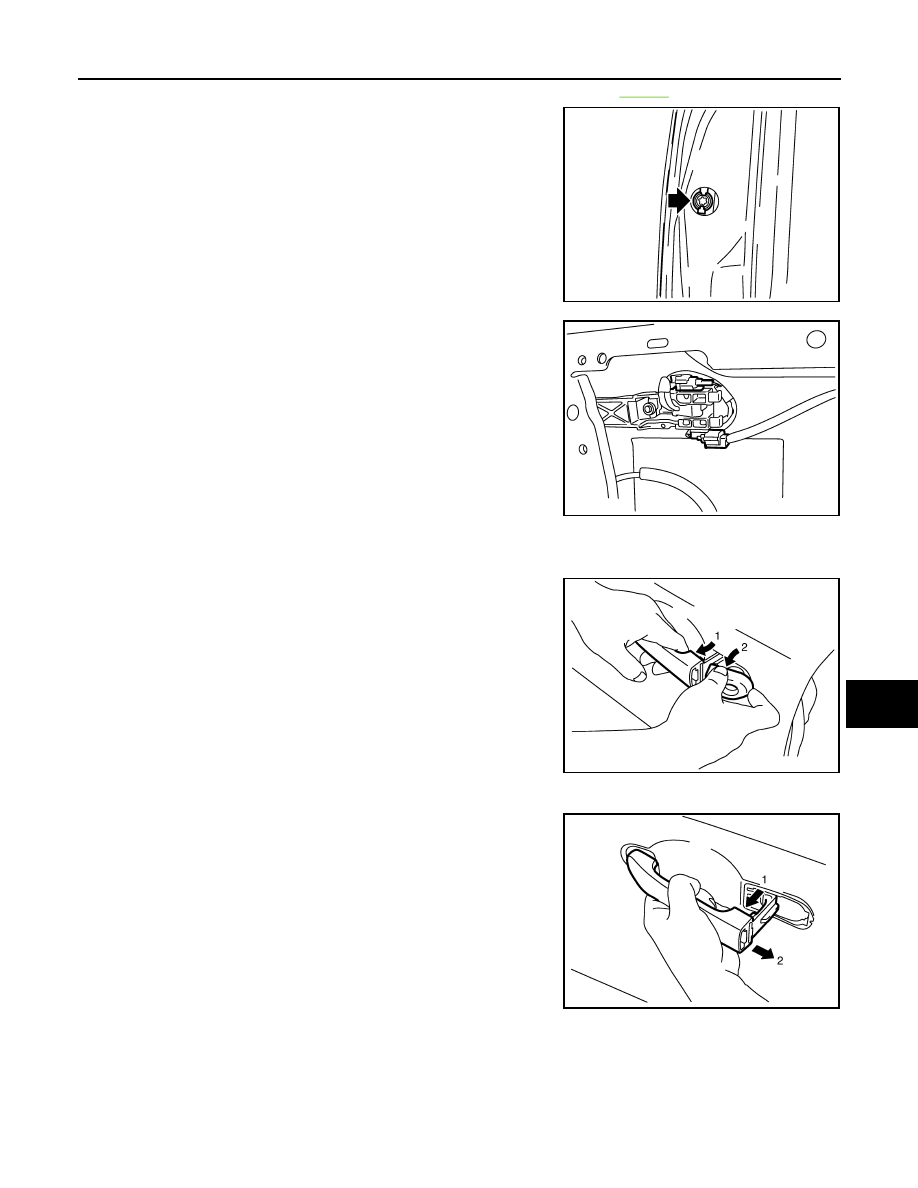

3. Remove the front door window and front door module assembly. Refer to

GW-17

.

4. Remove door side grommet, and remove door key cylinder

assembly (driver side) and outside handle escutcheon (passen-

ger side) bolts (TORX T30) from grommet hole.

5. Disconnect door antenna and door request switch connector

and remove harness clamp.

6. Disconnect the key cylinder rod.
7. Disconnect door key cylinder switch harness connector.
8. While pulling the outside handle (1), remove door key cylinder

assembly (2).

9. Disconnect front door request switch harness connector.
10. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle (2).

PIIB5808E

PIIB5807E

PIIB5809E

PIIB5810E

DLK-228

< ON-VEHICLE REPAIR >

DOOR LOCK

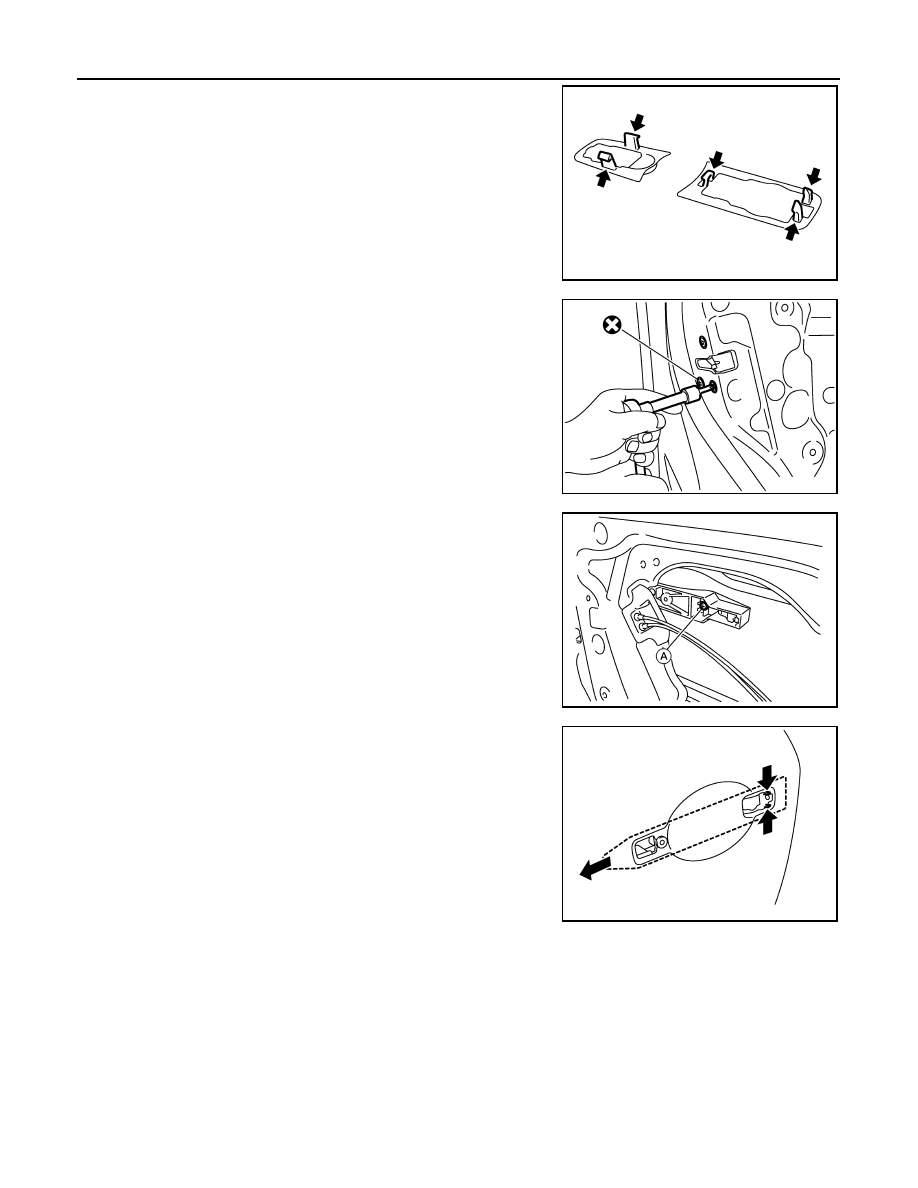

11. Remove the front gasket and rear gasket.

12. Remove the TORX bolts (T30), remove the door lock assembly.

13. Remove the TORX bolt (T30) (A) of the outside handle bracket.

14. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket.

15. Disconnect the door lock actuator connector and remove the door lock assembly.

PIIB5811E

PIIB5812E

AWKIA1233ZZ

PIIB5814E
