REAR WINDOW DEFOGGER SYSTEM

DEF-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

Component Parts Location

INFOID:0000000004216316

Component Description

INFOID:0000000004216317

ALCIA0042ZZ

1.

BCM M16, M17, M18, M19 (view with
instrument panel removed)

2.

IPDM E/R E17

3.

A. Fuse block (J/B)
B. Rear window defogger relay J-2

4.

Controller (auto amp.) (rear window
defogger switch) M37

5.

Door mirror (door mirror defogger)
LH D4, RH D107

6.

A. Rear window defogger (+) B53
B. Condenser B52 (view with rear pil-
lar finisher RH removed)

7.

Rear window defogger (-) B54 (view
with rear pillar finisher LH removed)

BCM

• Operates the rear window defogger with the operation of rear window defogger switch.
• Performs the timer control of rear window defogger.

Rear window defogger relay

• Operates the rear window defogger and the door mirror defogger with the control signal from

BCM.

Controller (auto amp.) (rear
window defogger switch)

• The rear window defogger switch is turned ON.
• Turns the indicator lamp ON when detecting the operation of rear window defogger.

DEF-8

< FUNCTION DIAGNOSIS >

REAR WINDOW DEFOGGER SYSTEM

*:

With door mirror defogger

Rear window defogger

• Heats the heating wire with the power supply from the rear window defogger relay to prevent

the rear window from fogging up.

Door mirror defogger

*

• Heats the heating wire with the power supply from the rear window defogger relay to prevent

the door mirror from fogging up.

DIAGNOSIS SYSTEM (BCM)

DEF-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000004505059

ECU IDENTIFICATION

Displays the BCM part No.

SELF-DIAG RESULT

Refer to

BCS-81, "DTC Index"

.

REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)

INFOID:0000000004505060

DATA MONITOR

ACTIVE TEST

Monitor item

[Unit]

Description

PUSH SW [ON/OFF]

Indicates condition of push switch

REAR DEF SW [ON/OFF] Displays “Press (ON)/other (OFF)” status determined with the rear window defogger switch

Test item

Description

REAR DEFOGGER

This test is able to check rear window defogger operation. Rear window defogger operates when
“ON” on CONSULT-III screen is touched.

DEF-10

< COMPONENT DIAGNOSIS >

REAR WINDOW DEFOGGER SWITCH

COMPONENT DIAGNOSIS

REAR WINDOW DEFOGGER SWITCH

Description

INFOID:0000000004216321

• The rear window defogger is operated by turning the rear window defogger switch ON.

• Turns the indicator lamp in the rear window defogger switch ON when operating the rear window defogger.

Component Function Check

INFOID:0000000004216322

1.

 CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION

Check that the indicator lamp of rear window defogger illuminates with rear window defogger switch ON.
Is the inspection result normal?

YES

>> Rear window defogger switch function is OK.

NO

>> Refer to

DEF-10, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004216323

1.

 CHECK CONTROLLER (AUTO AMP.) (REAR WINDOW DEFOGGER SWITCH)

Does controller (auto amp.) operate normally?
Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2

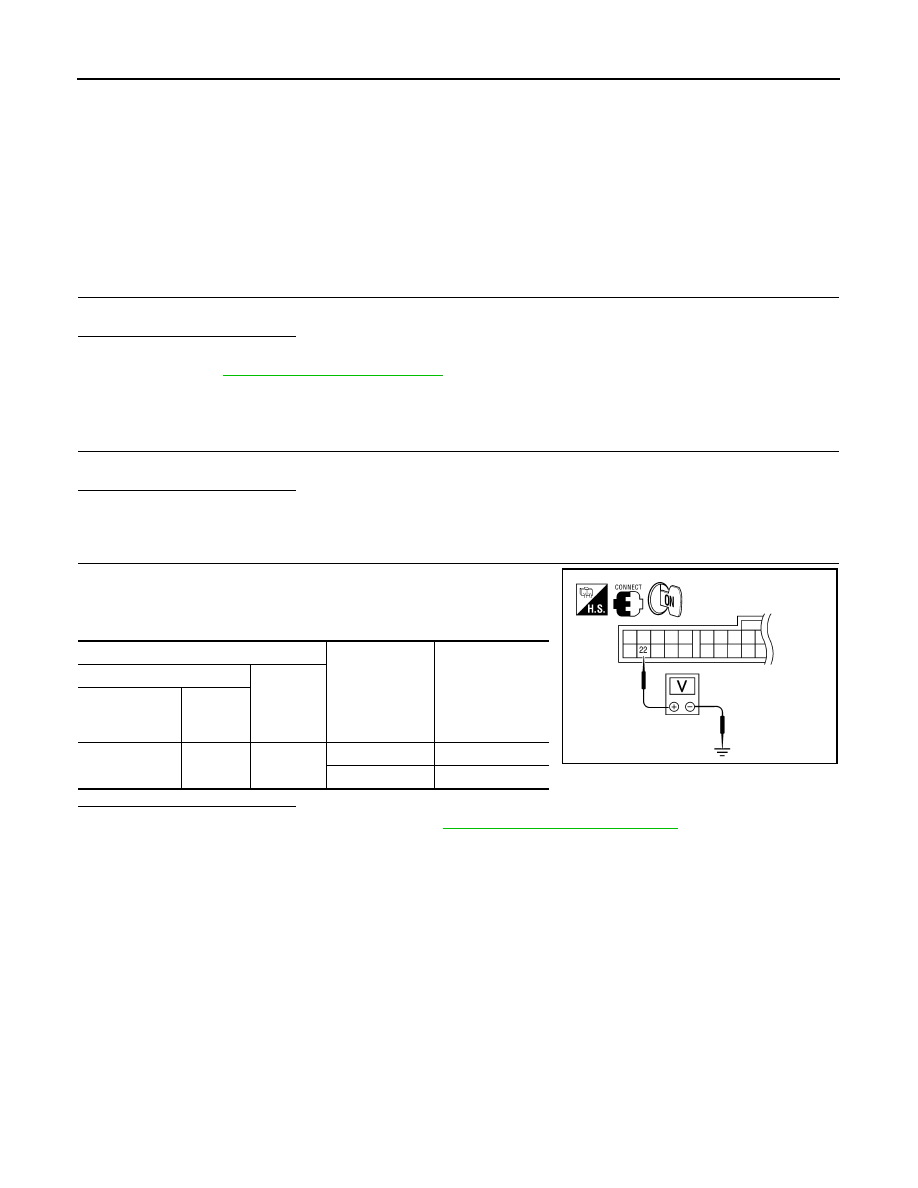

2.

 CHECK REAR WINDOW DEFOGGER SWITCH INDICATOR CIRCUIT

1. Turn ignition switch ON.

2. Check voltage between controller (auto amp.) connector and

ground.

Is the inspection result normal?

YES

>> Replace controller (auto amp.). Refer to

VTL-8, "Removal and Installation"

.

NO

>> Repair or replace harness.

Terminals

Condition of rear

window defogger

switch

Voltage (V)

(Approx.)

(+)

(–)

Controller (auto

amp.) connec-

tor

Terminal

M37

22

Ground

ON Battery

voltage

OFF

0

ALLIA0174ZZ
