COMPONENT DIAGNOSIS

C0200, C0205, C1271, C1272

Description

INFOID:0000000004212635

The wheel sensors detect wheel speed and transmit the signals to the brake ECU. These signals are used for

control of the ABS control system. Each of the front and rear rotors has 48 serrations.

When the rotors rotate, the magnetic field generated by the permanent magnet in the wheel sensor induces an

AC voltage.

Since the frequency of this AC voltage changes in direct proportion to the speed of the rotor, the frequency is

used by the ECU to detect the speed of each wheel.

DTCs C1271 and C1272 can be deleted when the wheel sensor sends a wheel speed signal or the Test Mode

ends. DTCs C1271 and C1272 are output only in the Test Mode.

DTC Logic

INFOID:0000000004212636

NOTE:

• DTCs C0200 and C1271 are for the front wheel sensor RH.

• DTCs C0205 and C1272 are for the front wheel sensor LH.

• The brake warning light comes on when wheel sensor malfunctions are detected in two or more wheels.

DTC

INF code

Display item

DTC detection condition

Trouble area

C0200

251

FR RH SENSOR

At a vehicle speed of 10 km/h (6 MPH) or
more, an open or short in the sensor signal cir-
cuit of the abnormal wheel continues for 1
second or more.

• Front wheel sensor RH
• wheel sensor circuit
• Sensor installation
• wheel sensor rotor
• Brake  ECU

252

More than 1 wheel is abnormal.

253

Wheel sensor signal circuit is open for 0.5
seconds or more.

254

Momentary interruption of sensor signal from
the abnormal wheel occurs 255 times or more.

255

Frequency of 2.3 kHz or higher is input.

• Front wheel sensor RH
• wheel sensor circuit
• wheel sensor rotor
• Brake  ECU

262

Wheel sensor power supply malfunction.

• Brake ECU

C0205

264

FR LH SENSOR

At a vehicle speed of 10 km/h (6 MPH) or
more, an open or short in the sensor signal cir-
cuit of the abnormal wheel continues for 1
second or more.

• Front wheel sensor RH
• wheel sensor circuit
• Sensor installation
• wheel sensor rotor
• Brake  ECU

265

More than 1 wheel is abnormal.

266

Wheel sensor signal circuit is open for 0.5
seconds or more.

267

Momentary interruption of sensor signal from
the abnormal wheel occurs 255 times or more.

268

Frequency of 2.3 kHz or higher is input.

• Front wheel sensor RH
• wheel sensor circuit
• wheel sensor rotor
• Brake  ECU

275

Wheel sensor power supply malfunction.

• Brake ECU

C1271

—

FR SPD OUTPUT

Detected only during Test Mode.

• Front wheel sensor RH/

LH

• Sensor installation
• wheel sensor rotor

C1272

FL SPD OUTPUT

BRC-58

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C0200, C0205, C1271, C1272

Diagnosis Procedure

INFOID:0000000004212637

CAUTION:

When replacing the brake ECU, perform initialization of linear solenoid valve and calibration.

1.

CHECK MASTER CYLINDER PRESSURE SENSOR

Check master cylinder pressure sensor. Refer to

BRC-11, "TEST MODE PROCEDURE"

.

>> GO TO 2.

2.

CHECK HARNESS AND CONNECTOR (MOMENTARY INTERRUPTION)

Using the “DATA MONITOR” of CONSULT-III, check for any momentary interruption in the wire harness and

connector corresponding to a DTC.

ABS/VDC:

Result

NOTE:

Perform the above inspection before removing the sensor and connector.

A

>> GO  TO  3.

B

>> GO  TO  11.

C

>> GO  TO  6.

3.

READ VALUE OF CONSULT-III (FRONT WHEEL SENSOR)

1. Turn the ignition switch OFF.

2. Connect the CONSULT-III.

3. Turn the ignition switch ON (READY).

4. Select the “DATA MONITOR” on the CONSULT-III.

ABS/VDC:

5. Check that these is no difference between the speed value output from the wheel sensor displayed on the

CONSULT-III and the speed value displayed on the speedometer when driving the vehicle.

NOTE:

Factors that affect the indicated vehicle speed include tire size, tire inflation, and tire wear. The speed indi-

cated on the speedometer has an allowable margin of error. This can be tested using speedometer tester

(calibrated chassis dynamometer). For details about testing and the margin of error, see the reference

chart.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 6.

Tester display

Measurement item/ Range

Normal condition

FR WH SEN

OPN

FR wheel sensor open detection/
ERROR or NORMAL

ERROR: Momentary inter-
ruption
NORMAL: Normal

FL WH SEN

OPN

FL wheel sensor open detection/
ERROR or NORMAL

ERROR: Momentary inter-
ruption
NORMAL: Normal

Condition

Proceed to

There are no momentary interruption.

A

There are momentary interruption.

B

There is a constant open circuit.

C

Tester display

Measurement item/ Range

Normal condition

VWFR

FR wheel speed sensor reading/ Min: 0
km/h (0 MPH), max: 326 km/h (202 MPH)

Actual wheel speed

VWFL

FL wheel speed sensor reading/ Min: 0
km/h (0 MPH), max: 326 km/h (202 MPH)

Actual wheel speed

C0200, C0205, C1271, C1272

BRC-59

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

4.

PERFORM TEST MODE (SIGNAL CHECK)

Perform sensor check in the Test Mode procedure.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

RECONFIRM DTC

1. Turn the ignition switch OFF.

2. Clear the DTC.

3. Turn the ignition switch ON (READY).

4. Drive the vehicle at the speed of 32 km/h (20 MPH) or more for at least 60 seconds.

5. Check if the same DTC is recorded.

Result

NOTE:

If troubleshooting has been carried out according to the Problem Symptoms Table, Refer back to the table

and proceed to the next step.

A

>> GO TO 6.

B

>> GO TO 8.

6.

CHECK FRONT WHEEL SENSOR INSTALLATION

1. Turn the ignition switch OFF.

2. Check the wheel sensor installation.
Is an installation state normal?

YES

>> GO TO 7.

NO

>> Install front wheel sensor correctly.

7.

CHECK FRONT WHEEL SENSOR TIP

1. Remove the front wheel sensor.

2. Check the wheel sensor tip.

CAUTION:

Check the wheel sensor signal after cleaning or replacement.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Clean or replace front wheel sensor.

8.

INSPECT FRONT WHEEL SENSOR

1. Turn the ignition switch OFF.

2. Install the front wheel sensor.

3. Disconnect the front wheel sensor connector.

4. Measure the resistance according to the value(s) in the table

below.

Condition

Proceed to

DTCs (C0200 and/or C0205) are not output.

A

DTCs (C0200 and/or C0205) are output.

B

Front RH wheel sensor

Condition

Specified condition

Connector

Terminal

E41

1 – 2

Always

Not existed

E41

1 – Ground

Always

Existed

E41

2 – Ground

Always

Existed

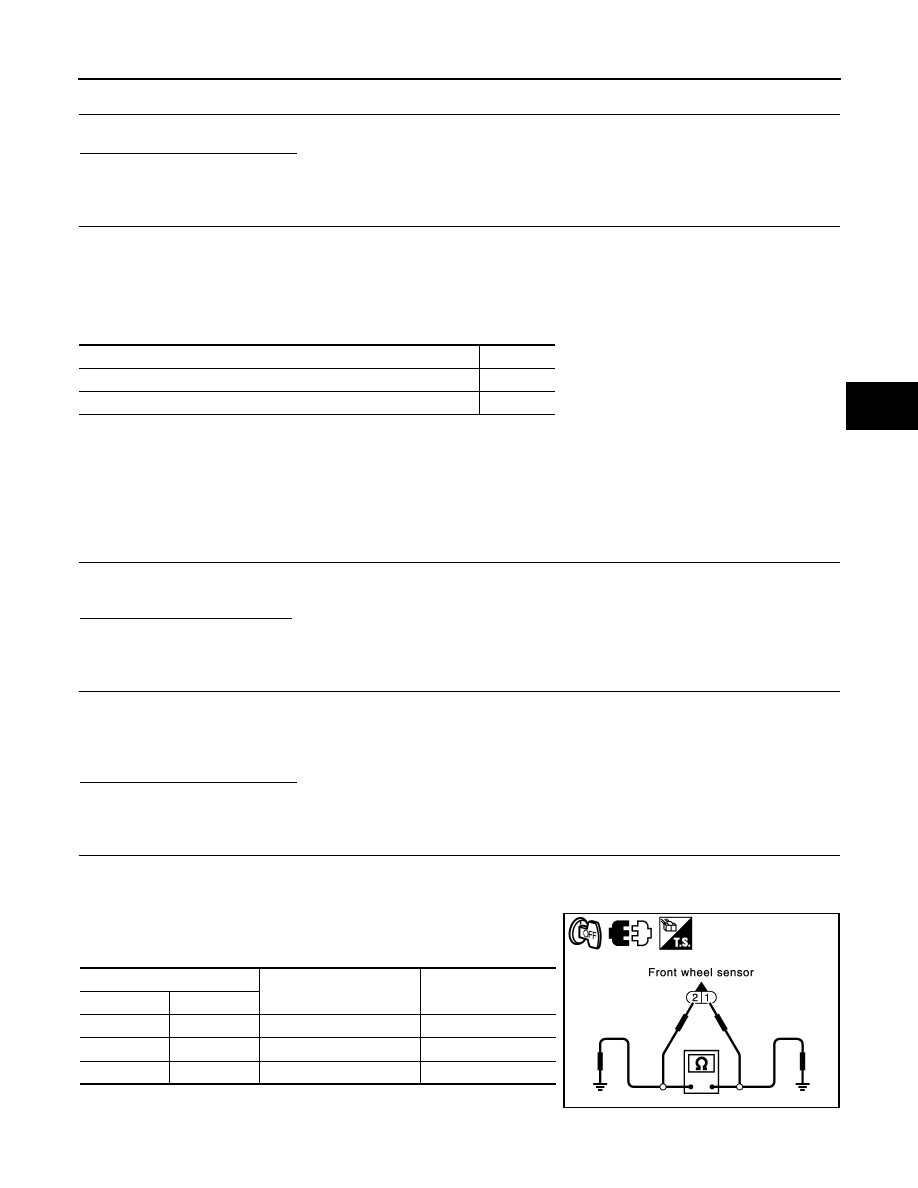

JSFIA0329GB

BRC-60

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C0200, C0205, C1271, C1272

NOTE:

Check the wheel sensor signal after replacement.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace front wheel sensor.

9.

CHECK HARNESS AND CONNECTOR (BRAKE ECU – FRONT WHEEL SENSOR)

1. Disconnect the brake ECU connectors.

2. Measure the resistance according to the value(s) in the table

below.

RH

LH

Is the inspection result normal?

YES

>> GO TO 10.

Front LH wheel sensor

Condition

Specified condition

Connector

Terminal

E19

1 – 2

Always

Not existed

E19

1 – Ground

Always

Existed

E19

2 – Ground

Always

Existed

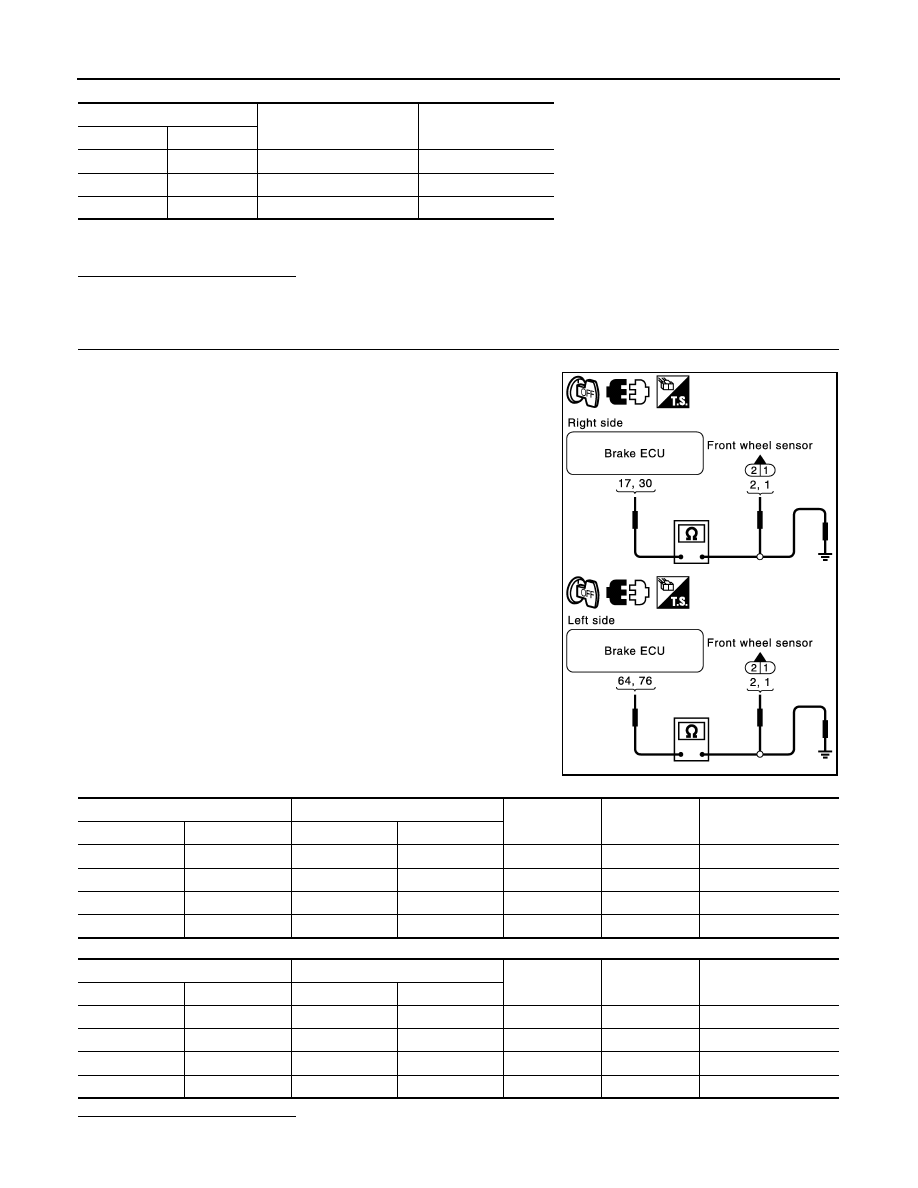

JSFIA0330GB

Brake ECU

Wheel sensor

—

Condition

Specified condition

Connector

Terminal

Connector

Terminal

E60

30

E41

1

—

Always

Below 1

Ω

E60

30

—

—

Ground

Always

10 k

Ω or higher

E60

17

E41

2

—

Always

Below 1

Ω

E60

17

—

—

Ground

Always

10 k

Ω or higher

Brake ECU

Wheel sensor

—

Condition

Specified condition

Connector

Terminal

Connector

Terminal

E61

76

E19

1

—

Always

Below 1

Ω

E61

76

—

—

Ground

Always

10 k

Ω or higher

E61

64

E19

2

—

Always

Below 1

Ω

E61

64

—

—

Ground

Always

10 k

Ω or higher
