SLIP indicator lamp

Blinks to inform the driver that ABS, TCS and VDC are operating.

VDC warning lamp

• Comes on to inform the driver that a malfunction in VDC system have occurred.
• Zero point of steering angle sensor is dislocated.
• Remove the auxiliary battery.

Components

Functions

BRC-38

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

VDC

VDC

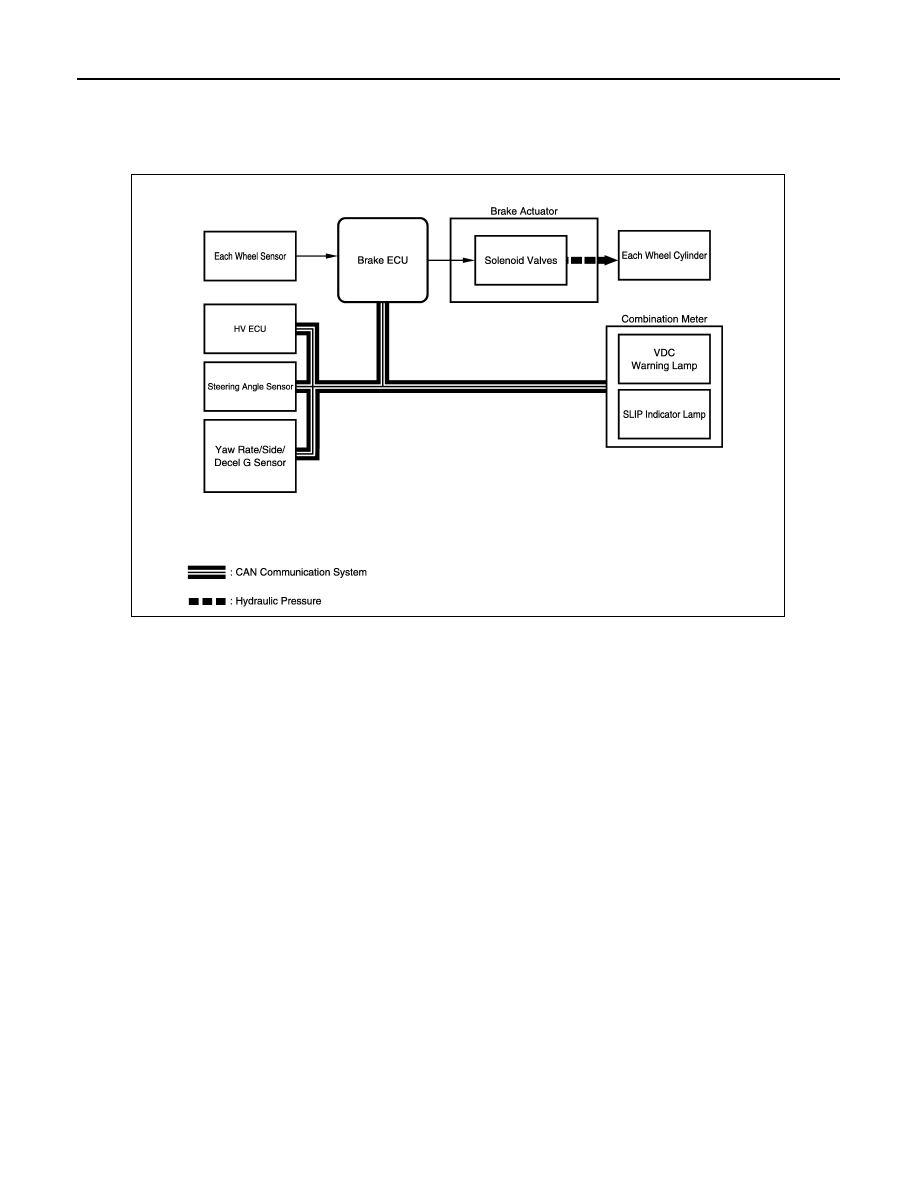

System Diagram

INFOID:0000000004212629

System Description

INFOID:0000000004212630

SYSTEM DESCRIPTION

The VDC (Vehicle Dynamics Control) helps prevent the vehicle from slipping sideways as a result of strong

front or rear wheel slid during cornering.

OPERATION DESCRIPTION

The brake ECU determines the vehicle operating conditions based in signals received from the wheel sen-

sors, yaw rate/side/decel G sensor, and steering angle sensor. The brake ECU sends signals via CAN com-

munication to the HV ECU on order to control engine torque. The brake ECU controls brake hydraulic

pressure using the solenoid valves. The SLIP indicator lamp will blink, when the system in operating. If a mal-

function occurs in the VDC system, VDC warning lamp will come ON.

JSFIA0060GB

VDC

BRC-39

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

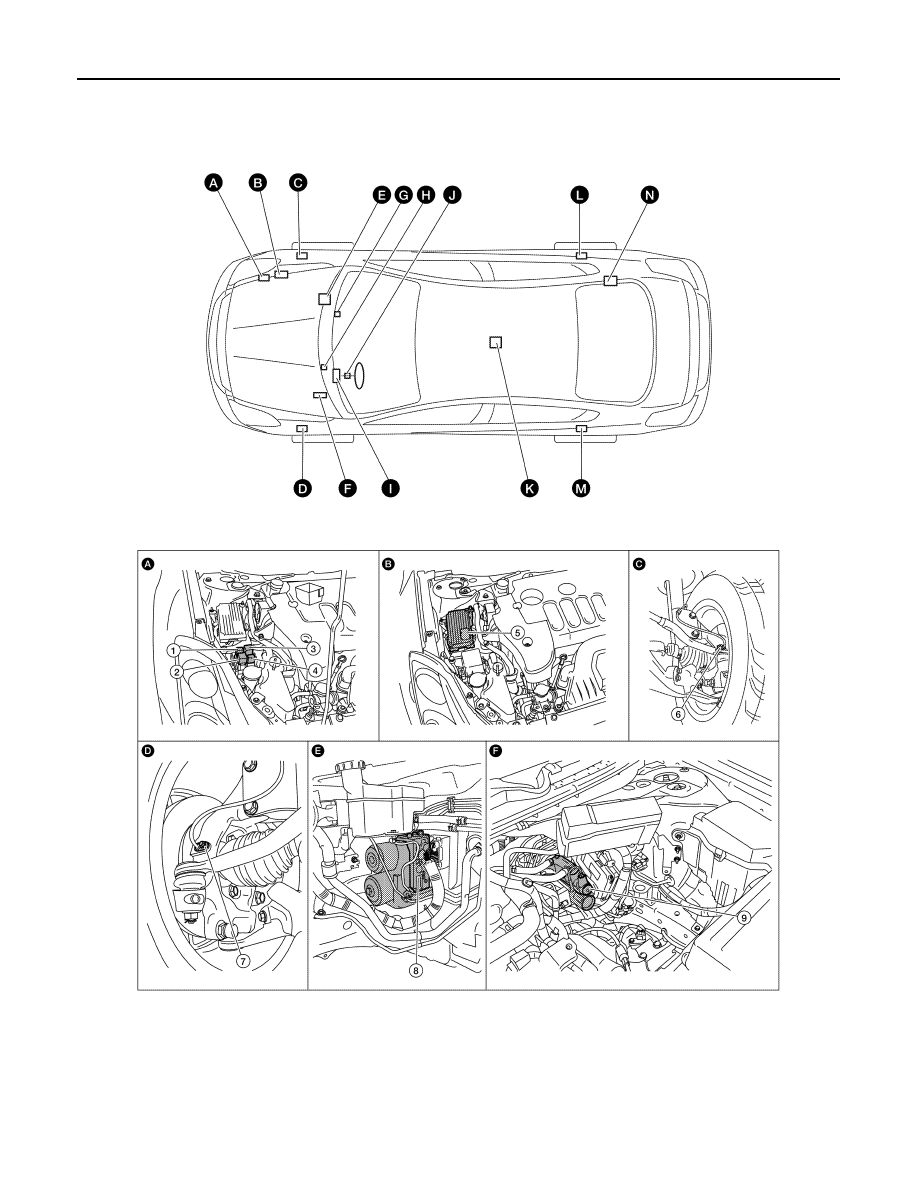

Component Parts Location

INFOID:0000000004469728

BRC-40

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

VDC

ALFIA0001ZZ
