TPMS

WT-9

< FUNCTION DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

The tire pressure receiver (1) is located next to the steering column

assembly (2) and is shown with the lower instrument panel LH

removed. The tire pressure receiver receives the air pressure signal

transmitted by the transmitter in each wheel.

 Vehicle front.

COMBINATION METER

The combination meter receives tire pressure status from the BCM

using CAN communication. When a low tire pressure condition is

sensed by the BCM, the low tire pressure warning lamp is activated.

TIRE PRESSURE WARNING CHECK CONNECTOR

The tire pressure warning check connector can be grounded in order

to initiate self-diagnosis without a CONSULT-III. Refer to

WT-12,

"Self-Diagnosis (Without CONSULT-III)"

. The tire pressure warning

check connector (1) is located behind the lower portion of the instru-

ment panel LH, above the hood release handle.

ALEIA0011ZZ

LEIA0055E

AWEIA0121ZZ

WT-10

< FUNCTION DIAGNOSIS >

TPMS

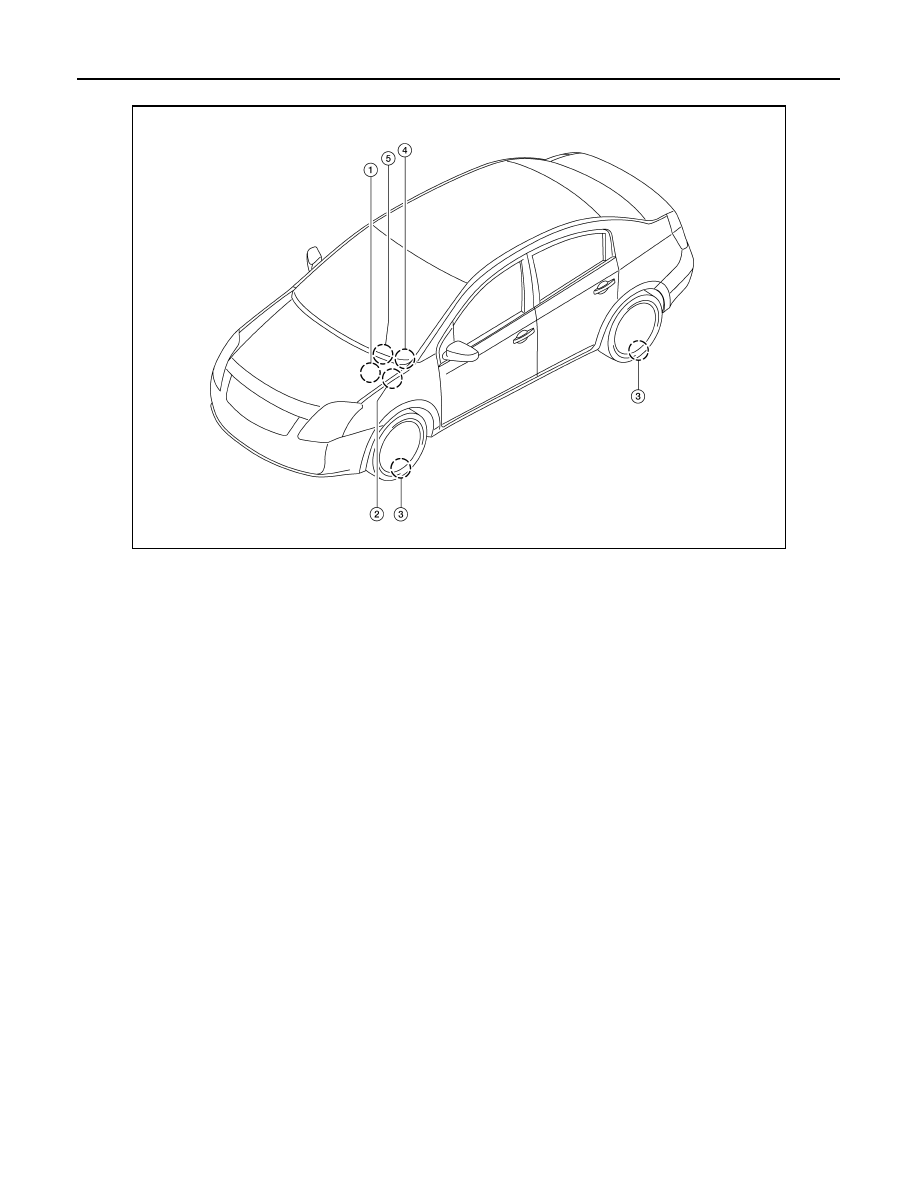

System Components

INFOID:0000000004212491

ALEIA0007ZZ

1.

Tire pressure receiver M70

2.

Tire pressure warning check connec-
tor M62

3.

Transmitters

4.

Combination meter M24

5.

BCM M16, M17, M18, M19

DIAGNOSIS SYSTEM (BCM)

WT-11

< FUNCTION DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

DIAGNOSIS SYSTEM (BCM)

CONSULT-III Function (BCM)

INFOID:0000000004212492

CONSULT-III DIAGNOSTIC MODES

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

DESCRIPTION

During driving, the tire pressure monitoring system receives the signal transmitted from the transmitter

installed in each wheel, and turns on the low tire pressure warning lamp when the tire pressure becomes low.

The control unit (BCM) for this system has pressure judgement and self-diagnosis functions.

FUNCTION

When the tire pressure monitoring system detects low inflation pressure or an internal malfunction, the low tire

pressure warning lamp in the combination meter comes on. The malfunction is indicated by the low tire pres-

sure warning lamp flashing.

CONSULT-III Application to Tire Pressure Monitoring System

× : Applicable
– : Not applicable

Data Monitor Mode

Diagnostic mode

Description

Work Support

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are re-
ceived from the BCM and received data is displayed.

Data Monitor

Displays BCM input/output data in real time.

Active Test

Operation of electrical loads can be checked by sending drive signal to them.

Self-Diagnostic Result

Displays BCM self-diagnosis results.

CAN Diagnostic Support Monitor

The result of transmit/receive diagnosis of CAN communication can be read.

ECU Identification

BCM part number can be read.

Configuration

Performs BCM configuration read/write functions.

ITEM

SELF-DIAGNOSTIC RESULTS

DATA MONITOR

Front - Left transmitter

×

×

Front - Right transmitter

×

×

Rear - Left transmitter

×

×

Rear - Right transmitter

×

×

Warning lamp

—

×

Vehicle speed

×

×

CAN Communication

×

×

MONITOR

CONDITION

SPECIFICATION

VHCL SPEED

Drive vehicle.

Vehicle speed (km/h or MPH)

AIR PRESS FL
AIR PRESS FR
AIR PRESS RR
AIR PRESS RL

• Drive vehicle for a few minutes.

Tire pressure (kPa or psi)

or

• Ignition switch ON and activation tool

is transmitting activation signals.

WT-12

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

NOTE:
Before performing the self-diagnosis, be sure to register the ID, or the actual malfunction location may be different from that displayed on
CONSULT-III.

Self-Diagnosis (Without CONSULT-III)

INFOID:0000000004212493

SELF DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-III)

1. Turn ignition switch ON.

2. Ground the tire pressure warning check connector to initiate self diagnosis.

3. Compare the flashing pattern with the flash code chart below.

NOTE:

The system is normal when the low tire pressure warning lamp flashes 5 times and continues repeating. Self-

diagnosis results are erased automatically by turning the ignition switch “OFF”.

ID REGST FL1
ID REGST FR1
ID REGST RR1
ID REGST RL1

Ignition switch ON

ID not registered: YET
ID registered: DONE

WARNING LAMP

Low tire pressure warning lamp on: ON
Low tire pressure warning lamp off: OFF

BUZZER

Buzzer in combination meter on: ON
Buzzer in combination meter off: OFF

MONITOR

CONDITION

SPECIFICATION

Flash Code

Malfunction part

Reference

page

15
16
17
18

Tire pressure dropped below specified value. Refer to

WT-8, "System

Description"

.

—

21
22
23
24

Transmitter no data (FL)
Transmitter no data (FR)
Transmitter no data (RR)
Transmitter no data (RL)

WT-14

31
32
33
34

Transmitter checksum error (FL)
Transmitter checksum error (FR)
Transmitter checksum error (RR)
Transmitter checksum error (RL)

WT-16

35
36
37
38

Transmitter pressure data error (FL)
Transmitter pressure data error (FR)
Transmitter pressure data error (RR)
Transmitter pressure data error (RL)

WT-18

41
42
43
44

Transmitter function code error (FL)
Transmitter function code error (FR)
Transmitter function code error (RR)
Transmitter function code error (RL)

WT-16

ALEIA0050GB
