WCS-6

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

LIGHT REMINDER WARNING CHIME
LIGHT REMINDER WARNING CHIME : System Diagram

INFOID:0000000004219348

LIGHT REMINDER WARNING CHIME : System Description

INFOID:0000000004219349

DESCRIPTION

With ignition switch in OFF or ACC position, driver door open, and lighting switch in 1ST or 2ND position, the

light warning chime will sound.

• BCM detects ignition switch in OFF or ACC position, front door switch LH ON, and lighting switch in 1ST or

2ND position. And then transmits buzzer output signal (light reminder warning chime) to combination meter

with CAN communication line.

• When combination meter receives buzzer output signal (light reminder warning chime), it sounds the buzzer.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled

• Lighting switch is at 1st or 2nd position

• Ignition switch is at OFF or ACC

• Front door switch LH is ON

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

• Lighting switch OFF

• Ignition switch ON

• Front door switch LH is OFF

Hybrid vehicle control ECU

• Receives vehicle speed signal from brake ECU with CAN communication line.
• Transmits the vehicle speed signal to combination meter with CAN communication line.

Brake ECU

Transmits the vehicle speed signal to hybrid vehicle control ECU with CAN communication line.

Seat belt buckle switch LH

Transmits a seat belt buckle switch signal to the combination meter.

Combination switch
(Lighting switch)

Transmits the lighting switch position signal to BCM.

Front door switch LH

Transmits the door switch signal to BCM.

Parking brake switch

Transmits parking brake signal to combination meter.

Unit

Description

AWNIA0083GB

WCS

WARNING CHIME SYSTEM

WCS-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

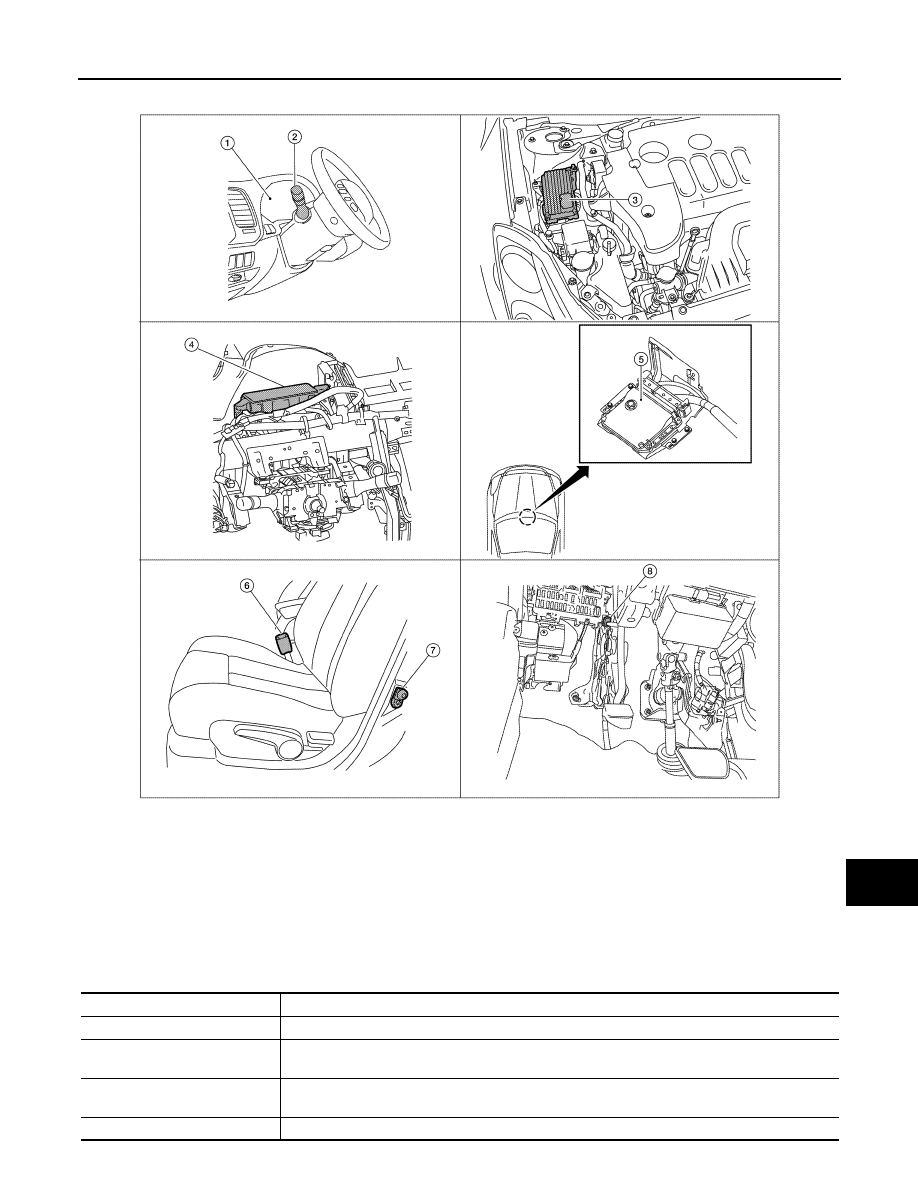

LIGHT REMINDER WARNING CHIME : Component Parts Location

INFOID:0000000004490997

LIGHT REMINDER WARNING CHIME : Component Description

INFOID:0000000004219351

AWNIA0082ZZ

1.

Combination meter M24

2.

Combination switch (lighting switch)
M28

3.

Brake ECU E61

4.

BCM M16, M17, M18, M19 (view with
instrument panel removed)

5.

Hybrid vehicle control ECU E66

6.

Seat belt buckle switch LH B202

7.

Front door switch LH B8

8.

Parking brake switch E35 (view with
instrument lower cover LH removed)

Unit

Description

Combination meter

Receives a buzzer output signal from BCM via CAN communication line and sounds the buzzer.

BCM

Judges the light warning conditions from the signals provided by various switches and transmits a
buzzer output signal to the combination meter via CAN communication line if necessary.

Combination switch
(Lighting switch)

Transmits the lighting switch position signal to BCM.

Front door switch LH

Transmits the door switch signal to BCM.

WCS-8

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

SEAT BELT WARNING CHIME
SEAT BELT WARNING CHIME : System Diagram

INFOID:0000000004219352

SEAT BELT WARNING CHIME : System Description

INFOID:0000000004219353

DESCRIPTION

With ignition switch turned ON and driver seat belt unfastened, seat belt warning chime will sound for approxi-

mately 6 seconds.

• BCM receives seat belt buckle switch signal from combination meter with CAN communication line.

• BCM detects ignition switch turned ON and seat belt buckle switch LH ON. And then transmits buzzer output

signal (seat belt warning chime) to combination meter with CAN communication line.

• When combination meter receives buzzer output signal (seat belt warning chime), it sounds the buzzer.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled

• Ignition switch OFF

→ON

• Seat buckle switch LH is ON (driver seat belt not fastened)

WARNING CANCEL CONDITIONS

Cancels the warning if any of the following conditions is fulfilled.

• Ignition switch OFF

• Seat buckle switch LH is OFF (driver seat belt fastened)

• 90 seconds have passed since the start of the warning

LKIA0878E

WCS

WARNING CHIME SYSTEM

WCS-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

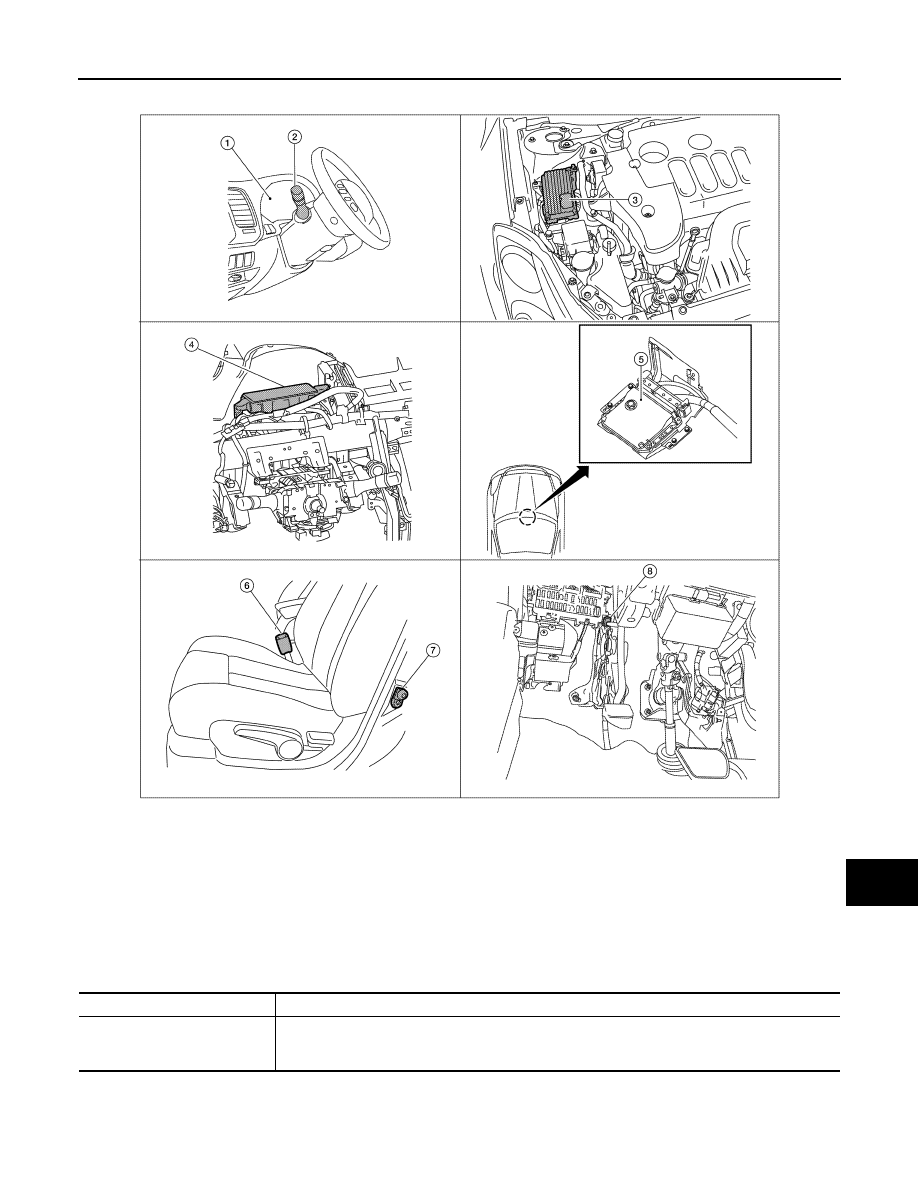

SEAT BELT WARNING CHIME : Component Parts Location

INFOID:0000000004490998

SEAT BELT WARNING CHIME : Component Description

INFOID:0000000004219355

AWNIA0082ZZ

1.

Combination meter M24

2.

Combination switch (lighting switch)
M28

3.

Brake ECU E61

4.

BCM M16, M17, M18, M19 (view with
instrument panel removed)

5.

Hybrid vehicle control ECU E66

6.

Seat belt buckle switch LH B202

7.

Front door switch LH B8

8.

Parking brake switch E35 (view with
instrument lower cover LH removed)

Unit

Description

Combination meter

• Receives the seat belt buckle switch signal from the seat belt buckle switch and transmits it to

BCM via CAN communication line.

• Receives a buzzer output signal from BCM via CAN communication line and sounds the buzzer.
