Nissan Sentra. Manual - part 921

WCS

WARNING CHIME SYSTEM

WCS-21

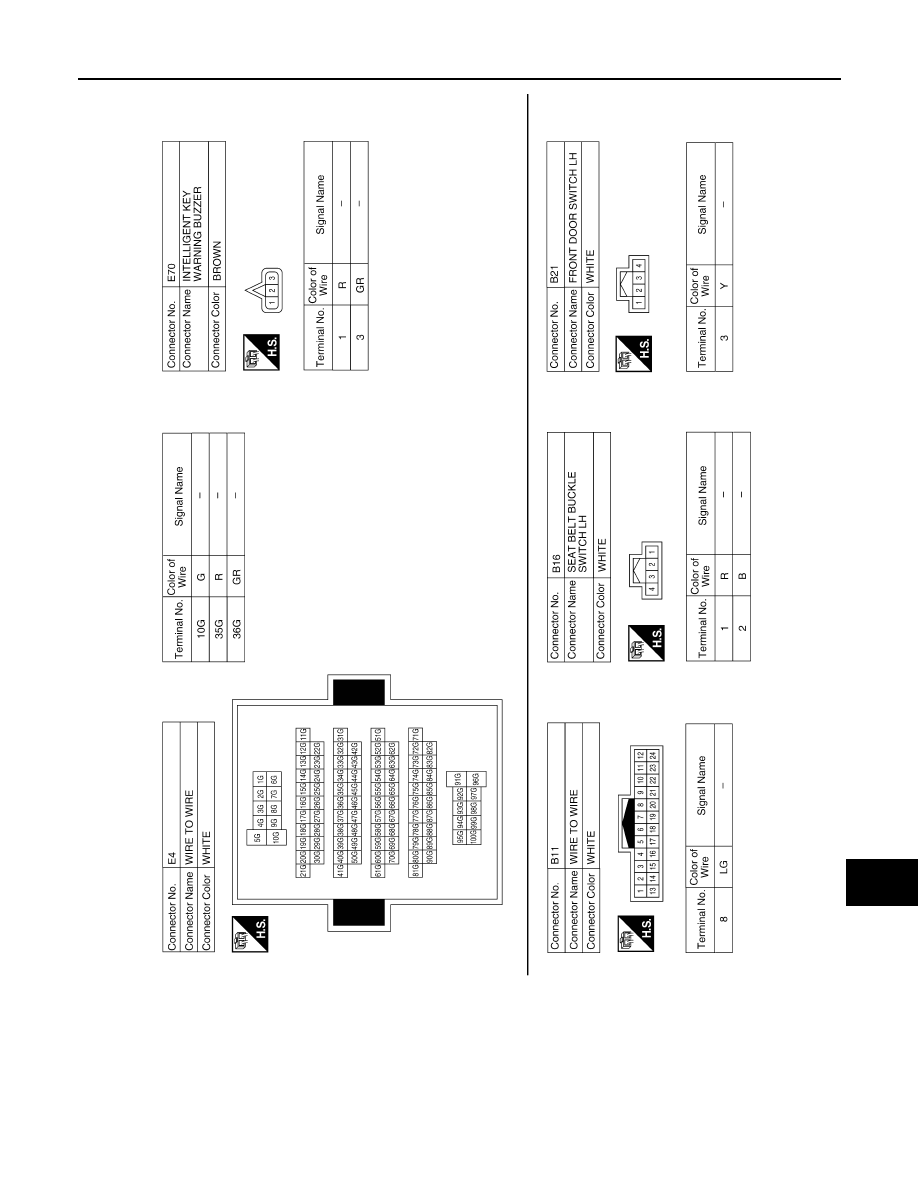

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA1339GB

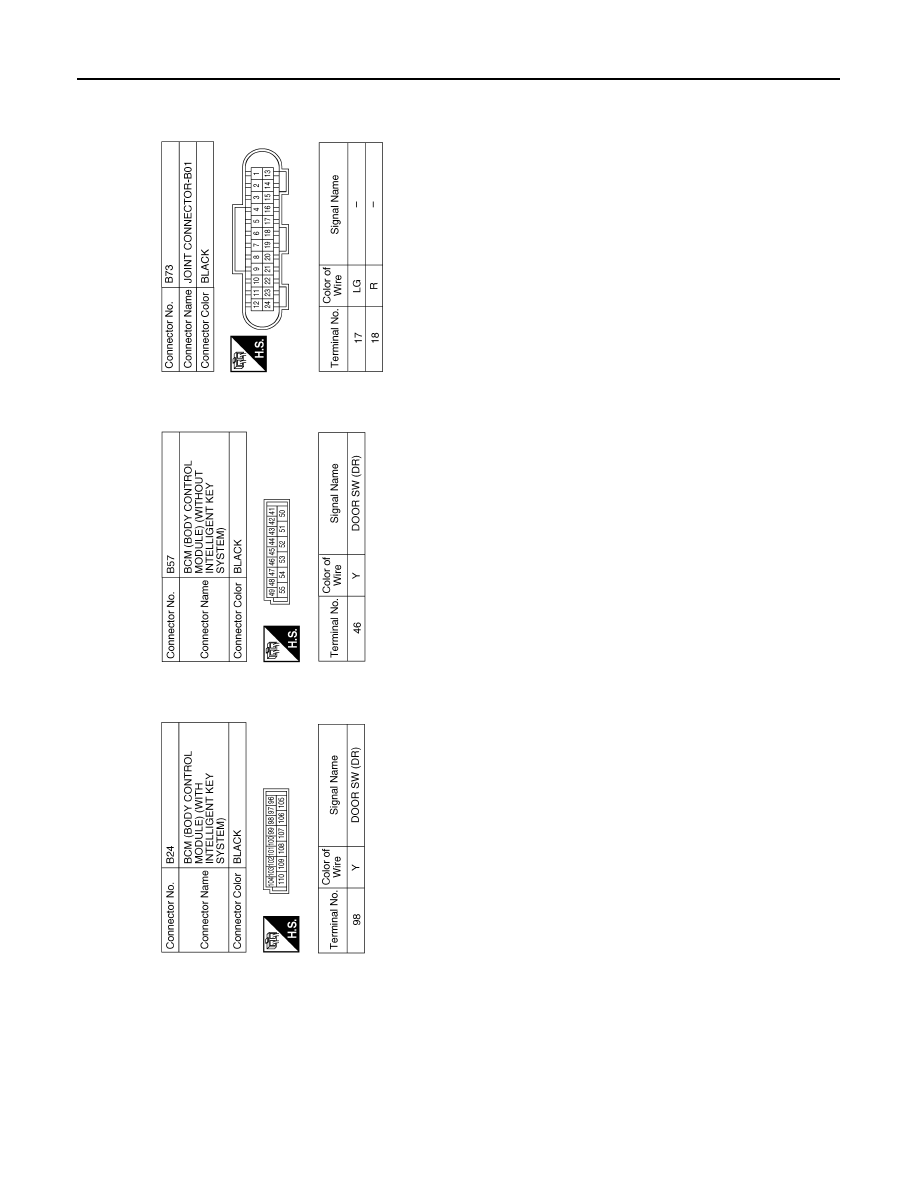

WCS-22

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

ABNIA5774GB

WCS

DIAGNOSIS AND REPAIR WORKFLOW

WCS-23

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009759240

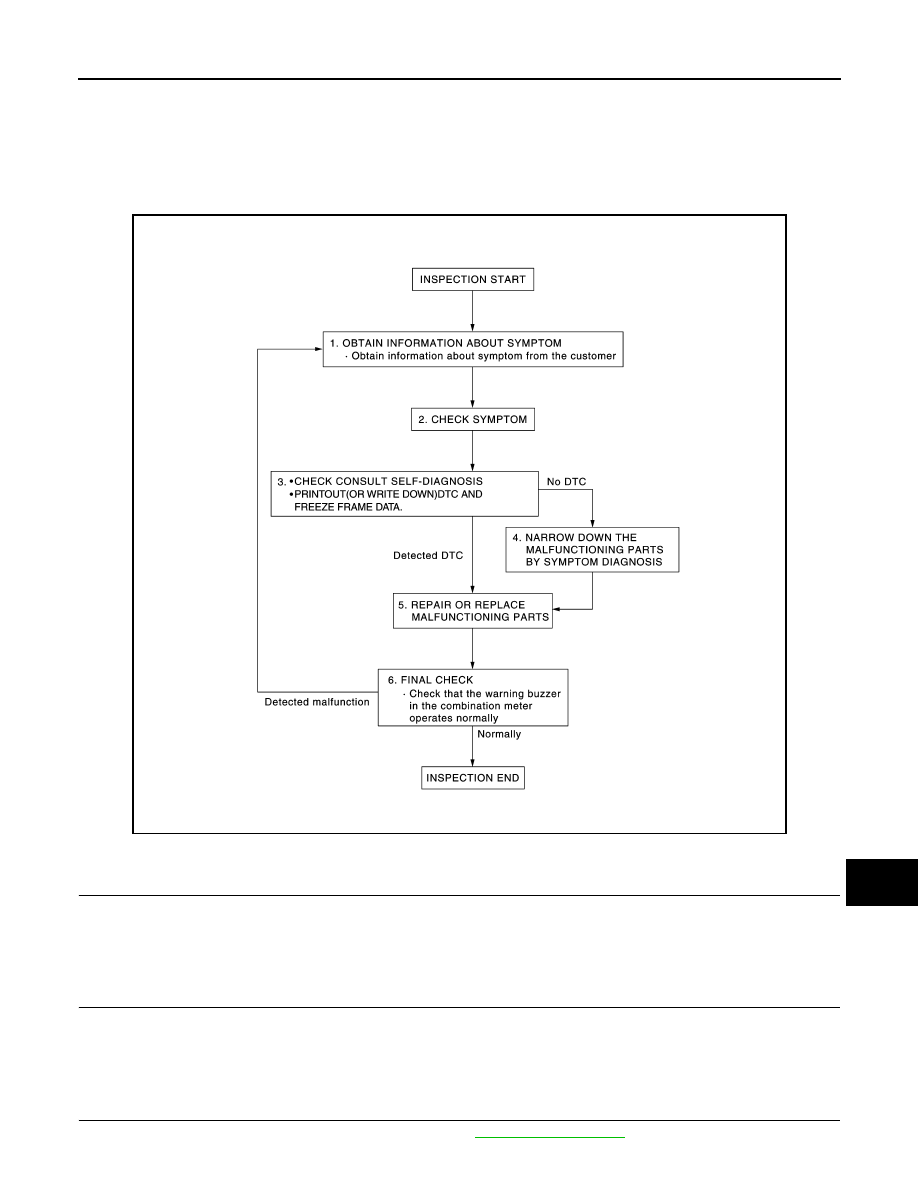

OVERALL SEQUENCE

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

Connect CONSULT and perform self-diagnosis. Refer to

MWI-26, "DTC Index"

.

JSNIA4485GB

WCS-24

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Are self-diagnosis results normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis and narrow down the malfunctioning parts.

>> GO TO 5.

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace malfunctioning parts.

NOTE:

If DTC is displayed, erase DTC after repairing or replacing malfunctioning parts.

>> GO TO 6.

6.

FINAL CHECK

Check that the warning buzzer in the combination meter operates normally.
Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 1.
