STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE

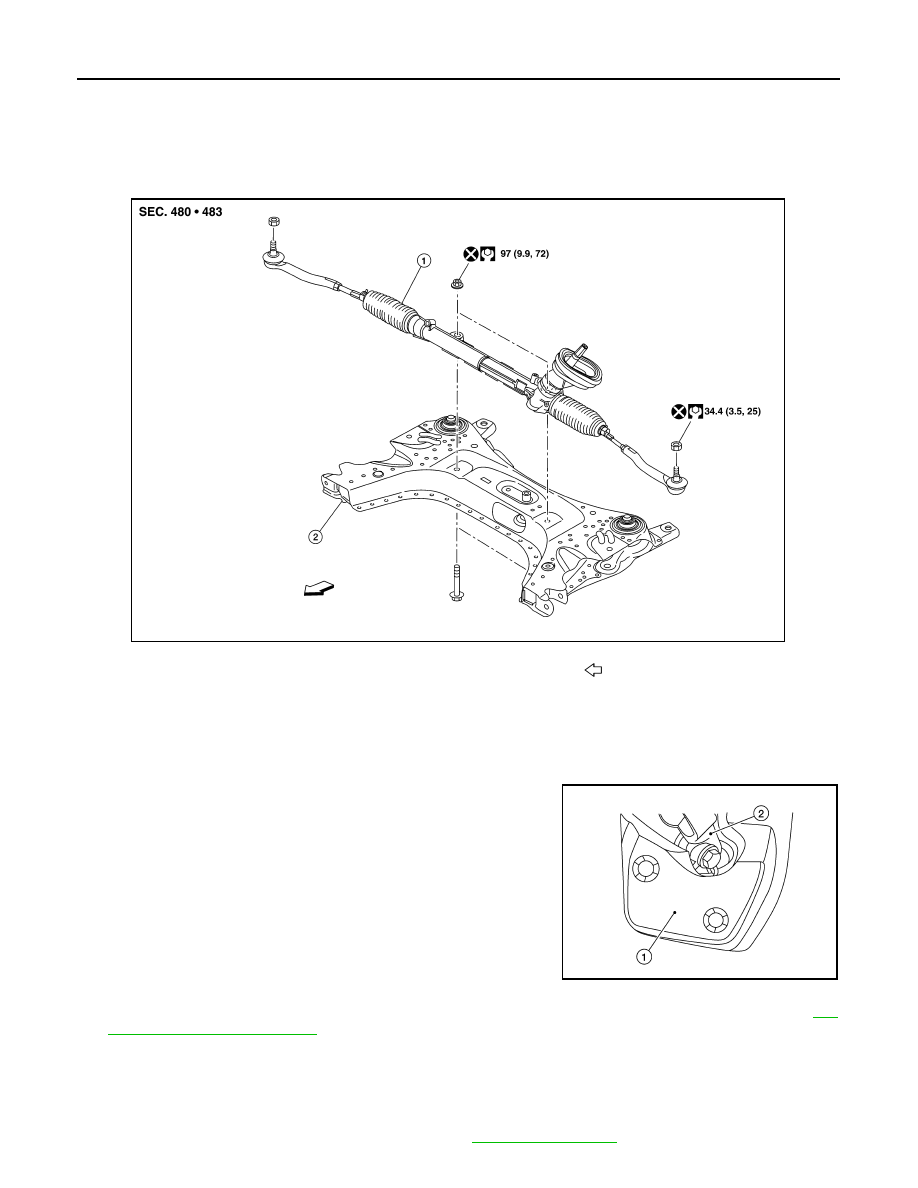

Exploded View

INFOID:0000000009759140

REMOVAL

Removal and Installation

INFOID:0000000009759141

REMOVAL

1. Set steering wheel to the straight-ahead position.
2. Remove floor cover (1).

• Lower shaft assembly (2).

3. Remove the lower shaft assembly bolt and position the lower shaft assembly out of the way. Refer to

ST-

12, "Removal and Installation"

.

CAUTION:

• Spiral cable may be cut if steering wheel turns while separating steering column assembly and

steering gear assembly. Always fix the steering wheel using string to avoid turning.

• Place a matching mark on both intermediate shaft and steering gear assembly before removing

intermediate shaft.

4. Remove wheels and tires using power tool. Refer to

WT-47, "Adjustment"

.

1.

Steering gear assembly

2.

Front suspension member

 Front

AWGIA0254ZZ

ALGIA0157ZZ

STEERING GEAR AND LINKAGE

ST-15

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

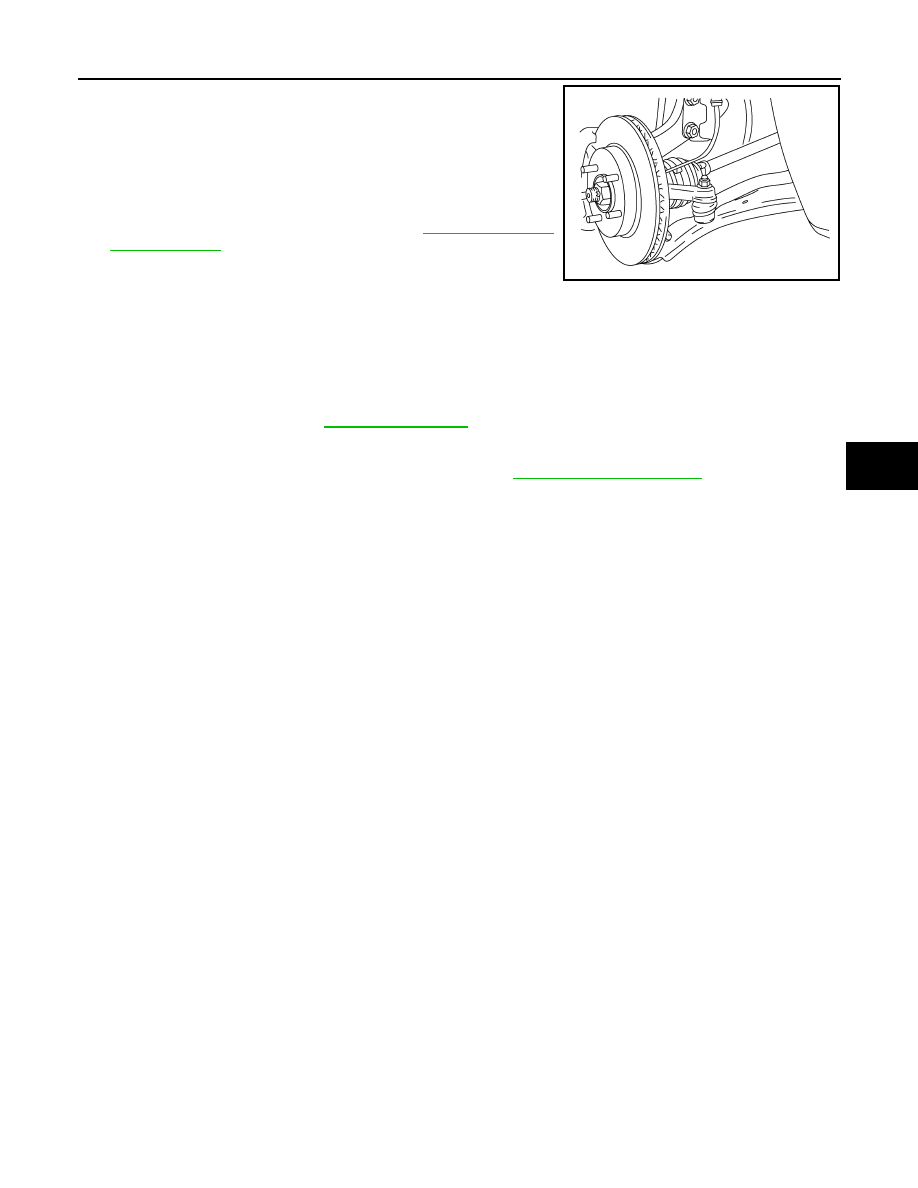

5. Remove steering outer socket from steering knuckle so as not to

damage ball joint boot using Tool.

CAUTION:

Temporarily tighten the nut to prevent damage to threads

and to prevent the Tool from a sudden drop.

6. Remove front suspension member. Refer to

FSU-16, "Removal

and Installation"

.

7. Remove steering gear assembly from front suspension member.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Spiral cable may be cut if steering wheel turns while separating steering column assembly and steer-

ing gear assembly. Always fix the steering wheel using string to avoid turning.

• Perform final tightening of nuts and bolts on each part under unladen conditions with tires on level ground

when removing steering gear assembly.

• Check wheel alignment. Refer to

FSU-7, "Adjustment"

.

• Rotate steering wheel to check for decentered condition, binding, noise or excessive steering effort.

• Do not reuse steering outer socket nut and steering gear assembly nut.

• Perform neutral position steering angle adjustment. Refer to

BRC-54, "Work Procedure"

.

Tool number : HT72520000 (J-25730-A)

AWGIA0252ZZ

ST-16

< UNIT DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

UNIT DISASSEMBLY AND ASSEMBLY

STEERING GEAR AND LINKAGE

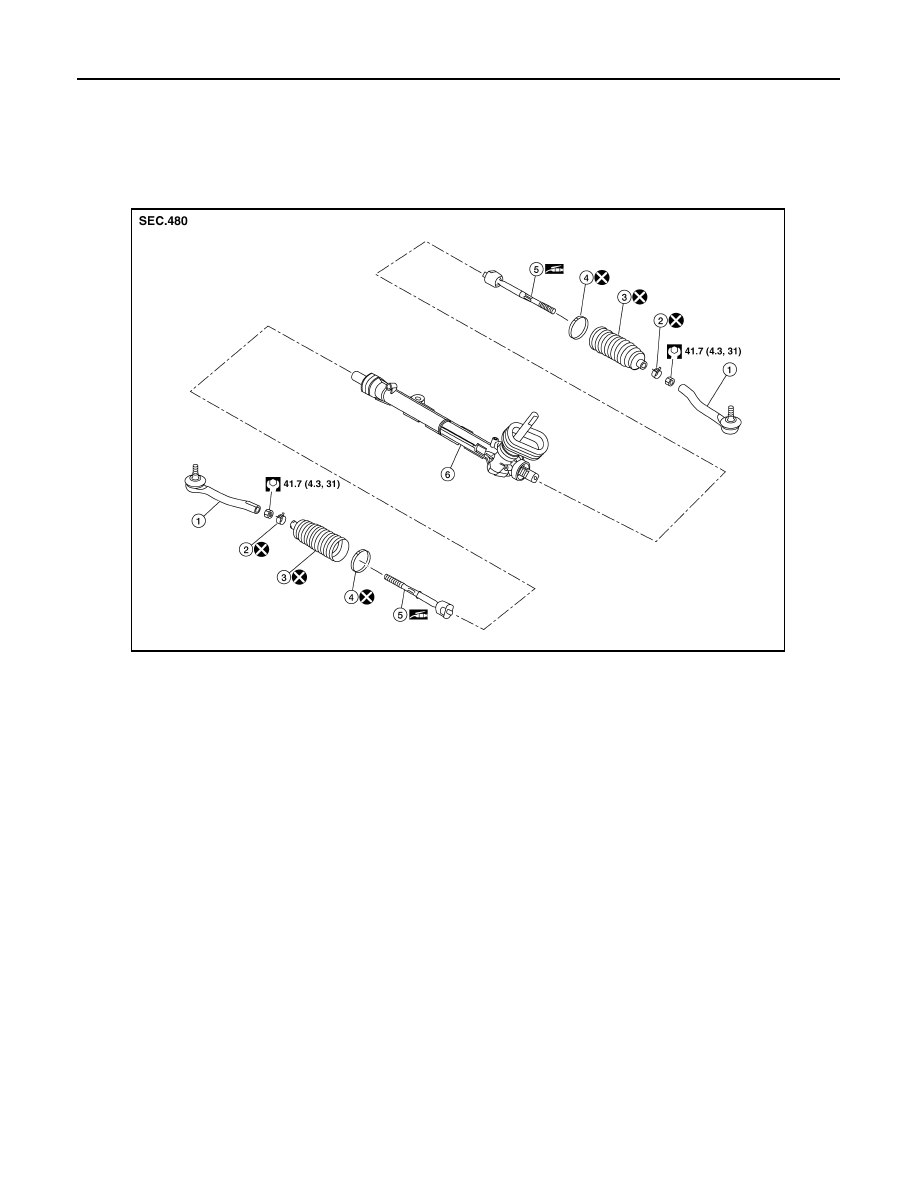

Exploded View

INFOID:0000000009759142

Disassembly and Assembly

INFOID:0000000009759143

DISASSEMBLY

1. Loosen outer socket lock nut, and remove outer socket.

CAUTION:

When loosening lock nut, be sure to fix outer socket with a wrench or an equivalent.

2. Remove boot clamps, and then remove boot from inner socket.

CAUTION:

• Do not damage inner socket part and gear housing part of steering gear assembly when remov-

ing boot. steering gear assembly must be replaced if steering gear assembly are damaged

because it may cause foreign material interfusion.

• Do not reuse boot clamps.

3. Remove inner socket.

ASSEMBLY

1.

Outer socket

2.

Boot clamp (small diameter)

3.

Boot

4.

Boot clamp (large diameter)

5.

Inner socket

6.

Gear housing assembly

AWGIA0317ZZ

STEERING GEAR AND LINKAGE

ST-17

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

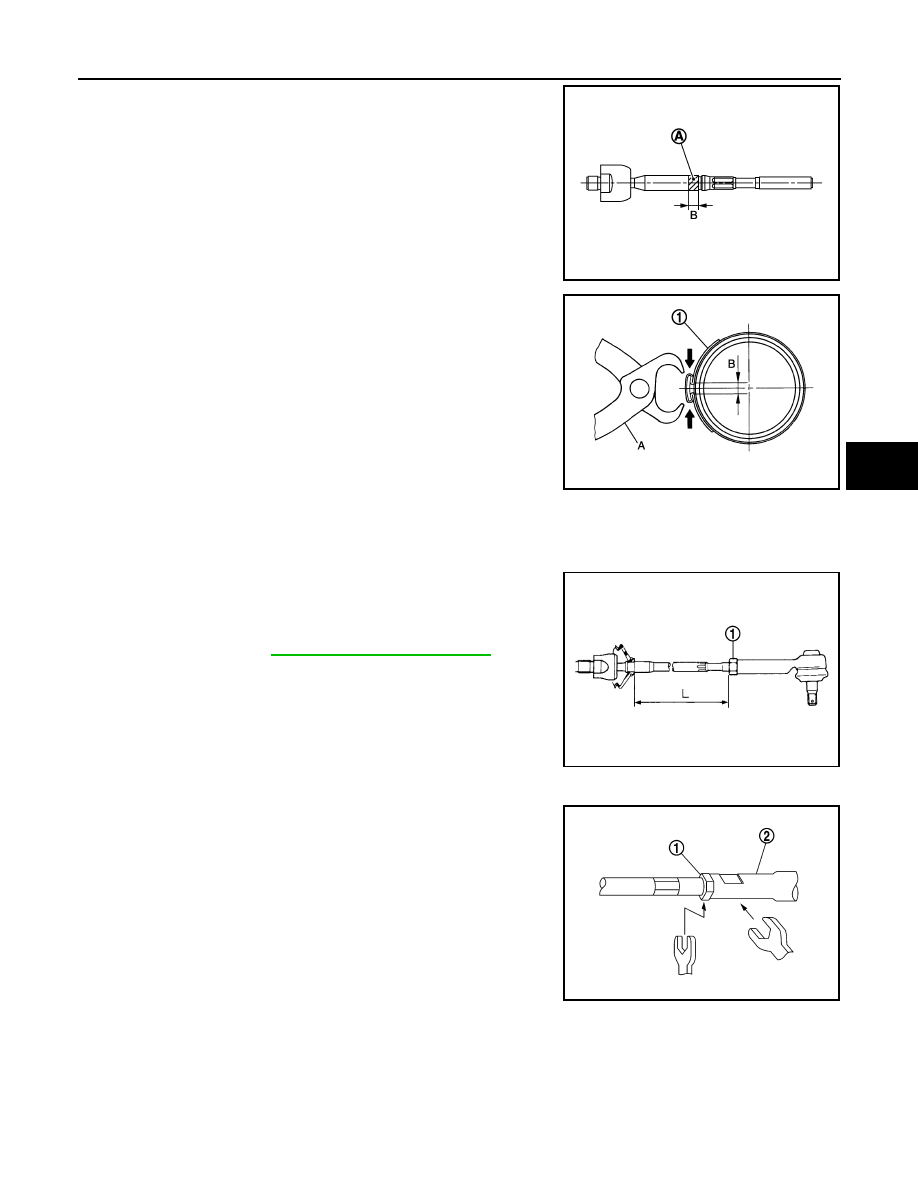

1. Apply recommended grease to inner socket (A) of gear housing
