MOONROOF UNIT ASSEMBLY

• After installing either moonroof unit assembly or glass lid, check gap/height adjustments and opera-

tion to make sure there is no malfunction.

• Always work with a helper.

• Handle glass lid with care to prevent damage.

• When taking moonroof unit assembly out, use shop cloths to protect the headlining, seats and trim

from damage.

NOTE:

For easier and more accurate installation, always mark each point before removal.

REMOVAL

CAUTION:

Before servicing moonroof unit assembly, turn the ignition switch off, disconnect both battery termi-

nals and wait at least three minutes.
1. Close glass lid.
2. Disconnect the negative and positive battery terminals and wait at least three minutes. Refer to

PG-50,

"Removal and Installation (Battery)"

.

3. Remove the headlining. Refer to

INT-40, "Removal and Installation"

.

4. Disconnect drain hoses.
5. Disconnect the harness connector from the moonroof motor assembly.
6. Remove moonroof side bracket bolts, then the moonroof side brackets (LH/RH).
7. Remove ten nuts around the roof opening from the moonroof unit assembly.
8. Remove moonroof unit assembly from the passenger compartment while being careful not to damage the

seats and trim.

INSTALLATION

1. Position moonroof unit assembly over locating pins and loosely install ten nuts around roof opening.
2. Install side brackets (LH/RH) and loosely tighten bolts.
3. Tighten the moonroof unit assembly nuts diagonally.
4. Tighten the moonroof side bracket (LH/RH) bolts at the vehicle side first, then at the moonroof side rail.
5. Connect harness connector to the moonroof motor assembly.
6. Connect drain hoses.
7. Check the glass lid adjustment. Refer to

RF-40, "Adjustment"

.

8. Install the headlining. Refer to

INT-40, "Removal and Installation"

.

SUNSHADE

RF-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE

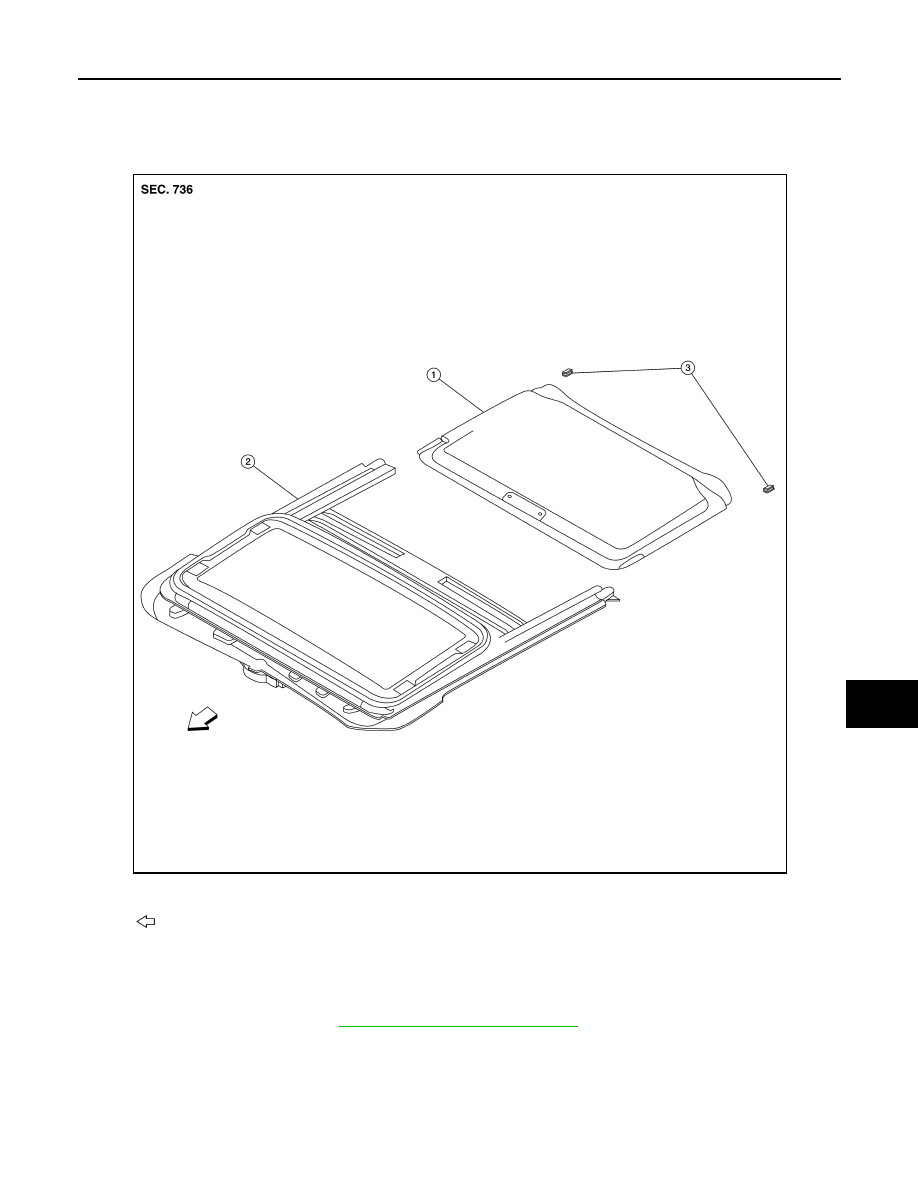

Exploded View

INFOID:0000000009756161

Removal and Installation

INFOID:0000000009756162

REMOVAL

1. Remove the headlining. Refer to

INT-40, "Removal and Installation"

.

1.

Sunshade

2.

Moonroof unit assembly

3.

Sunshade stopper (LH/RH)

Front

ALKIA2958ZZ

RF-48

< REMOVAL AND INSTALLATION >

SUNSHADE

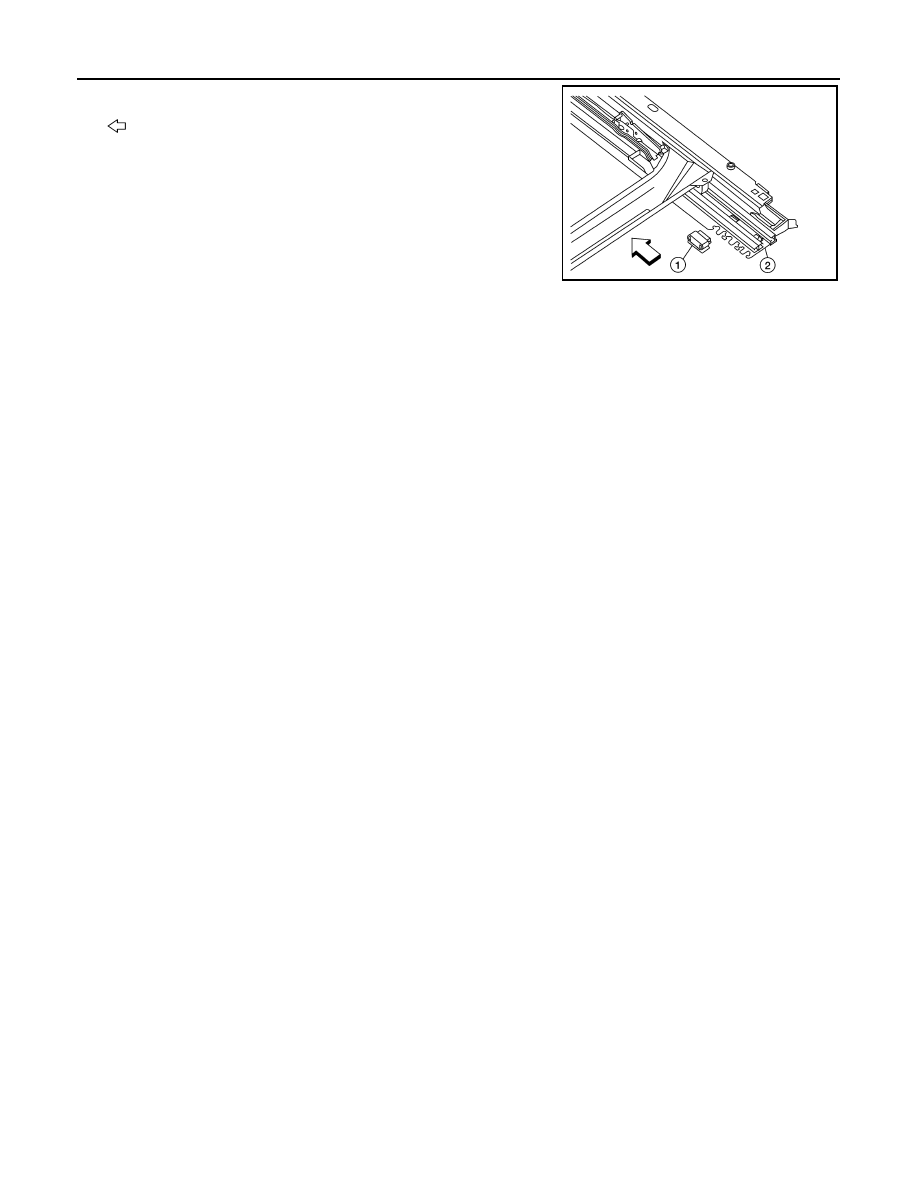

2. Remove the sunshade stoppers (1) (LH/RH) from the moonroof

unit assembly side rails (2).

: Front

3. Remove sunshade from rear end of moonroof unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

LIIA2347E

WIND DEFLECTOR

RF-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

WIND DEFLECTOR

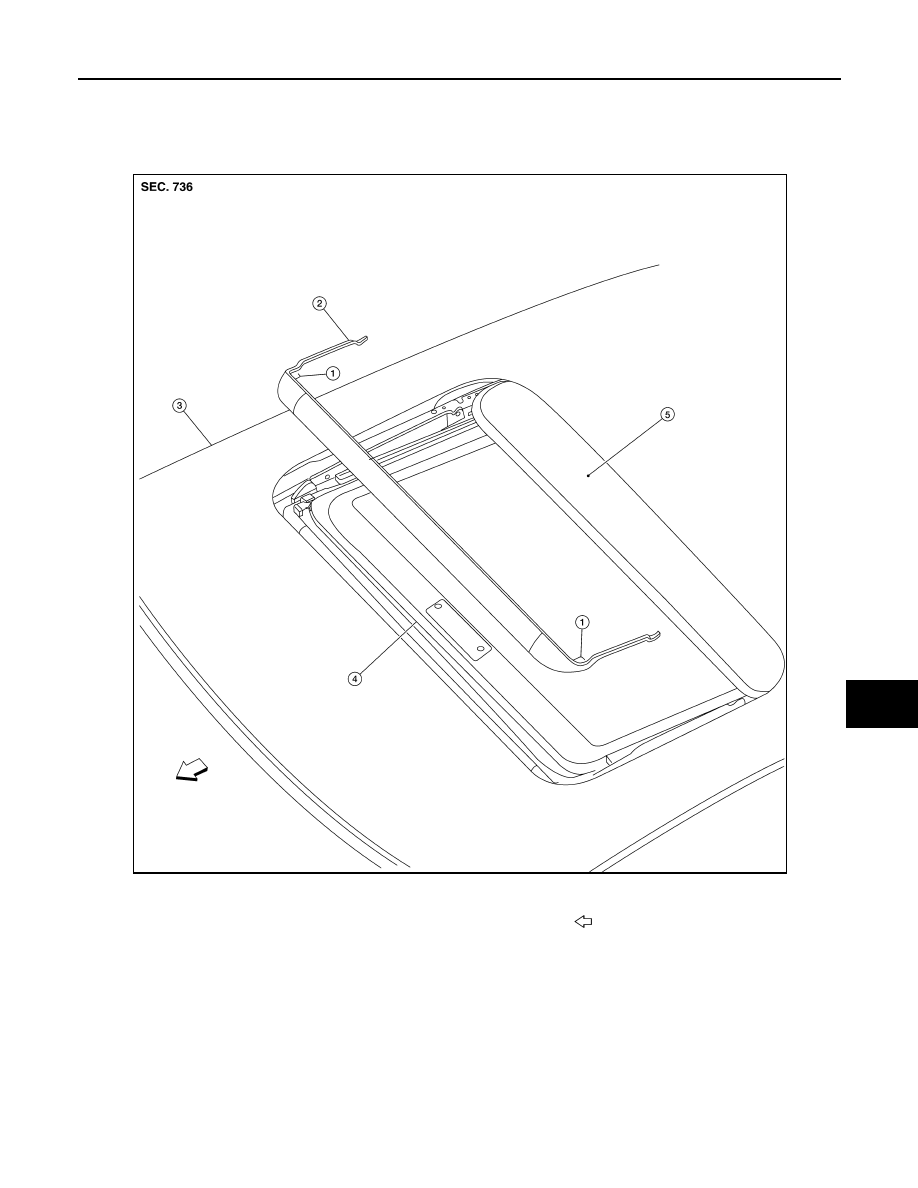

Exploded View

INFOID:0000000009756163

Removal and Installation

INFOID:0000000009756164

REMOVAL

1. Open the glass lid.
2. Release the springs (LH/RH), then remove the wind deflector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Spring

2.

Wind deflector

3.

Roof panel

4.

Sunshade

5.

Glass lid

Front

ALKIA2959ZZ
