MWI-14

< SYSTEM DESCRIPTION >

SYSTEM

LOOSE FUEL CAP

The LOOSE FUEL CAP message will display in the information display when the fuel-filler cap is not tightened

correctly. The message will turn off as soon as the ECM detects the fuel-filler cap is properly tightened. The

ECM provides a loose fuel cap signal to the combination meter via CAN communication.

LOW TIRE PRESSURE WARNING

This warning appears when the BCM detects low inflation pressure or a system malfunction. The BCM sends

a signal to the combination meter via CAN communication to illuminate the low tire pressure warning lamp. In

addition, a warning message will be displayed in the vehicle information display.

TRIP COMPUTER

ECO Pedal Guide

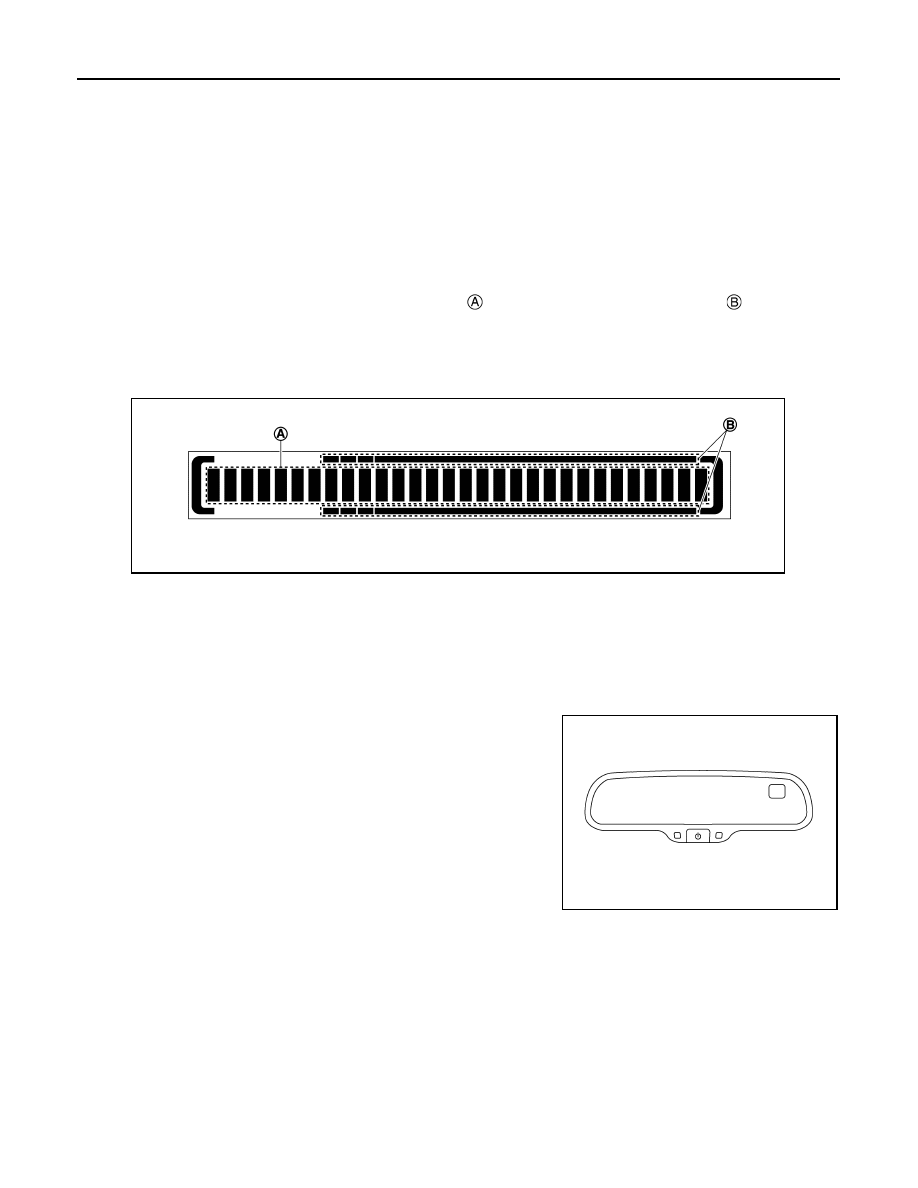

The ECO pedal guide displays accelerator pedal angle    and the guideline of ECO driving    according to

information recieved from the ECM via CAN communication.

When the Eco pedal guide bar is in the green range, it indicates that the vehicle is driven within range of econ-

omy drive.

If the Eco pedal guide bar is out of green range, it indicates that the accelerator pedal is depressed over the

range of economy drive.

COMPASS
COMPASS : System Description

INFOID:0000000009758251

DESCRIPTION

With the ignition switch in the ON position, and the mode switch ON,

the compass display will indicate the direction the vehicle is heading.

Vehicle direction is displayed as follows:

• N: north

• E: east

• S: south

• W:  west

ZONE VARIATION SETTING PROCEDURE

The difference between magnetic north and geographical north can sometimes be great enough to cause

false compass readings. This difference is known as variance. In order for the compass to operate properly

(accurately) in a particular zone, the zone variation must be calibrated using the following procedure.

JSNIA5135ZZ

WKIA4836E

MWI

SYSTEM

MWI-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

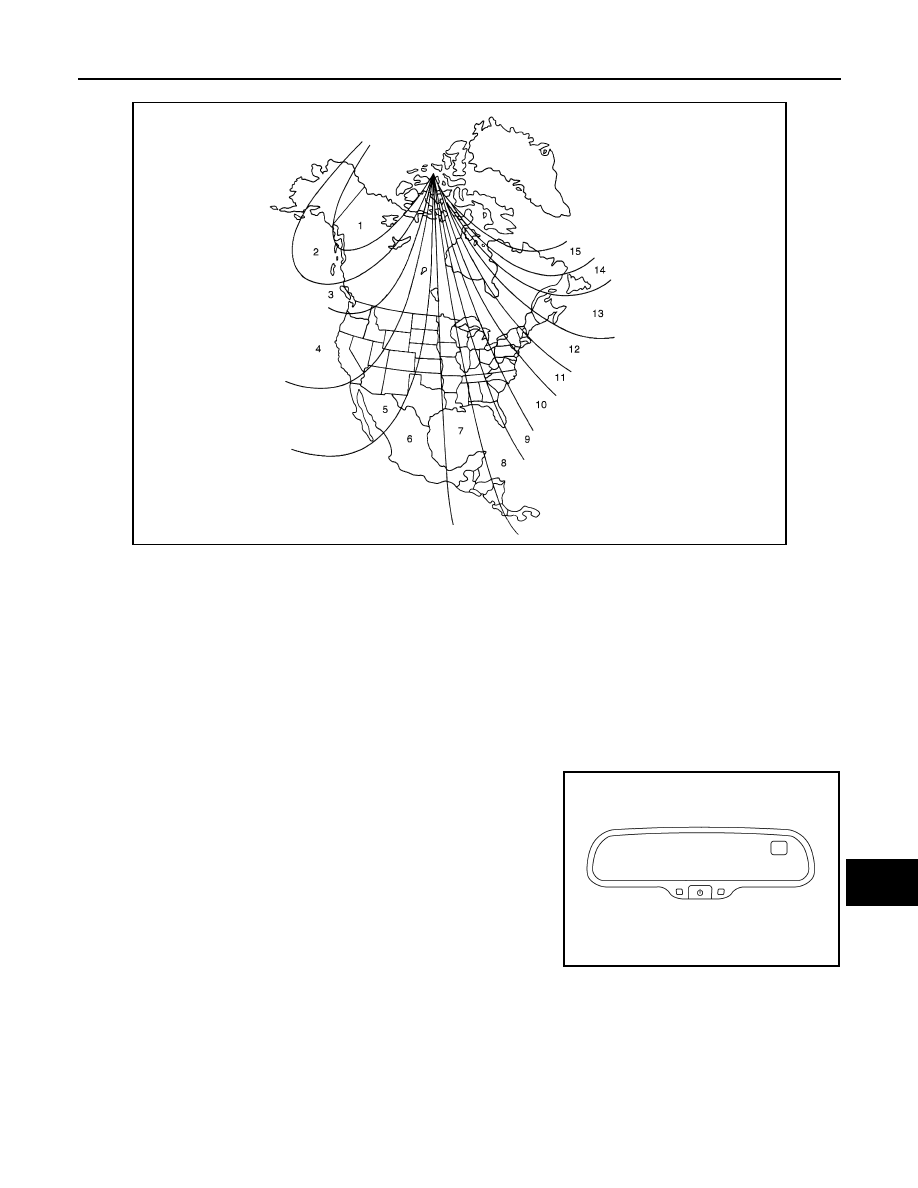

Zone Variation Chart

1. Determine your location on the zone map.
2. Turn the ignition switch to the ON position.
3. Press and hold the mode switch untill the current zone number appears in the display.
4. Press the mode switch repeatedly until the desired zone number appears in the display.
Once the desired zone number is displayed, stop pressing the mode switch and the display will show a com-

pass direction after a few seconds.

NOTE:

Use zone number 5 for Hawaii.

CALIBRATION PROCEDURE

The compass display is equipped with an automatic correction function. If the compass display reads “C” or

the direction is not shown correctly, perform the correction procedure below.

1. Press and hold the mode switch untill the display reads “C”.

2. Drive the vehicle slowly in a circle, in an open, safe place. The

initial calibration is completed in about 3 turns.

NOTE:

In places where the terrestrial magnetism is extremely disturbed, the

initial correction may start automatically.

WKIA4148E

WKIA4836E

MWI-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

DIAGNOSIS SYSTEM (COMBINATION METER)

Description

INFOID:0000000009758252

COMBINATION METER SELF-DIAGNOSIS MODE

The information display, speedometer and tachometer can be checked in self-diagnosis mode.

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

NOTE:

• Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to

MWI-52, "COMBINATION METER : Diagnosis Procedure"

. Replace combination meter if power supply and

ground circuits are found to be normal and self-diagnosis mode does not start. Refer to

MWI-77, "Removal

and Installation"

.

• Combination meter self-diagnosis mode will function with the ignition switch in ON. Combination meter self-

diagnosis mode will exit upon turning the ignition switch to OFF.

How to Initiate Self-Diagnosis Mode

1. Turn ignition switch OFF.

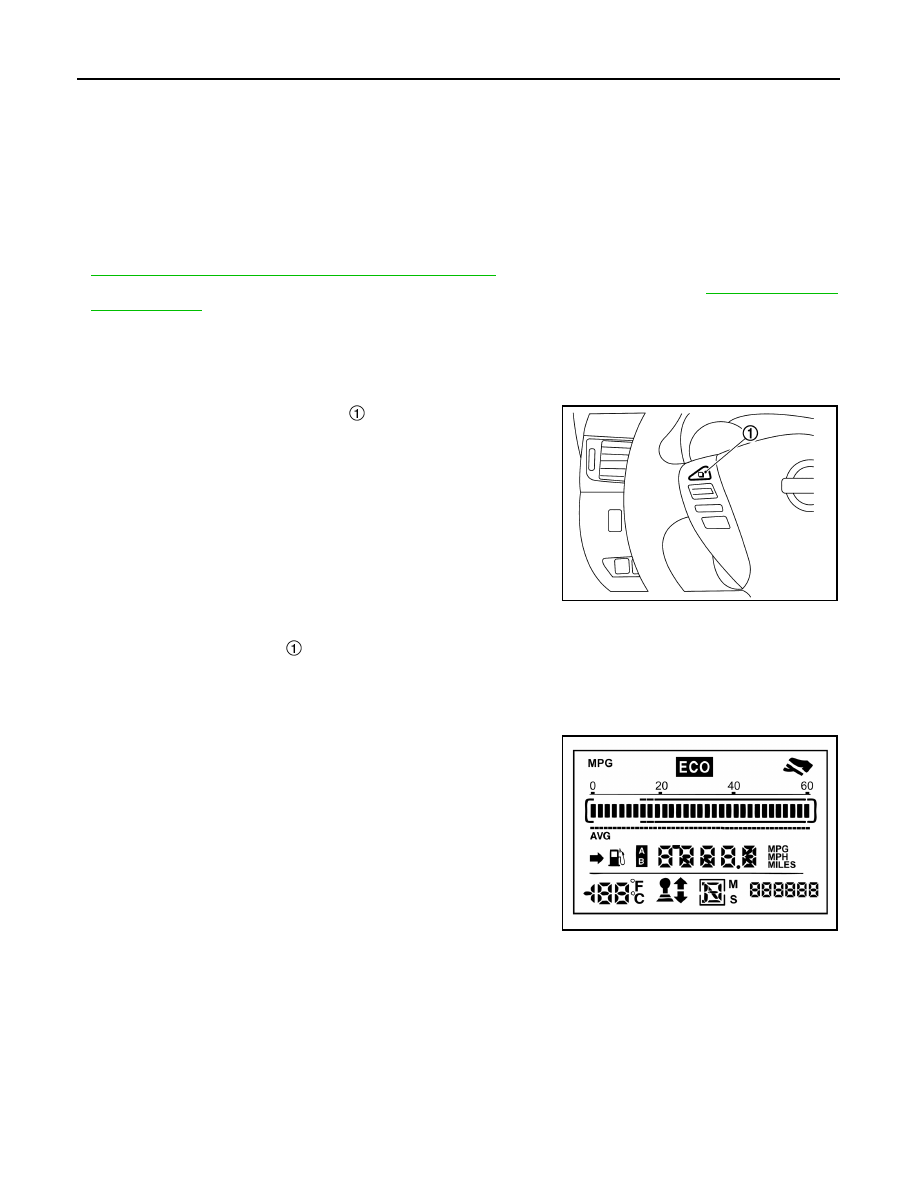

2. While pressing the steering switch  , turn ignition switch ON.
3. If the diagnosis function is activated with “trip A” displayed, the

mileage on “trip A” is reset to “0000.0”. (The same way for “trip

B”.)

4. Make sure that the trip meter displays “0000.0”.
5. Press the steering switch   at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

6. The combination meter is turned to self-diagnosis mode.

• Speedometer, tachometer, engine coolant temperature gauge, fuel gauge, and return to zero, simulta-

neously.

• All segments of the information display are displayed.

NOTE:

• Check the following items when the self-diagnosis mode of the combination meter does not start.

Replace combination meter if the following items are normal.

- Combination meter power supply and ground circuit.

- Steering switch signal circuit and steering switch.

• If any of the dots are not displayed, replace combination meter.

AWNIA2863GB

JSNIA5050ZZ

AWNIA2863GB

MWI

DIAGNOSIS SYSTEM (COMBINATION METER)

MWI-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

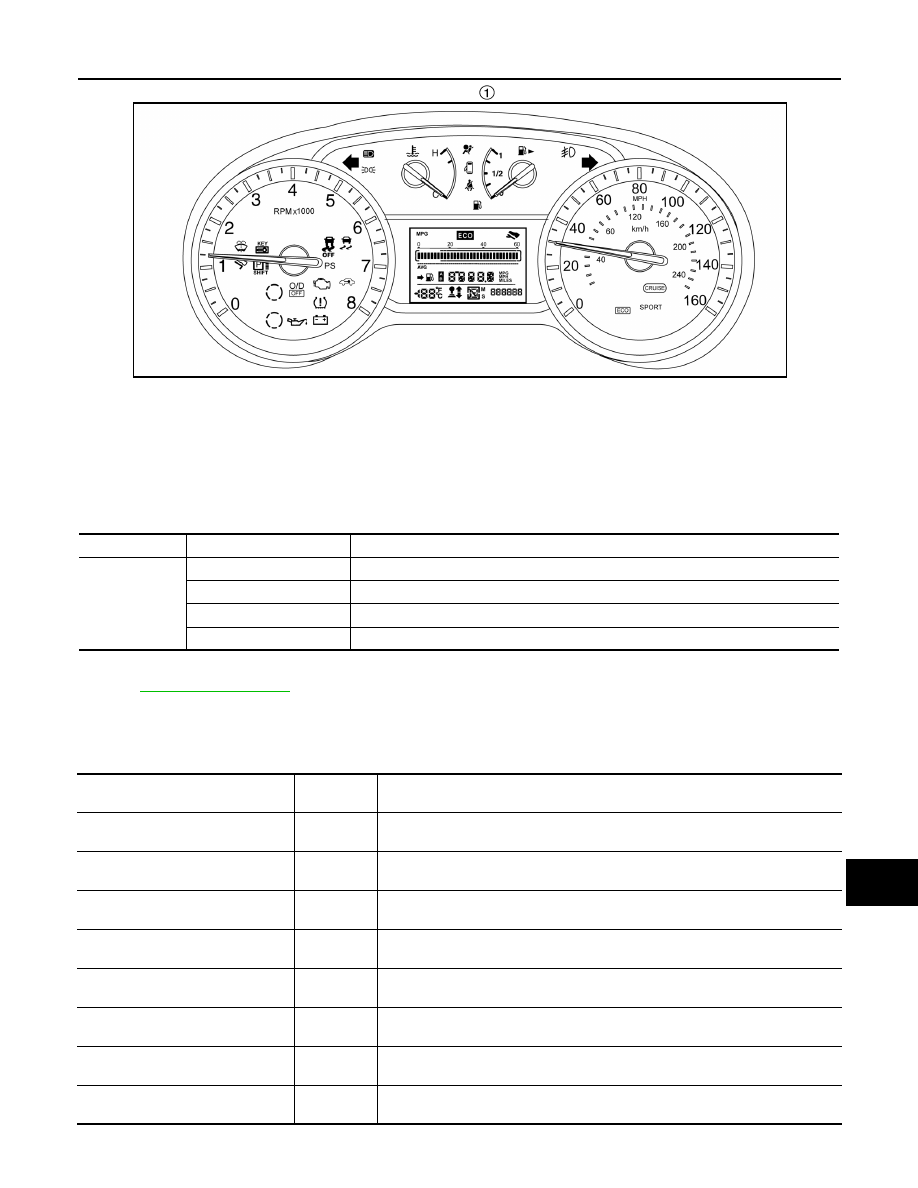

7. Each meter activates by pressing the steering switch  .

NOTE:

• If any of the meters or gauges is not activated, replace combination meter.

• The figure is reference.

CONSULT Function (METER/M&A)

INFOID:0000000009758253

APPLICATION ITEMS

CONSULT can perform the following diagnosis modes via CAN communication and the combination meter.

SELF DIAG RESULT

Refer to

MWI-26, "DTC Index"

.

DATA MONITOR

Display Item List

X: Applicable

AWNIA2862GB

System

Diagnosis mode

Description

METER/M&A

Self Diagnostic Result

The combination meter checks the conditions and displays memorized errors.

Data Monitor

Displays the combination meter input/output data in real time.

Work Support

Displays diagnosis procedure of each work item.

Warning History

Lighting history of the warning lamp and indicator lamp can be checked.

Display item [Unit]

MAIN

SIGNALS

Description

SPEED METER
[km/h] or [mph]

X

Displays the value of vehicle speed signal.

SPEED OUTPUT
[km/h] or [mph]

X

Displays the value of vehicle speed signal, which is transmitted to each unit with
CAN communication.

ODO OUTPUT
[km/h or mph]

Displays odometer signal value transmitted to other units via CAN communica-
tion.

TACHO METER
[rpm]

X

Displays the value of engine speed signal, which is input from ECM.

FUEL METER
[L]

X

Displays the fuel level.

W TEMP METER
[

°C]  or [°F]

X

Displays the value of engine coolant temperature signal, which is input from ECM.

ABS W/L
[ON/OFF]

Displays [ON/OFF] condition of ABS warning indicator

SLIP IND
[ON/OFF]

Displays [ON/OFF] condition of SLIP indicator lamp.
