EC-480

< PERIODIC MAINTENANCE >

[MRA8DE]

IGNITION TIMING

IGNITION TIMING

Inspection

INFOID:0000000009758734

1.

CHECK IGNITION TIMING

1. Attach timing light to the ignition coil No.1 harness.

2. Check ignition timing.

>> INSPECTION END

: Timing indicator

Specification

:

EC-486, "Ignition Timing"

PBIB3263E

EVAPORATIVE EMISSION SYSTEM

EC-481

< PERIODIC MAINTENANCE >

[MRA8DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EVAPORATIVE EMISSION SYSTEM

Inspection

INFOID:0000000009758735

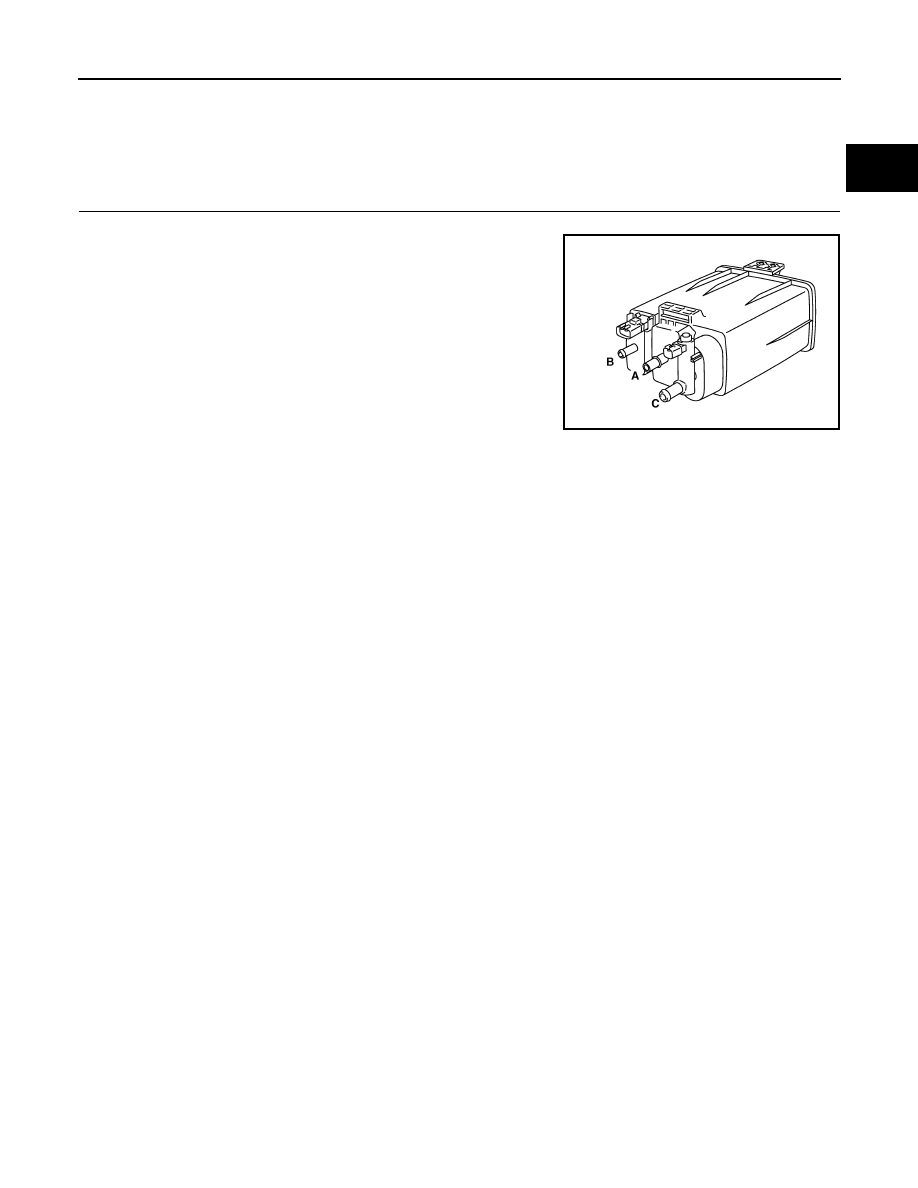

EVAP CANISTER

1.

CHECK EVAP CANISTER

1. Block port (B).

2. Blow air into port (A) and check that it flows freely out of port (C).

3. Release blocked port (B).

4. Apply vacuum pressure to port (B) and check that vacuum pres-

sure exists at the ports (A) and (C).

5. Block port (A) and (B).

6. Apply pressure to port (C) and check that there is no leakage.

>> INSPECTION END

PBIB1212E

EC-482

< PERIODIC MAINTENANCE >

[MRA8DE]

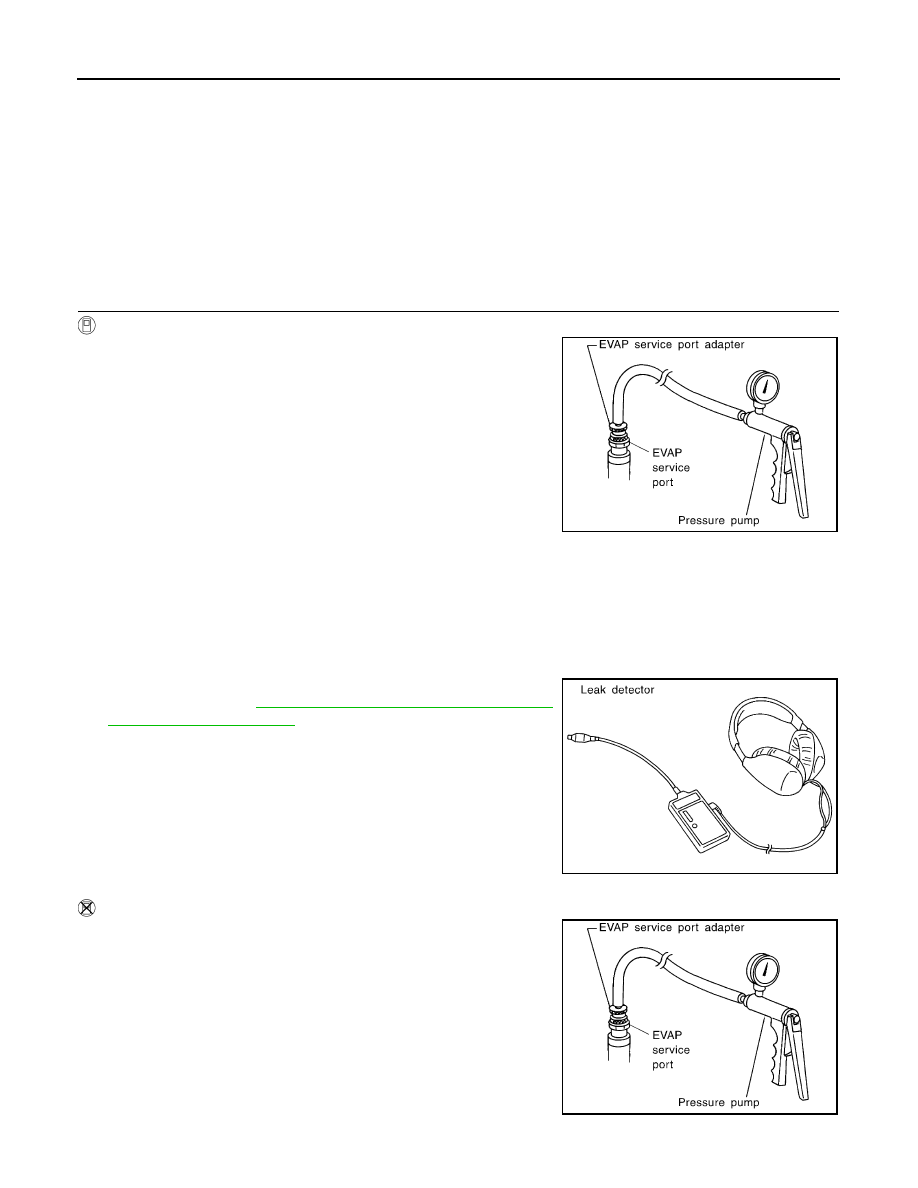

EVAP LEAK CHECK

EVAP LEAK CHECK

Inspection

INFOID:0000000009758736

CAUTION:

• Do not use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in EVAP system.

NOTE:

• Do not start engine.

• Improper installation of EVAP service port adapter [commercial service tool: (J-41413-OBD)] to the EVAP

service port may cause a leak.

1.

EVAP LEAK CHECK

With CONSULT

1. Install EVAP service port adapter [commercial service tool: (J-

41413-OBD)] and pressure pump to EVAP service port.

2. Turn ignition switch ON.

3. Select the “EVAP SYSTEM CLOSE” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

4. Touch “START”. A bar graph (Pressure indicating display) will appear on the screen.

5. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar

graph.

6. Remove EVAP service port adapter [commercial service tool: (J-41413-OBD)] and hose with pressure

pump.

7. Locate the leak using a leak detector [commercial service tool:

(J-41416)]. Refer to

EC-49, "EVAPORATIVE EMISSION SYS-

TEM : System Description"

.

Without CONSULT

1. Install EVAP service port adapter [commercial service tool: (J-

41413-OBD)] and pressure pump to EVAP service port.

SEF462UA

SEF200U

SEF462UA

EVAP LEAK CHECK

EC-483

< PERIODIC MAINTENANCE >

[MRA8DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2. Apply battery voltage between the terminals of EVAP canister vent control valve to make a closed EVAP

system.

3. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to

2.76 kPa (0.014 to 0.028 kg/cm

2

, 0.2 to 0.4 psi).

4. Remove EVAP service port adapter [commercial service tool: (J-41413-OBD)] and hose with pressure

pump.

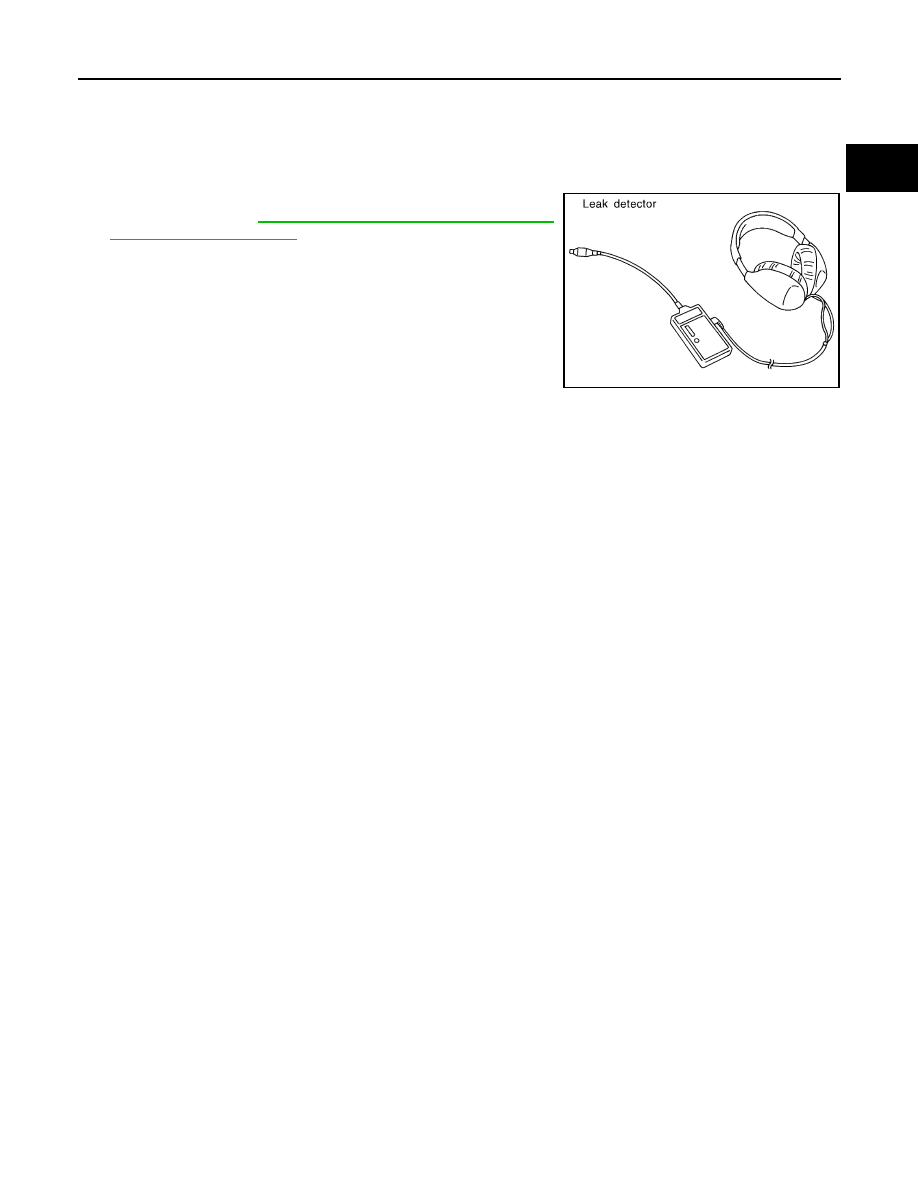

5. Locate the leak using a leak detector [commercial service tool:

(J-41416)]. Refer to

EC-49, "EVAPORATIVE EMISSION SYS-

TEM : System Description"

.

>> INSPECTION END

SEF200U
