DMS-68

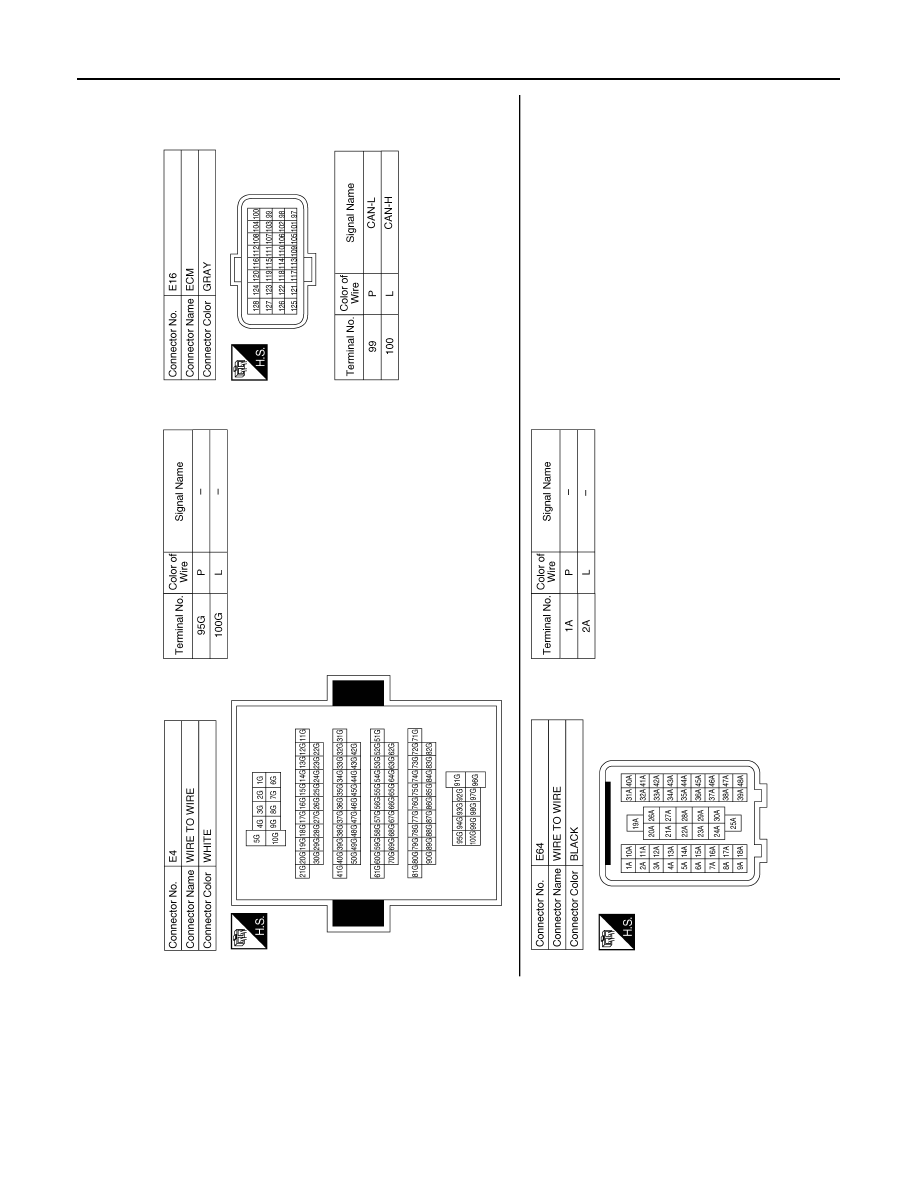

< WIRING DIAGRAM >

[SPORT MODE (CVT)]

SPORT MODE SYSTEM

ABOIA0169GB

DMS

SPORT MODE SYSTEM

DMS-69

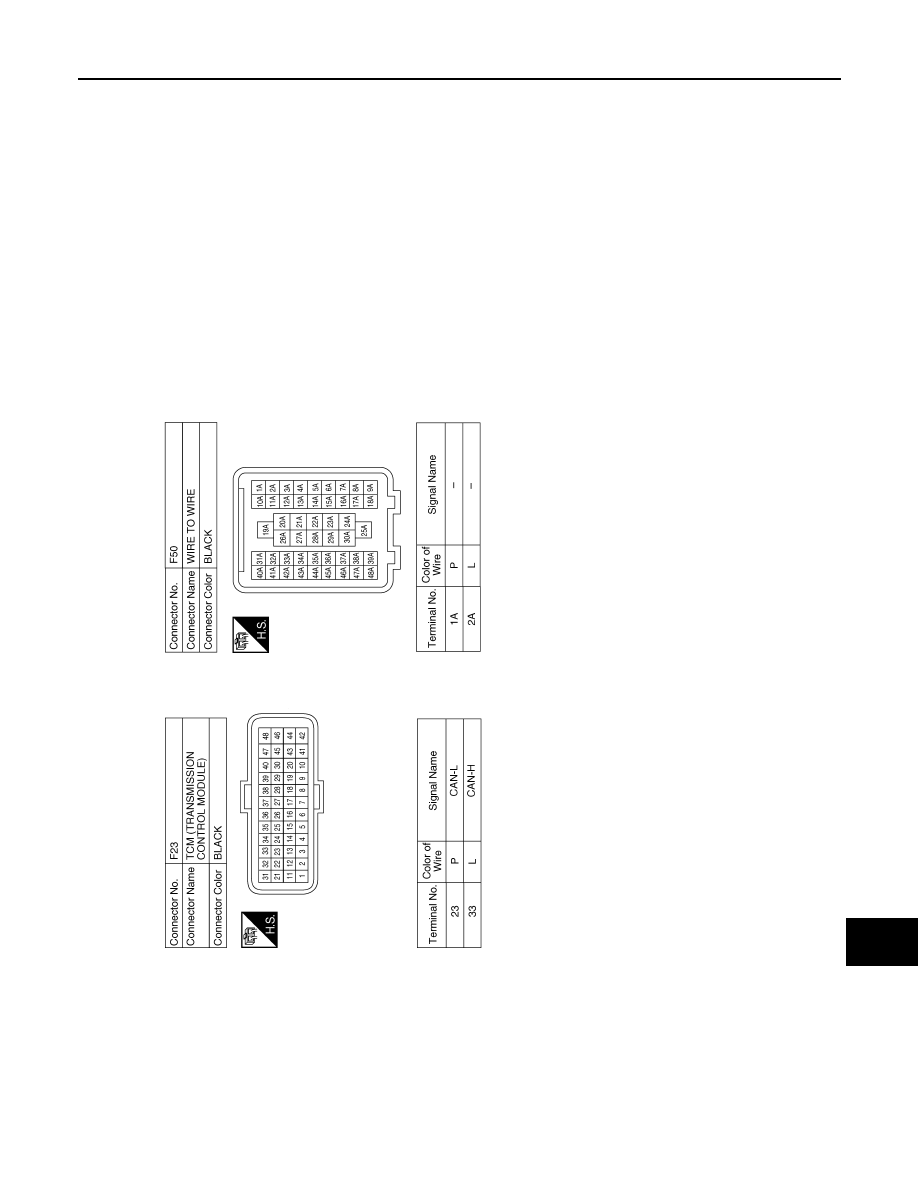

< WIRING DIAGRAM >

[SPORT MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

ABOIA0170GB

DMS-70

< BASIC INSPECTION >

[SPORT MODE (CVT)]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009755942

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurs.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

DTC/SYSTEM DIGANOSIS

Perform a DTC/system diagnosis and repair or replace any malfunctioning part.

>> GO TO 4.

4.

FINAL CHECK

Check that the SPORT mode functions normally.
Does it operation normally?

YES

>> End of trouble diagnosis

NO

>> GO TO 2.

DMS

SPORT MODE SWITCH

DMS-71

< DTC/CIRCUIT DIAGNOSIS >

[SPORT MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

DTC/CIRCUIT DIAGNOSIS

SPORT MODE SWITCH

Component Function Check

INFOID:0000000009755943

1.

 CHECK SPORT MODE SWITCH OPERATION

1. Turn ignition switch ON.

2. Check SPORT mode indicator lamp turns ON/OFF on combination meter when turn SPORT mode switch

ON/OFF.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Proceed to

DMS-71, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009755944

Regarding Wiring Diagram information, refer to

DMS-65, "Wiring Diagram"

.

1.

DETECT MALFUNCTIONING ITEMS

What is malfunction items?

SPORT mode switch illumination does not turns ON>>GO TO 2.

SPORT mode indicator lamp does not turns ON>>GO TO 8.

2.

CHECK SPORT MODE SWITCH ILLUMINATION POWER SUPPLY (1)

1. Turn OFF the headlamp.

2. Turn ignition switch OFF.

3. Disconnect SPORT mode switch harness connector.

4. Turn ignition switch ON.

5. Turn ON the headlamp.

6. Check the voltage between SPORT mode switch harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK INTERMITTENT INCIDENTE

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace SPORT mode switch. Refer to

DMS-76, "Removal and Installation"

.

NO

>> Replace the fuse after repair the applicable circuit.

4.

CHECK SPORT MODE SWITCH ILLUMINATION POWER SUPPLY (2)

Check the voltage between SPORT mode switch harness connector and ground.

SPORT mode switch

Voltage

Connector

+

-

Terminal

M81

1

4

Battery voltage
