DOOR HANDLE

DOOR HANDLE

FRONT DOOR HANDLE

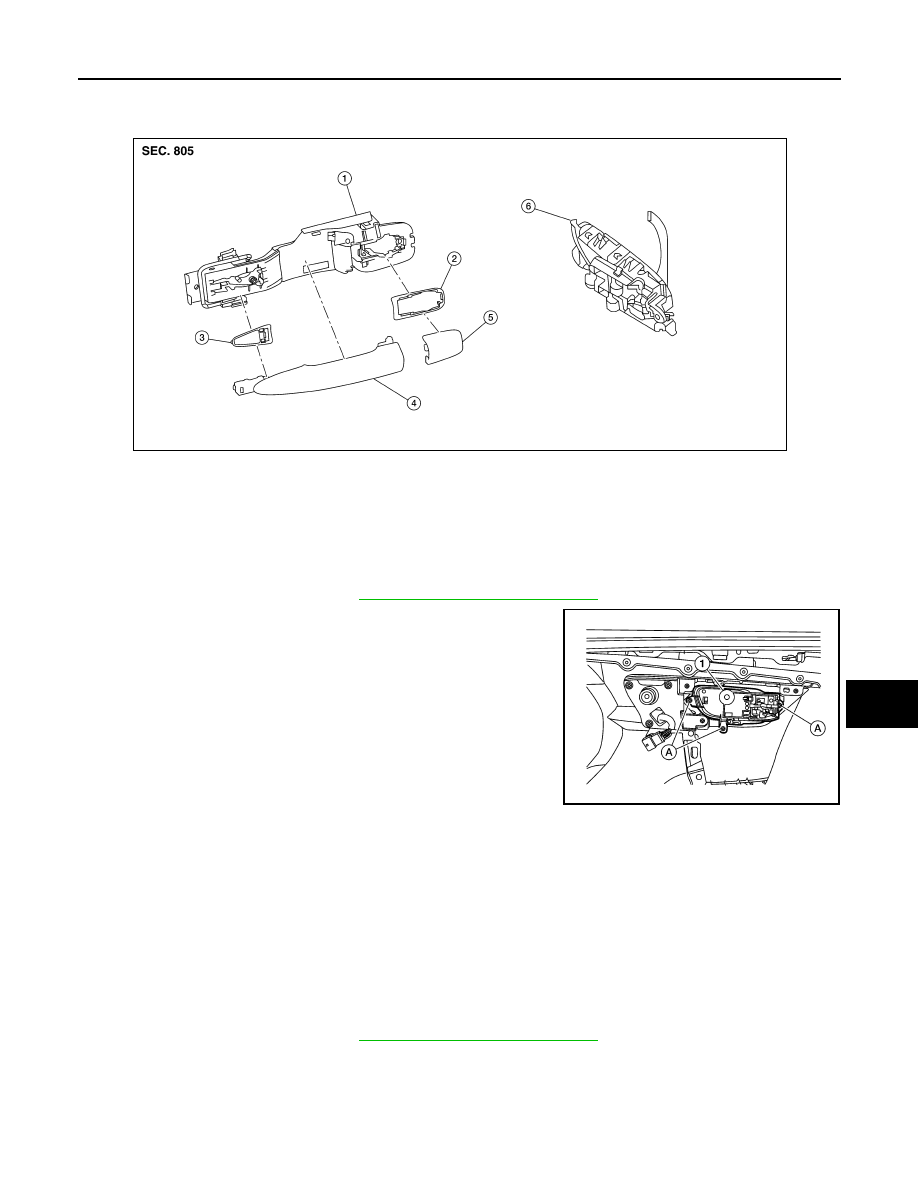

FRONT DOOR HANDLE : Exploded View

INFOID:0000000009756636

FRONT DOOR HANDLE : Removal and Installation - Inside Handle

INFOID:0000000009756637

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove inside handle assembly screws (A) and the inside han-

dle assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check front door lock cables are properly engaged to inside handle.

• After installation, check front door open/close, lock/unlock operation.

FRONT DOOR HANDLE : Removal and Installation - Outside Handle

INFOID:0000000009756638

REMOVAL

1. Fully close front door glass.
2. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

3. Remove front door vapor barrier.

1.

Outside handle bracket

2.

Rear gasket

3.

Front gasket

4.

Outside handle escutcheon

5.

Outside handle

6.

Door key cylinder rod

7.

Inside handle assembly

ALKIA2925ZZ

ALKIA2715ZZ

DOOR HANDLE

DLK-321

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. Remove front door glass channel rear.
5. Disconnect the harness connectors from the door antenna and door request switch and then remove har-

ness clamp on outside handle bracket.

6. Remove door side grommet, and loosen screw that retains the

front door outside handle bracket.

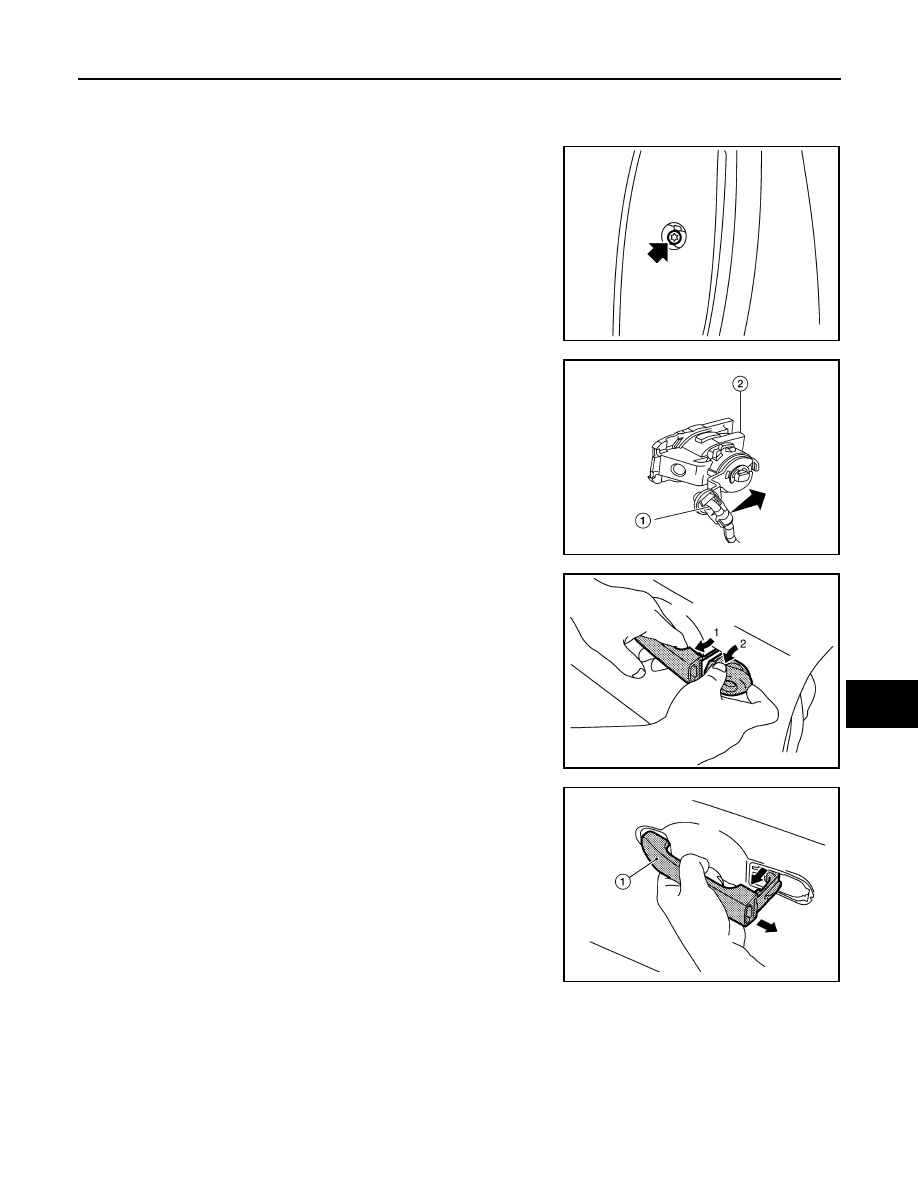

7. Reach in to separate door key cylinder rod (LH side) (1) from

door key cylinder assembly (LH side).

8. While pulling outside handle (1), remove door key cylinder

assembly (LH side) or outside handle escutcheon (2) (RH side).

9. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

JMKIA0025ZZ

ALKIA2487ZZ

JMKIA0560ZZ

AWKIA1997ZZ

DLK-322

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR HANDLE

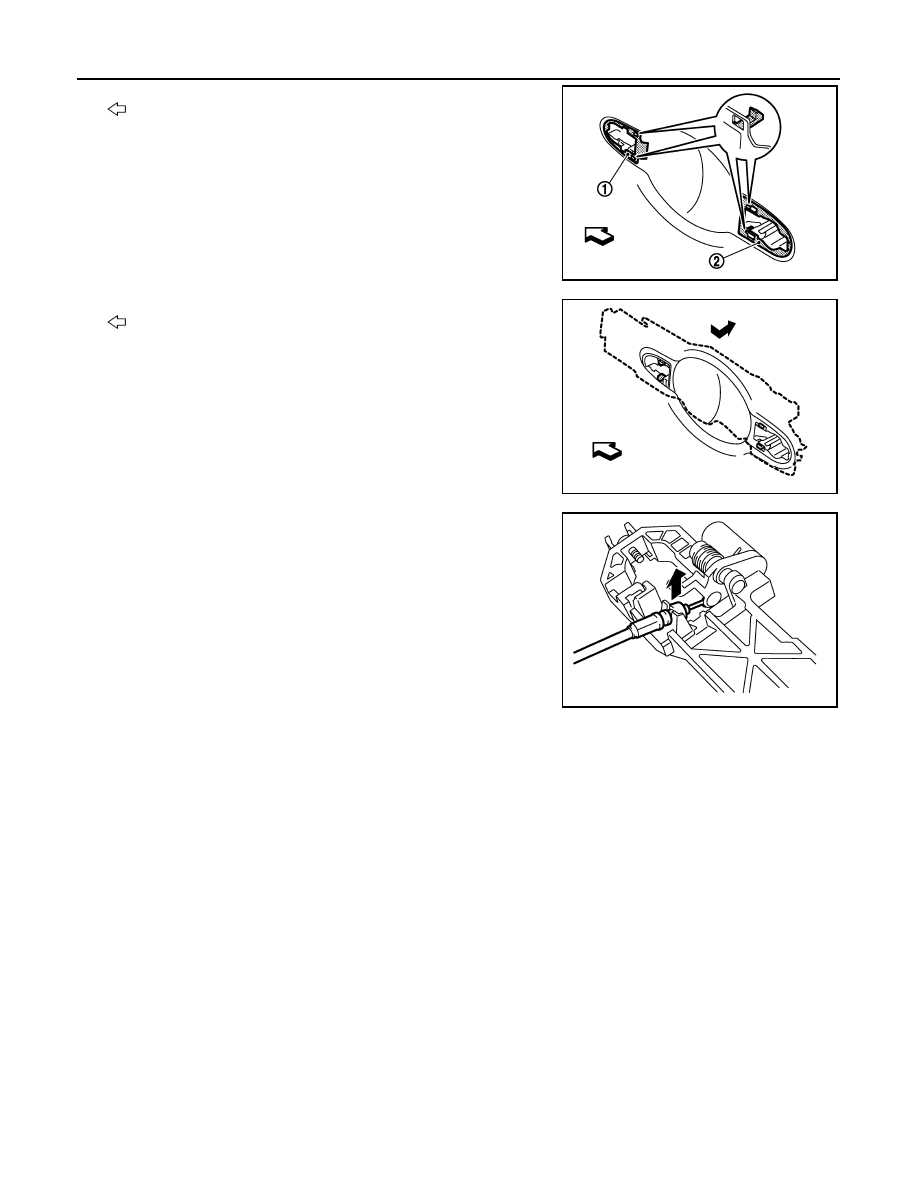

10. Remove front gasket (1) and rear gasket (2).

: Front

11. Slide outside handle bracket toward rear of vehicle to remove.

: Front

12. Disconnect the outside handle cable from the outside handle

bracket connection.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing do not reuse front door outside handle bracket screw. Always replace screw with

new ones when removed.

• When installing door key cylinder rod on the LH front door, be sure to rotate door key cylinder rod

holder until a click is felt.

• Check front door lock cable is properly engaged to outside handle bracket.

• After installation, check front door open/close, lock/unlock operation.

REAR DOOR HANDLE

JMKIA5889ZZ

JMKIA5890ZZ

PIIB5815E

DOOR HANDLE

DLK-323

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

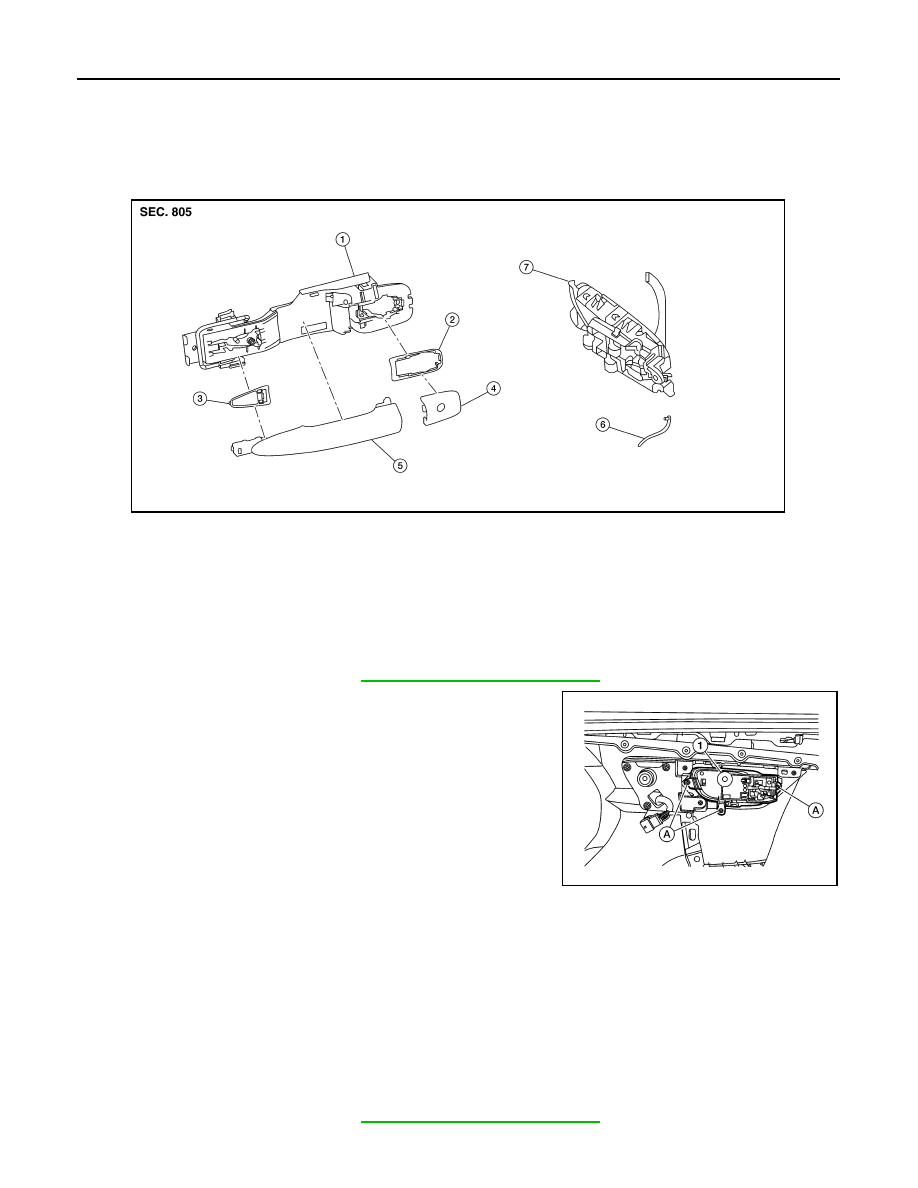

REAR DOOR HANDLE : Exploded View

INFOID:0000000009756639

REAR DOOR HANDLE : Removal and Installation - Inside Handle

INFOID:0000000009756640

REMOVAL

1. Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove inside handle assembly screws (A) and inside handle

assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check rear door lock cables are properly engaged to inside handle.

• After installation, check rear door open/close, lock/unlock operation.

REAR DOOR HANDLE : Removal and Installation - Outside Handle

INFOID:0000000009756641

REMOVAL

1. Fully close rear door glass.
2. Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

3. Remove rear door vapor barrier.

1.

Outside handle bracket

2.

Rear gasket

3.

Front gasket

4.

Outside door handle

5.

Outside handle escutcheon

6.

Inside handle assembly

ALKIA2924ZZ

ALKIA2715ZZ
