DOOR HANDLE

REAR DOOR HANDLE : Exploded View

INFOID:0000000009756487

REAR DOOR HANDLE : Removal and Installation - Inside Handle

INFOID:0000000009756488

REMOVAL

1. Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove screws (A) and inside handle (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check rear door lock cables are properly engaged to inside handle.

• After installation, check rear door open/close, lock/unlock operation.

REAR DOOR HANDLE : Removal and Installation - Outside Handle

INFOID:0000000009756489

REMOVAL

1. Fully close rear door glass.
2. Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

3. Remove rear door vapor barrier.

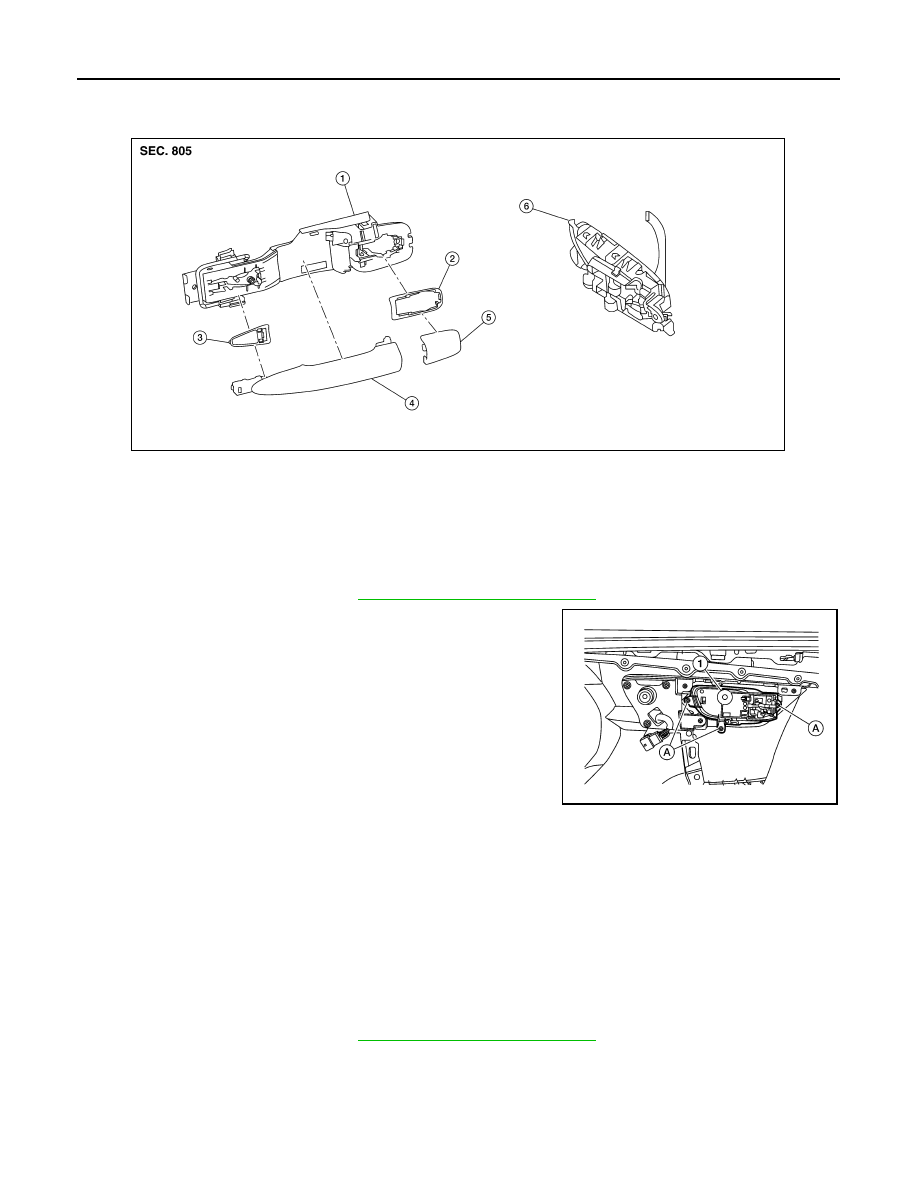

1. Outside handle bracket

2. Front gasket

3. Outside handle

4. Outside handle escutcheon

5. Inside handle

6. Rear gasket

ALKIA2924ZZ

ALKIA2715ZZ

DOOR HANDLE

DLK-177

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

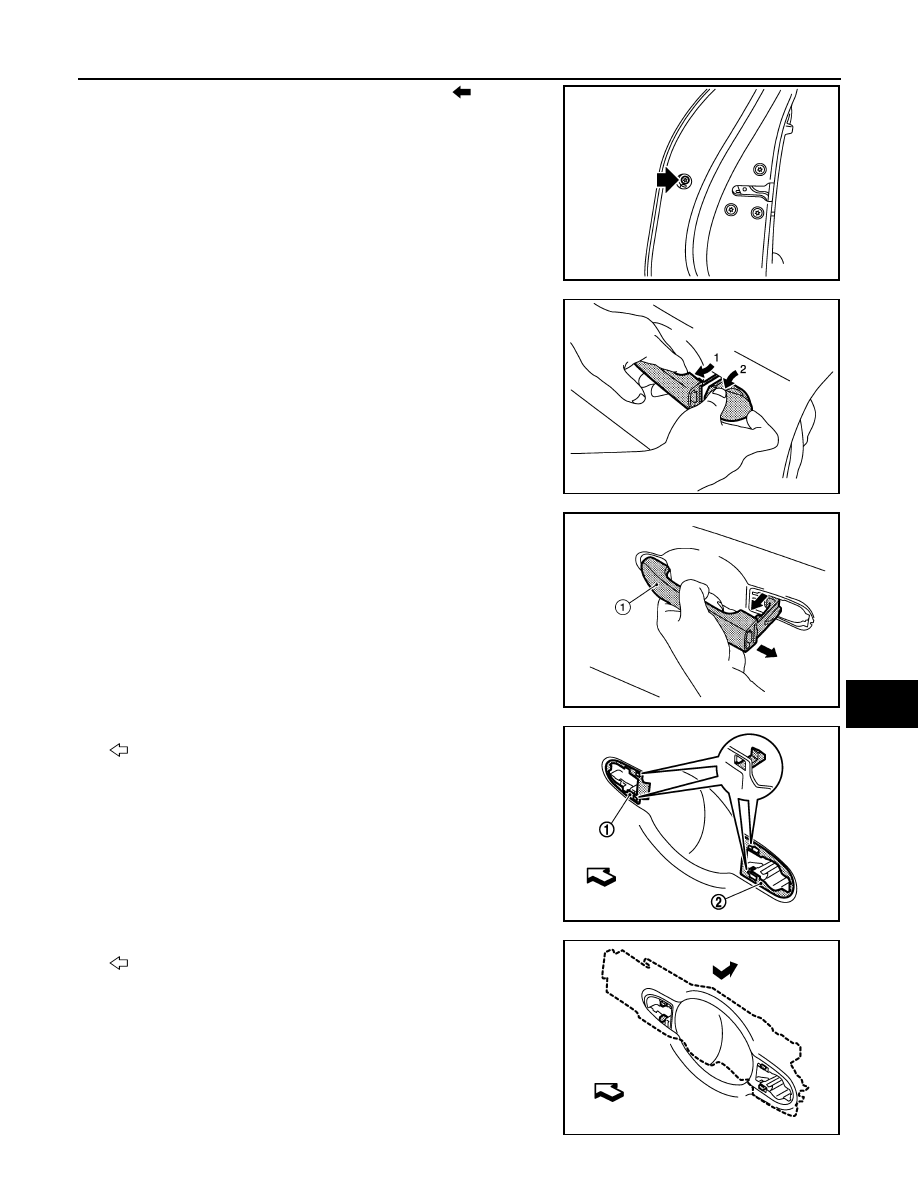

4. Remove door side grommet, and loosen screw (

)that retains

the rear door outside handle bracket.

5. While pulling (1) outside handle, remove (2) outside handle

escutcheon.

6. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

7. Remove front gasket (1) and rear gasket (2).

: Front

8. Slide outside handle bracket toward rear of vehicle to remove.

: Front

JMKIA1467ZZ

JMKIA5342ZZ

AWKIA1997ZZ

JMKIA5889ZZ

JMKIA5890ZZ

DLK-178

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

DOOR HANDLE

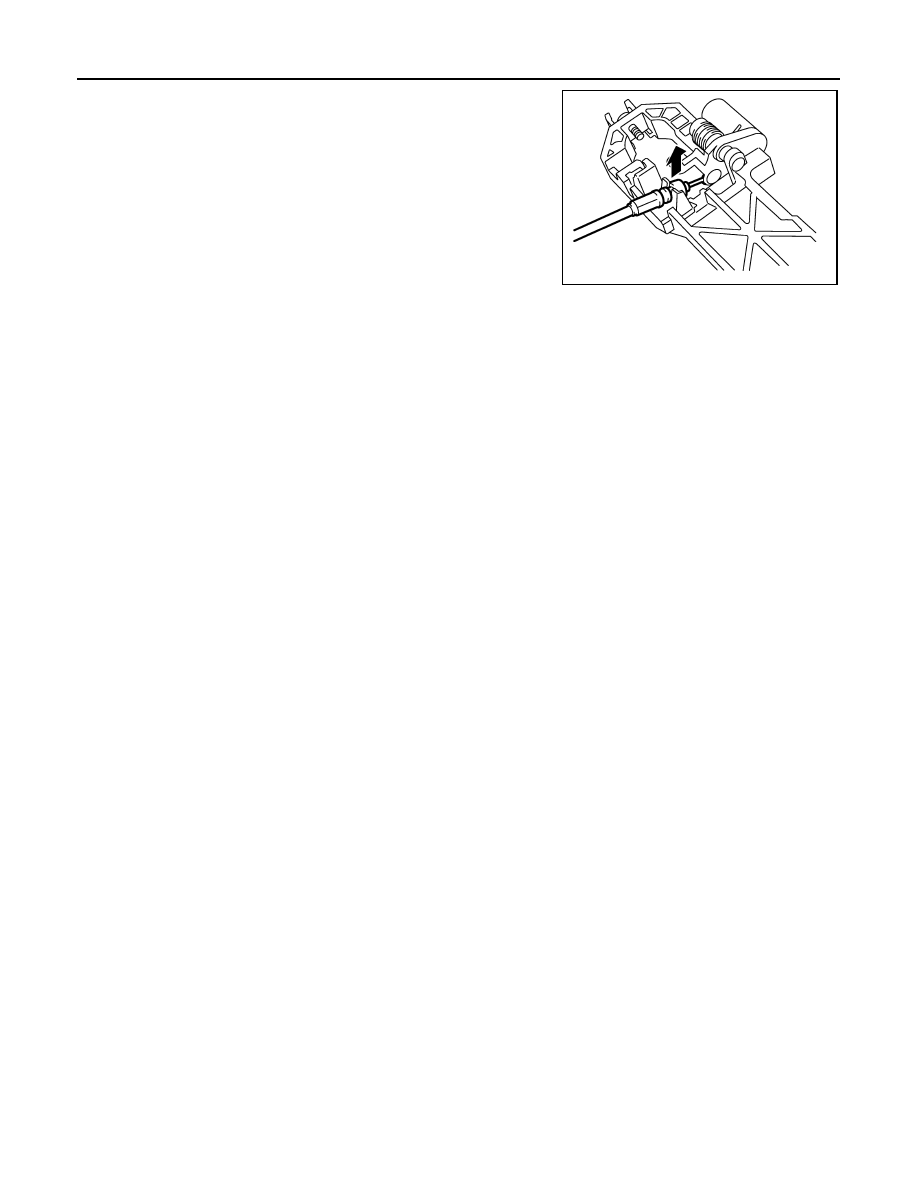

9. Remove clip and disconnect the outside handle cable from the

outside handle bracket.

INSTALLATION

Installation in the reverse order of removal.

CAUTION:

• Check rear door lock cable is properly engaged to outside handle bracket.

• After installation, check rear door open/close, lock/unlock operation.

PIIB5815E

DOOR LOCK

DLK-179

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK

FRONT DOOR LOCK

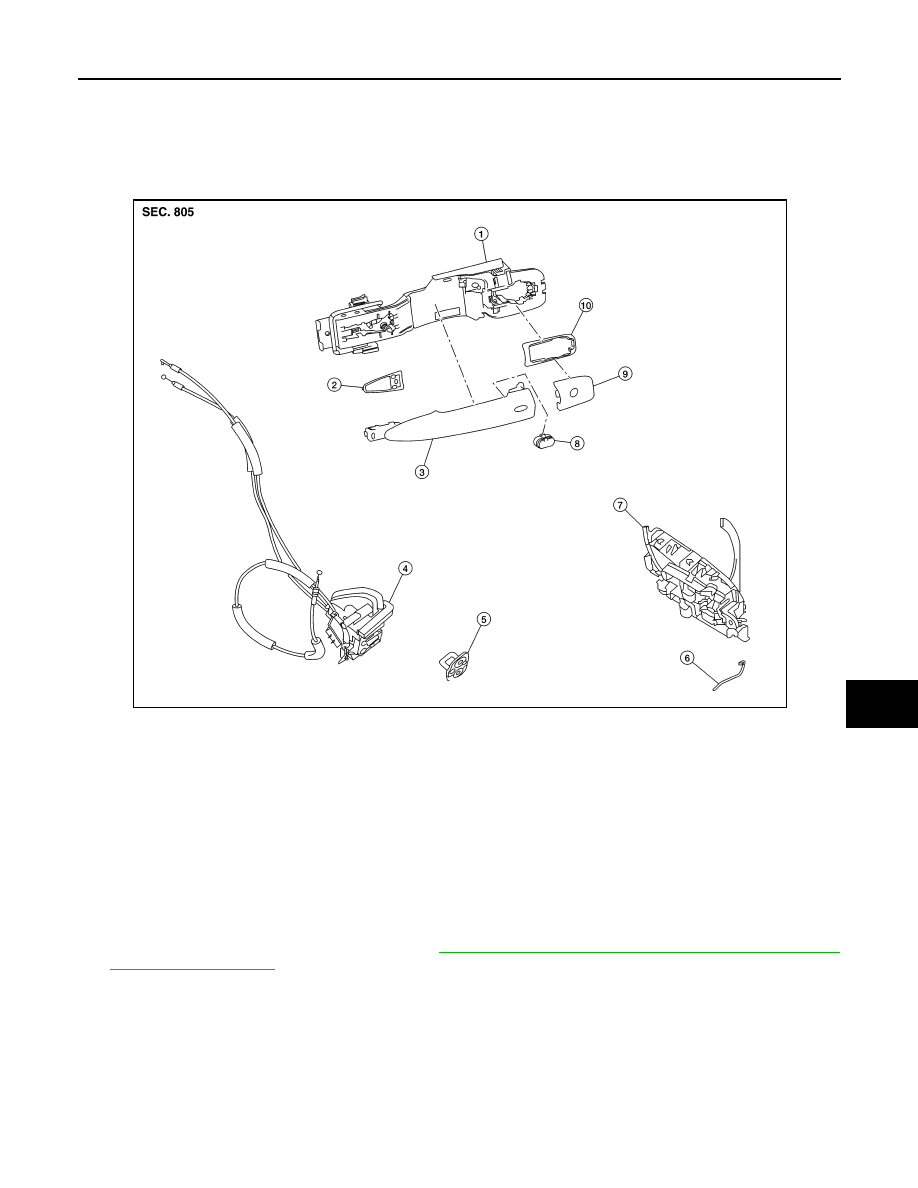

FRONT DOOR LOCK : Exploded View

INFOID:0000000009756490

FRONT DOOR LOCK : Removal and Installation

INFOID:0000000009756491

CAUTION:

Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least three

minutes.

REMOVAL

1. Remove the front door outside handle. Refer to

DLK-173, "FRONT DOOR HANDLE : Removal and Instal-

lation - Outside Handle"

.

2. Remove the rear glass run.
3. Disconnect the harness connector from the front door lock actuator.

1.

Outside handle bracket

2.

Front gasket

3.

Front door handle

4.

Front door lock assembly

5.

Door striker

6.

Door key cylinder rod (driver side)

7.

Inside handle

8.

Intelligent Key button

9.

Outside handle escutcheon

10. Rear gasket

ALKIA2938ZZ
