PRECAUTIONS

DEF-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009759081

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009759082

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

PIIB3706J

DEF-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

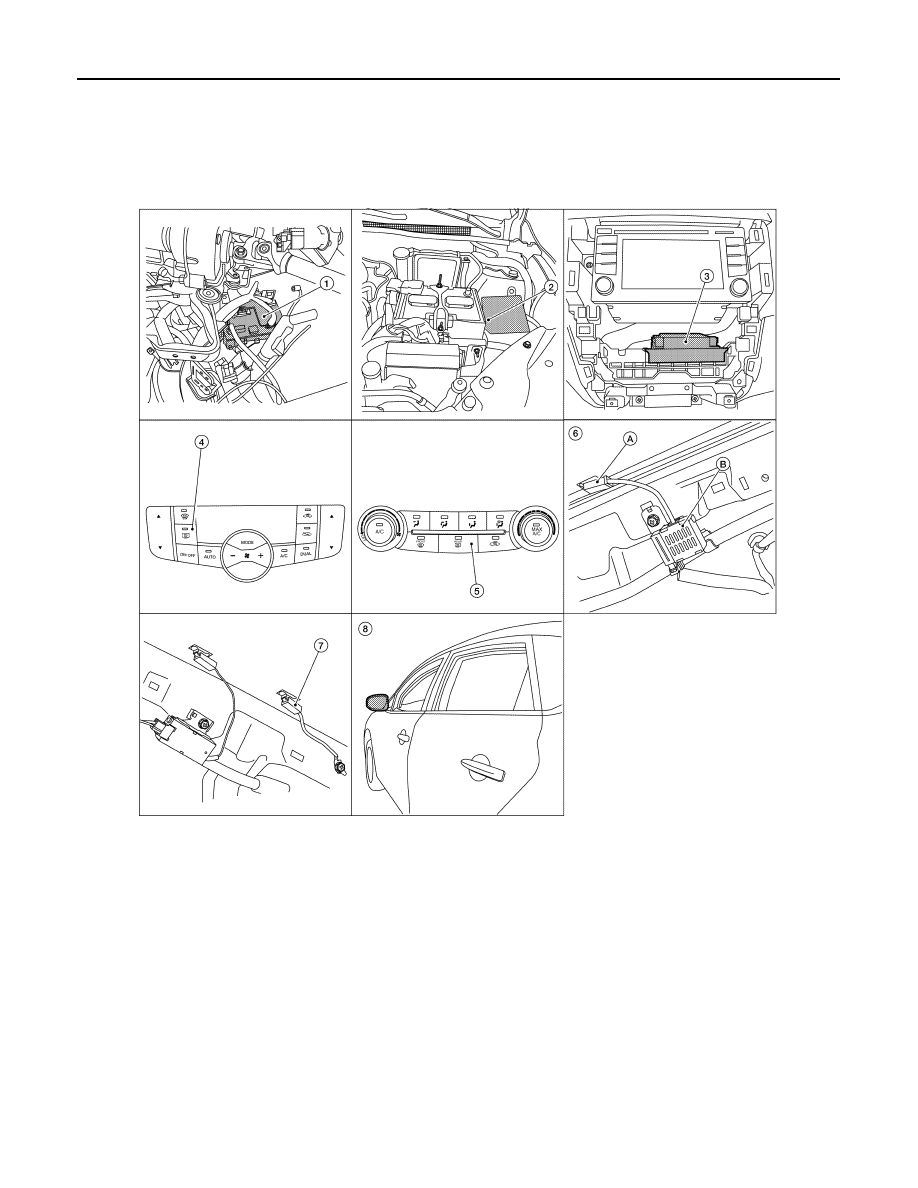

Component Parts Location

INFOID:0000000009759083

ALLIA1206ZZ

1.

BCM (view with instrument panel re-
moved)

2.

IPDM E/R (rear window defogger re-
lay)

3.

A/C auto amp. (view with A/C switch
assembly removed)

4.

A/C switch assembly (rear window de-
fogger switch) (with auto A/C)

5.

A/C switch assembly (rear window
defogger switch) (without auto A/C)

6.

A. Rear window defogger power
connector
B. Condenser (view with rear pillar
finisher LH removed)

7.

Rear window defogger ground connec-
tor (view with rear pillar finisher RH re-
moved)

8.

Door mirror LH (door mirror defog-
ger) (if equipped) (RH similar)
