Nissan Sentra. Manual - part 181





ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-111

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

• When replacing with a new ABS actuator and electric unit (control unit), do not remove the protector of the

brake tube mounting hole until right before the brake tube is installed.

• When installing brake tube, tighten to the specified torque using a flare nut torque wrench so that flare nut

and brake tube are not damaged. Refer to

BR-25, "FRONT : Exploded View"

.

• Do not remove and install ABS actuator and electric unit (control unit) by holding actuator harness.

• Bleed air from brake piping after installation. Refer to

BR-17, "Bleeding Brake System"

.

• Do not apply excessive impact to actuator, such as by dropping it.

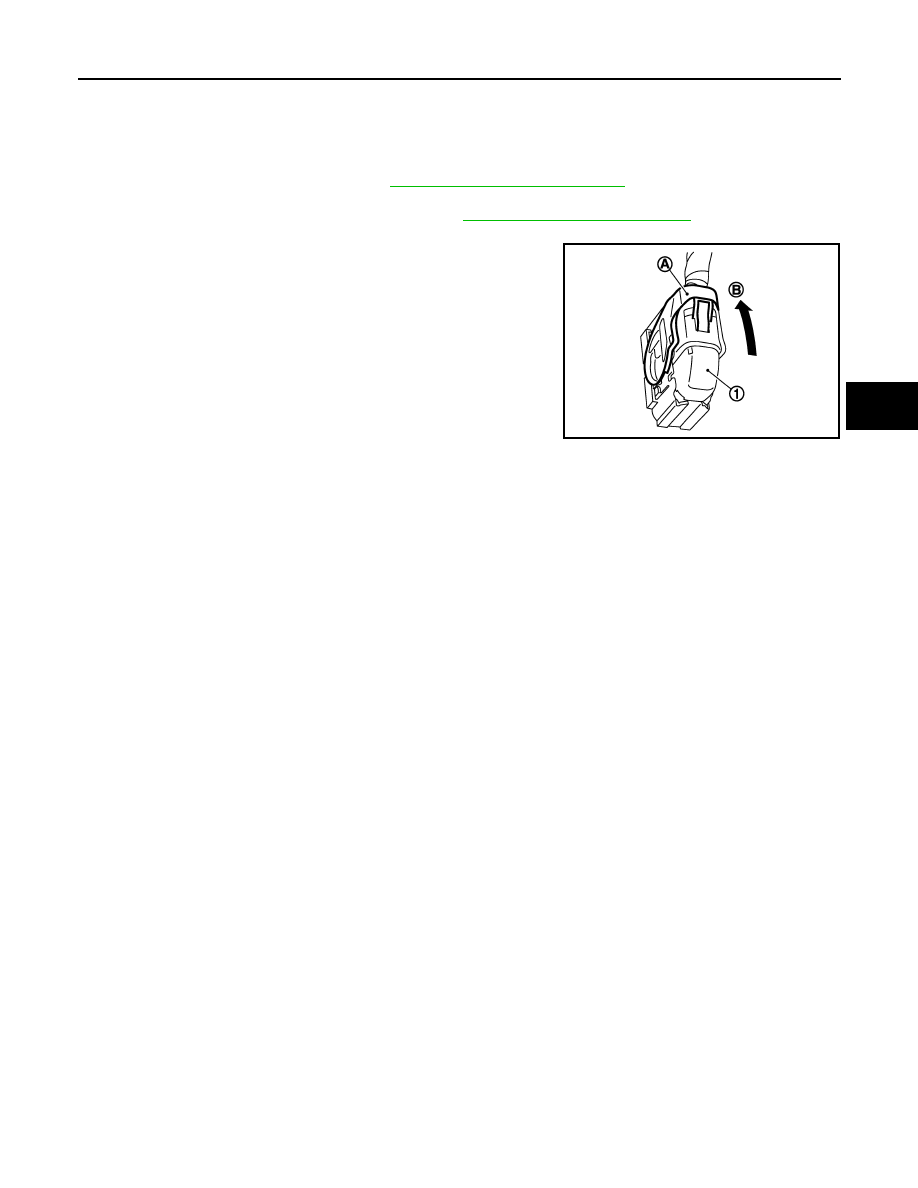

• After installing the ABS actuator and electric unit (control unit) har-

ness connector (1), move the lever (A) in the direction (B) to

secure the locking.

JPFIC0195ZZ

BRC-112

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

VDC OFF SWITCH

VDC OFF SWITCH

Removal and Installation

INFOID:0000000009757907

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-21, "Removal and Installation"

.

2. Remove the switch plate screws and remove the switch plate.
3. Release pawls using suitable tool and remove the VDC OFF switch.

INSTALLATION

Installation is in the reverse order of removal.

STEERING ANGLE SENSOR

BRC-113

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000009757908

Removal and Installation

INFOID:0000000009757909

REMOVAL

1. Remove spiral cable assembly. Refer to

SR-16, "Removal and Installation"

.

2. Remove the two screws and the steering angle sensor from spiral cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse steering angle sensor.

• Perform the neutral position adjustment of the steering angle sensor. Refer to

BRC-54, "Work Proce-

dure"

.

1.

Steering angle sensor

A.

Screw

Front

ALFIA0235ZZ

BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P

CONTENTS

BODY REPAIR

VEHICLE INFORMATION .............................

2

BODY EXTERIOR PAINT COLOR  .....................

2

Body Exterior Paint Color .......................................

2

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

PRECAUTIONS IN REPAIRING HIGH
STRENGTH STEEL .............................................

4

High Strength Steel (HSS) ......................................

4

Handling of Ultra High Strength Steel Plate Parts ......

6

PREPARATION ............................................

7

REPAIRING MATERIAL  .....................................

7

Foam Repair  .............................................................

7

BODY COMPONENT PARTS  ............................

10

Underbody Component Parts ................................

10

Body Component Parts  ...........................................

12

REMOVAL AND INSTALLATION ...............

14

CORROSION PROTECTION  .............................

14

Description ..............................................................

14

Anti-Corrosive Wax ................................................

14

Undercoating ...........................................................

15

BODY SEALING  ...............................................

17

Description ...............................................................

17

REPLACEMENT OPERATIONS .......................

20

Description ...............................................................

20

Hoodledge ...............................................................

23

Front Side Member ..................................................

25

Front Pillar ..............................................................

25

Dash Side ................................................................

28

Center Pillar .............................................................

29

Roof .........................................................................

34

Outer Sill .................................................................

39

Rear Fender ............................................................

40

Rear Panel ..............................................................

41

Rear Floor Rear .....................................................

41

Rear Side Member Extension ...............................

43

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

44

BODY ALIGNMENT  ..........................................

44

Body Center Marks ................................................

44

Description ...............................................................

45

Engine Compartment ..............................................

45

Underbody ...............................................................

46

Passenger Compartment ........................................

48

Rear End Panel  .......................................................

51

HANDLING PRECAUTIONS FOR PLASTICS ...

53

Precautions For Plastics ........................................

53
