Nissan Sentra. Manual - part 174

C1155 BR FLUID LEVEL LOW

BRC-83

< DTC/CIRCUIT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1155 BR FLUID LEVEL LOW

DTC Logic

INFOID:0000000009757864

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-83, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009757865

Regarding Wiring Diagram information, refer to

BRC-44, "Wiring Diagram"

.

NOTE:

Check brake fluid level in brake reservoir tank before starting inspection.

1.

CONNECTOR INSPECTION

1. Turn ignition switch OFF.

2. Disconnect combination meter and brake fluid level switch connectors.

3. Check connectors and terminals for deformation, disconnection, looseness or damage.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace as necessary.

2.

CHECK BRAKE FLUID LEVEL SWITCH

Perform the brake fluid level switch component inspection. Refer to

BRC-84, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace brake fluid level switch. Refer to

BR-32, "Exploded View"

.

3.

CHECK BRAKE FLUID LEVEL SWITCH HARNESS

1. Check continuity between combination meter connector M24 terminal 11 and brake fluid level switch con-

nector E40 terminal 1.

2. Check continuity between combination meter connector and ground.

DTC

Display item

Malfunction detected condition

Possible cause

C1155

BR FLUID LEVEL LOW

Brake fluid level is low or communication line between
the ABS actuator and electric unit (control unit) and brake
fluid level switch is open or shorted.

• Harness or connector
• Brake fluid level switch

Self-diagnosis results

BR FLUID LEVEL LOW

Combination meter

Brake fluid level switch

Continuity

Connector

Terminal

Connector

Terminal

M24

11

E40

1

Yes

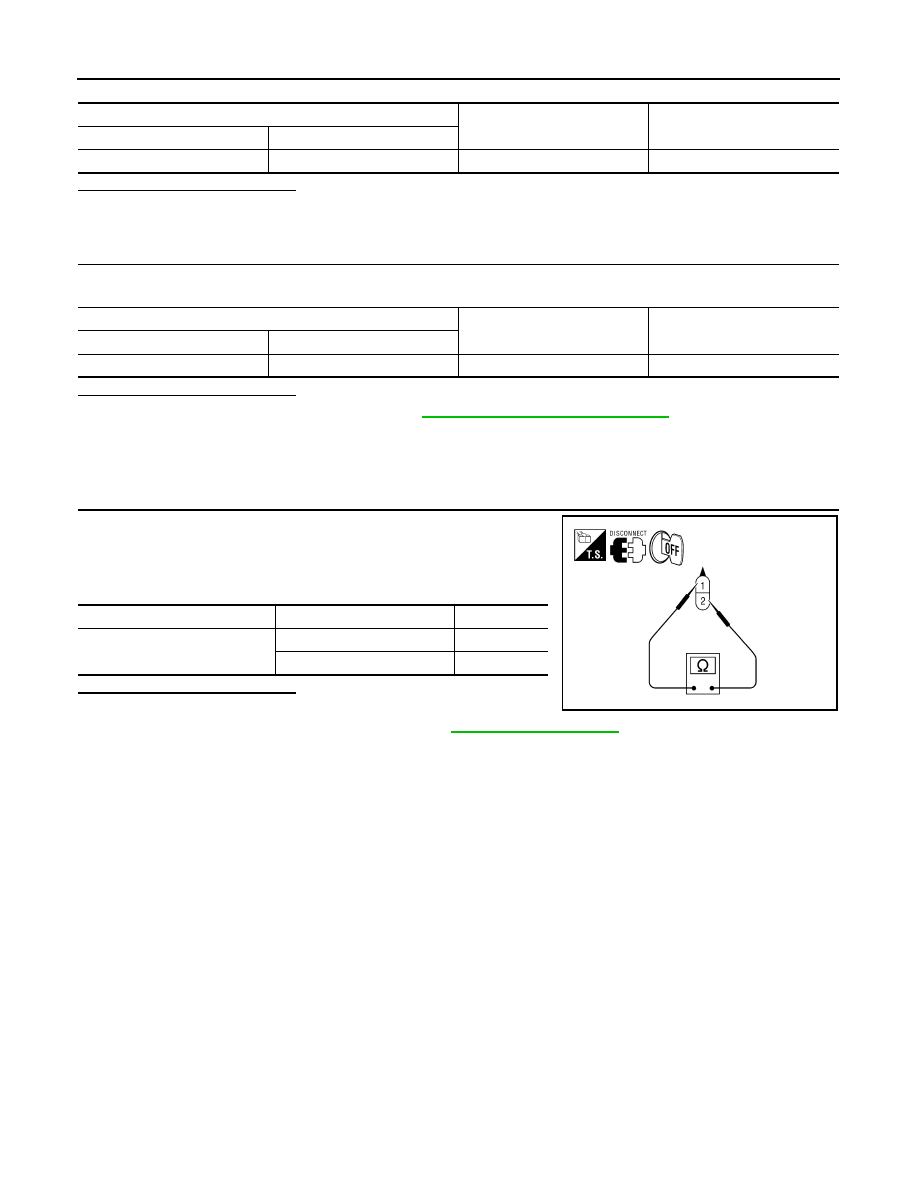

BRC-84

< DTC/CIRCUIT DIAGNOSIS >

[VDC/TCS/ABS]

C1155 BR FLUID LEVEL LOW

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning components.

4.

CHECK BRAKE FLUID LEVEL SWITCH GROUND CIRCUIT

Check continuity between brake fluid level switch connector E40 terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-77, "Removal and Installation"

NO

>> Repair or replace malfunctioning components.

Component Inspection

INFOID:0000000009757866

1.

CHECK BRAKE FLUID LEVEL SWITCH

1. Turn ignition switch OFF.

2. Disconnect brake fluid level switch connector.

3. Check continuity between brake fluid level switch terminals 1

and 2.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace brake fluid level switch. Refer to

BR-32, "Exploded View"

.

Combination meter

—

Continuity

Connector

Terminal

M24

11

Ground

No

Brake fluid level switch

—

Continuity

Connector

Terminal

E40

2

Ground

Yes

Brake fluid level switch terminals

Condition

Continuity

1— 2

Brake fluid reservoir full

No

Brake fluid reservoir empty

Yes

ALFIA0026ZZ

C1164, C1165, C1166, C1167 CV/SV SYSTEM

BRC-85

< DTC/CIRCUIT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1164, C1165, C1166, C1167 CV/SV SYSTEM

DTC Logic

INFOID:0000000009757867

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF DIAGNOSTIC RESULT

With CONSULT.

1. Turn ignition switch OFF to ON.

2. Perform self diagnostic result.
Is DTC C1164, C1165, C1166 or C1167 detected?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-85, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009757868

Regarding Wiring Diagram information, refer to

BRC-44, "Wiring Diagram"

.

1.

CONNECTOR INSPECTION

1. Turn ignition switch OFF.

2. Disconnect ABS actuator and electric unit (control unit) connector.

3. Check connector and terminals for deformation, disconnection, looseness or damage.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace as necessary.

2.

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) BATTERY POWER SUPPLY

Check voltage between ABS actuator and electric unit (control unit) connector E33 terminal 25 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace malfunctioning components.

3.

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT

Check continuity between ABS actuator and electric unit (control unit) connector E33 terminals 13, 38 and

ground.

DTC

Display Item

Malfunction detected condition

Possible causes

C1164

CV 1

When a malfunction is detected in cut valve 1.

• Harness or connector
• ABS actuator and electric unit

(control unit)

• Fusible link
• Battery power supply system

C1165

CV 2

When a malfunction is detected in cut valve 2.

C1166

SV 1

When a malfunction is detected in suction valve 1.

C1167

SV 2

When a malfunction is detected in suction valve 2.

ABS actuator and electric unit (control unit)

—

Voltage

(Approx.)

Connector

Terminal

E33

25

Ground

Battery voltage

ABS actuator and electric unit (control unit)

—

Continuity

Connector

Terminal

E33

13

Ground

Yes

38

BRC-86

< DTC/CIRCUIT DIAGNOSIS >

[VDC/TCS/ABS]

C1164, C1165, C1166, C1167 CV/SV SYSTEM

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-110, "Removal and Installa-

tion"

.

NO

>> Repair or replace malfunctioning components.
