BCS-74

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM

• Be sure to perform the system initialization (NATS) when replacing BCM. Refer to

BCS-60, "ADDI-

TIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work Procedure"

.

• When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be

re-registered. Refer to the CONSULT immobilizer mode and follow the on-screen instructions.

BCS

COMBINATION SWITCH

BCS-75

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

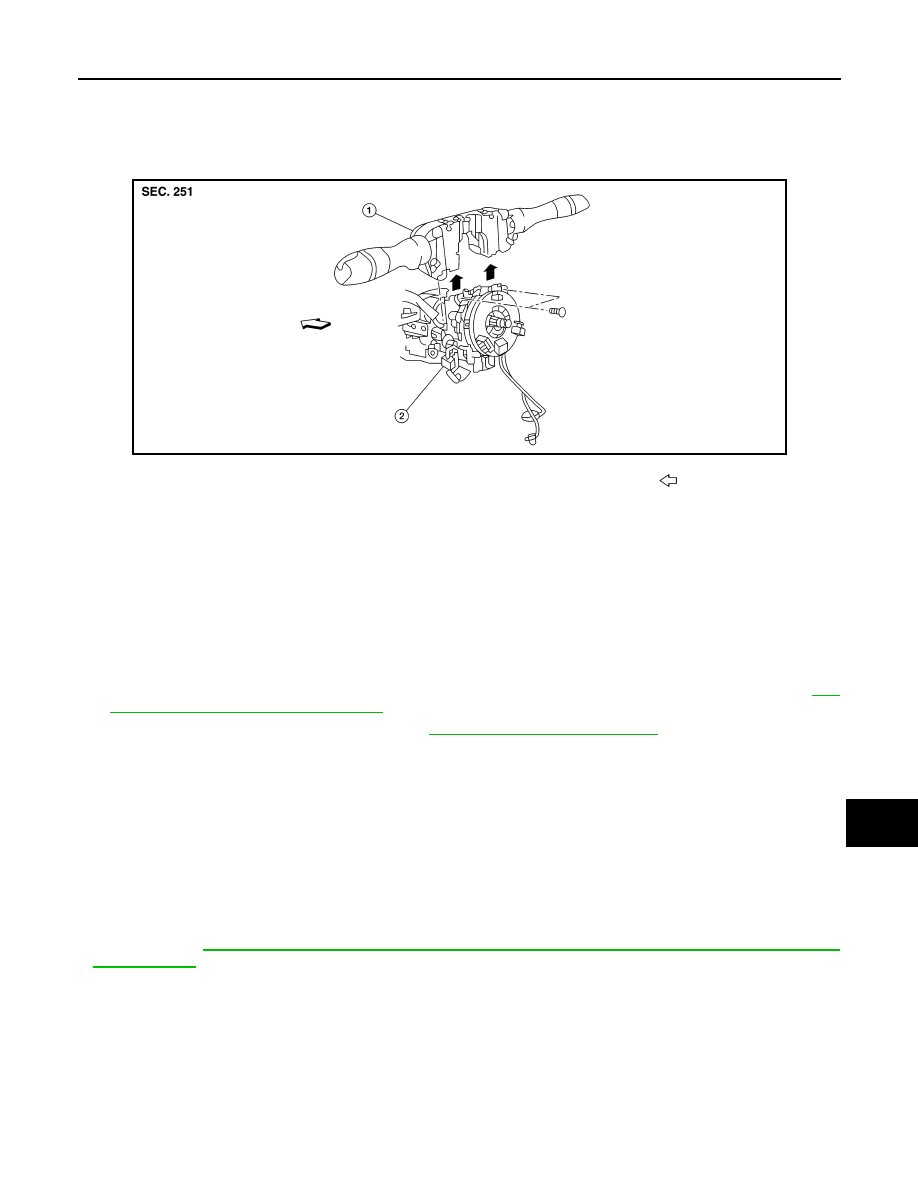

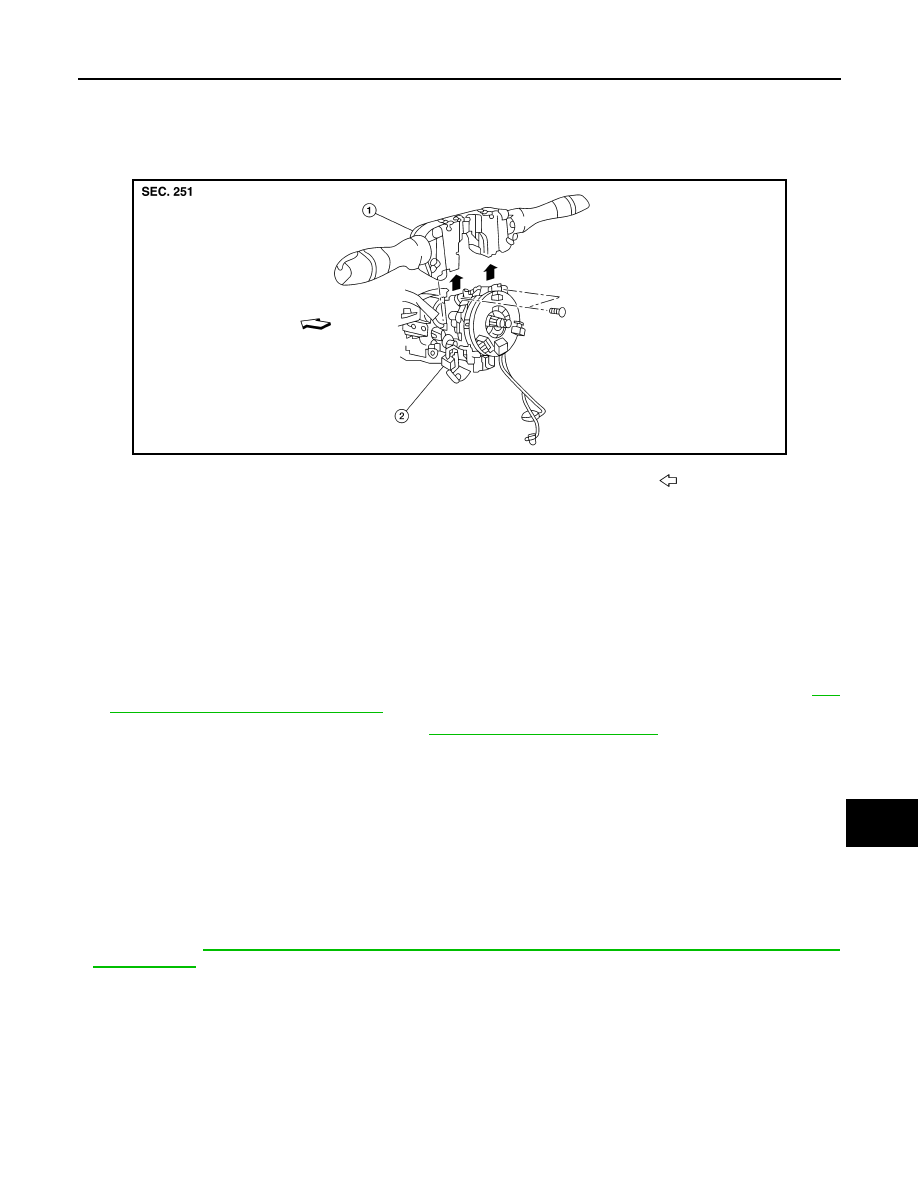

COMBINATION SWITCH

Exploded View

INFOID:0000000009757349

NOTE:

Shown with the steering wheel removed for clarity only.

Removal and Installation

INFOID:0000000009757350

REMOVAL

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least

three minutes.

• Do not use air or electric tools when removing or installing the combination switch.
1. Disconnect both the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-

50, "Removal and Installation (Battery)"

.

2. Remove the steering column covers. Refer to

IP-16, "Removal and Installation"

.

3. Rotate steering wheel clockwise to access first combination switch bolt and remove.
4. Rotate steering wheel counter-clockwise to access second combination switch bolt and remove.
5. Disconnect the harness connector from the combination switch and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset with the self-diagnosis function

and delete the memory with CONSULT.

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunc-

tions. Refer to

SRC-41, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

.

AWMIA1293ZZ

1.

Combination switch

2.

Combination switch harness connector

Front

BCS-76

< PRECAUTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010287698

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

BCS

COMPONENT PARTS

BCS-77

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

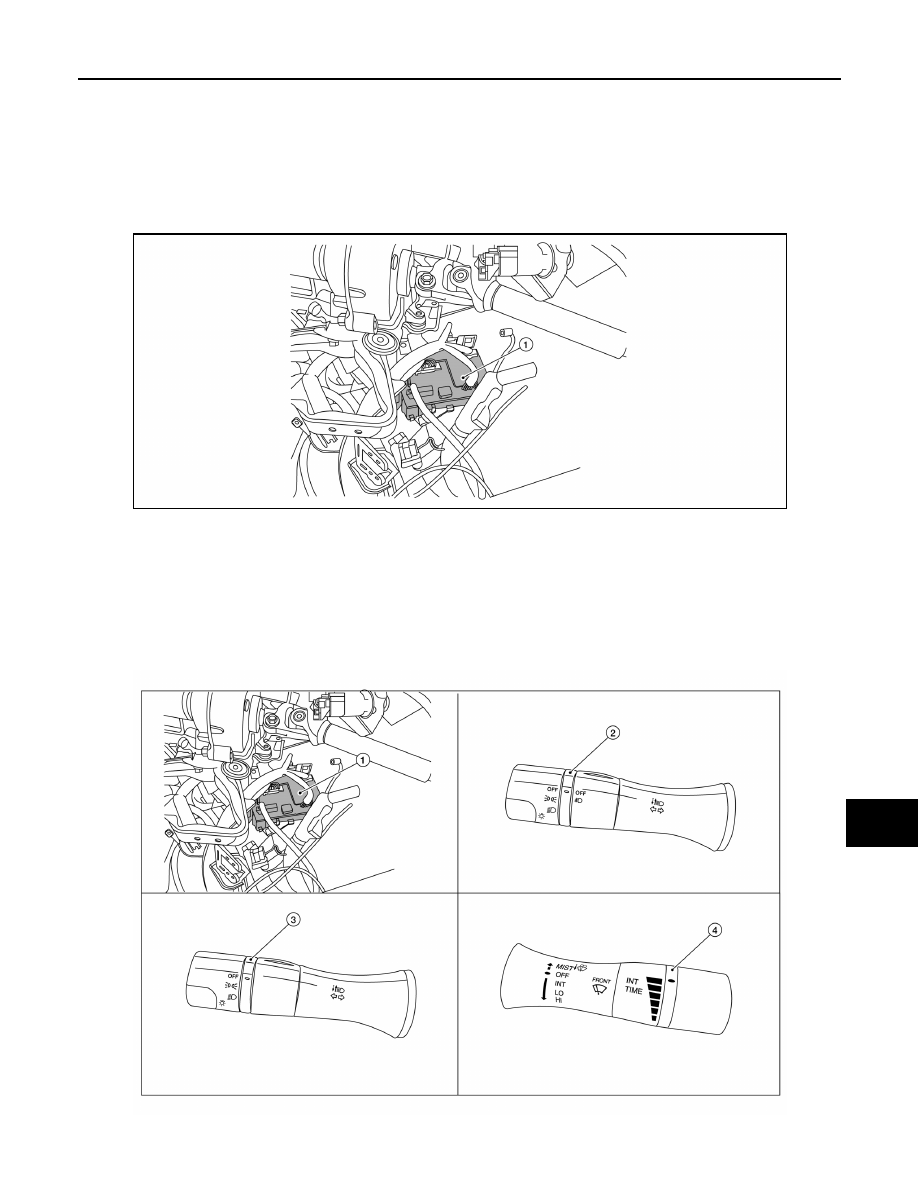

SYSTEM DESCRIPTION

COMPONENT PARTS

BODY CONTROL SYSTEM
BODY CONTROL SYSTEM : Component Parts Location

INFOID:0000000009757352

COMBINATION SWITCH READING SYSTEM
COMBINATION SWITCH READING SYSTEM : Component Parts Location

INFOID:0000000009757353

1.

BCM (view with instrument panel re-
moved)

AWMIA1355ZZ

AWMIA1356ZZ
