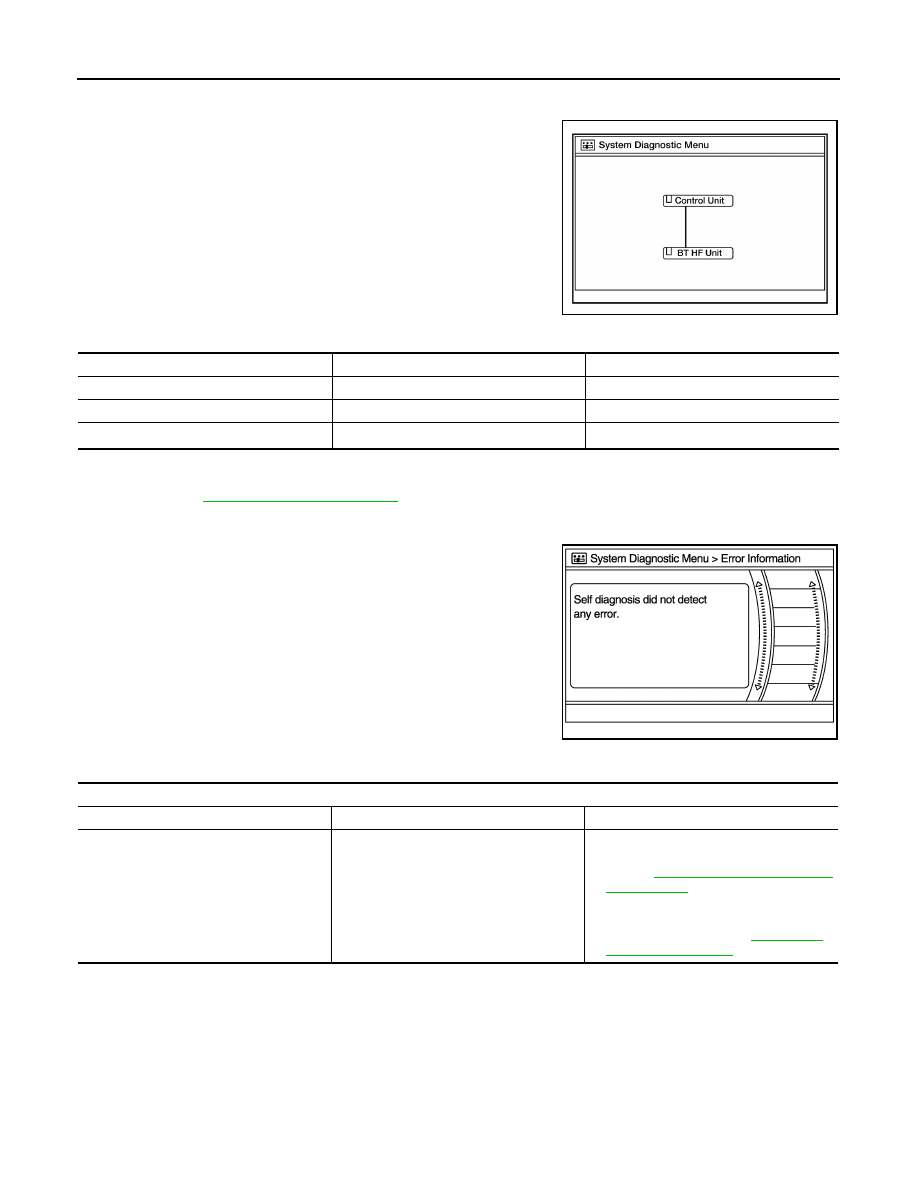

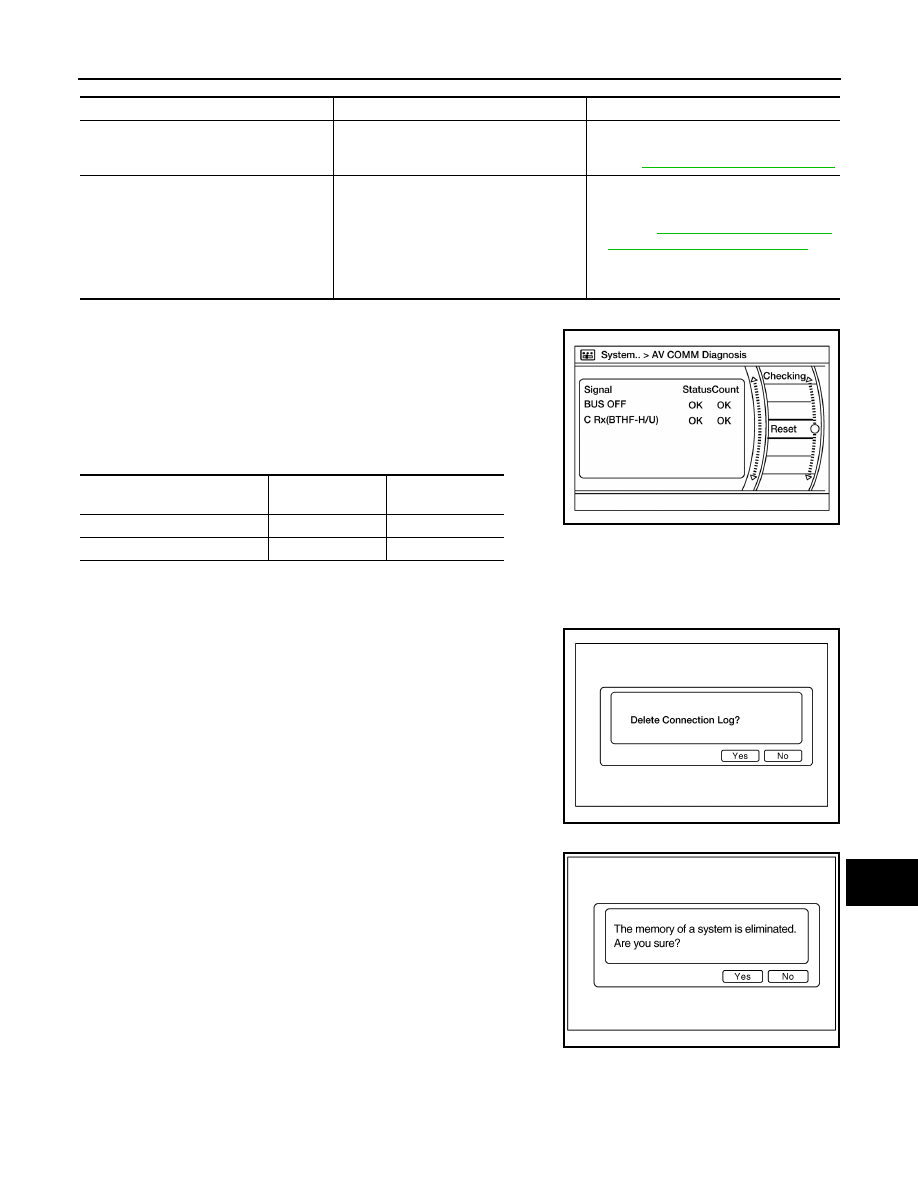

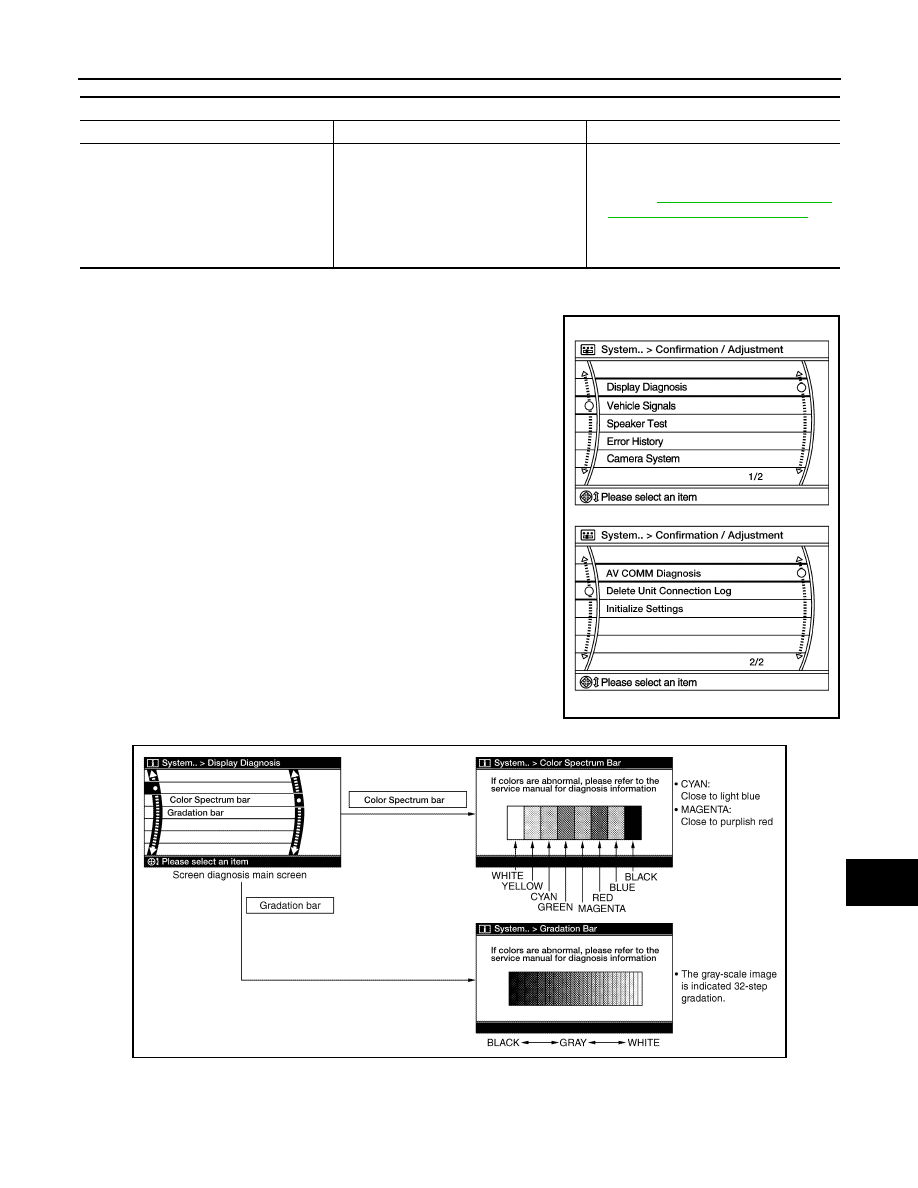

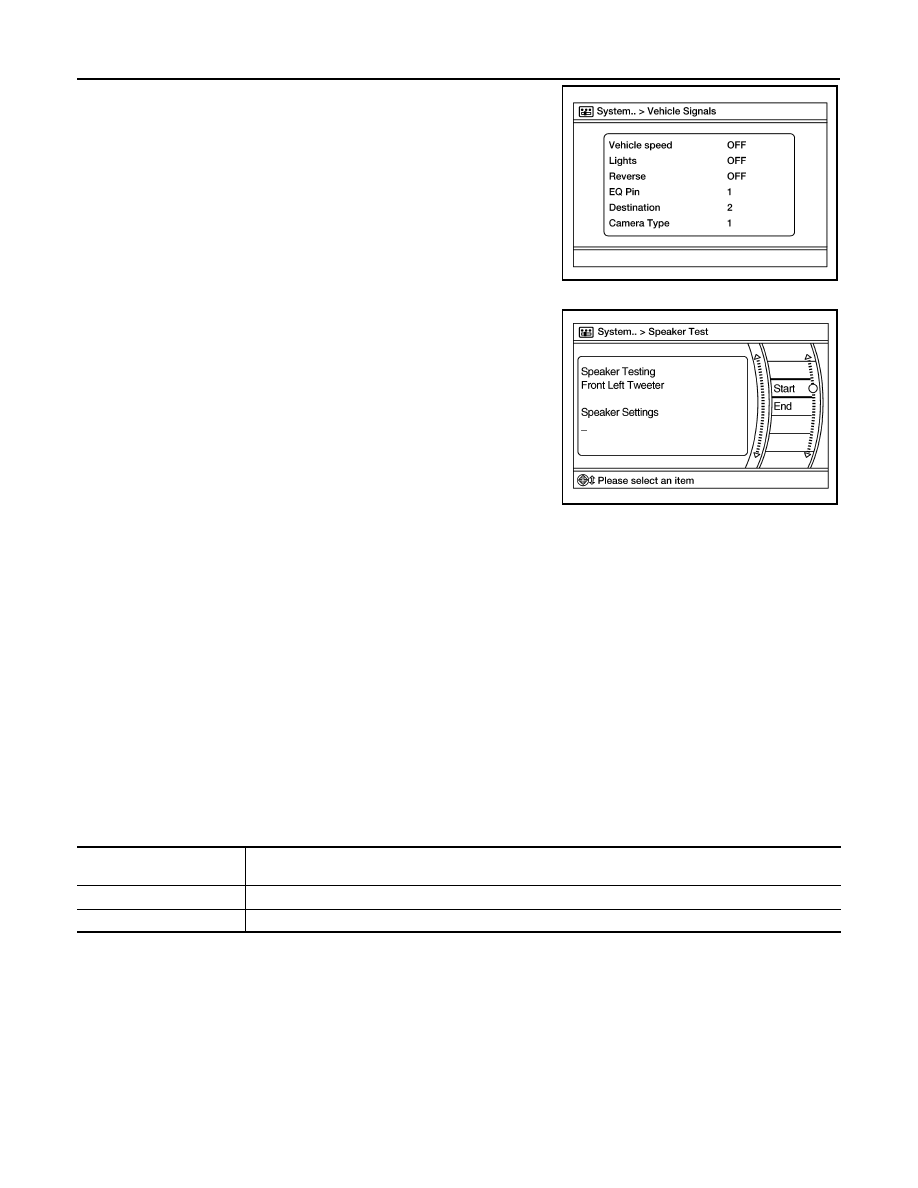

AV-144 < SYSTEM DESCRIPTION > [DISPLAY AUDIO WITH BOSE] DIAGNOSIS SYSTEM (AUDIO UNIT) 2. Self diagnosis screen is displayed. The bar graph visible in center of screen indicates progress of self diagnosis. 3. Diagnosis results are displayed after the self diagnosis is com- pleted. The unit names and the connection lines are color coded according to the diagnostic results. 1: Control unit (audio unit) is displayed in red. error. Refer to AV-203, "Removal and Installation" . • If multiple errors occur at the same time for a single unit, the screen switch colors are determined according to the following order of priority: red > gray. 4. Comments of self diagnosis results can be viewed in the diagno- sis result screen. Audio Unit Self Diagnosis Results AWNIA2832GB Diagnosis results Unit Connection line Normal Green Green Connection malfunction Gray Yellow Unit malfunction 1 Red Green JSNIA1870ZZ Only Unit Part Is Displayed In Red Screen switch Description Possible cause Control unit Malfunction is detected in audio unit power • Audio unit power supply or ground cir- cuits. . • If no malfunction is detected in audio unit power supply and ground circuits, re- . |
