PCS

IPDM E/R

PCS-19

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• IGN counter is displayed on FFD (Freeze Frame Data).

- The number is 0 when is detected now.

- The number increases like 1

→ 2 · · · 38 → 39 after returning to the normal condition whenever power switch

OFF

→ ON.

- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

×: Applicable

CONSULT display

Fail-safe

Refer to

No DTC is detected.
further testing
may be required.

—

—

U1000: CAN COMM CIRCUIT

×

PCS-25

B2098: IGN RELAY ON

×

PCS-26

B2099: IGN RELAY OFF

—

PCS-27

PCS-20

< WIRING DIAGRAM >

[IPDM E/R]

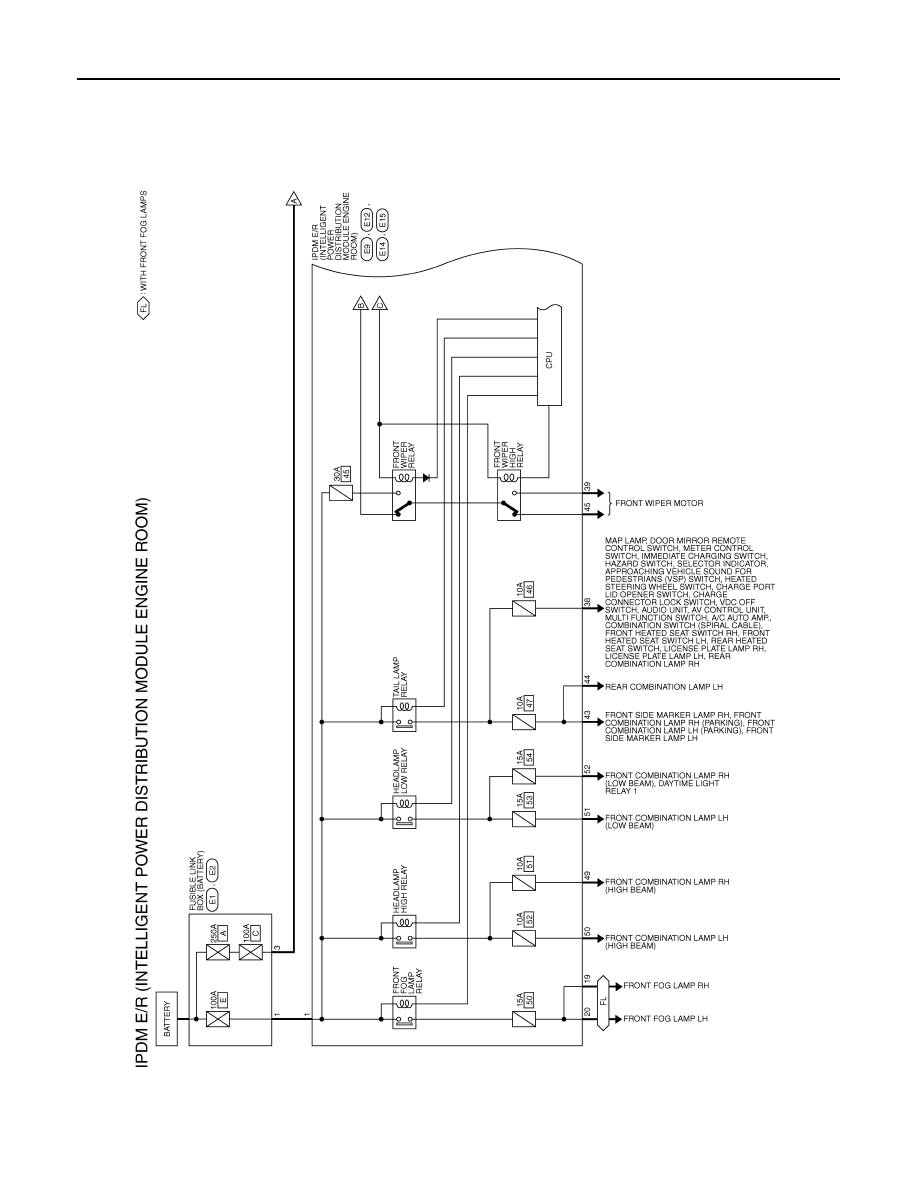

IPDM E/R

WIRING DIAGRAM

IPDM E/R

Wiring Diagram

INFOID:0000000010120292

AAMWA1237GB

PCS

IPDM E/R

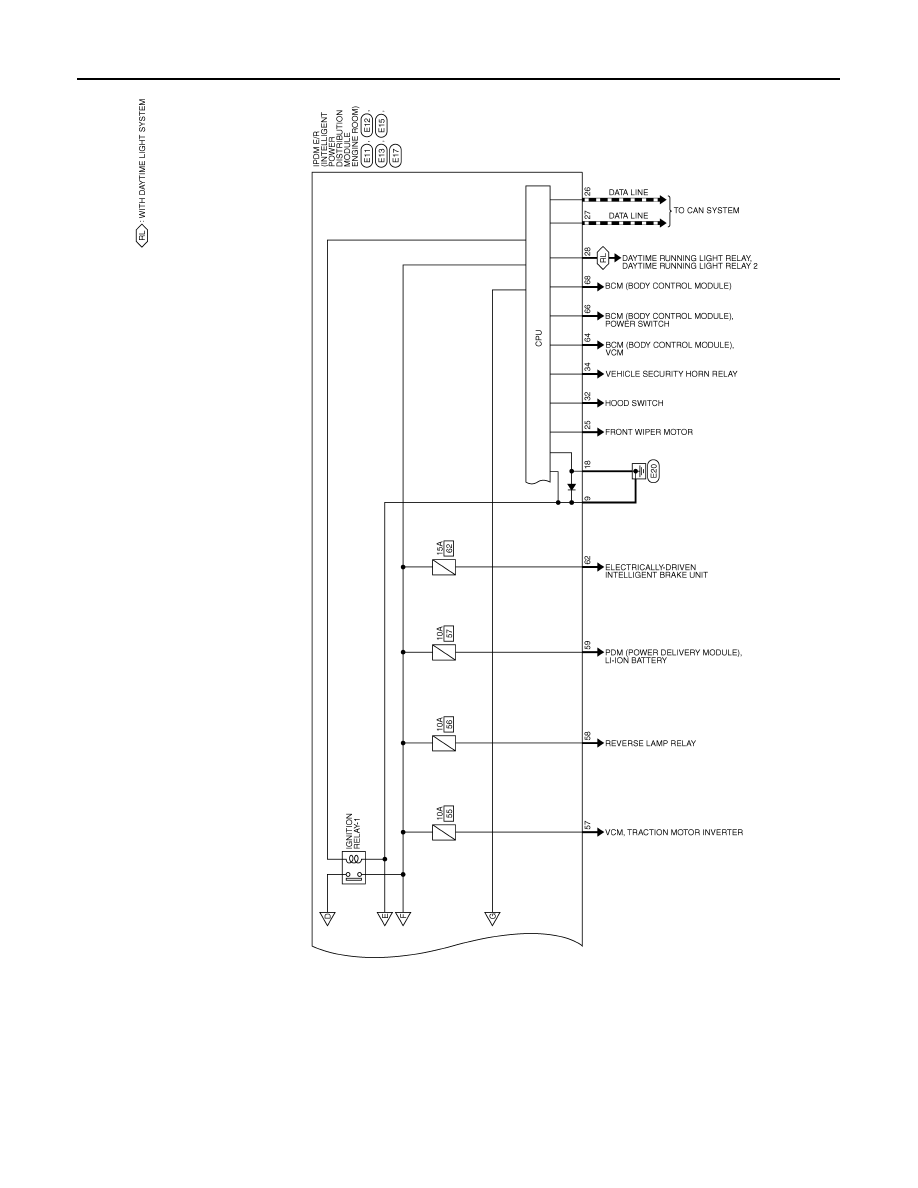

PCS-21

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMWA1238GB

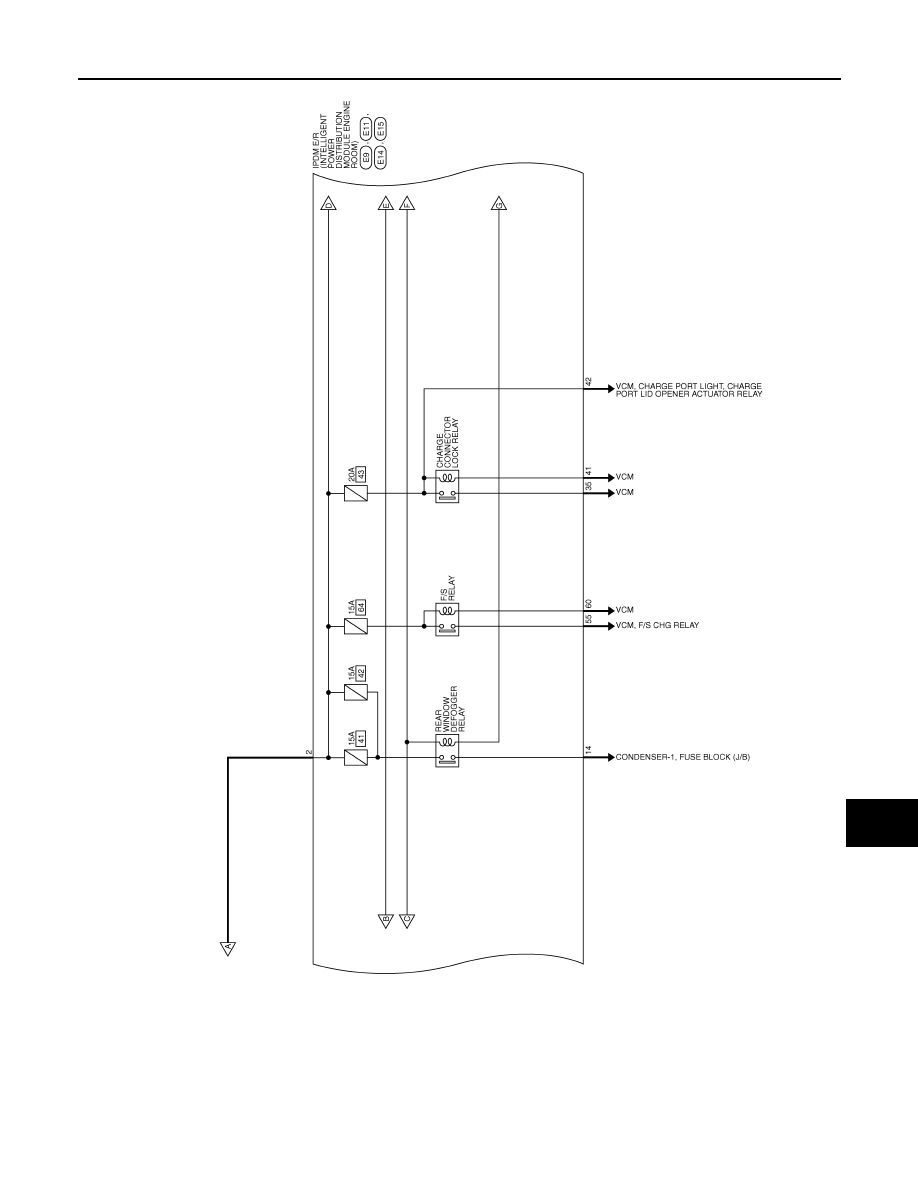

PCS-22

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

AAMWA1239GB
