ARRANGEMENT OF COMBINATION METER

METER SYSTEM : Fail-Safe

INFOID:0000000010546221

FAIL-SAFE

• The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

Outside air temperature

Displays the outside air temperature.

MWI-29, "OUT-
SIDE AIR TEM-
PERATURE
DISPLAY : Sys-
tem Description"

Warning lamp

Master warning lamps

The master warning lamps turn ON according to the illumination
status of the combination meter warning lamps and indicator
lamps.

MWI-31, "MAS-
TER WARNING
LAMP : System
Description"

Clock

Displays the time.

—

System

Description

Reference

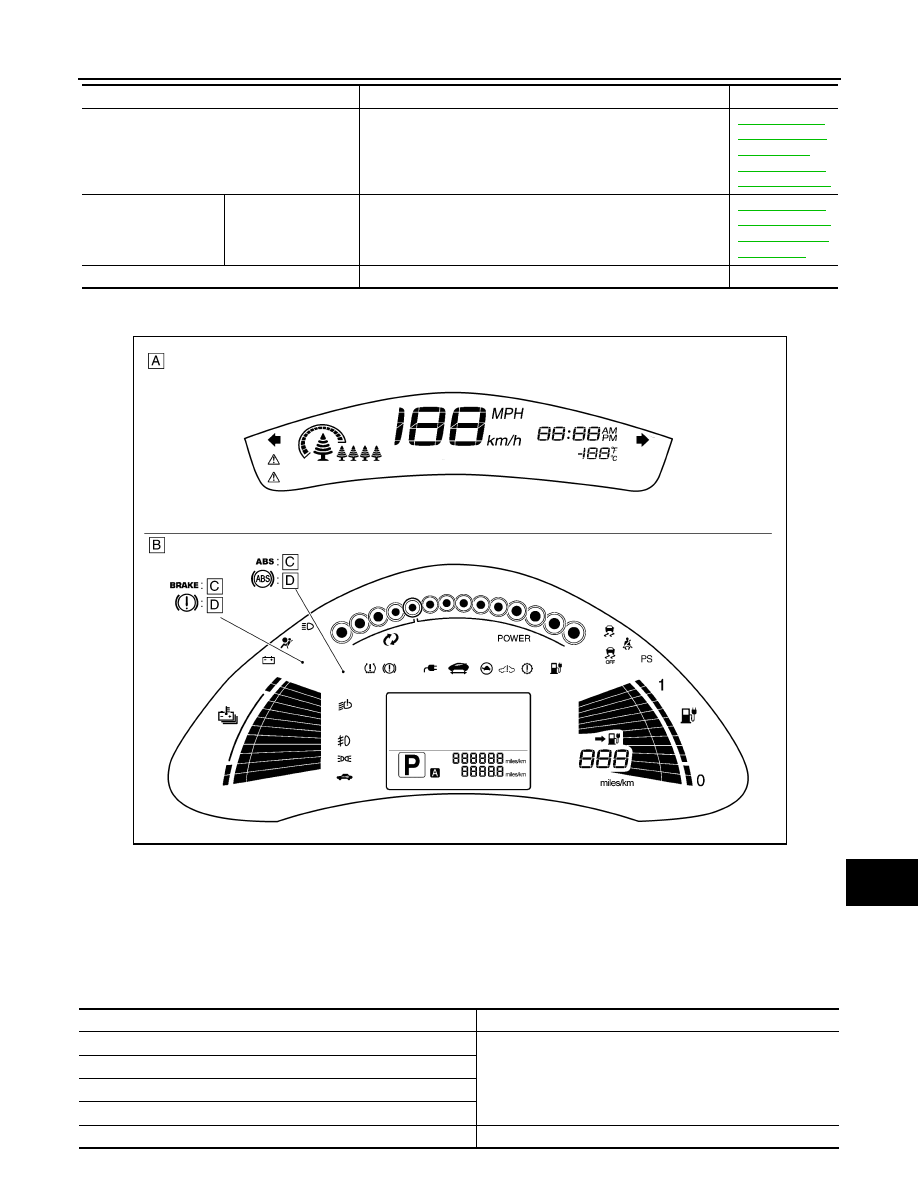

A.

Upper meter

B.

Combination meter

C.

For U.S.A.

D.

For Canada and Mexico

AWNIA3019ZZ

Function

Specifications

Power meter

The display turns OFF by suspending communication.

Li-ion battery temperature gauge

Li-ion battery capacity level gauge

Li-ion battery available charge gauge

Driving range display

The display turns “– – –” by suspending communication.

MWI-16

< SYSTEM DESCRIPTION >

SYSTEM

• The upper meter performs the fail-safe control when a breakdown of communications between the upper

meter and the combination meter occurs.

SPEEDOMETER
SPEEDOMETER : System Description

INFOID:0000000010122390

SYSTEM DIAGRAM

Illumination control

When suspending communication, changes to nighttime mode.

Information display

Odo/trip meter

An indicated value is maintained at communications blackout.

Shift indicator

The display turns OFF by suspending communication.

Li-ion low battery charge warning dis-
play

The display turns ON by suspending communication.

Electric shift warning display

Other than the above

The display turns OFF by suspending communication.

Buzzer

The buzzer turns OFF by suspending communication.

Warning lamp/indicator lamp

ABS warning lamp

The lamp turns ON by suspending communication.

VDC warning lamp

Brake warning lamp

Front fog lamp indicator lamp

Brake system warning lamp

EPS warning lamp

Low battery charge warning lamp

Electric shift waning lamp

TPMS waning lamp

High beam indicator lamp

The lamp turns OFF by suspending communication.

VDC OFF indicator lamp

Tail lamp indicator lamp

READY to drive indicator lamp

12-volt battery charge warning lamp

Power limitation indicator lamp

EV system warning lamp

Function

Specifications

Function

Specifications

Speedometer

The display turns OFF by suspending communication.

Eco indicator

Outside air temperature display

The last result calculated during normal condition is indicated.

Illumination control

When suspending communication, changes to nighttime mode.

Turn signal indicator lamp

The lamp turns OFF by suspending communication.

JSNIA4225GB

MWI

SYSTEM

MWI-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DESCRIPTION

• ABS actuator and electric unit (control unit) transmits a vehicle speed signal to the combination meter via

CAN communication.

• The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control

unit) with CAN communication line and transmits it to the upper meter by means of communication line.

• The upper meter indicates the vehicle speed according to the vehicle speed signal received from the combi-

nation meter by means of communication line.

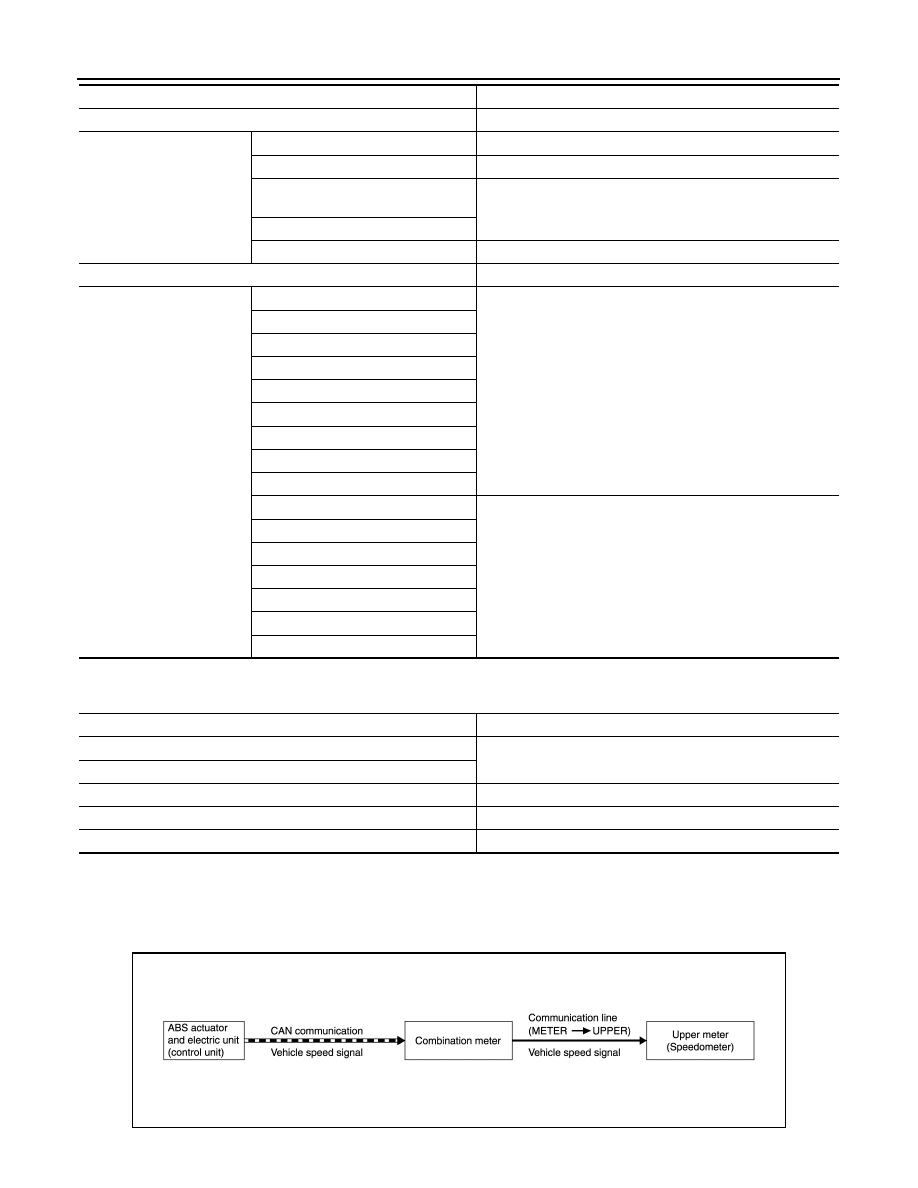

SIGNAL PATH

POWER METER
POWER METER : System Description

INFOID:0000000010122391

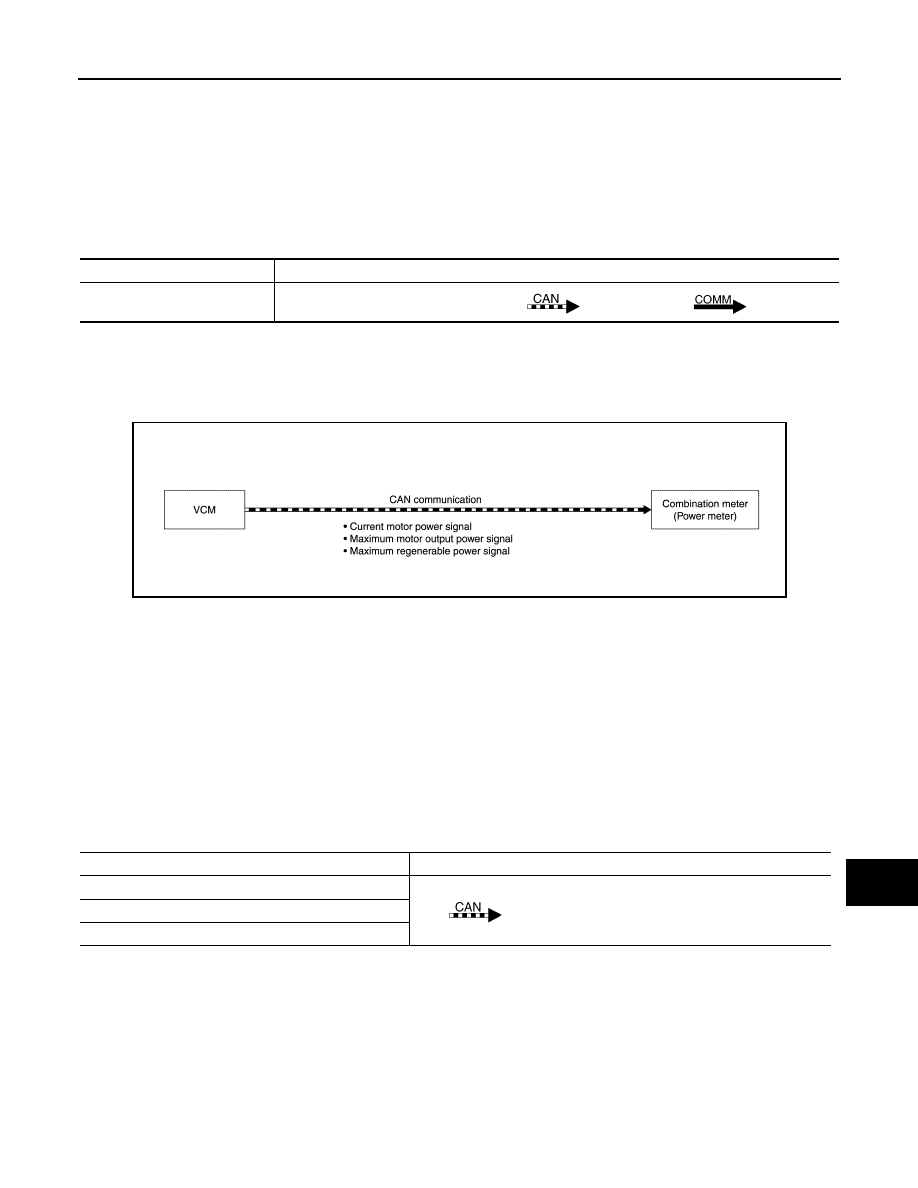

SYSTEM DIAGRAM

DESCRIPTION

• The following power levels can be checked on the power meter of the combination meter:

- Current motor power

- Maximum motor output power

- Maximum regenerable power

• VCM sends the signals below to the combination meter via CAN communication.

- Current motor power signal

- Maximum motor output power signal

- Maximum regenerable power signal

• Based on the signals received via CAN communication from VCM, the combination meter displays the

power levels on the power meter.

SIGNAL PATH

Signal name

Signal path

Vehicle speed signal

ABS actuator and electric unit (control unit)

Combination

meter

Upper

meter

JSNIA3650GB

Signal name

Signal path

Current motor power signal

VCM

 Combination meter

Maximum motor output power signal

Maximum regenerable power signal

MWI-18

< SYSTEM DESCRIPTION >

SYSTEM

LIST OF POWER METER FUNCTIONS

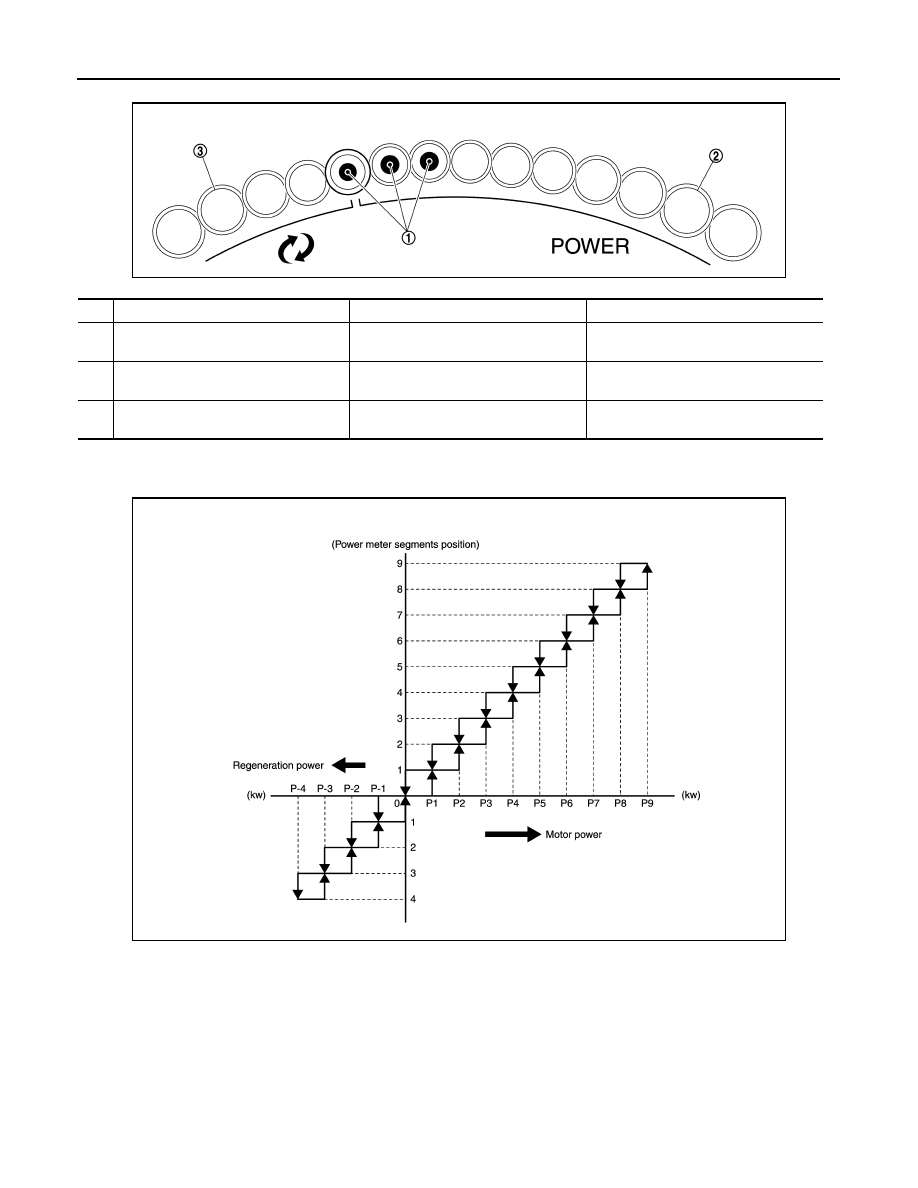

TIMING CHART

Power meter segments ON/OFF timing

JSNIA3651ZZ

Function

Description

Signal name

1.

Current motor power

Indicates the current motor power or re-
generation power.

Current motor power signal

2.

Maximum motor output power

Indicates the maximum motor power
which can be output at that time.

Maximum motor output power signal

3.

Maximum regeneration power

Indicates the maximum regeneration
power which can be output at that time.

Maximum regenerable power signal

JSNIA3653GB
