INTERIOR ROOM LAMP CONTROL SYSTEM

INL-25

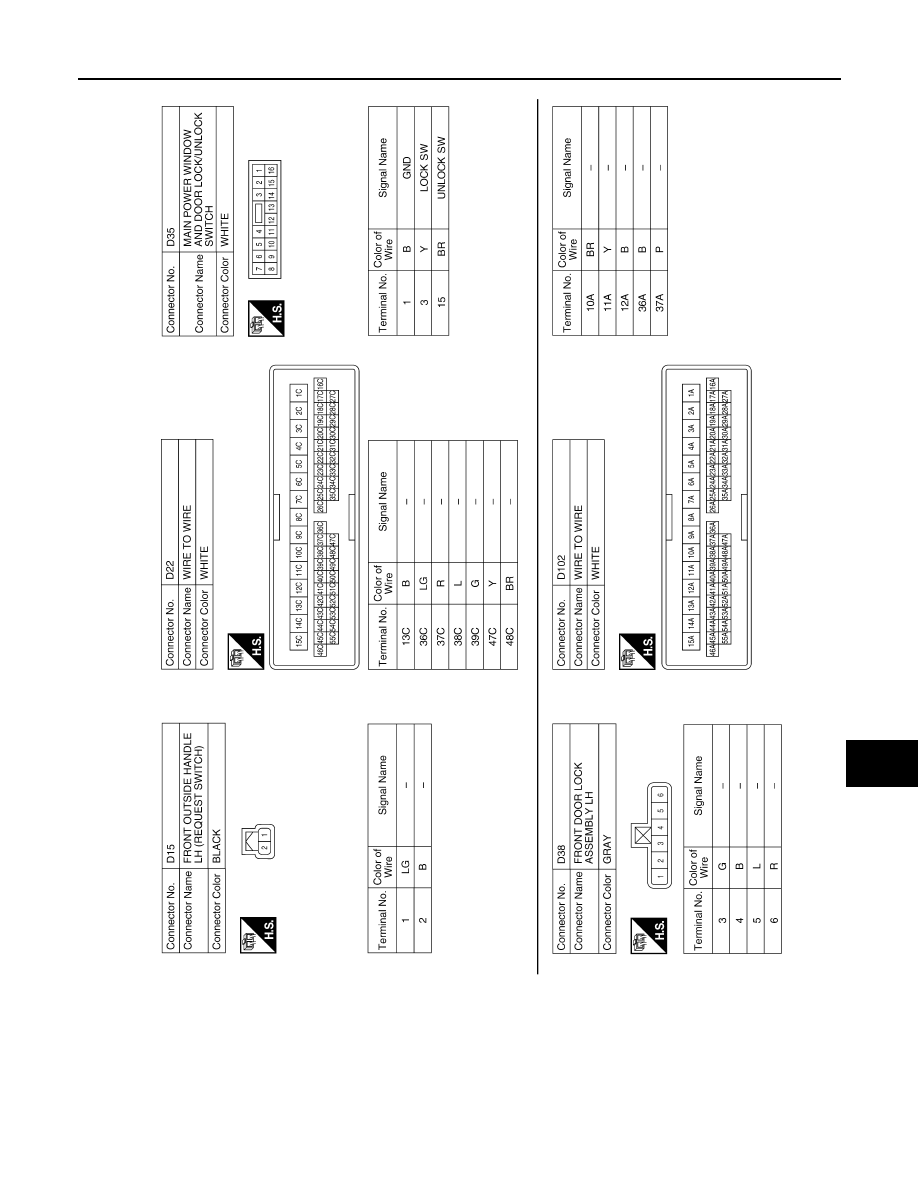

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

AALIA2467GB

INL-26

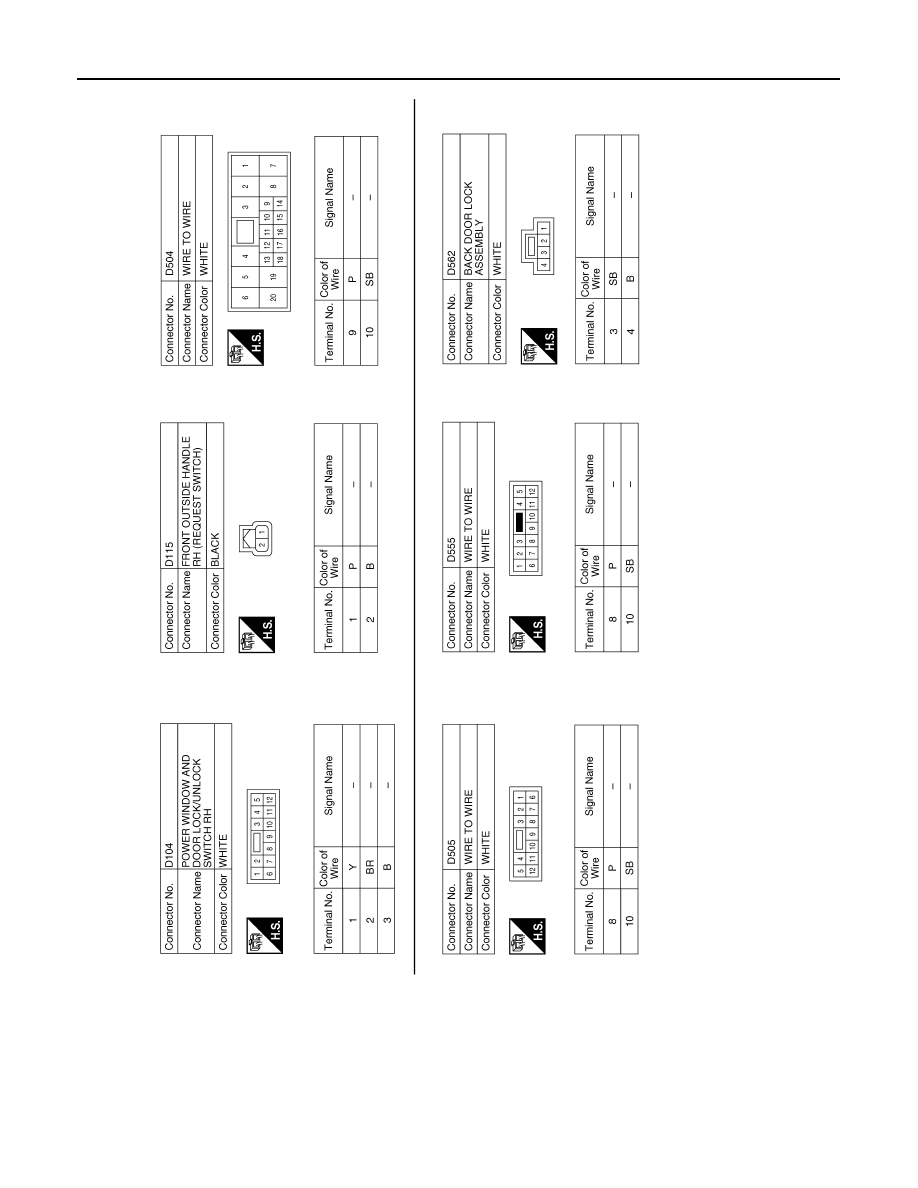

< WIRING DIAGRAM >

INTERIOR ROOM LAMP CONTROL SYSTEM

AALIA2468GB

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-27

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

AALIA2469GB

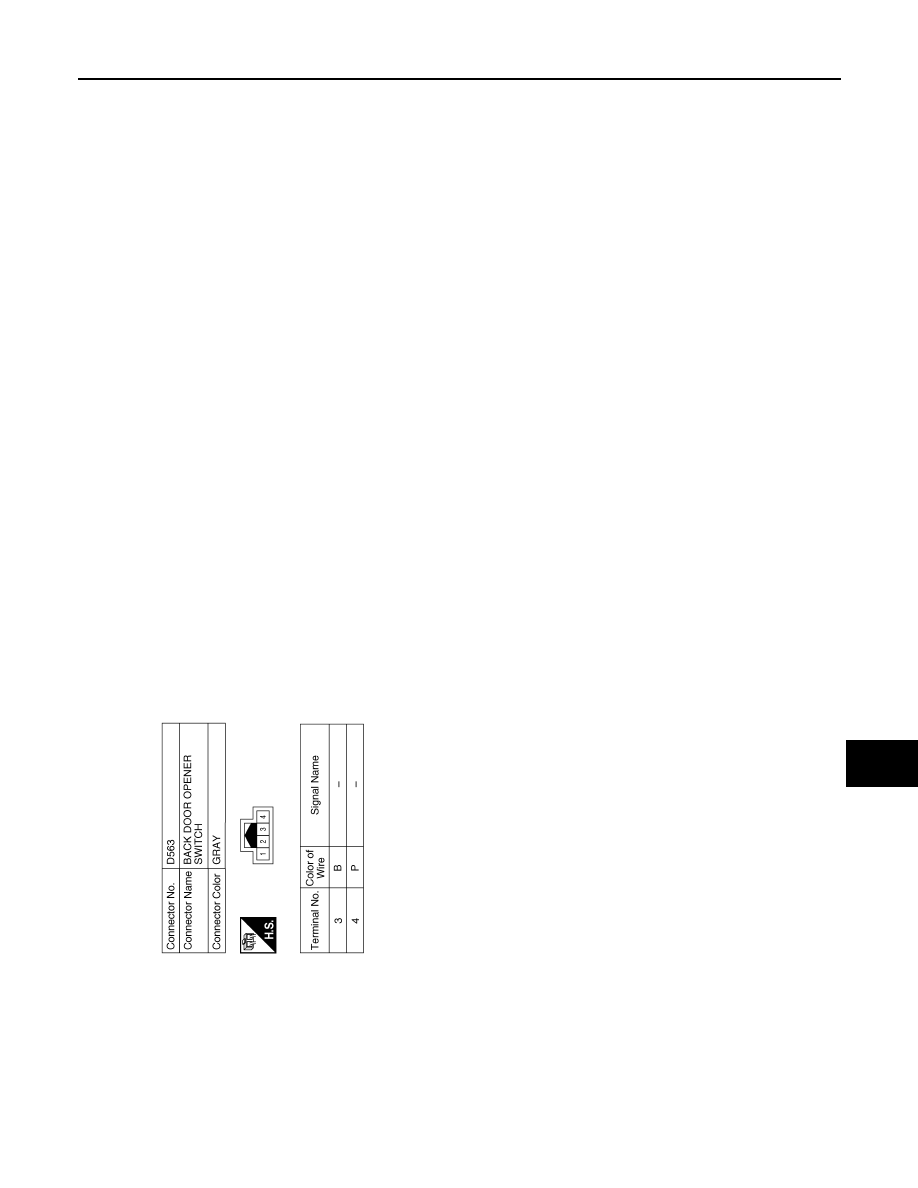

INL-28

< WIRING DIAGRAM >

ILLUMINATION

ILLUMINATION

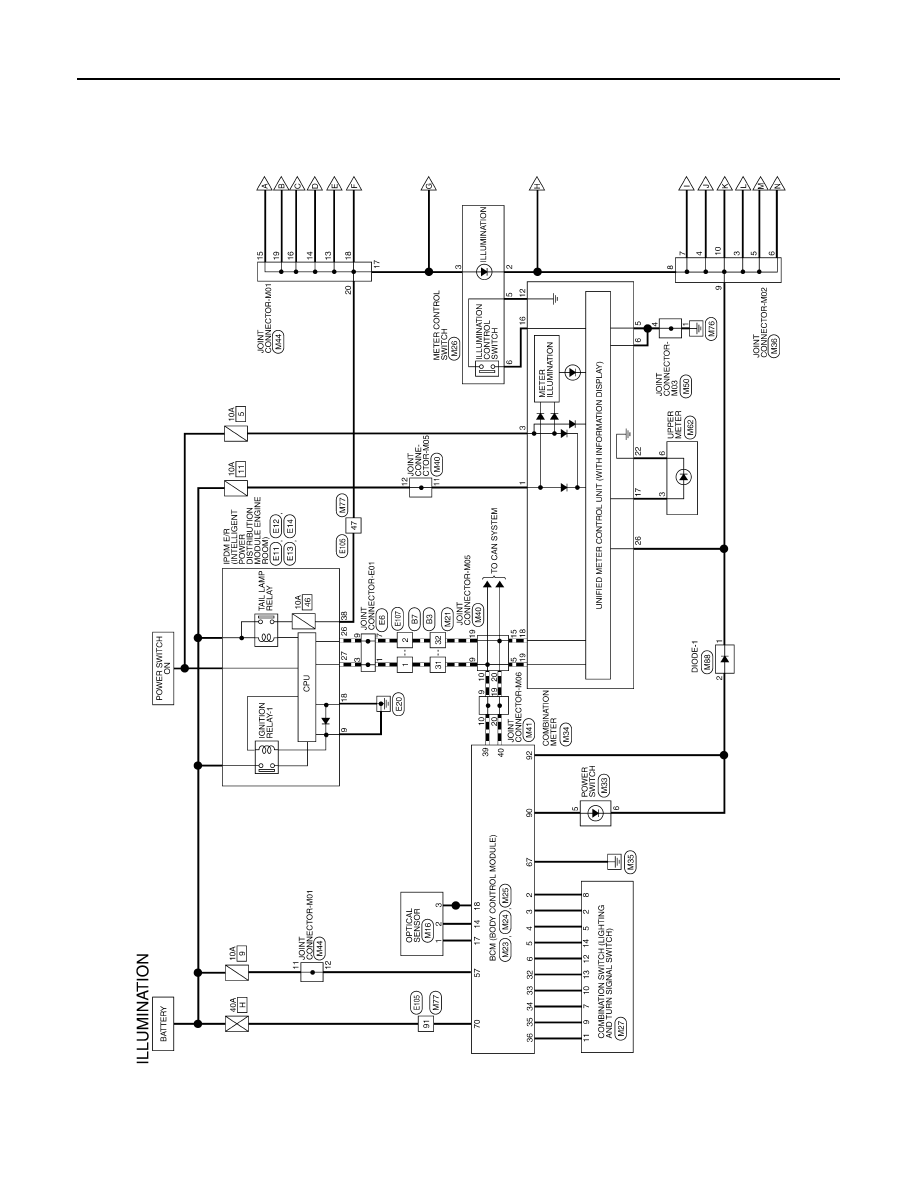

Wiring Diagram

INFOID:0000000010122270

AALWA0847GB
