HRN-4

< WIRING DIAGRAM >

HORN

WIRING DIAGRAM

HORN

Wiring Diagram

INFOID:0000000010119348

AALWA0852GB

HORN

HRN-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

AALIA2213GB

HRN-6

< WIRING DIAGRAM >

HORN

AALIA2470GB

HORN

HRN-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

REMOVAL AND INSTALLATION

HORN

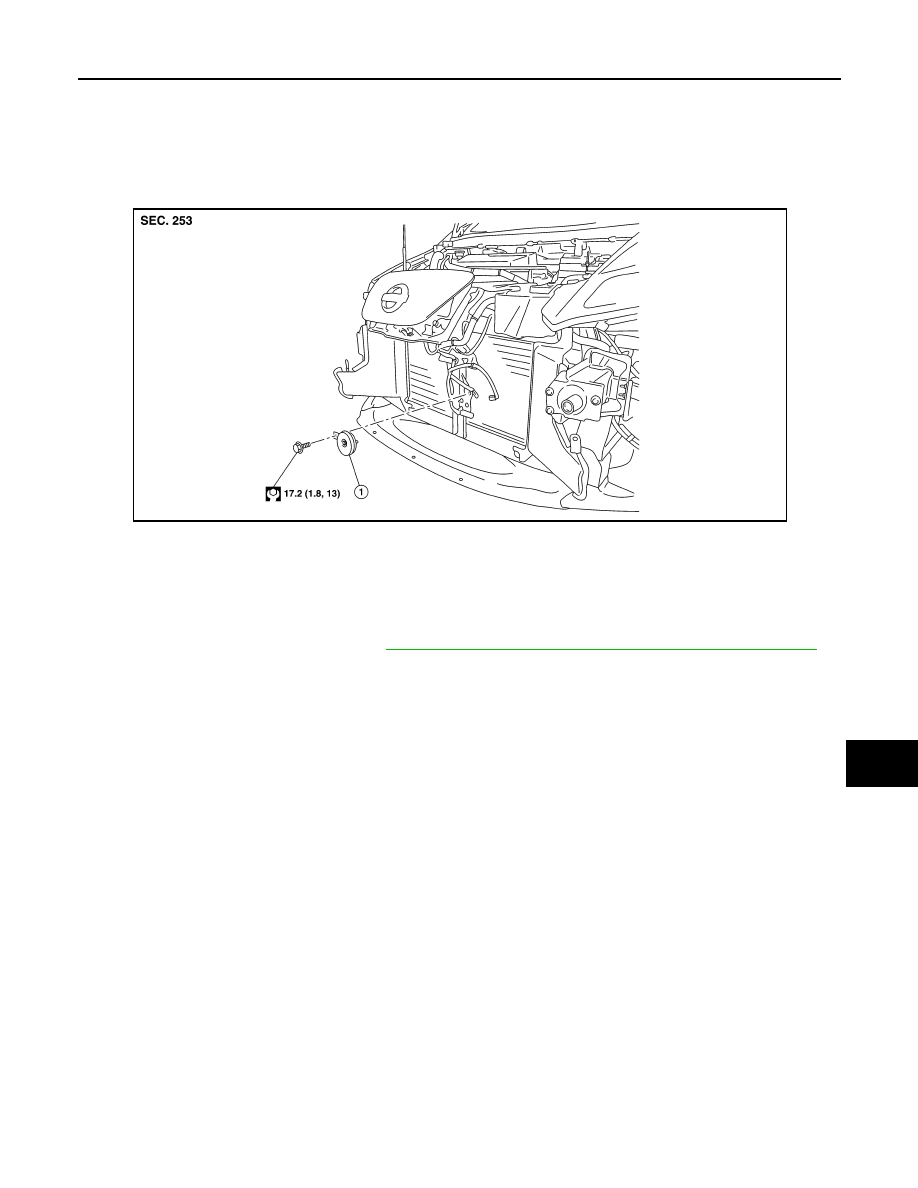

Exploded View

INFOID:0000000010119349

Removal and Installation

INFOID:0000000010119350

REMOVAL

1. Remove the front under cover. Refer to

EXT-23, "FRONT UNDER COVER : Removal and Installation"

.

2. Disconnect the horn connectors.
3. Remove the horn bolt, and the horn.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful to connect power supply harness connector and ground harness connector normally.

1.

Horn

AWLIA2114ZZ
