REMOVAL AND INSTALLATION

FRONT COIL SPRING AND STRUT

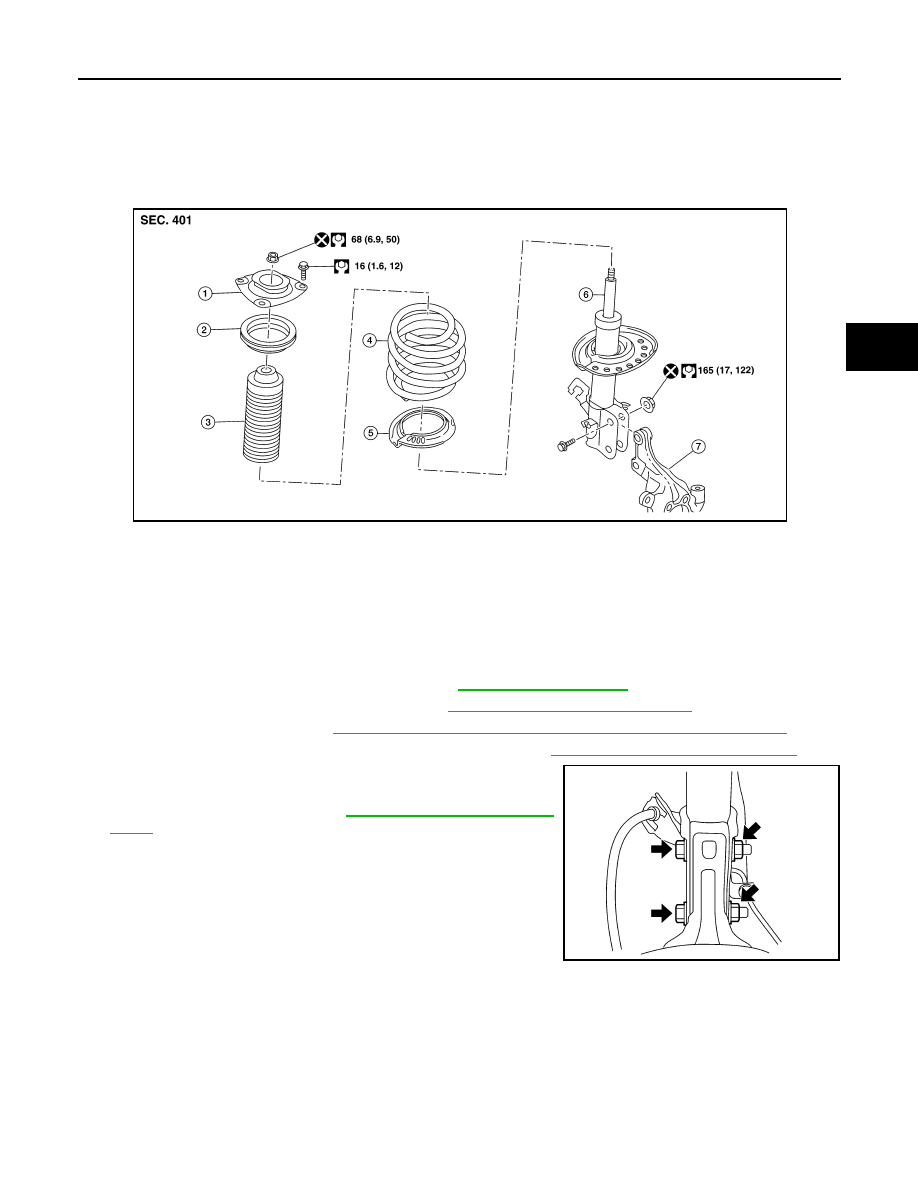

Exploded View

INFOID:0000000010119430

Removal and Installation

INFOID:0000000010119431

REMOVAL

1. Remove wheel and tire using power tool. Refer to

WT-45, "Exploded View"

.

2. Remove lock plate from strut assembly. Refer to

BR-503, "FRONT : Exploded View"

.

3. Remove wheel sensor. Refer to

BRC-158, "FRONT WHEEL SENSOR : Removal and Installation"

.

4. Remove stabilizer connecting rod from strut assembly. Refer to

FSU-19, "Removal and Installation"

.

5. Remove strut bolts and nuts from steering knuckle using power

tool.

6. Remove cowl top cover. Refer to

EXT-19, "Removal and Instal-

lation"

.

7. Remove bolt of mounting insulator, and then remove strut

assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Do not reuse strut nuts.

1.

Mounting insulator

2.

Mounting bearing

3.

Bound bumper

4.

Coil spring

5.

Lower rubber seat

6.

Strut

7.

Steering knuckle

AWEIA0317ZZ

WEIA0179E

FSU-14

< REMOVAL AND INSTALLATION >

FRONT COIL SPRING AND STRUT

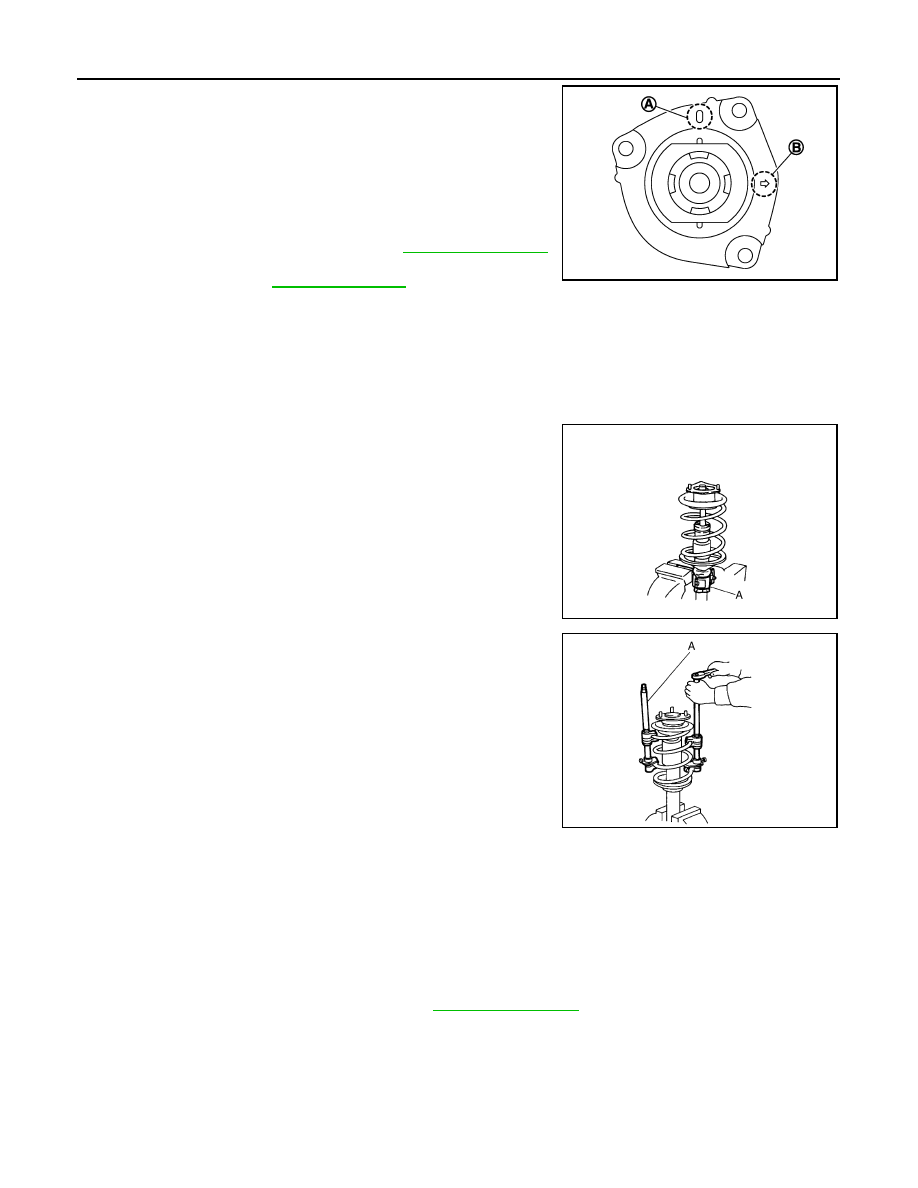

• Install strut assembly with the identification mark (A) of mounting

insulator faced forward of the vehicle and the arrow (B) faced out-

side.

NOTE:

The identification mark “0” shows the right mounting insulator and

“1” shows left.

• Perform final tightening of fixing parts at the vehicle installation

position (rubber bushing), under unladen conditions with tires on

level ground.

• Perform inspection after installation. Refer to

FSU-16, "Inspection"

.

• After replacing the strut, always follow the disposal procedure to

discard the strut. Refer to

FSU-16, "Disposal"

.

Disassembly and Assembly

INFOID:0000000010119432

DISASSEMBLY

CAUTION:

Do not damage strut assembly piston rod when removing components from strut assembly.
1. Remove the cap.
2. Install Tool (A) to strut assembly and secure it in a vise.

CAUTION:

When installing the strut attachment to strut assembly,

wrap a shop cloth around strut to protect from damage.

3. Using a spring compressor (A), compress coil spring between

spring upper seat and lower seat (strut assembly) until coil

spring with a spring compressor is free.

CAUTION:

Be sure a spring compressor is securely attached to coil

spring. Compress coil spring.

4. Check coil spring with a spring compressor between spring

upper seat and lower seat (strut assembly) is free. And then

remove piston rod lock nut while securing the piston rod tip so

that piston rod does not turn.

5. Remove mounting insulator, mounting bearing, and bound

bumper from strut.

6. After removing coil spring with a spring compressor, then gradually release a spring compressor.

CAUTION:

Loosen while making sure coil spring attachment position does not move.

7. Remove lower rubber seat.
8. Remove Tool from strut assembly.

9. Perform inspection after disassembly. Refer to

FSU-16, "Inspection"

.

ASSEMBLY

CAUTION:

Do not damage strut assembly piston rod when installing components from strut assembly.
1. Install Tool to strut and secure it in a vise.

CAUTION:

JPEIA0246ZZ

Tool number (A)

: ST35652000 ( — )

JPEIA0006ZZ

Tool number (A)

: ST35652000 ( — )

JPEIA0007ZZ

FRONT COIL SPRING AND STRUT

FSU-15

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

When installing the strut attachment to strut assembly, wrap a shop cloth around strut to protect

from damage.

2. Install lower rubber seat.
3. Compress coil spring using a spring compressor, and install it onto strut assembly.

CAUTION:

• Be sure a compressor is securely attached to coil spring. Compress coil spring.

• Be careful with the vertical direction of the coil spring.

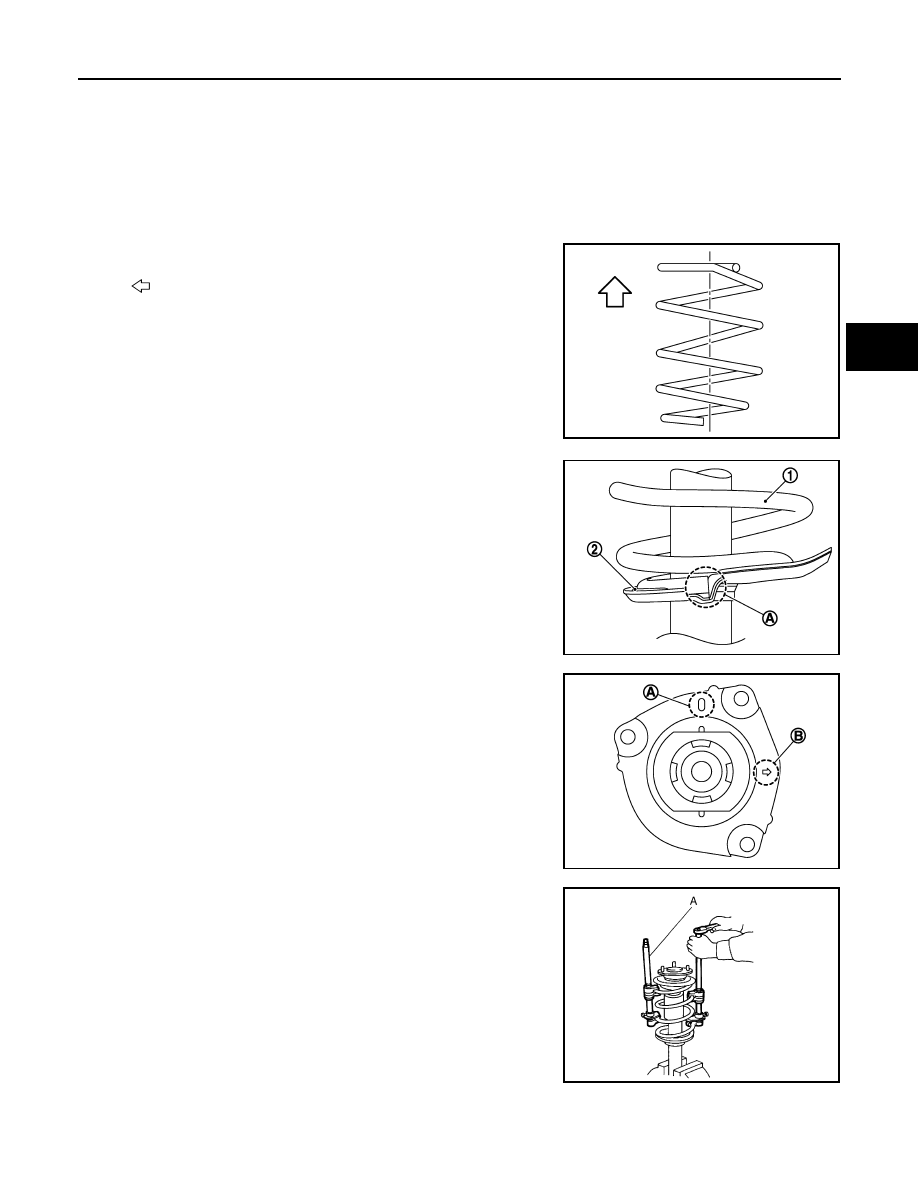

• Align the lower end of coil spring (1) with (A) of lower rub-

ber seat (2) as shown.

4. Apply soapy water to bound bumper.

CAUTION:

Do not use machine oil.

5. Insert bound bumper into mounting insulator.
6. Install mounting bearing.

CAUTION:

Do not apply oils, such as grease, when installing the

mounting bearing.

7. Check the location of identification mark (A) of the mounting

insulator and install it with the arrow (B) faced outside of the

vehicle to the strut.

NOTE:

The identification mark “0” shows right mounting insulator and

“1” shows left.

8. Secure piston rod tip so that piston rod does not turn, then

tighten piston rod lock nut with specified torque.

CAUTION:

Do not reuse piston rod lock nut.

9. Gradually release a spring compressor (A), and remove coil

spring.

CAUTION:

Loosen while making sure coil spring attachment position

does not move.

Tool number

: ST35652000 ( — )

: Upper side

JPEIA0253ZZ

JPEIA0247ZZ

JPEIA0246ZZ

JPEIA0007ZZ

FSU-16

< REMOVAL AND INSTALLATION >

FRONT COIL SPRING AND STRUT

10. Remove the Tool (A) from strut assembly.

11. Install the cap.

Inspection

INFOID:0000000010119433

INSPECTION AFTER DISASSEMBLY

Check the following items, and replace the parts if necessary.

Strut

• Strut for deformation, cracks or damage

• Piston rod for damage, uneven wear or distortion

• Oil leakage

Strut Mounting Insulator and bound bumper

Check strut mounting insulator and bound bumper for cracks, wear or damage.

Coil Spring

Check coil spring for cracks, wear or damage.

INSPECTION AFTER INSTALLATION

1. Check wheel sensor harness for proper connector. Refer to

BRC-158, "FRONT WHEEL SENSOR :

Exploded View"

.

2. Check wheel alignment. Refer to

FSU-11, "Inspection"

.

Disposal

INFOID:0000000010119434

1. Set strut assembly horizontally to the ground with the piston rod fully extracted.
2. Drill 2 – 3 mm (0.08 – 0.12 in) hole at the position ( ) from top

as shown to release gas gradually.

CAUTION:

• Wear eye protection (safety glasses).

• Wear gloves.

• Be careful with metal chips or oil blown out by the com-

pressed gas.

NOTE:

• Drill vertically in the direction show by arrow.

• Drill directly to the outer tube avoiding brackets.

• The gas is clear, colorless, odorless, and harmless.

3. Position the drilled hole downward and drain oil by moving the piston rod several times.

CAUTION:

Dispose of drained oil according to the law and local regulations.

Tool number (A)

: ST35652000 ( — )

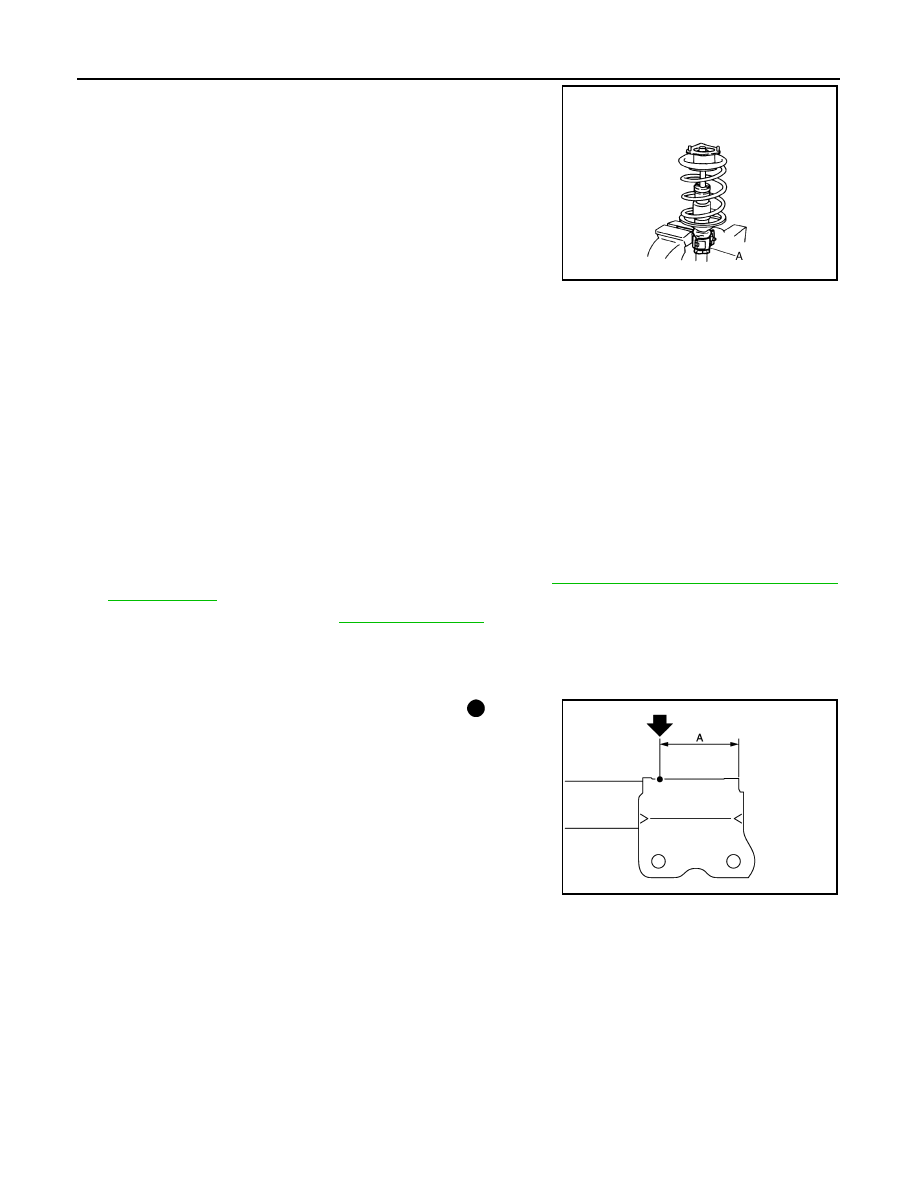

JPEIA0006ZZ

(A)

: 20 – 30 mm (0.79 – 1.18 in)

JPEIA0160ZZ
