REAR REFLEX REFLECTOR

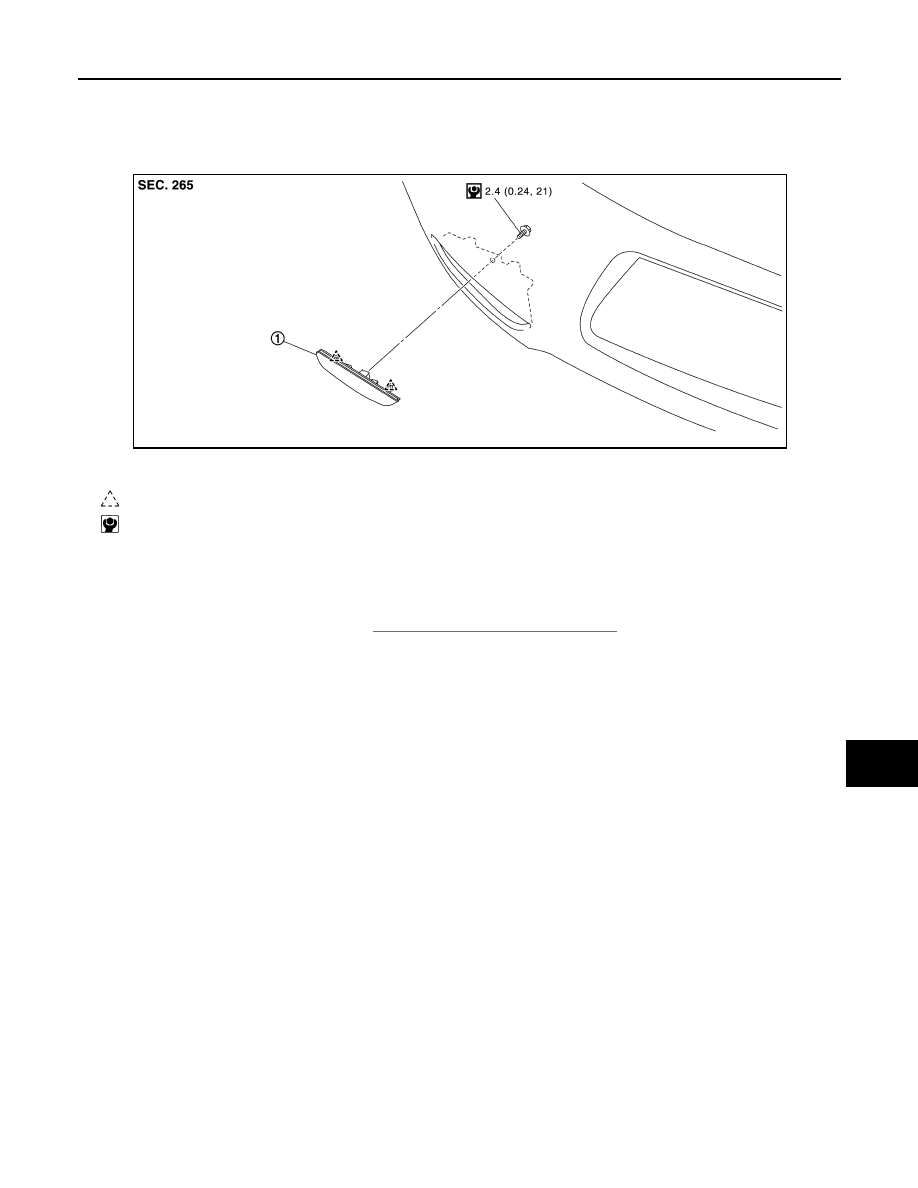

Exploded View

INFOID:0000000010121511

Removal and Installation

INFOID:0000000010121512

REMOVAL

1. Remove rear bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Remove rear reflex reflector fixing screws and disengage fixing pawls, and then remove rear reflex reflec-

tor.

INSTALLATION

Install in the reverse order of removal.

1.

Reflex refractor

: Pawl

: N·m (kg-m, in-lb)

JMLIA1664GB

EXL-282

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN HEADLAMP]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000010121513

*: Always check with the Parts Department for the latest parts info.

Item

Type

Wattage (W)*

Front combination lamp

Headlamp (HI/LOW)

H13 (Halogen)

60/55

Turn signal/Park lamp

3457NAK (Amber)

27/7

Front side maker lamp

W5W

5

Rear combination lamp

Stop lamp/Tail lamp

LED

—

Rear turn signal lamp

WY21W (Amber)

21

Back-up lamp

W16W

16

Rear side maker lamp

LED

—

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Technicians Using Medical Electric

......

2

Point to Be Checked Before Starting Maintenance
Work ..........................................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Removing 12V Battery .......................

3

Precaution for Procedure without Cowl Top Cover ......

3

Precaution for Work  ..................................................

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tools ..............................................

5

Commercial Service Tools .......................................

5

SYMPTOM DIAGNOSIS  ...............................

6

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

6

Work Flow  .................................................................

6

Inspection Procedure  ................................................

8

Diagnostic Worksheet  .............................................

10

REMOVAL AND INSTALLATION ...............

12

FRONT BUMPER  ...............................................

12

Exploded View  ........................................................

12

Removal and Installation .........................................

13

REAR BUMPER  .................................................

16

Exploded View  ........................................................

16

Removal and Installation .........................................

17

COWL TOP .........................................................

19

Exploded View  ........................................................

19

Removal and Installation .........................................

19

FENDER PROTECTOR  ....................................

21

FENDER PROTECTOR  .............................................

21

FENDER PROTECTOR : Exploded View  ...............

21

FENDER PROTECTOR : Removal and Installa-
tion ...........................................................................

21

FLOOR SIDE FAIRING  .....................................

23

FRONT UNDER COVER ............................................

23

FRONT UNDER COVER : Exploded View ..............

23

FRONT UNDER COVER : Removal and Installa-
tion ...........................................................................

23

REAR DIFFUSER  ......................................................

23

REAR DIFFUSER : Exploded View .........................

23

REAR DIFFUSER : Removal and Installation  .........

24

ROOF SIDE MOLDING  .....................................

25

Exploded View .........................................................

25

Removal and Installation  .........................................

26

DOOR SASH MOLDING  ...................................

28

Exploded View .........................................................

28

Removal and Installation  .........................................

29

DOOR OUTSIDE MOLDING  .............................

32

Exploded View .........................................................

32

Removal and Installation  .........................................

32

DOOR PARTING SEAL  ....................................

34

Exploded View .........................................................

34

Removal and Installation  .........................................

34

REAR SPOILER ................................................

35

Exploded View .........................................................

35

Removal and Installation  .........................................

36

REAR FENDER COVER  ...................................

38

Exploded View .........................................................

38

Removal and Installation  .........................................

38

EXT-2
