FRONT SIDE MARKER LAMP

EXL-269

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT SIDE MARKER LAMP

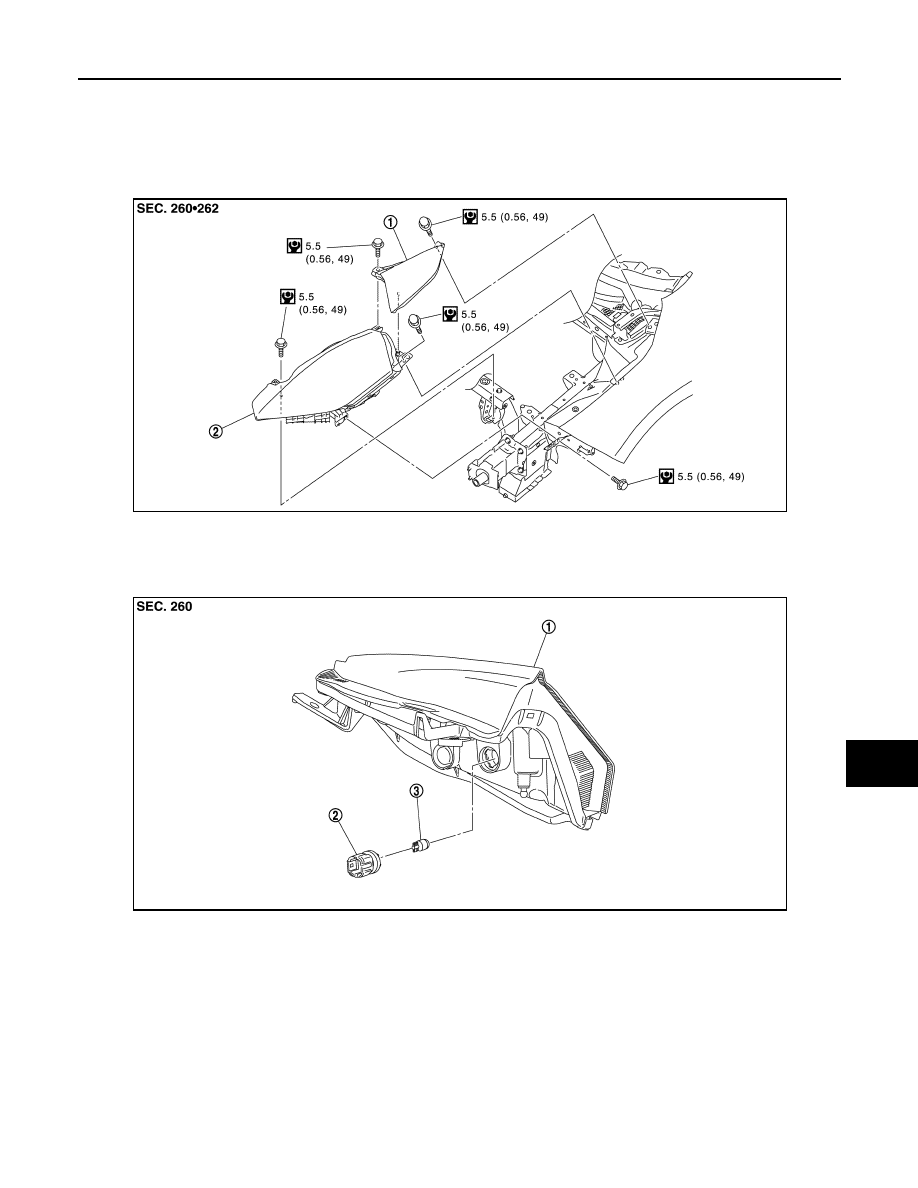

Exploded View

INFOID:0000000010121492

REMOVAL

DISASSEMBLY

REMOVAL

1. Remove front side marker lamp mounting bolts.
2. Pull up front side marker lamp and disconnect the harness connector.
3. Remove front side marker lamp.

Removal and Installation

INFOID:0000000010121493

Bulb Replacement

INFOID:0000000010121494

CAUTION:

1.

Front side marker lamp

2.

Front combination lamp

JMLIA2081GB

1.

Front side marker lamp housing

2.

Front side marker lamp bulb socket

3.

Front side marker lamp bulb

JMLIA2038ZZ

EXL-270

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

FRONT SIDE MARKER LAMP

• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it to

prevent damage to the bulb.

• Never touch bulb by hand while it is lit or right after being turned off to prevent a burns.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT SIDE MARKER LAMP BULB

1. Rotate bulb socket counterclockwise and unlock it.
2. Remove bulb from the bulb socket.

LIGHTING & TURN SIGNAL SWITCH

EXL-271

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000010121498

The lighting & turn signal switch is integrated in the combination switch. Refer to

BCS-73, "Removal and

Installation"

.

EXL-272

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

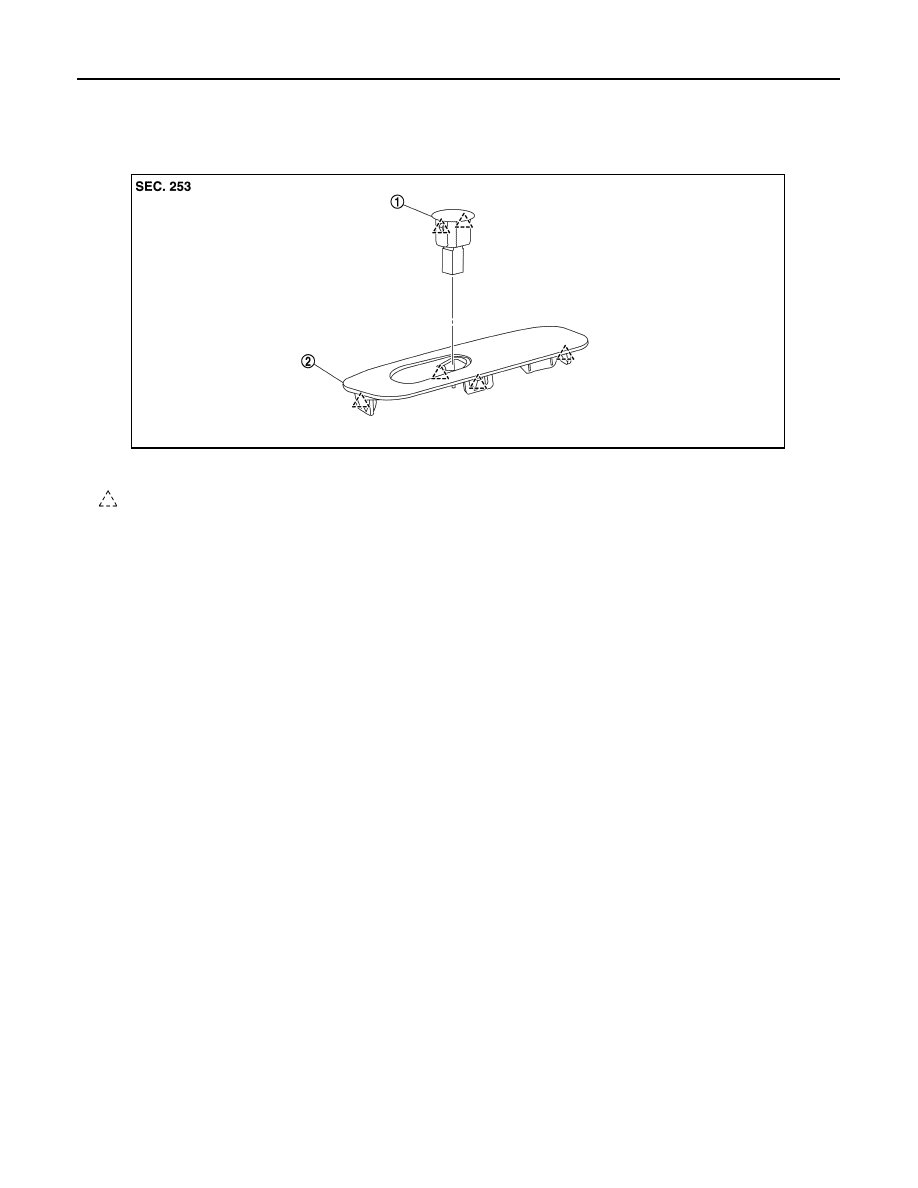

OPTICAL SENSOR

OPTICAL SENSOR

Exploded View

INFOID:0000000010121499

Removal and Installation

INFOID:0000000010121500

REMOVAL

1. Insert suitable tool between the switch panel and the instrument upper panel. Pull out the optical sensor

upward.

2. Disconnect the optical sensor connector.
3. Remove optical sensor from switch panel.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

2.

Switch panel

: Pawl

JMLIA1657ZZ
