TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-61

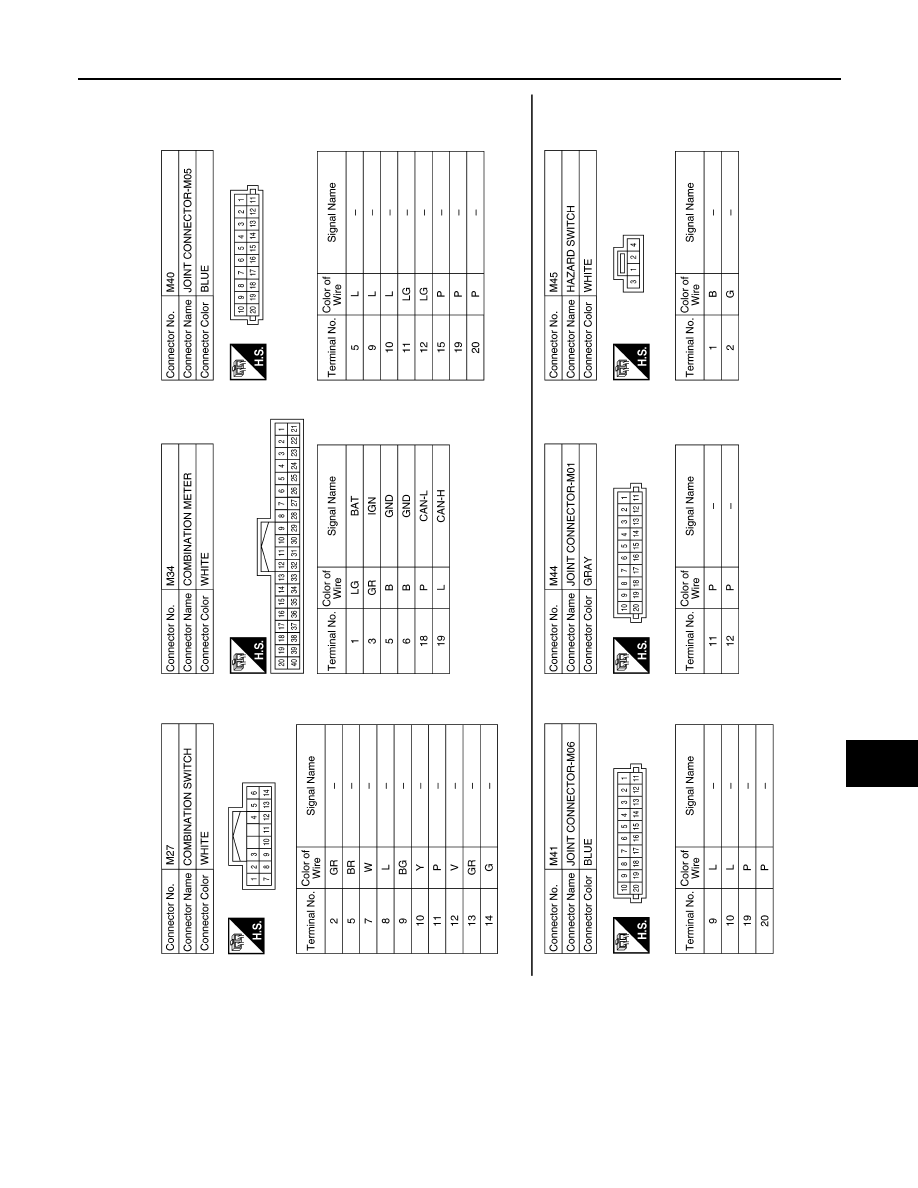

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2517GB

EXL-62

< WIRING DIAGRAM >

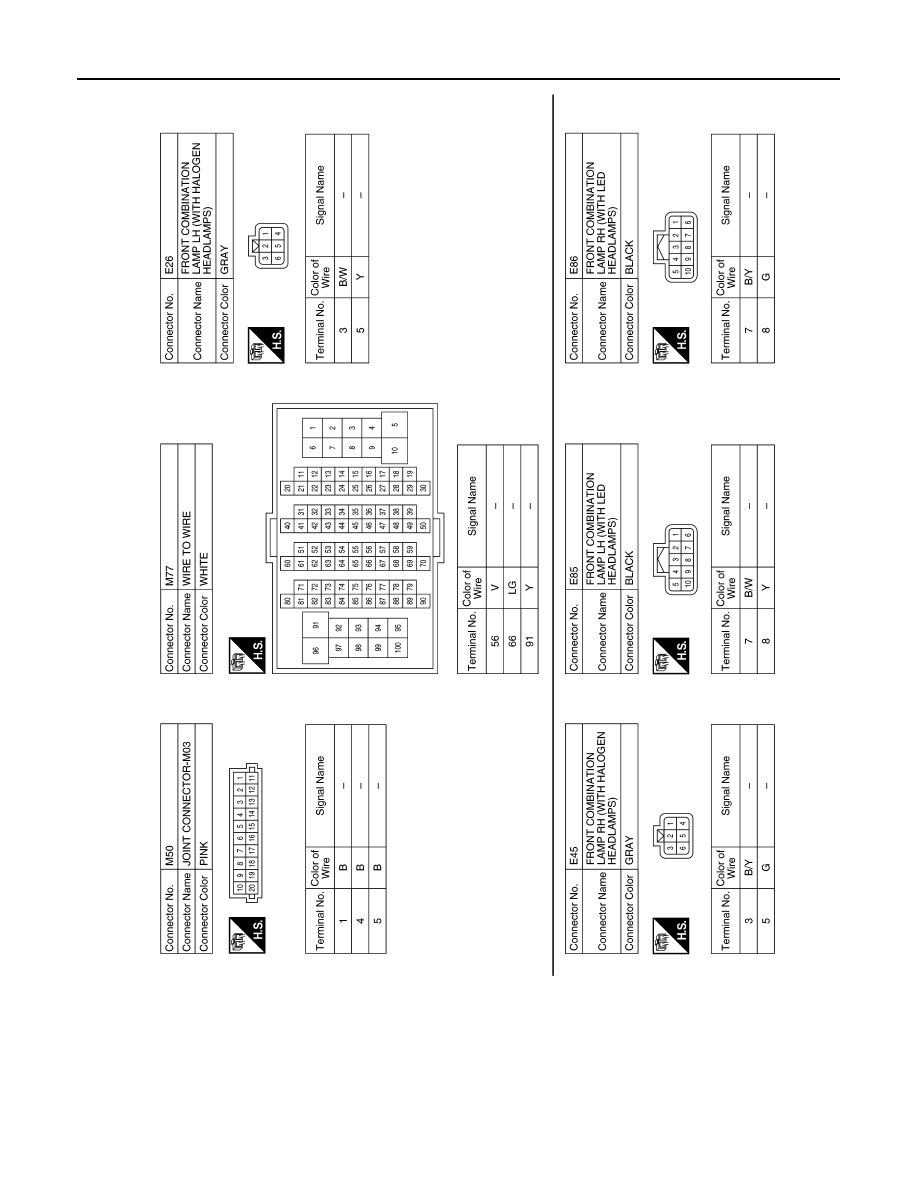

[LED HEADLAMP]

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

AALIA2518GB

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-63

< WIRING DIAGRAM >

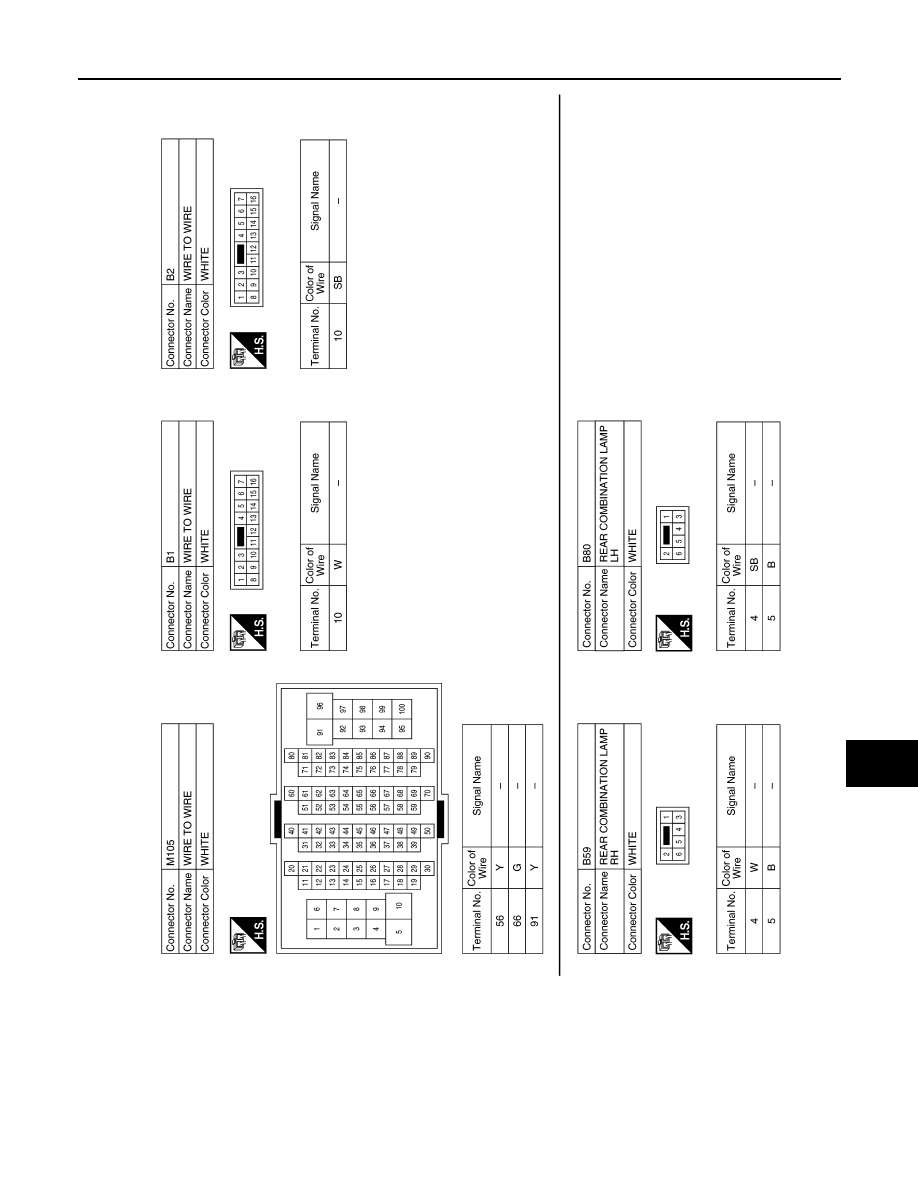

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2519GB

EXL-64

< WIRING DIAGRAM >

[LED HEADLAMP]

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

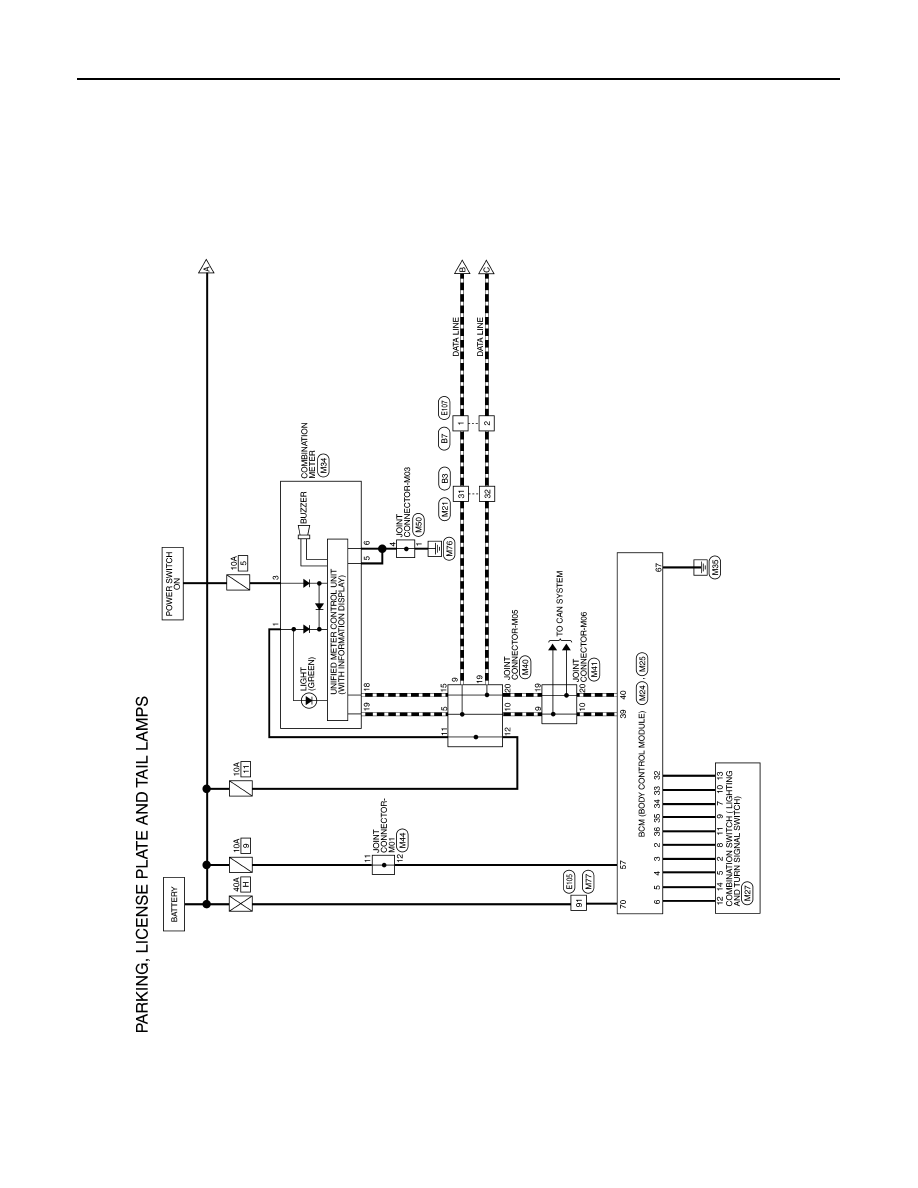

Wiring Diagram

INFOID:0000000010546097

AALWA0861GB
