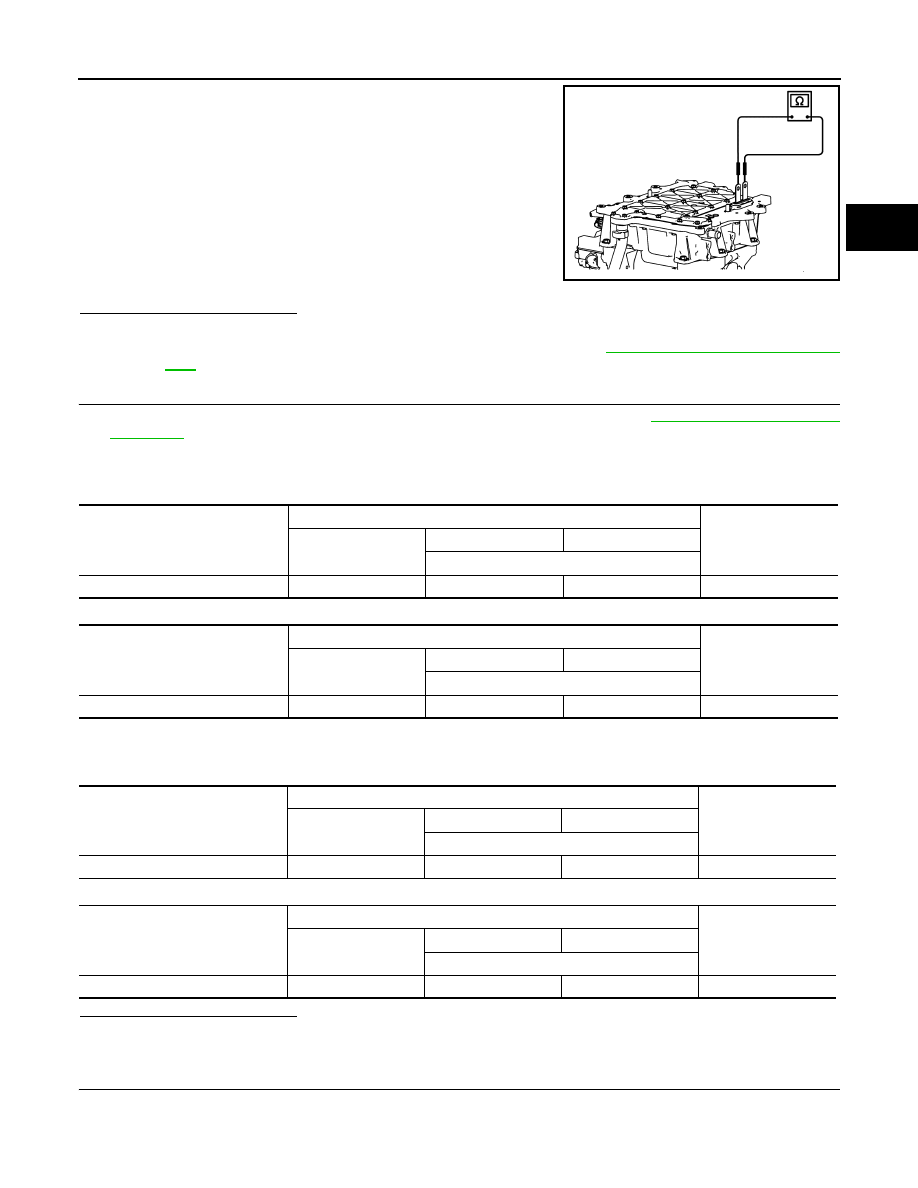

EVC-264 < DTC/CIRCUIT DIAGNOSIS > P3176 TRACTION MOTOR INVERTER CONDENSER Without heat pump system Is the inspection result normal? YES >> GO TO 4. NO >> Replace electric compressor. And then, GO TO 9. Refer to HA-37, "Removal and Installation" HA-95, "Removal and Installation" (without heat pump system). 4. CHECK PTC HEATER 1. Disconnect Li-ion battery harness connector (H19). 2. Check the short circuit between Li-ion battery terminals. With heat pump system Without heat pump system Is the inspection result normal? YES >> GO TO 5. NO >> Replace PTC heater. And then, GO TO 9. Refer to HAC-201, "Removal and Installation" (with heat pump)] or HAC-359, "Removal and Installation" [auto A/C (without heat pump)]. 5. CHECK HIGH VOLTAGE HARNESS-1 1. Disconnect Li-ion battery harness connector (H3). 2. Check the short circuit between Li-ion battery harness connector terminals. With heat pump system Without heat pump system Is the inspection result normal? YES >> The high voltage harness within Li-ion battery may be shorted. Check the related circuits. And then, GO TO 9. NO >> GO TO 6. 6. CHECK TRACTION MOTOR INVERTER 1. Remove PDM (Power Delivery Module). Refer to VC-112, "Removal and Installation" Electric compressor Resistance + − Terminal 1 3 3 k Ω or more Connected to: Li-ion battery Resistance Connector + − Terminal PTC heater H19 40 41 3 k Ω or more Connected to: Li-ion battery Resistance Connector + − Terminal PTC heater H19 40 41 3 k Ω or more Connected to: Li-ion battery Resistance Connector + − Terminal PDM (Power Delivery Module) H3 37 38 3 k Ω or more Connected to: Li-ion battery Resistance Connector + − Terminal PDM (Power Delivery Module) H3 37 38 3 k Ω or more |
