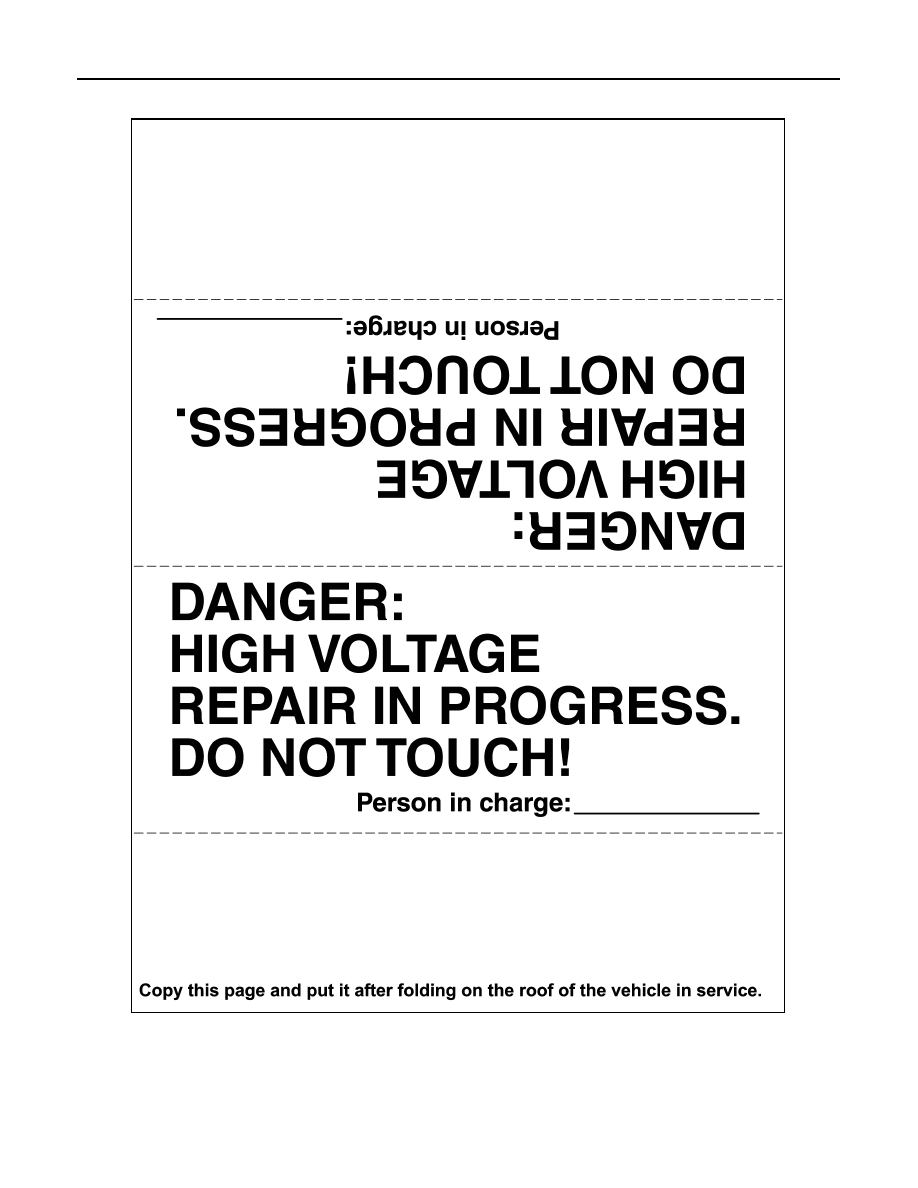

PRECAUTIONS EVB-7 < PRECAUTION > D E F G H I J K L M A B EVB N O P High Voltage Precautions INFOID:0000000010501619 WARNING: • Because hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of elec- tric shock, electric leakage, or similar accidents if the high voltage component and vehicle are han- dled incorrectly. Be sure to follow the correct work procedures when performing inspection and maintenance. • Be sure to remove the service plug in order to shut off the high voltage circuits before performing inspection or maintenance of high voltage system harnesses and parts. • To prevent the removed service plug from being connected by mistake during the procedure, always carry it in your pocket or put it in the tool box. • Be sure to wear insulating protective equipment consisting of glove, shoes, face shield, and glasses before beginning work on the high voltage system. • Clearly identify the persons responsible for high voltage work and ensure that other persons do not touch the vehicle. When not working, cover high voltage parts with an insulating cover sheet or sim- ilar item to prevent other persons from contacting them. CAUTION: There is the possibility of a malfunction occurring if the vehicle is changed to READY status while the service plug is removed. Therefore do not change the vehicle to READY status unless instructed to do so in the Service Manual. HIGH VOLTAGE HARNESS AND EQUIPMENT IDENTIFICATION The colors of the high voltage harnesses and connectors are all orange. Orange “High Voltage” labels are applied to the Li-ion battery and other high voltage devices. Do not carelessly touch these harnesses and parts. HANDLING OF HIGH VOLTAGE HARNESS AND TERMINALS Immediately insulate disconnected high voltage connectors and terminals with insulating tape. REGULATIONS ON WORKERS WITH MEDICAL ELECTRONICS WARNING: The vehicle contains parts that contain powerful magnets. If a person who is wearing a heart pace- maker or other medical device is close to these parts, the medical device may be affected by the mag- nets. Such persons must not perform work on the vehicle. PROHIBITED ITEMS TO CARRY DURING THE WORK Because this vehicle uses components that contain high voltage and powerful magnetism, do not carry any metal products which may cause short circuits, or any magnetic media (cash cards, prepaid cards, etc.) which may be damaged on your person when working. POSTING A SIGN OF “DANGER! HIGH VOLTAGE AREA. KEEP OUT” |
